Buy or Sell Carlton 4A Radial Drills
The Carlton 4A Radial Drill is a specialized machine designed for precision drilling in various materials. It features a radial arm for versatile positioning, allowing for accurate hole placement and efficient operation in industrial applications.
Check out the 16 Carlton 4A listings available for sale below!
5' -17" Carlton #4A, radial arm drill, 64" x50" base, power clamping/elevation/head traverse
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 3A3487, MODEL. 3A, AREA OF BASE. 64" X 50", SPINDLE SPEEDS. (36) 12 TO 1200 RPM, FEEDS. (18).004 TO.125 IPR, TAP LEADS. 8, 11-1/2, 14, 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER IN SPINDLE. #6MT, DISTANCE SPINDLE TO COLUMN. 13-1/4" MIN, 60" MAX, DISTANCE SPINDLE TO BASE. 14-1/2" MIN, 72" MAX ...more
6' -17" Carlton #4A, radial drill, 48" x76" base, power elevation & clamping, 15 HP, #71032
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A4227, MODEL. 4A, WORKING SURFACE OF BASE. 76" X 48", SPINDLE SPEEDS. (48) 15 TO 1500 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, 18 TPI, SPINDLE TRAVEL. 15", DIAMETER OF SPINDLE. 3", TAPER IN SPINDLE. 6MT, DISTANCE SPINDLE TO BASE. 24" MIN, 66" MAX, DISTANCE SPINDLE TO COLUMN. 14" MIN, 72" MAX ...more
6' -19" Carlton #4A, radial arm drill
Kevins Equipment Co. KEC | Houston, TX
Category: Radial Drills
Seller: Kevins Equipment Co. KEC
Location: Houston, TX
Mfr: Carlton
Model: 4A
6 X 19 CARLTON RADIAL ARM DRILL.

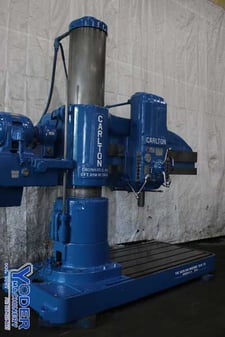

6' -19" Carlton #4A, radial drill, 76" x50" base, power elevation/clamping, 15 HP, #74022
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A3042, MODEL. 4A, AREA OF BASE. 76" X 50", SPINDLE SPEEDS. (36) 10 TO 1000 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8,11-1/2",14, 18, & 27 TPI, SPINDLE TRAVEL. 18", SPINDLE DIAMETER. 3-3/16", TAPER IN SPINDLE. #6 MT, DISTANCE SPINDLE TO BASE. 15" MINIMUM TO 70" MAXIMUM, DISTANCE SPINDLE TO COLUMN. 18" ...more

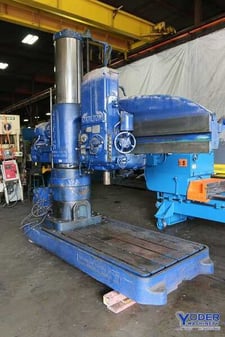

6' -19" Carlton #4A, radial arm drill, 50" x77" base, power elevation & clamping, 15 HP, #66839
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A-3829, MODEL. 4A, LENGTH OF ARM. 72", DIAMETER OF COLUMN. 19", WORKING SURFACE OF BASE. 77" X 50", SPINDLE SPEEDS. (36) 15 TO 1500 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER IN SPINDLE. #6 MT, DISTANCE SPINDLE TO COLUMN. 13-1/4" ...more
6' -19" Carlton #4A, radial arm drill, 15-1500 RPM, 20" spindle travel, 4" spindle diameter, power clamping / elevation / head traverse
Yoder Brothers Machinery | Toledo, OH
Category: Radial Drills
Seller: Yoder Brothers Machinery
Location: Toledo, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A-3009 MODEL. 4A LENGTH OF ARM. 72" DIAMETER OF COLUMN. 19" WORKING SURFACE OF BASE. 77" X 50" SPINDLE SPEEDS. (36) 15 TO 1500 RPM FEEDS. (18).004 TO.125 IPR THREADS. 8, 11-1/2, 14, 18 TPI SPINDLE TRAVEL. 20" DIAMETER OF SPINDLE. 4" TAPER IN SPINDLE. #6 MT DISTANCE SPINDLE TO COLUMN. 13-1/4" MINIMUM TO 72" ...more

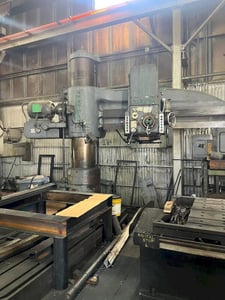

7' -19" Carlton #4A, radial arm drill, 20" stroke, 6MT taper, power head traverse, power head column clamping
G-2000 | Toledo, OH
Category: Radial Drills
Seller: G-2000
Location: Toledo, OH
Mfr: Carlton
Model: 4A
MODEL. 4A AREA OF BASE. 84" X 51" SPINDLE SPEEDS. (36) 12 TO 1200 RPM SPINDLE FEEDS. (18).004 TO.125 IPR SPINDLE STROKE. 20" TAP LEADS. 8, 11.5, 14, 18 TAPER IN SPINDLE. 6 MT DISTANCE SPINDLE CENTER TO COLUMN. 13-1/4" MIN, 6' MAX DISTANCE SPINDLE TO BASE. 14-1/2" MIN, 78" MAX POWER HEAD TRAVERSE. YES POWER HEAD ...more
7' -19" Carlton #4A, radial drill, 84" x 51" area of dual bases, 20" spinlde stroke, #6MT, 20 HP
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A-4039, MODEL. 4A, AREA OF DUAL BASES. 84" X 51", SPINDLE SPEEDS. (36) 15 - 1500 RPM, SPINDLE FEEDS. (18).004 -.125 IPR, SPINDLE STROKE. 20", TAP LEADS. 8, 11.5, 14, 18, TAPER IN SPINDLE. 6 MT, DISTANCE SPINDLE CENTER TO COLUMN. 13-1/4" MIN, 6' MAX, DISTANCE SPINDLE TO BASE. 14-1/2" MIN, 78" MAX, POWER ...more

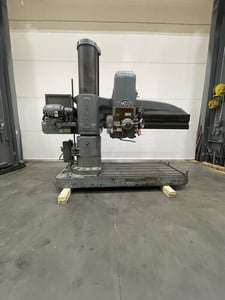

7' -19" Carlton #4A, radial arm drill
Vander Ziel Machinery Sales | Alto, MI
Category: Radial Drills
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Carlton
Model: 4A
Carlton 7′ x 19″ Radial Arm Drill, Model 4A, Asset # 17272.
8' -19" Carlton #4A, radial drill, 50" x 101" base, #6MT, #13966
Vander Ziel Machinery Sales | Alto, MI
Category: Radial Drills
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Carlton
Model: 4A
Currently Priced AS-IS – No Returns, Carlton 8’ x 19” Radial Drill, Model 4A, Serial # 4A-2802, Asset # 13966, Column Diameter 19”, Arm Length 8’, Face of Column to Center of Spindle 13 ¼” – 8’, Spindle Radius 27” – 9’ 1-3/4”, Spindle to ...more
8' -19" Carlton #4A, radial drill, 25 HP, box table, power clamp/elev/rapid traverse, 2040
N & R Machine Sales | Navasota, TX
Category: Radial Drills
Seller: N & R Machine Sales
Location: Navasota, TX
Mfr: Carlton
Model: 4A
Stock Number: D570054, Carlton 4A, Serial No. 130, Age: 1940, Condition: Fair, Arm Size 8', Column Diameter 19", Maximum Height Under Arm 84", Spindle Speeds 12 To 1,500 Rpm's, Spindle Taper # 6 Morse, Spindle Travel 24", Spindle Diameter 4", Spindle Feeds.004 To.125, Spindle Tap Leads 8, 11-1/2, 14,18, Main ...more

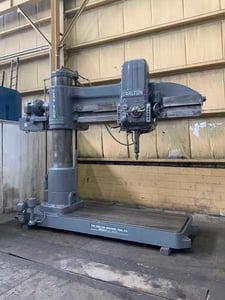

8' -19" Carlton #4A, radial arm drill, power clamping & elevation, 30 HP, coolant, #6MT
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A- 2910, MODEL. 4A, SPINDLE SPEEDS. (36) 12 TO 1200 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, & 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER. #6 MORSE TAPER, DISTANCE SPINDLE TO COLUMN. 13-1/4" MIN. TO 96" MAXIMUM, TRAVEL OF HEAR ON ARM. 82-3/4", TRAVEL OF ARM ON COLUMNS. ...more

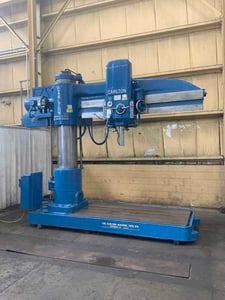

8' -19" Carlton #4A, radial arm drill, power clamping & elevation, coolant, 15 HP, #6 MT
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A-3865, MODEL. 4A, SPINDLE SPEEDS. (36) 12 TO 1200 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, & 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER. #6 MORSE TAPER, DISTANCE SPINDLE TO COLUMN. 13-1/4" MIN. TO 96" MAXIMUM, TRAVEL OF HEAR ON ARM. 82-3/4", TRAVEL OF ARM ON COLUMNS. ...more
8' -19" Carlton #4A, radial arm drill, 77" x50" base, power clamping & elevation, coolant, 1996
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
Year: 1996
SERIAL. 4A 6138, MODEL. 4A, YEAR NEW. 1996, LENGTH OF ARM. 96", DIAMETER OF COLUMN. 19", WORKING SURFACE OF BASE. 77" X 50", SPINDLE SPEEDS. (36) 15 TO 1500 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER IN SPINDLE. #6 MT, DISTANCE SPINDLE TO BASE. ...more

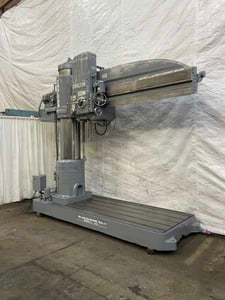

8' -19" Carlton #4A, radial arm drill, 89" x50" base, #6MT, power clamping & elevation, 40 HP, 1980
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
Year: 1980
SERIAL. 4A 5904, MODEL. 4A, YEAR NEW. 1980, AREA OF BASE. 89" X 50", SPINDLE SPEEDS. (36) 12 TO 1200 RPM, FEEDS. (18).004 TO.125 IPR, THREADS. 8, 11-1/2, 14, & 18 TPI, SPINDLE TRAVEL. 20", DIAMETER OF SPINDLE. 4", TAPER. #6 MORSE TAPER, DISTANCE SPINDLE TO COLUMN. 13-1.4" MIN. TO 96" MAXIMUM, TRAVEL OF HEAR ON ...more
Natco Carlton #4A drill head, head power clamp, serial #4A-6136, #56061
Yoder Machinery Sales | Holland, OH
Category: Drill Tooling
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Carlton
Model: 4A
SERIAL. 4A-6136, MODEL. 4A, SPINDLE SPEEDS. 15 - 1500, HEAD POWER CLAMP.
