For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

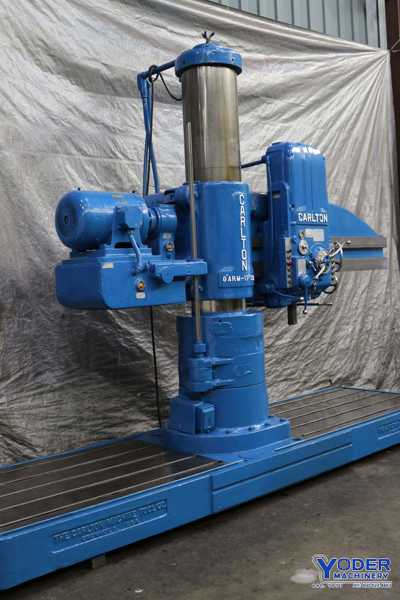

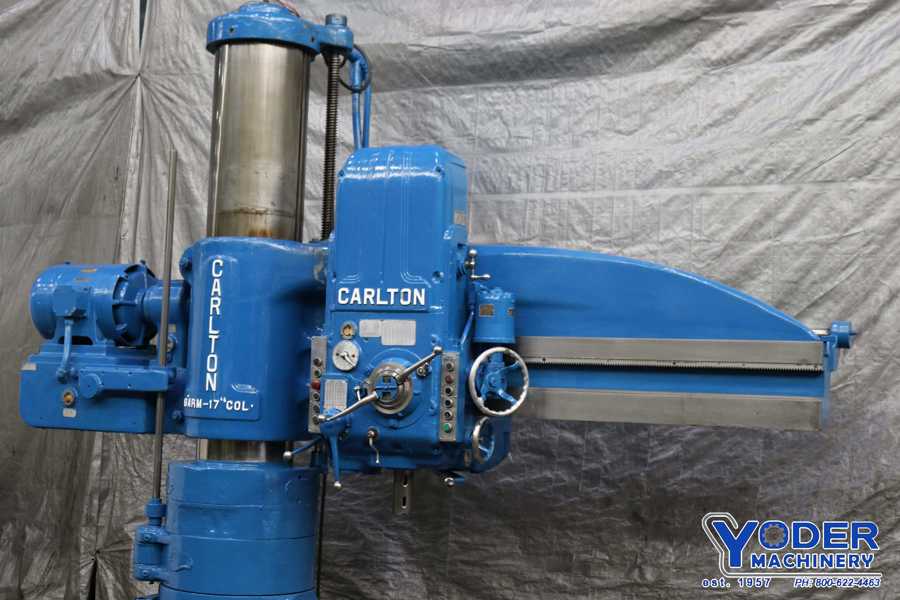

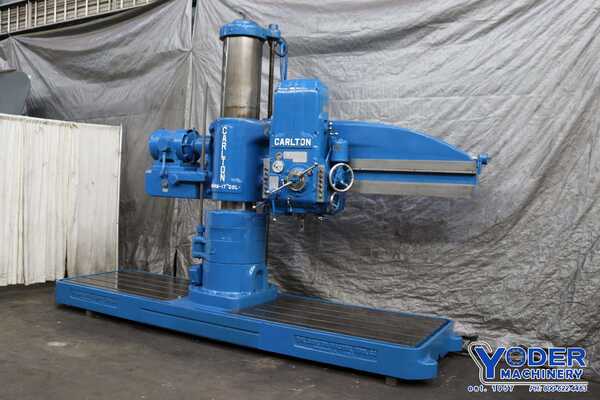

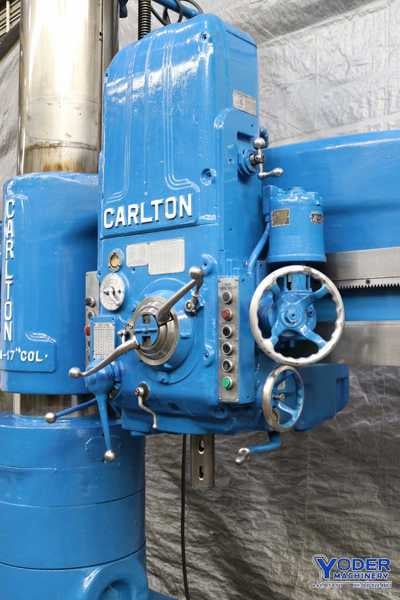

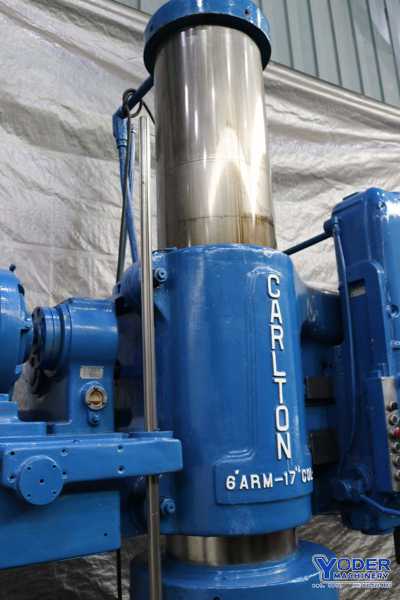

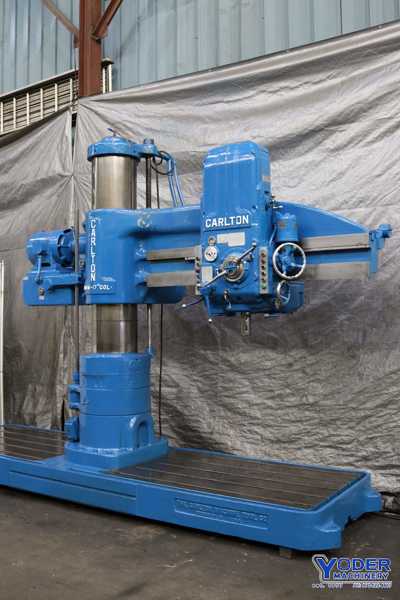

Description
SERIAL ................................. 4A4227
MODEL .................................. 4A

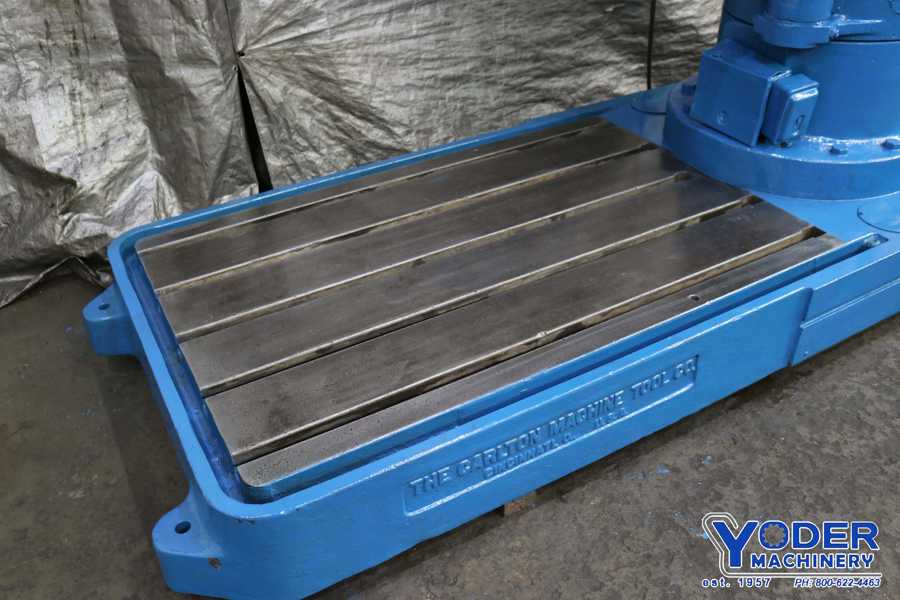

WORKING SURFACE OF BASE ................ 76" X 48"
SPINDLE SPEEDS ......................... (48) 15 TO 1500 RPM
FEEDS .................................. (18) .004 TO .125 IPR
THREADS ................................ 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ......................... 15"
DIAMETER OF SPINDLE .................... 3"
TAPER IN SPINDLE ....................... 6MT
DISTANCE SPINDLE TO BASE ............... 24" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............. 14" MIN, 72" MAX
TRAVEL OF HEAD ON ARM .................. 58"
TRAVEL OF ARM ON COLUMN ................ 42"
POWER COLUMN CLAMP ..................... YES
POWER HEAD TRAVERSE .................... YES
POWER ELEVATION ........................ YES

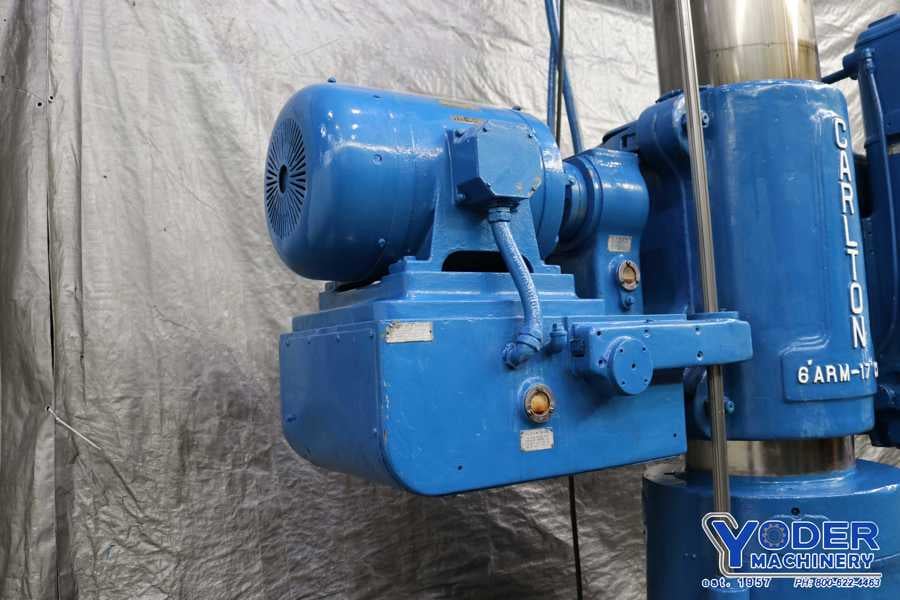

MOTOR .................................. 15 HORSEPOWER
MODEL .................................. 4A
WORKING SURFACE OF BASE ................ 76" X 48"
SPINDLE SPEEDS ......................... (48) 15 TO 1500 RPM
FEEDS .................................. (18) .004 TO .125 IPR
THREADS ................................ 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ......................... 15"
DIAMETER OF SPINDLE .................... 3"
TAPER IN SPINDLE ....................... 6MT
DISTANCE SPINDLE TO BASE ............... 24" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............. 14" MIN, 72" MAX
TRAVEL OF HEAD ON ARM .................. 58"
TRAVEL OF ARM ON COLUMN ................ 42"
POWER COLUMN CLAMP ..................... YES
POWER HEAD TRAVERSE .................... YES
POWER ELEVATION ........................ YES
MOTOR .................................. 15 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
