Description
Stock Number: D570054

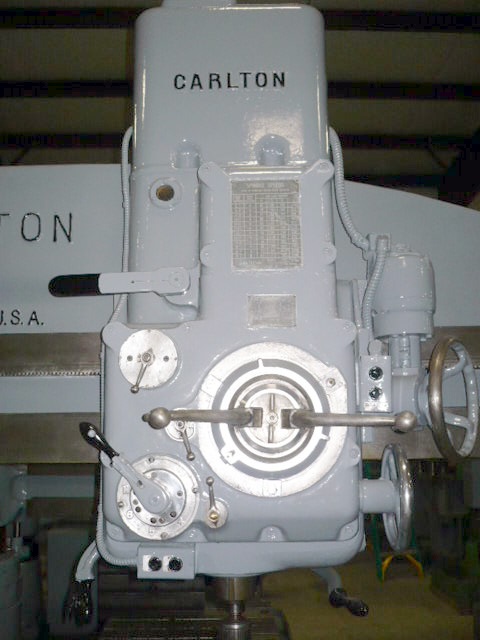

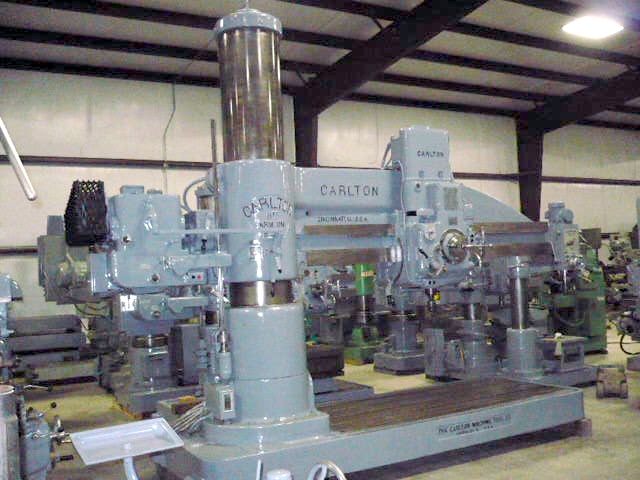

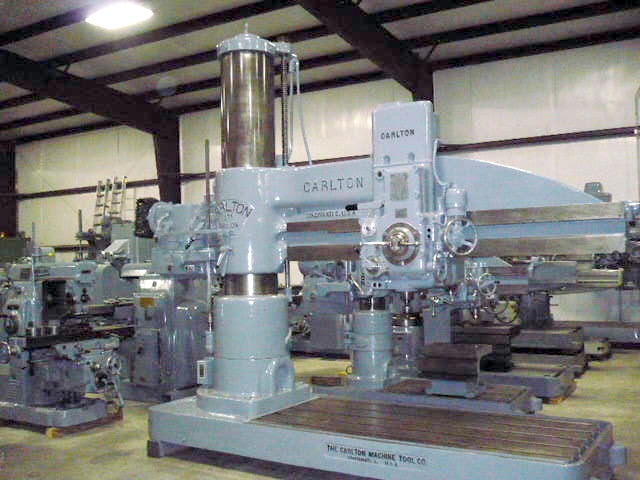

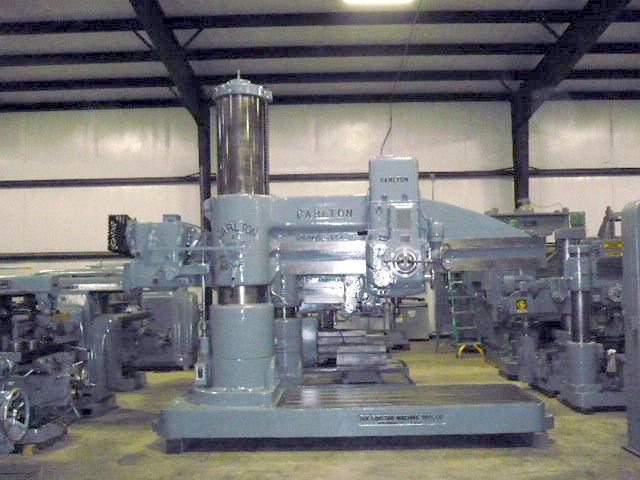

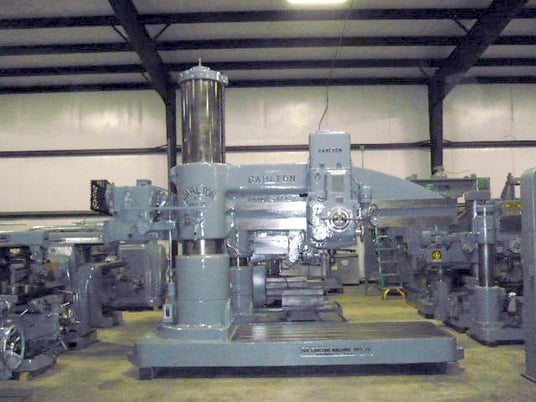

Carlton 4A
Serial No. 130
Age: 1940
Condition: Fair
Specification
Arm Size 8'
Column Diameter 19"
Maximum Height Under Arm 84"
Spindle Speeds 12 To 1,500 Rpm's
Spindle Taper # 6 Morse
Spindle Travel 24"
Spindle Diameter 4"
Spindle Feeds .004 To .125
Spindle Tap Leads 8, 11-1/2, 14,18
Main Motor 25 Hp.
Weight 30,000 Lbs
Height 11'
Working T- Slotted Base 56" X9' X 12"
Power Clamp Yes
Power Elevation Yes
Power Rapid Traverse To Head Yes
Push Button Controls Yes
Box Table Yes
Coolant Yes
Note: Just Removed From Service. Column Has
Some Scoring. Machine Run Out Good.
Condition: Fair.
Carlton 4A
Serial No. 130
Age: 1940
Condition: Fair
Specification
Arm Size 8'
Column Diameter 19"
Maximum Height Under Arm 84"
Spindle Speeds 12 To 1,500 Rpm's
Spindle Taper # 6 Morse
Spindle Travel 24"
Spindle Diameter 4"
Spindle Feeds .004 To .125
Spindle Tap Leads 8, 11-1/2, 14,18
Main Motor 25 Hp.
Weight 30,000 Lbs
Height 11'
Working T- Slotted Base 56" X9' X 12"
Power Clamp Yes
Power Elevation Yes
Power Rapid Traverse To Head Yes
Push Button Controls Yes
Box Table Yes
Coolant Yes
Note: Just Removed From Service. Column Has
Some Scoring. Machine Run Out Good.
Condition: Fair.
Get Your Price from N & R Machine Sales!
