For Sale by Yoder Brothers Machinery
Surplus Record Dealer Since 1960
Location: Toledo, OH
Contact Ryan Yoder
Phone Number: 419...> Show Phone Number 419-269-2000
Let the seller know you found their listing on Surplus Record!

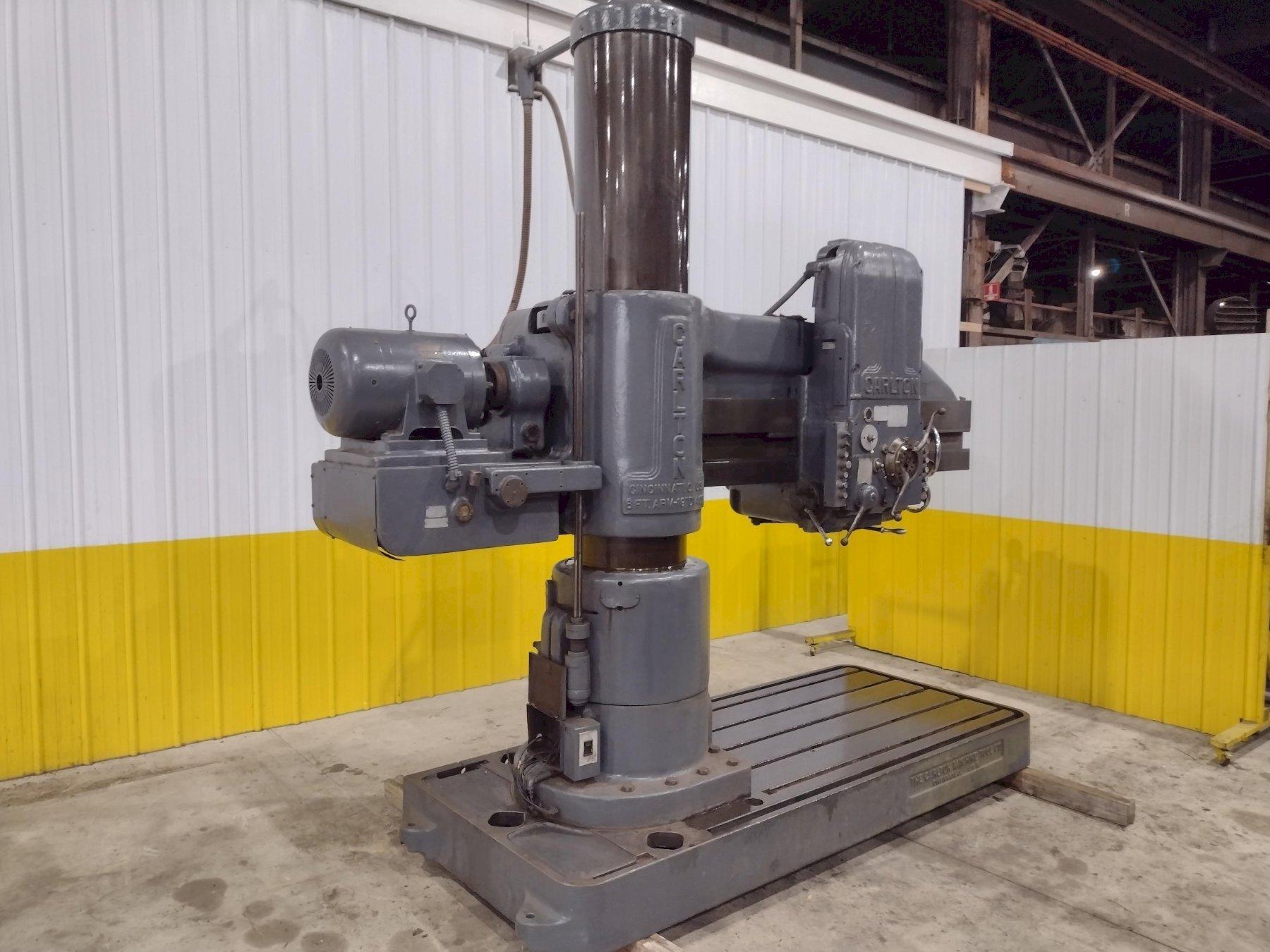

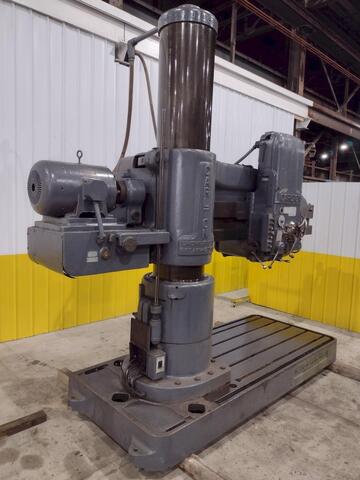

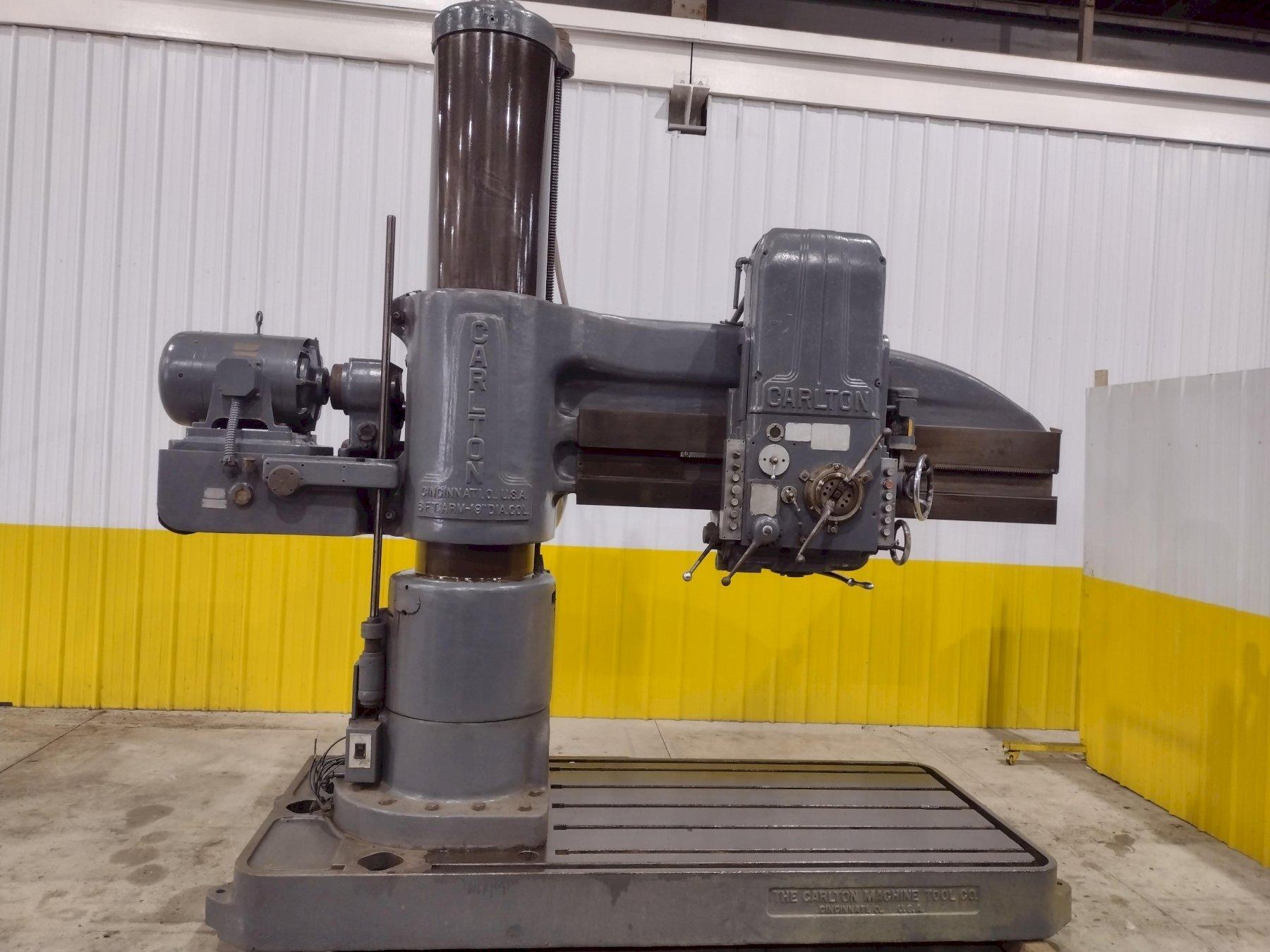

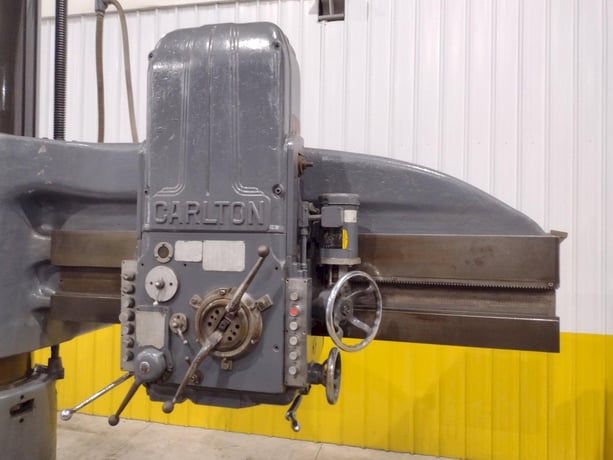

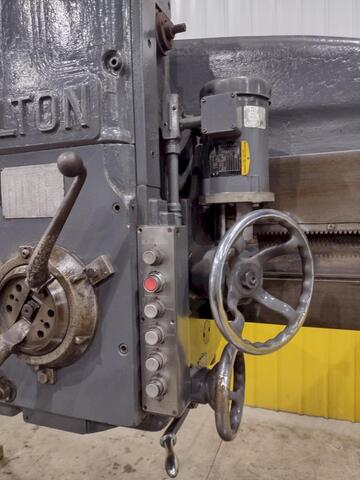

Description
SERIAL ....................... 4A-3009
MODEL ........................ 4A
LENGTH OF ARM ................ 72"
DIAMETER OF COLUMN ........... 19"
WORKING SURFACE OF BASE ...... 77" X 50"
SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM
FEEDS ........................ (18) .004 TO .125 IPR
THREADS ...................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ............... 20"

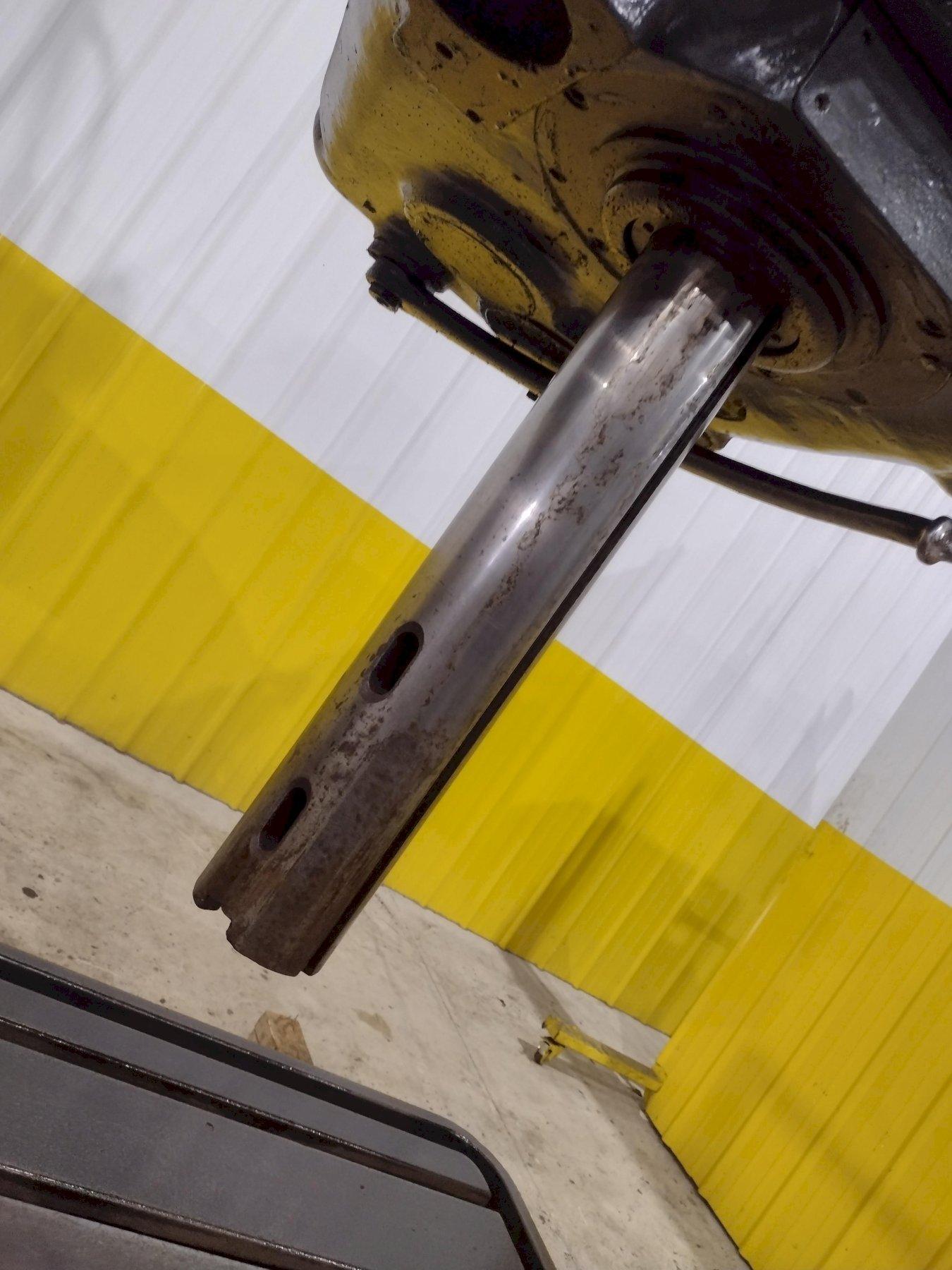

DIAMETER OF SPINDLE .......... 4"
TAPER IN SPINDLE ............. #6 MT
DISTANCE SPINDLE TO COLUMN ... 13-1/4" MINIMUM TO 72" MAXIMUM
TRAVEL ARM ON COLUMN ......... 46"
TRAVEL HEAD ON ARM ........... 59"

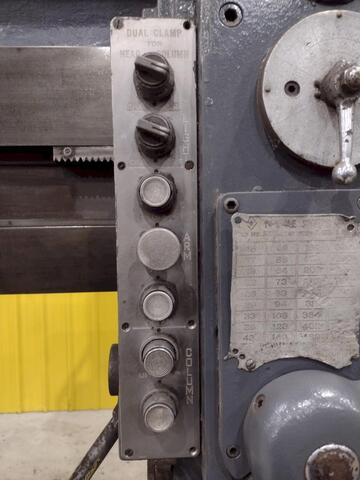

POWER CLAMPING ............... YES
POWER ELEVATION .............. YES
POWER HEAD TRAVERSE .......... YES
COOLANT ...................... YES
MOTOR ........................ 15 HORSEPOWER
Get Your Price from Yoder Brothers Machinery!
