Machinery & Equipment > Drills > Radial Drills

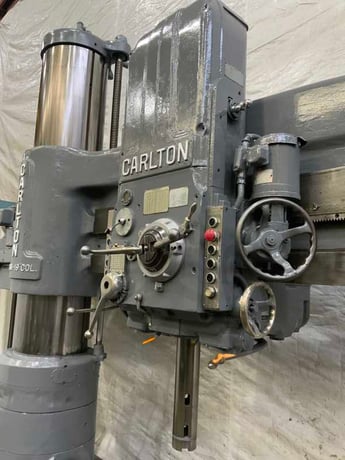

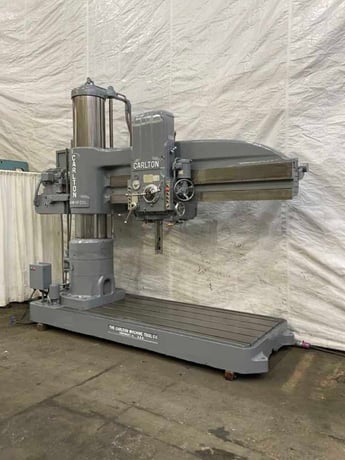

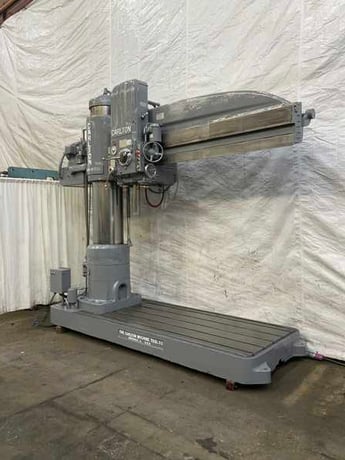

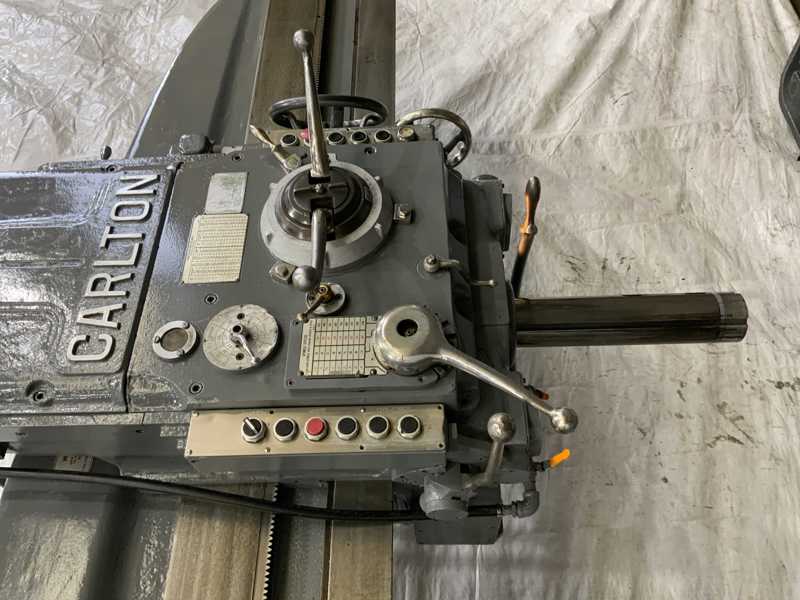

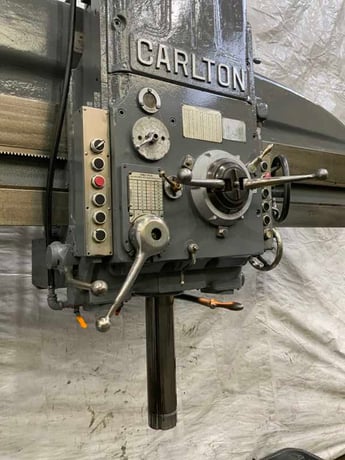

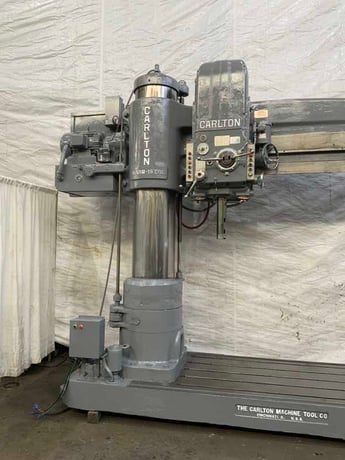

8' -19" Carlton #4A, radial arm drill, 89" x50" base, #6MT, power clamping & elevation, 40 HP, 1980

Manufacturer: Carlton
Model: 4A
Year: 1980
Arm': 8.0

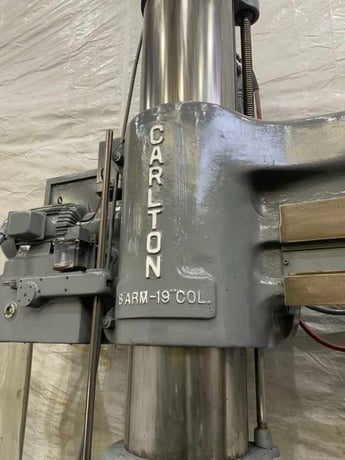

Column: 19.0
Stock # 79056

For Sale by Yoder Machinery Sales

Surplus Record Dealer Since 1960
Platinum Level Dealer
Location: Holland, OH
Contact Sales
Let the seller know you found their listing on Surplus Record!

Description

SERIAL ........................... 4A 5904

MODEL ............................ 4A

YEAR NEW ......................... 1980

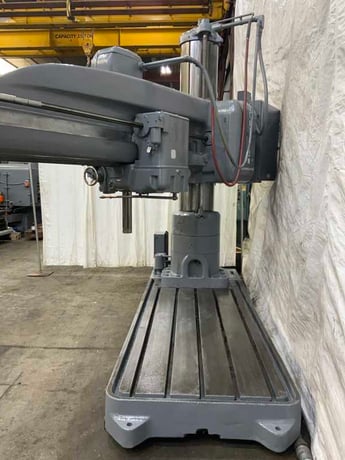

AREA OF BASE ..................... 89" X 50"

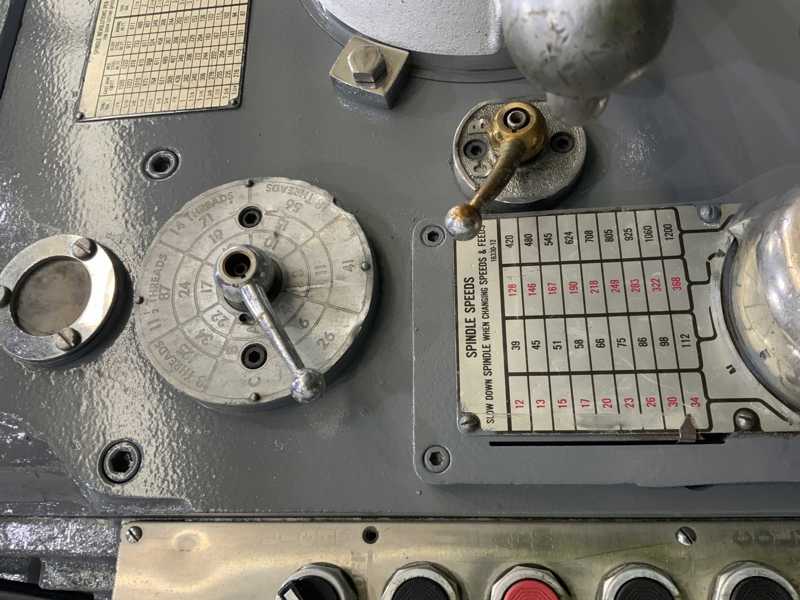

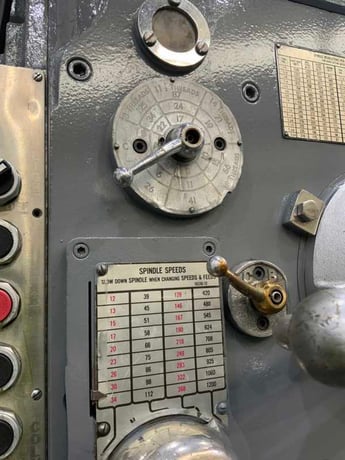

SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM

FEEDS ............................ (18) .004 TO .125 IPR

THREADS .......................... 8, 11-1/2, 14, & 18 TPI

SPINDLE TRAVEL ................... 20"

DIAMETER OF SPINDLE .............. 4"

TAPER ............................ #6 MORSE TAPER

DISTANCE SPINDLE TO COLUMN ....... 13-1.4" MIN. TO 96" MAXIMUM

TRAVEL OF HEAR ON ARM ............ 82-3/4"

TRAVEL OF ARM ON COLUMNS ......... 43-1/2

POWER ARM CLAMPING ............... YES

POWER HEAD TRAVEL ................ YES

POWER ELEVATION .................. YES

COOLANT .......................... YES

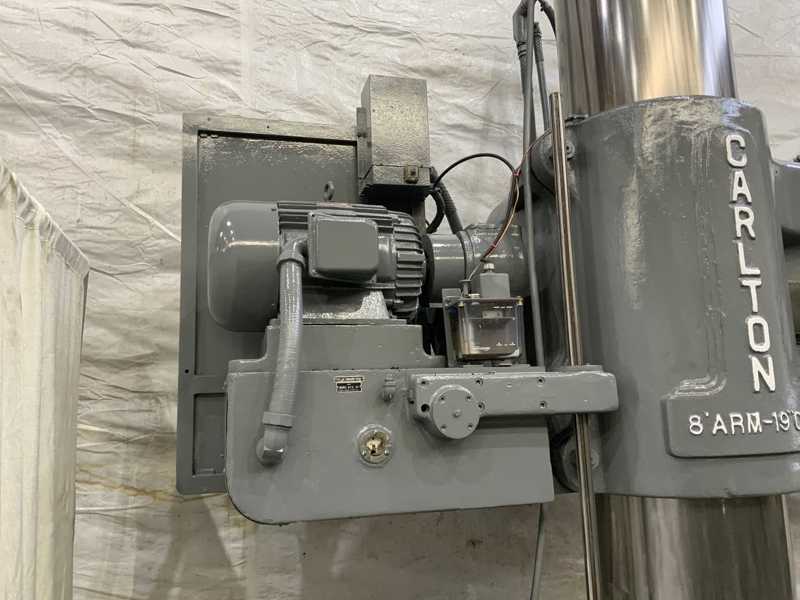

MOTOR ............................ 40 HORSEPOWER


Get Your Price from Yoder Machinery Sales!
