Description
Materials: CRS, SS, Aluminum
Coil Width Range: 24" - 96"
Thickness Range @ 96": 0.125" - 0.375" Aluminum @ 35,000 PSI
0.125" - 0.250" Aluminum @ 55,000 PSI
0.125" - 0.312" SS @ 40,000 PSI
0.125" - 0.250" SS @ 70,000 PSI
Maximum Shear: 50,000 PSI
Maximum Yield: 80,000 PSI
Maximum Coil Weight: 40,000 lbs.
Coil I.D.: 20" - 30"
Maximum Coil O.D.: 80"
Line Direction: Left to Right
Sheet Length: 24" - 50'
Max. Sheet Weight: Start / Stop
Line Speed: 0 - 100 FPM
Overall Line Dimensions: 40' Wide x 200' Long
Consisting of the following:
-Entry Coil Storage Saddles
Five (5) Stations x 40,000# Each Station
-Entry Coil Lift
Shallow Pit Mounted
Powered lift
-Uncoiler
Dual Stub Mandrel Type
Powered Expansion/ each head
AC Feed-up Drive/ one head
Slide Base/ each head
Eaton 224 Water Cooled Brake/ one head
Paper Rewinder
Water Chiller for brake- Hiross
-Entry Unit
Holddown with Powered Snubber Roll
Extending Blade Type Peeler

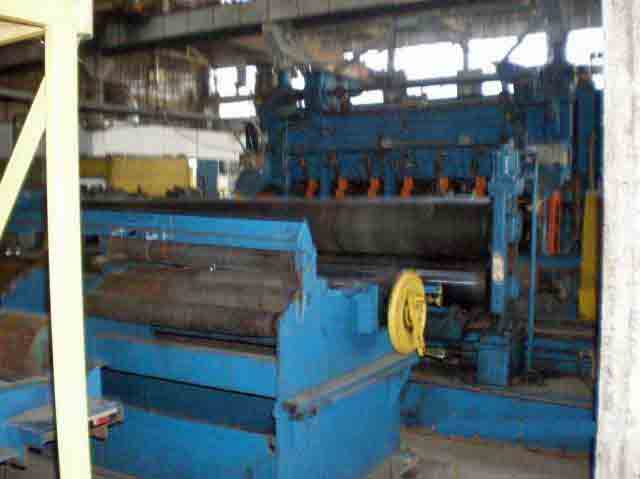

-Flattener- Voss Engineering
Powered Entry Pinch Rolls (Top Adjustable)
Entry Tail Roll (Idler)
Seven (7) Work Rolls in a 3/4 Configuration (Top bank Adjustable with
"Tilt" feature)
75 HP DC Motor (1750 RPM)
Exit Tail Roll (Idler)
-Crop Shear
Down-cut Type
Entry Pass Line Roll (Rubber Coated)
Lip Guard
Exit Pass-line Roll (Rubber Coated)
Scrap Cart
-Inspection Table
-Exit Guide Table
Exit Cantenary Rolls
Manual Centering Guides

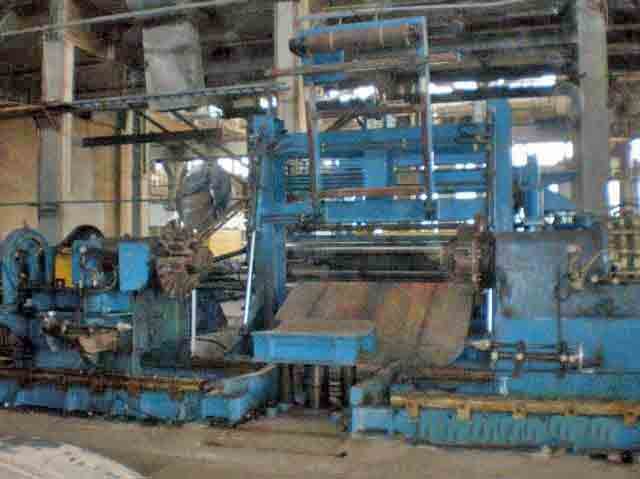

-Scrap System
Powered Entry Pinch Rolls (Top Roll is Rubber Coated)
Dual Stub Side Trimmers (25 HP DC Motor/ Each Head)
Dual Scrap Choppers (10HP DC Motor/ Each Head)
Scrap Shute
Powered Scrap Conveyor
Feed Table to Leveler

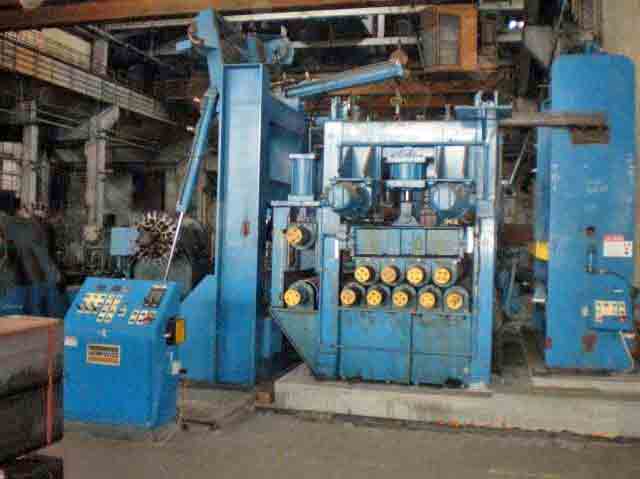

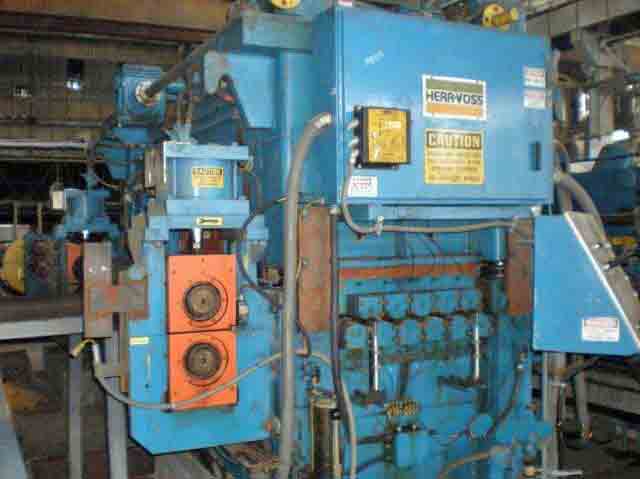

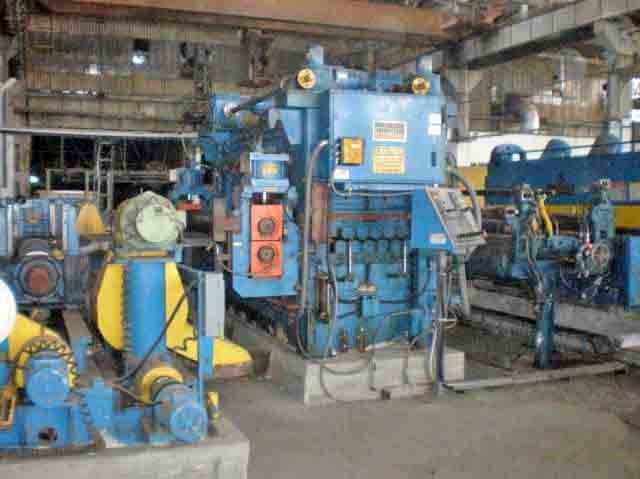

-Precision Leveler (New in 1992)
Model: VKL LH PR 110/4.500-11/7, 5HI
Powered Entry Pinch Rolls (Top Adjustable)
Eleven (11) Work Rolls x 4.500" Diameter in a 5/6 Configuration
Seven (7) Flights of Back-up Rolls (All Adjustable)
200HP DC Motor (500-1750RPM)
Lincoln Lubrication System
Machine Mounted Controls
-PVC/ Paper Applicator
Entry Pinch Rolls (Idler/Rubber Coated)
Paper Applicator Shaft with Static Bar
Manual Centering Guides
PVC Applicator Shaft
Powered Exit Pinch Rolls (Rubber Coated)

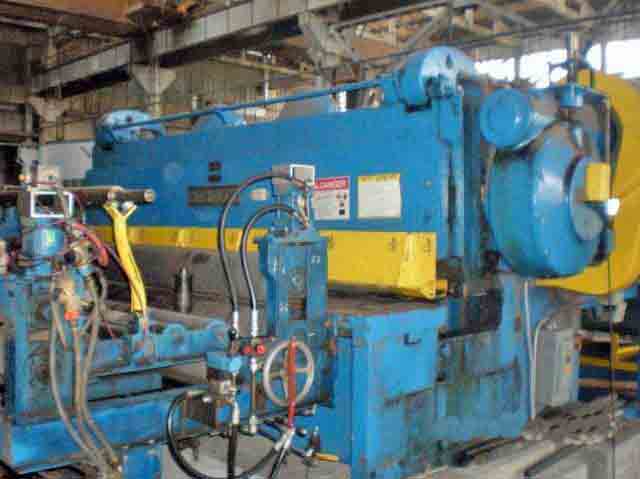

-Mechanical Shear- Cincinnati
Model: 4310
Serial: 28455
Bowtie Blade
Lip Guard/Hold-down Arm
Exit Belt Conveyor
-Reject/ Inspection Table
Powered Twin Belt Conveyor Top (7')
Powered Retraction
"Kick-out" Rolls
-Carry-over Table/ Reject Stacker
Powered Twin Belt Conveyor Top (13')
Manual Side Discharge Stacker (7')

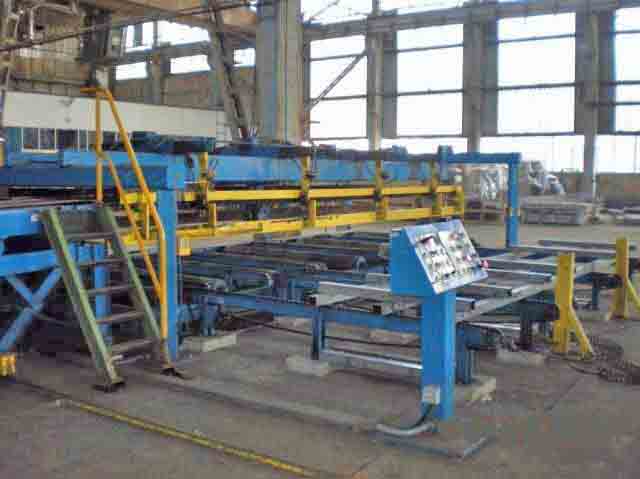

-Stacker
"Bomb Bay" Type
Powered Side Tampers with Single Sided "Flipper" Arms
Powered Back Stop (50' Max. Length)
Powered Lift Table
Powered Side Discharge with Chain Conveyor
Powered End Discharge
-Exit End Discharge Conveyor
50' Powered Conveyor
-Hydraulic Unit
50 HP AC Motor
-AC/DC Control Cabinets (1991)
Motion-Plus Digital Servo Controller
SSD Ranger 5575 Controller
Saftronics G3 AC SS Controller
-Operators Control Consoles
Main Console with TPC Touch Screen Interface
Aux. Control Consoles
-Spares
Spare Blades- Crop Shear
Spare Blades- Cincinnati Shear
One (1) Set of New Work Rolls- Herr Voss Leveler
One (1) Set of New Intermediate Rolls- Herr Voss Leveler
One (1) Set of New Back-up Rolls- Herr Voss Leveler
Large Lot of Misc. Spare Parts- Mechanical, Electrical, Bearings, Belts, etc.
-Installed and Under Power
Get Your Price from D & H Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
96" x 0.5" Meco / Bradbury, Temper Mill & Cut-to-Length Line, 90,000 Lb., LR, 150/250 FPM, 1998
Category: Cut-to-length Lines
Seller: VX Machinery
Location: Sylvania, OH
Mfr: Bradbury
Year: 1998
This 1998 Meco/Bradbury/Butech/Strilich Temper Mill and Cut-to-Length Line is engineered for processing hot rolled steel and s several upgrades. It offers a left-to-right line direction and handles material thicknesses ranging from 0.065" to 0.500". The system is capable of processing coils with widths between 48" and ...more
96.5" x .98" Cut-To-Length line, 70000 lb., complete with coil car, uncoiler, 2010
Category: Cut-to-length Lines
Seller: National Machinery Exchange
Location: Newark, NJ
Year: 2010
96.5" (2450MM) X 25MM X 70,000# CUT-TO-LENGTH LINE, COIL WEIGHT70000 POUNDS, WIDTH96.5 INCHES, THICKNESS.984 INCHES, ID32 INCHES, MAX OD94.5 INCHES, YEAR: 2010, MATERIAL: HOT ROLLED STEEL STRIP (SS, S55C, SPAH, DAS, ATS ETC.), THICKNESS: 3.2MM - 25MM, COIL WEIGHT: 35 TONS, COIL ID: 508MM, 610MM, 762MM, 812MM, COIL OD: ...more

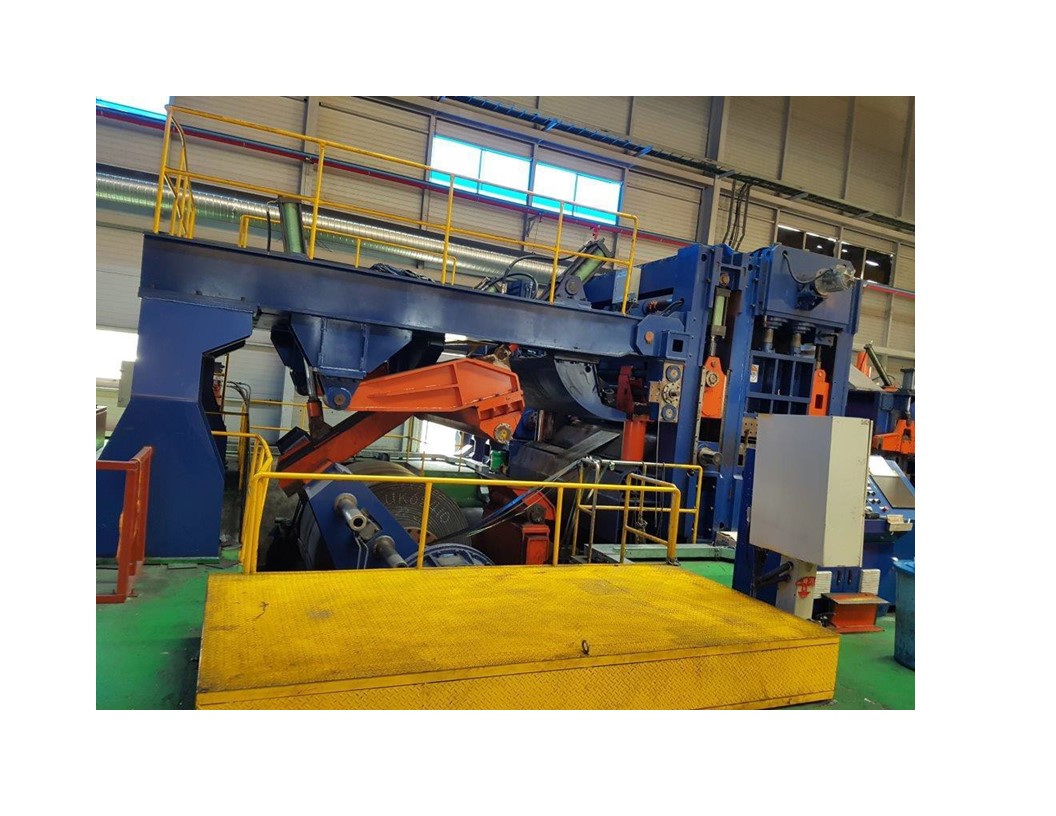

96.5" x 1" Cut to Length Line, 35 Ton, 20-32" ID, 39.4"-94.5" outside dimension, 88 FPM, 2010
