For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$9,950 USD
Description

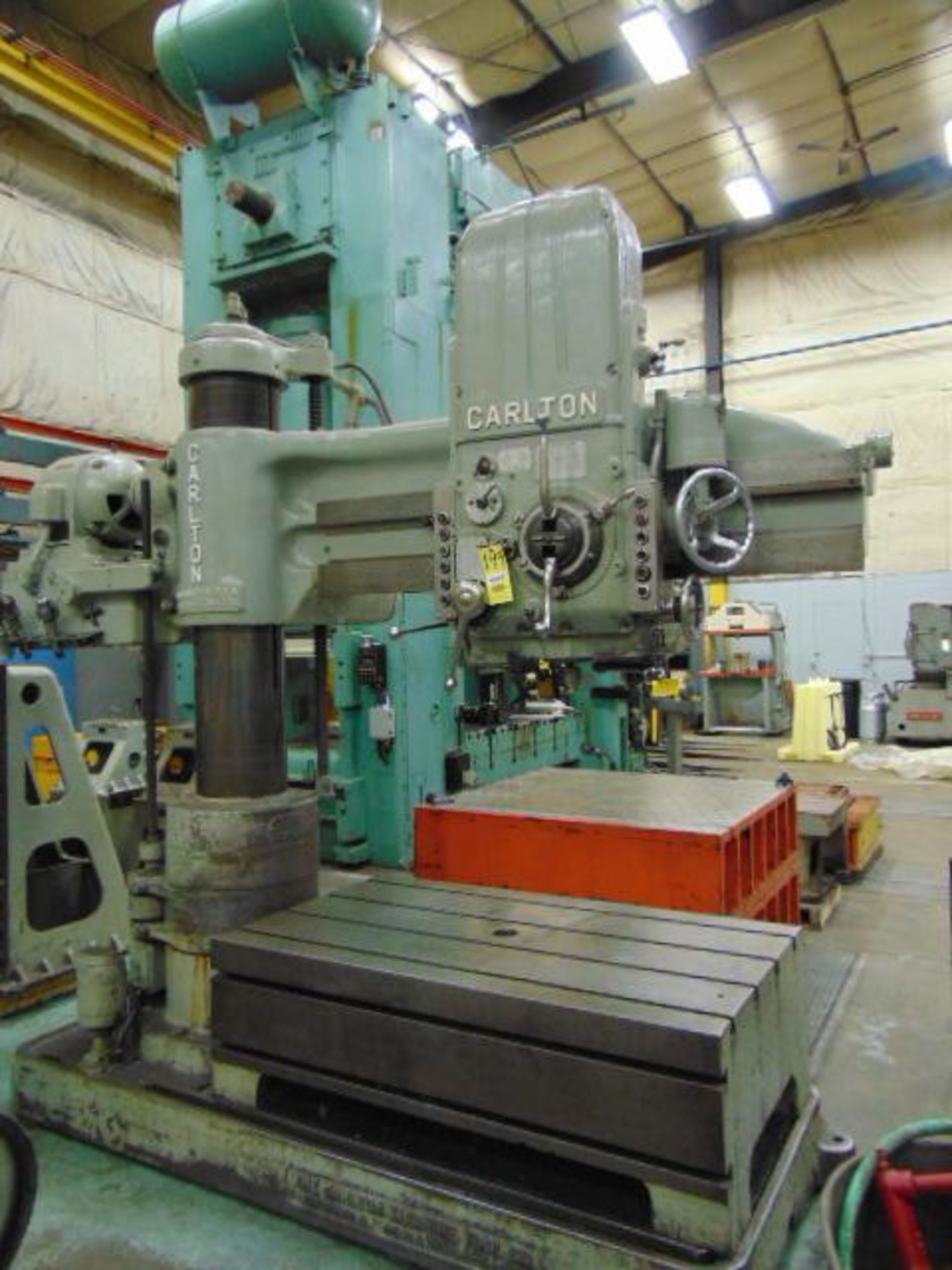

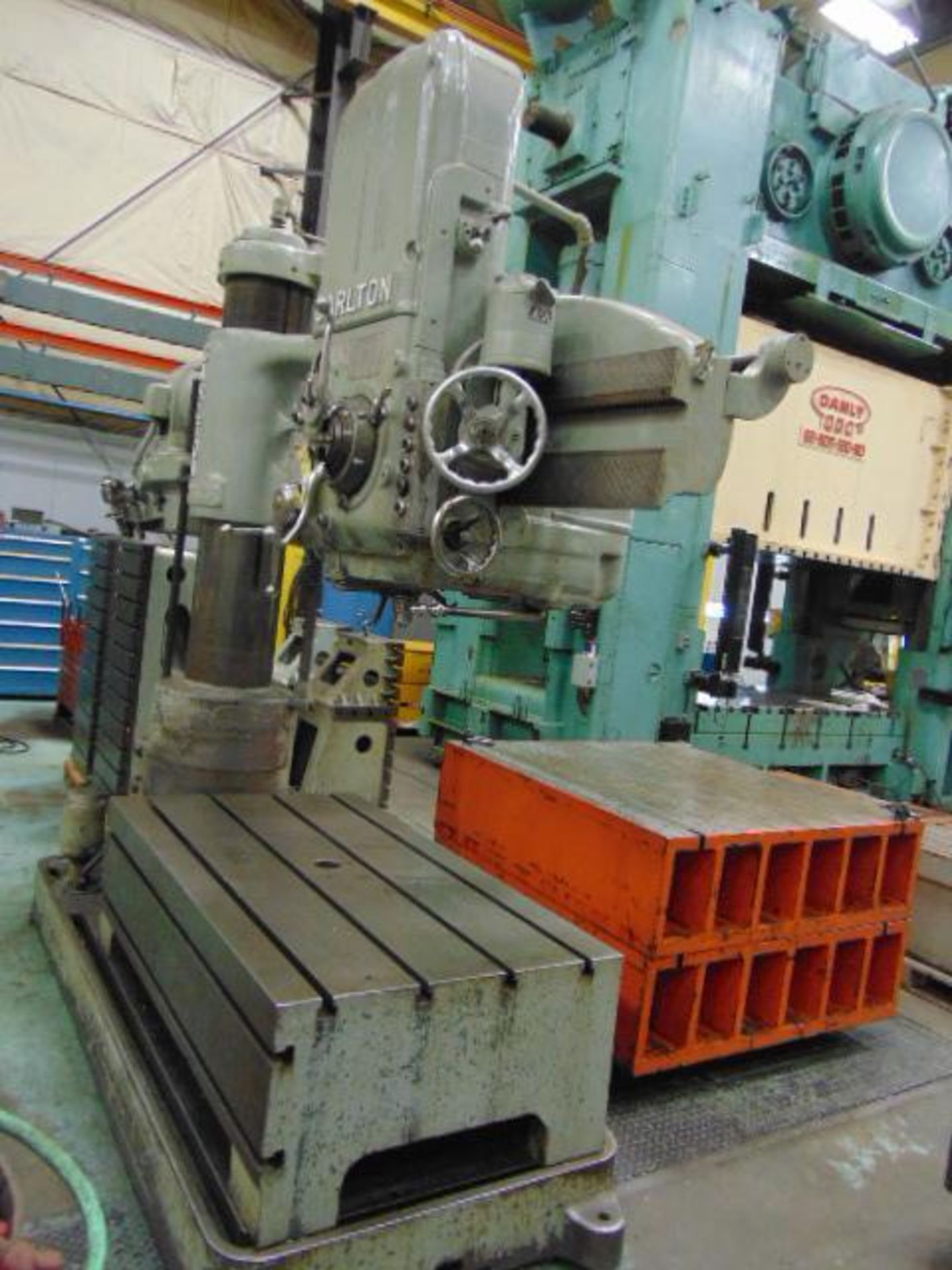

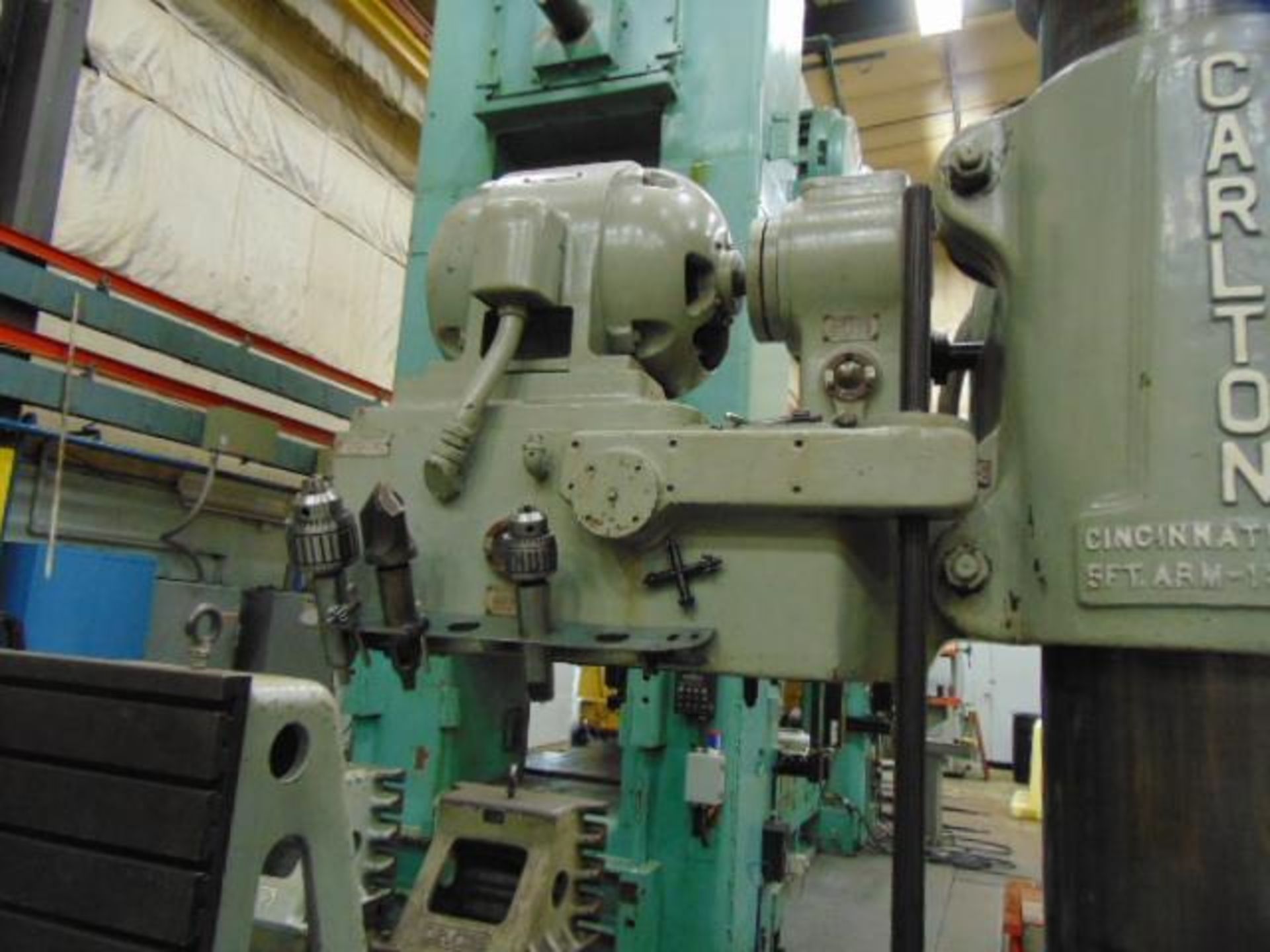

5'13" CARLTON RADIAL DRILL
Serial No 3A3878, Model 3A,
5'13" CARLTON RADIAL DRILL
Serial No 3A3878, Model 3A,
EQUIPPED WITH:

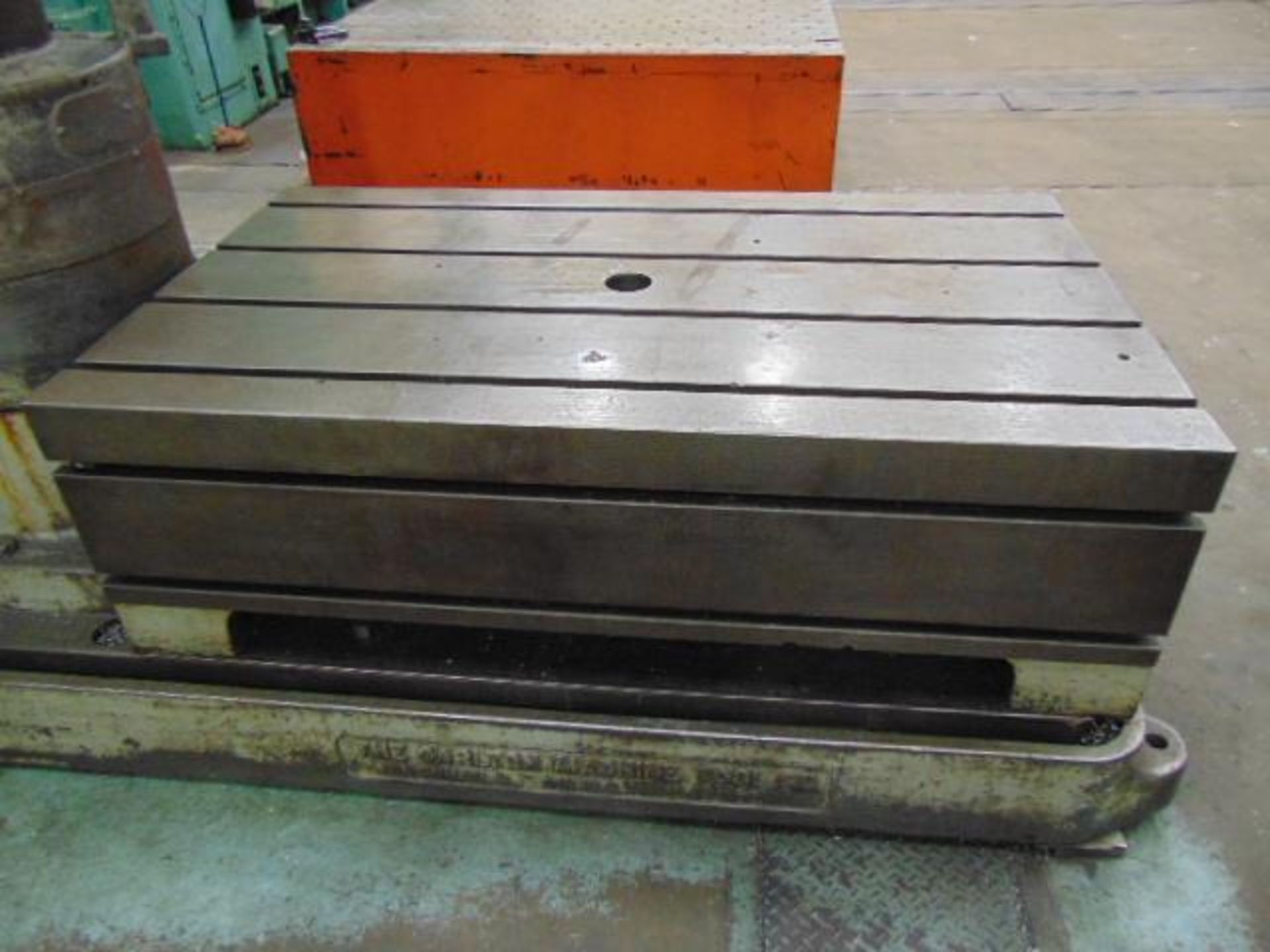

62" x 36" x 20" Plain T-Slotted Box Table
Tapping Capabilities

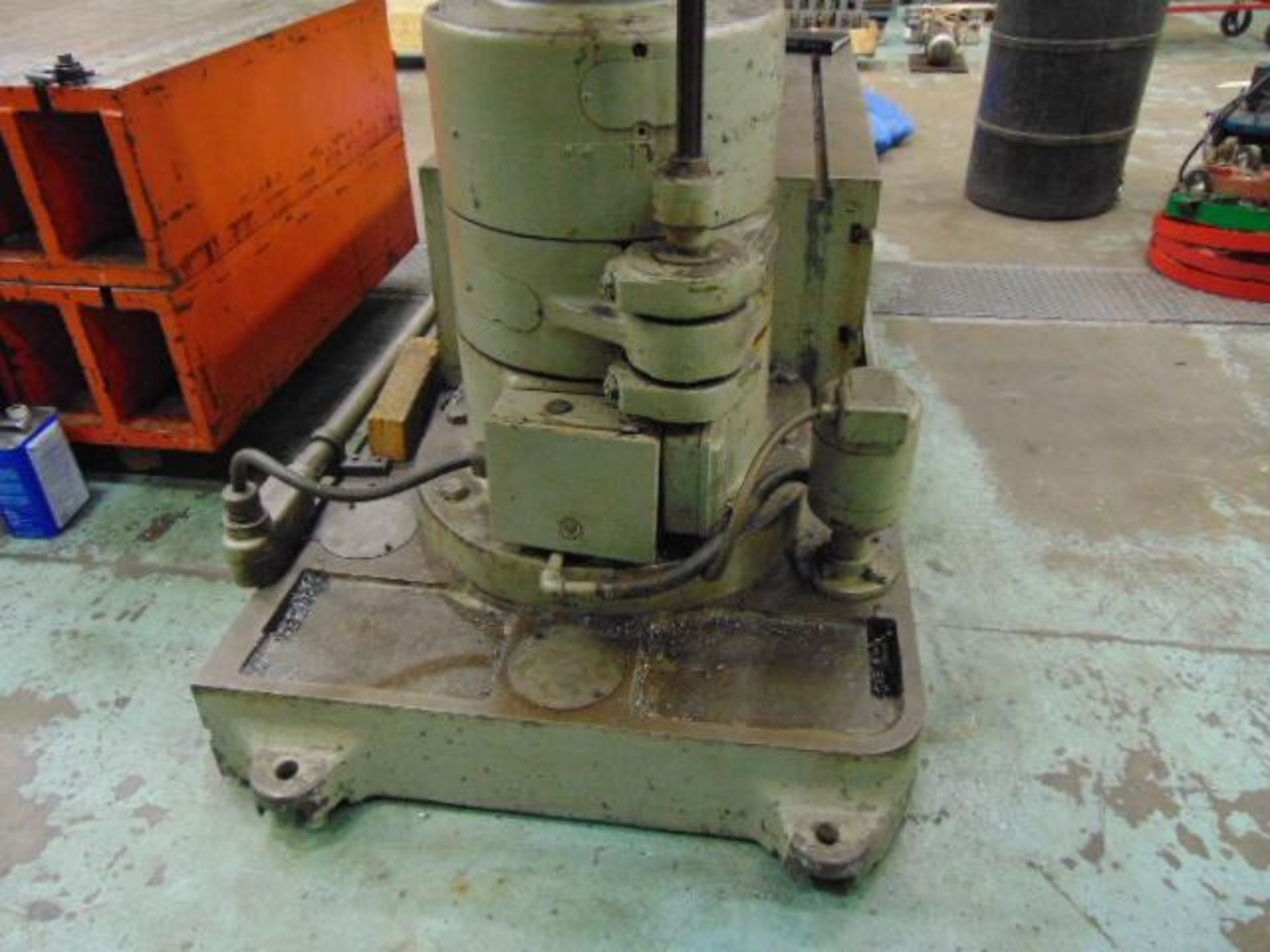

Plain-Type Base
Power Arm Elevation

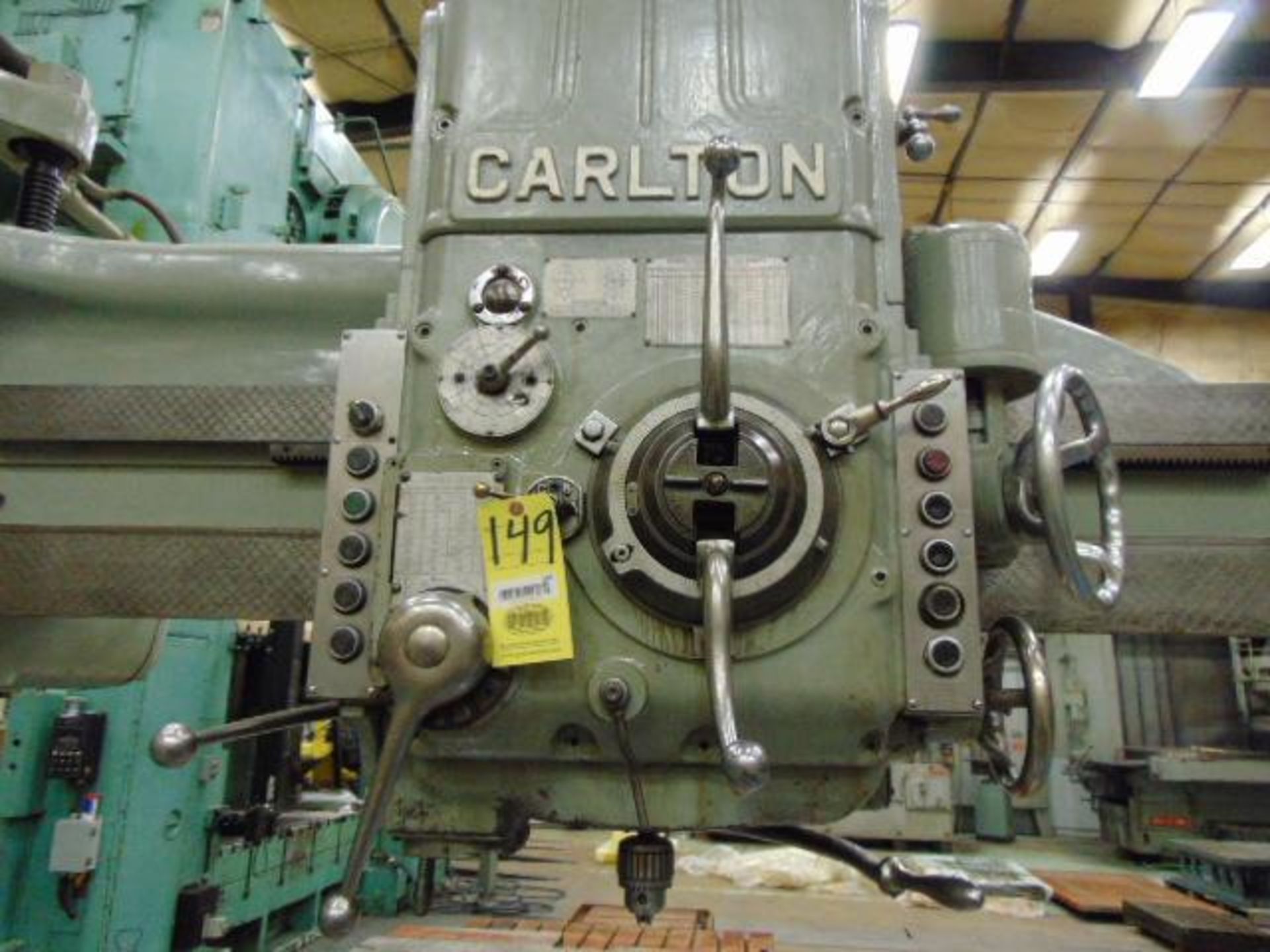

Power Clamping to Arm, Column, & Head
Coolant System (Built-In)
CATALOG SPECIFICATIONS:

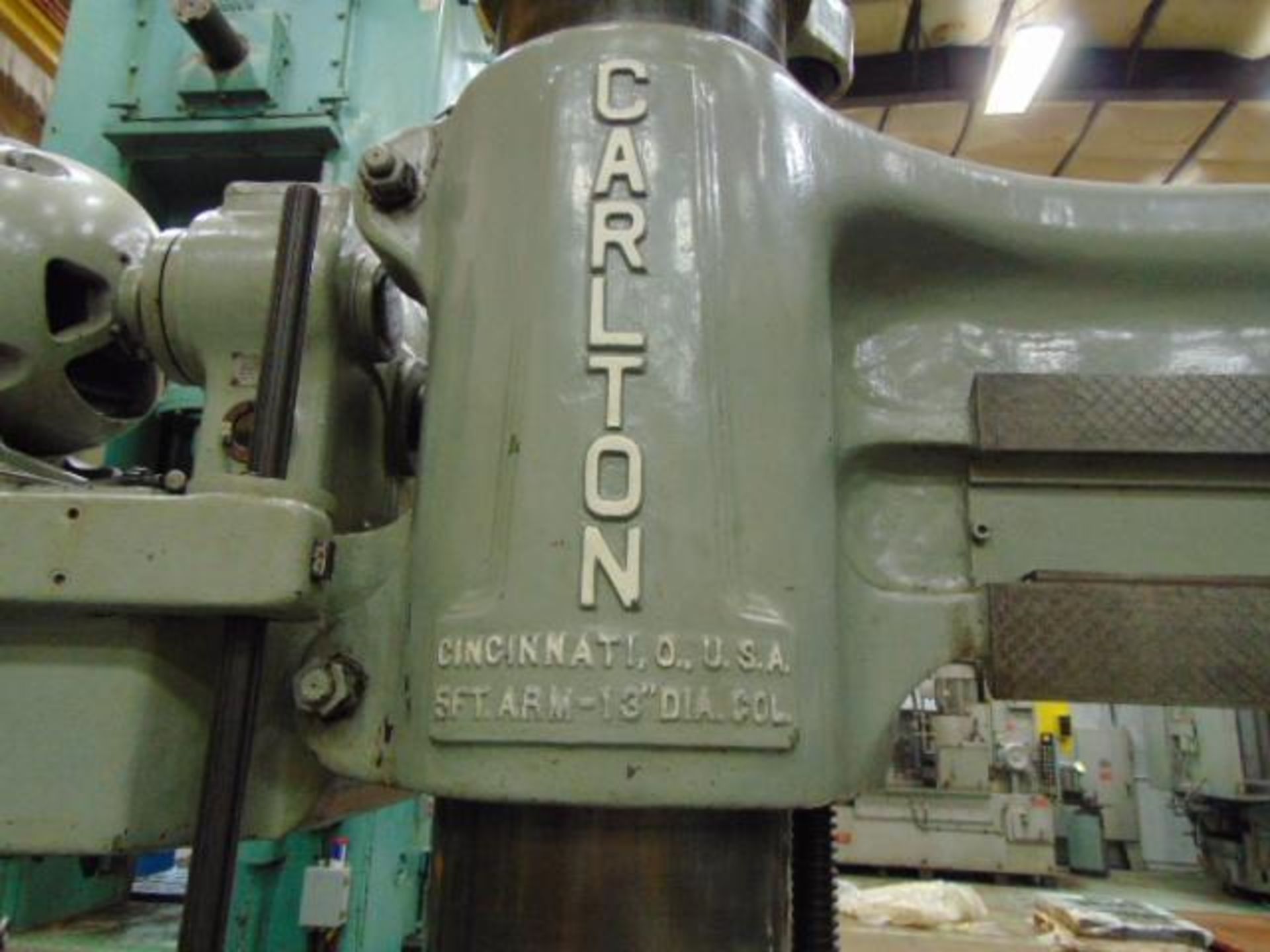

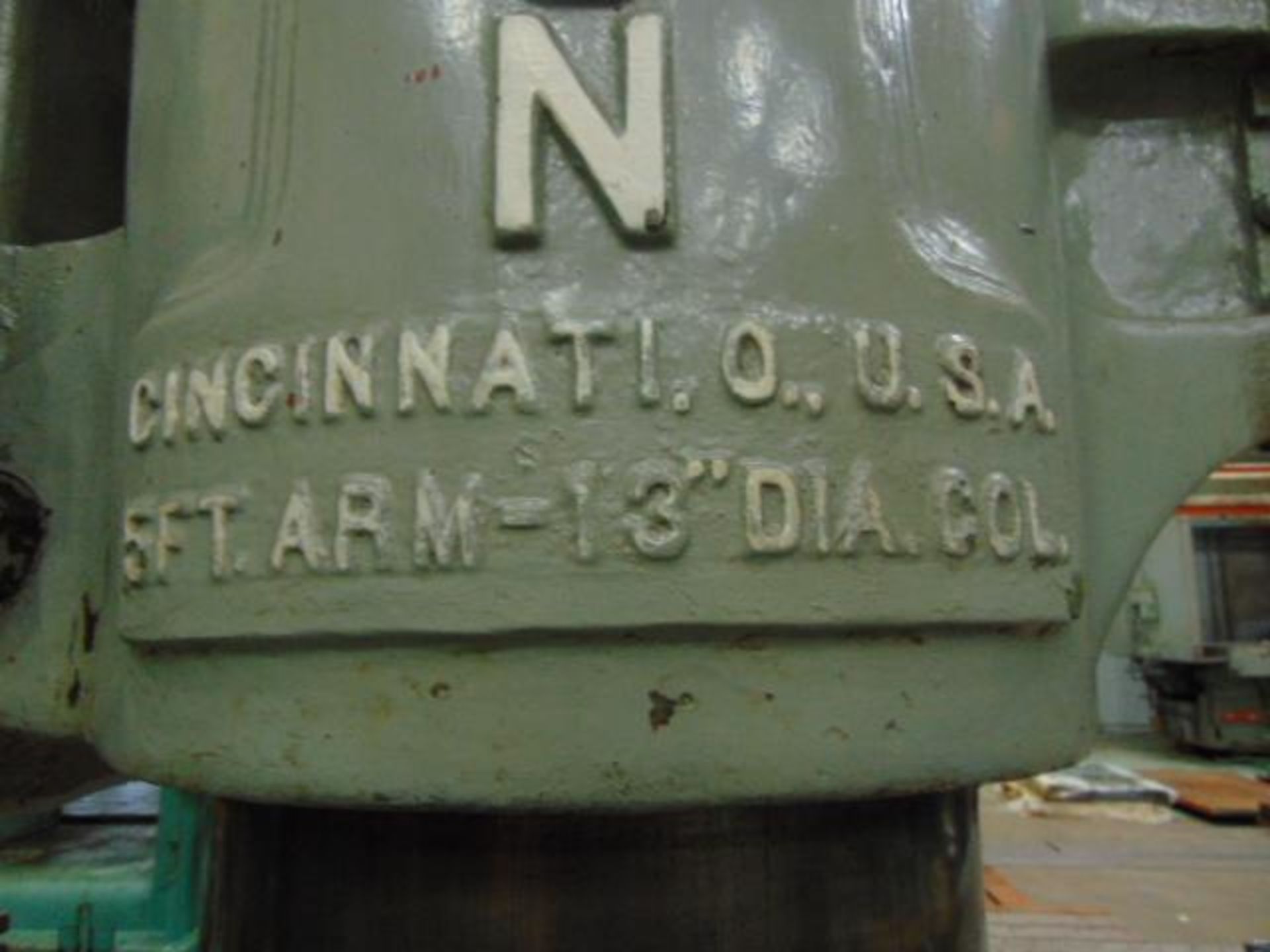

Arm Length .......... 5'

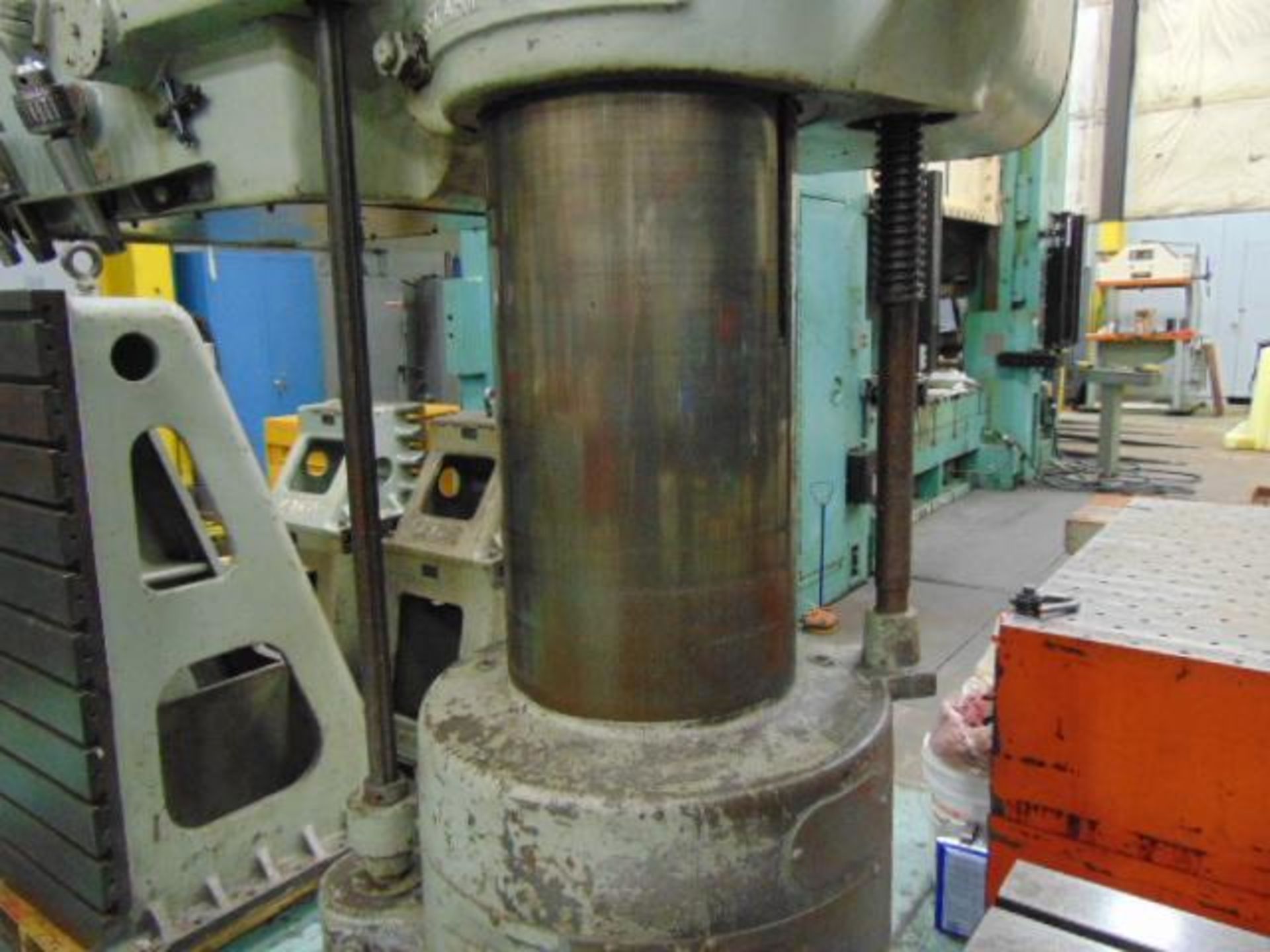

Column Diameter .......... 13"
Horizontal Head Travel on Arm .......... 3'9"
Vertical Arm Travel on Column .......... 2'7"

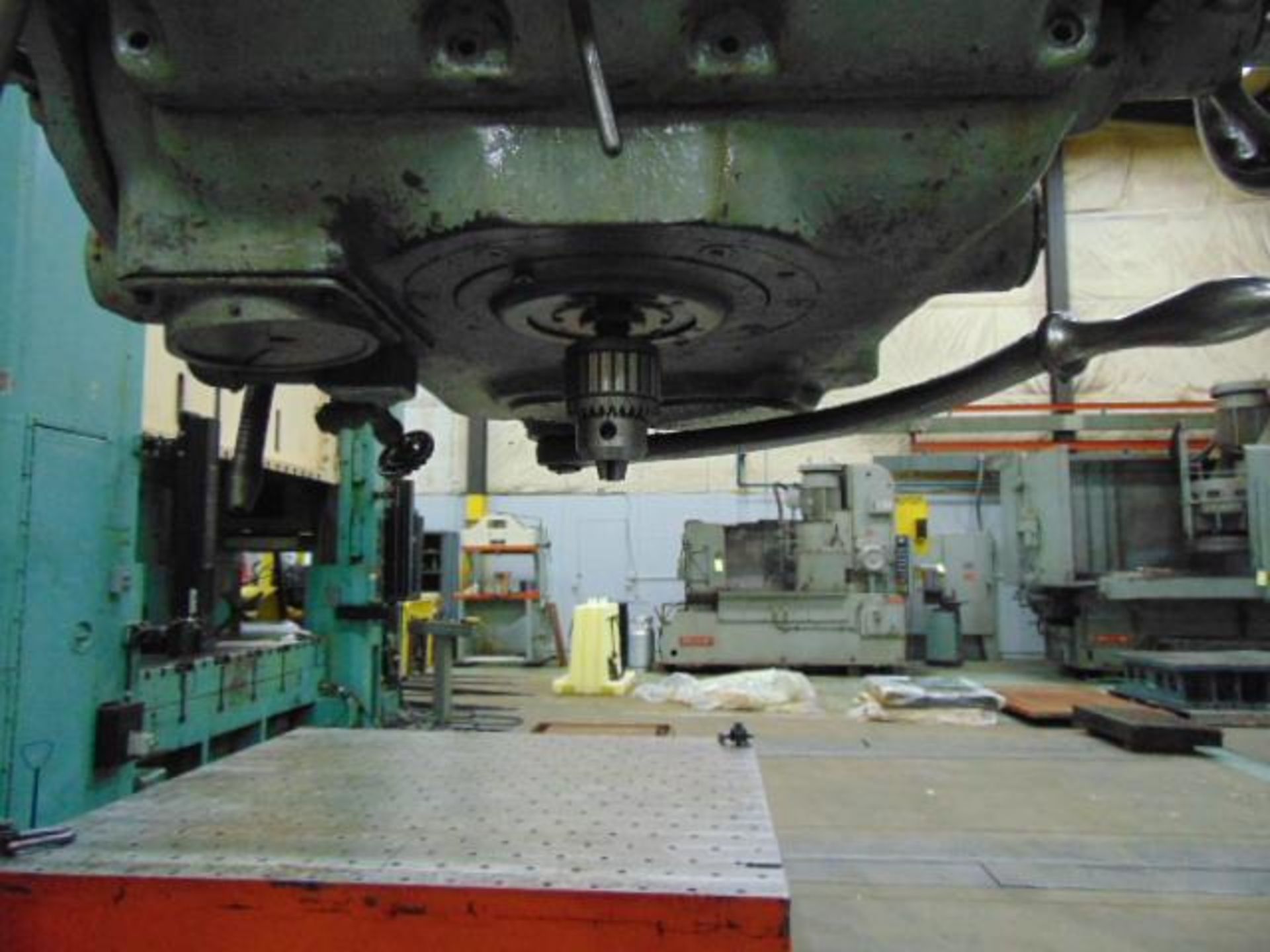

Vertical Spindle Travel in Head .......... 18"
Spindle-Radius, Minimum .......... 26"
Spindle-Radius, Maximum .......... 5'11"
Spindle-Nose to Base, Minimum .......... 10.5"
Spindle-Nose to Base, Maximum .......... 5'0"
Drills to Center of Circle .......... 10'
Base Working Surface, W x L .......... 3'6" x 5'5"
Base Height .......... 8"
Spindle Nose Diameter .......... 3.19"
Spindle Taper .......... #5 MT
(36) Spindle Speeds, Range .......... 15 to 1500 RPM
(18) Spindle Feeds, Range .......... .004 to .125 IPR
(4) Tapping Leads, Range .......... 8 to 18 TPI
Main Motor, Horsepower .......... 10 HP
Electrical System .......... 220-440/3/60
Weight, Approximately .......... 16000 LBS
F.O.B. OUR WAREHOUSE
Arm Length: 5'
Column Diameter: 13"
Spindle-Radius, Minimum: 26"
Spindle-Radius, Maximum: 5'11"
Spindle-Nose to Base, Minimum: 10.5"
Spindle-Nose to Base, Maximum: 5'0"
Base Height: 8"
Spindle Nose Diameter: 3.19"
Spindle Taper: #5 MT
(36) Spindle Speeds, Range: 15 to 1500 RPM
(18) Spindle Feeds, Range: 004 to .125 IPR
(4) Tapping Leads, Range: 8 to 18 TPI
Main Motor, Horsepower: 10 HP
Electrical System: 220-440/3/60
Weight, Approximately: 16000 LBS
Serial No 3A3878, Model 3A,
5'13" CARLTON RADIAL DRILL
Serial No 3A3878, Model 3A,
EQUIPPED WITH:
62" x 36" x 20" Plain T-Slotted Box Table
Tapping Capabilities
Plain-Type Base
Power Arm Elevation
Power Clamping to Arm, Column, & Head
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Arm Length .......... 5'
Column Diameter .......... 13"
Horizontal Head Travel on Arm .......... 3'9"
Vertical Arm Travel on Column .......... 2'7"
Vertical Spindle Travel in Head .......... 18"
Spindle-Radius, Minimum .......... 26"
Spindle-Radius, Maximum .......... 5'11"
Spindle-Nose to Base, Minimum .......... 10.5"
Spindle-Nose to Base, Maximum .......... 5'0"
Drills to Center of Circle .......... 10'
Base Working Surface, W x L .......... 3'6" x 5'5"
Base Height .......... 8"
Spindle Nose Diameter .......... 3.19"
Spindle Taper .......... #5 MT
(36) Spindle Speeds, Range .......... 15 to 1500 RPM
(18) Spindle Feeds, Range .......... .004 to .125 IPR
(4) Tapping Leads, Range .......... 8 to 18 TPI
Main Motor, Horsepower .......... 10 HP
Electrical System .......... 220-440/3/60
Weight, Approximately .......... 16000 LBS
F.O.B. OUR WAREHOUSE
Arm Length: 5'
Column Diameter: 13"
Spindle-Radius, Minimum: 26"
Spindle-Radius, Maximum: 5'11"
Spindle-Nose to Base, Minimum: 10.5"
Spindle-Nose to Base, Maximum: 5'0"
Base Height: 8"
Spindle Nose Diameter: 3.19"
Spindle Taper: #5 MT
(36) Spindle Speeds, Range: 15 to 1500 RPM
(18) Spindle Feeds, Range: 004 to .125 IPR
(4) Tapping Leads, Range: 8 to 18 TPI
Main Motor, Horsepower: 10 HP
Electrical System: 220-440/3/60
Weight, Approximately: 16000 LBS
Inquire Further with Mohawk Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
5' -15" Carlton #3A, radial arm drill
Category: Radial Drills
Seller: G-2000
Location: Toledo, OH
Mfr: Carlton
Model: 3A
MODEL. 3A, SERIAL., AREA OF BASE. 65" X 42", SPINDLE SPEEDS. (36) 12 TO 1200 RPM, SPINDLE FEEDS. (18).004 TO.125 IPR, TAP LEADS. 8, 11-1/2, 14, 18 TPI, SPINDLE TRAVEL. 18", DIAMETER OF SPINDLE. 3-3/16", TAPER IN SPINDLE. #5MT, DISTANCE SPINDLE TO BASE. 10-1/2" MIN, 66" MAX, DISTANCE SPINDLE TO COLUMN. 15" MIN, 60" ...more

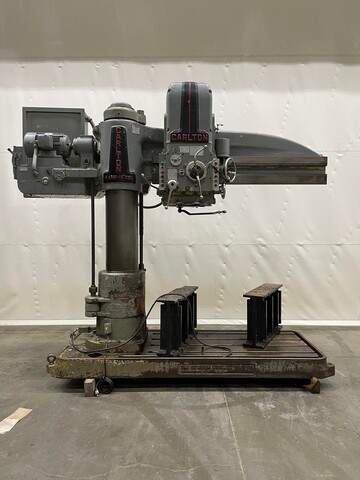

6' -15" Carlton #3A, Radial Drill, 8'-4" arm swing, 77" x 36" base working surface, 1200 RPM
