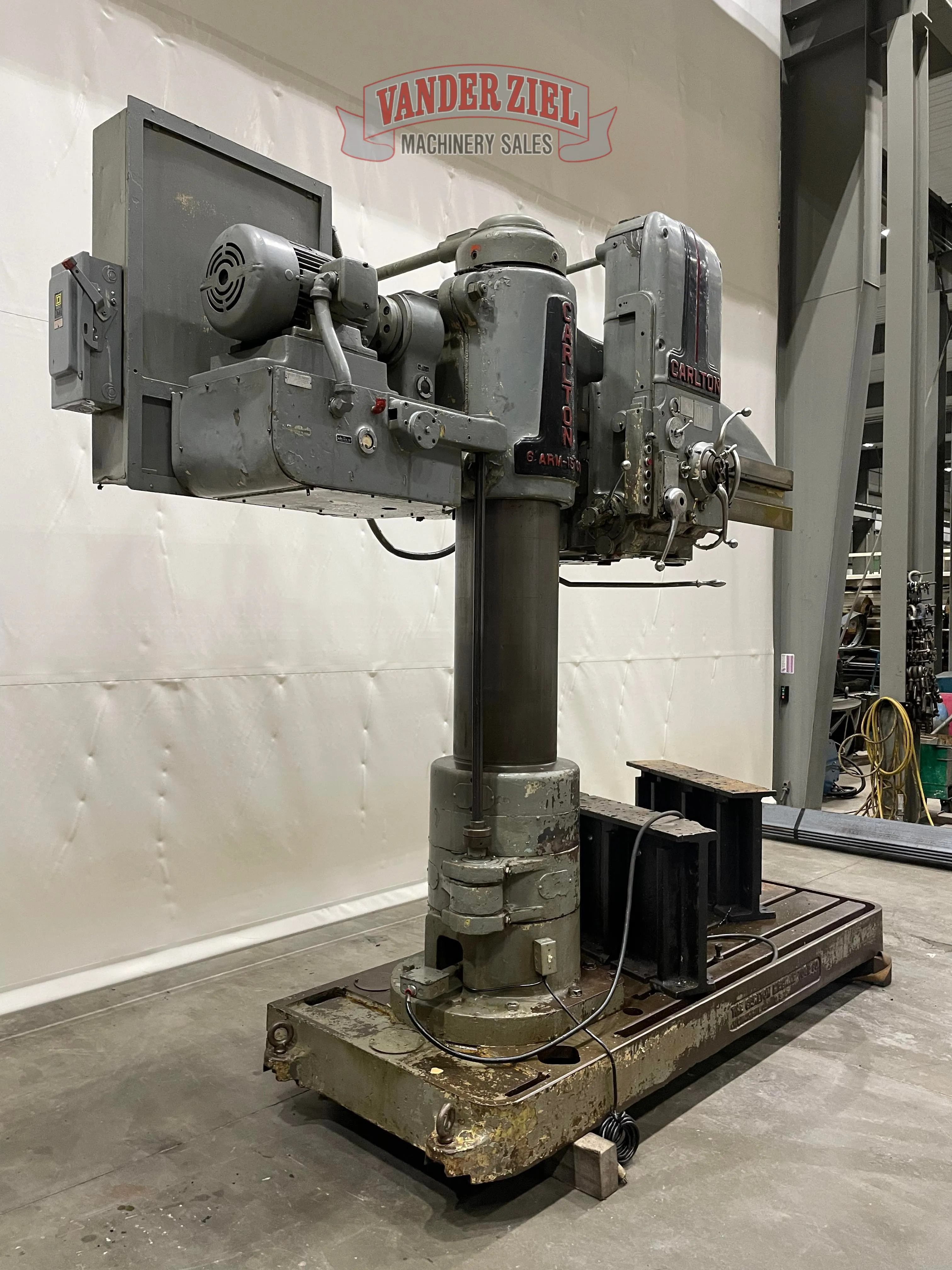

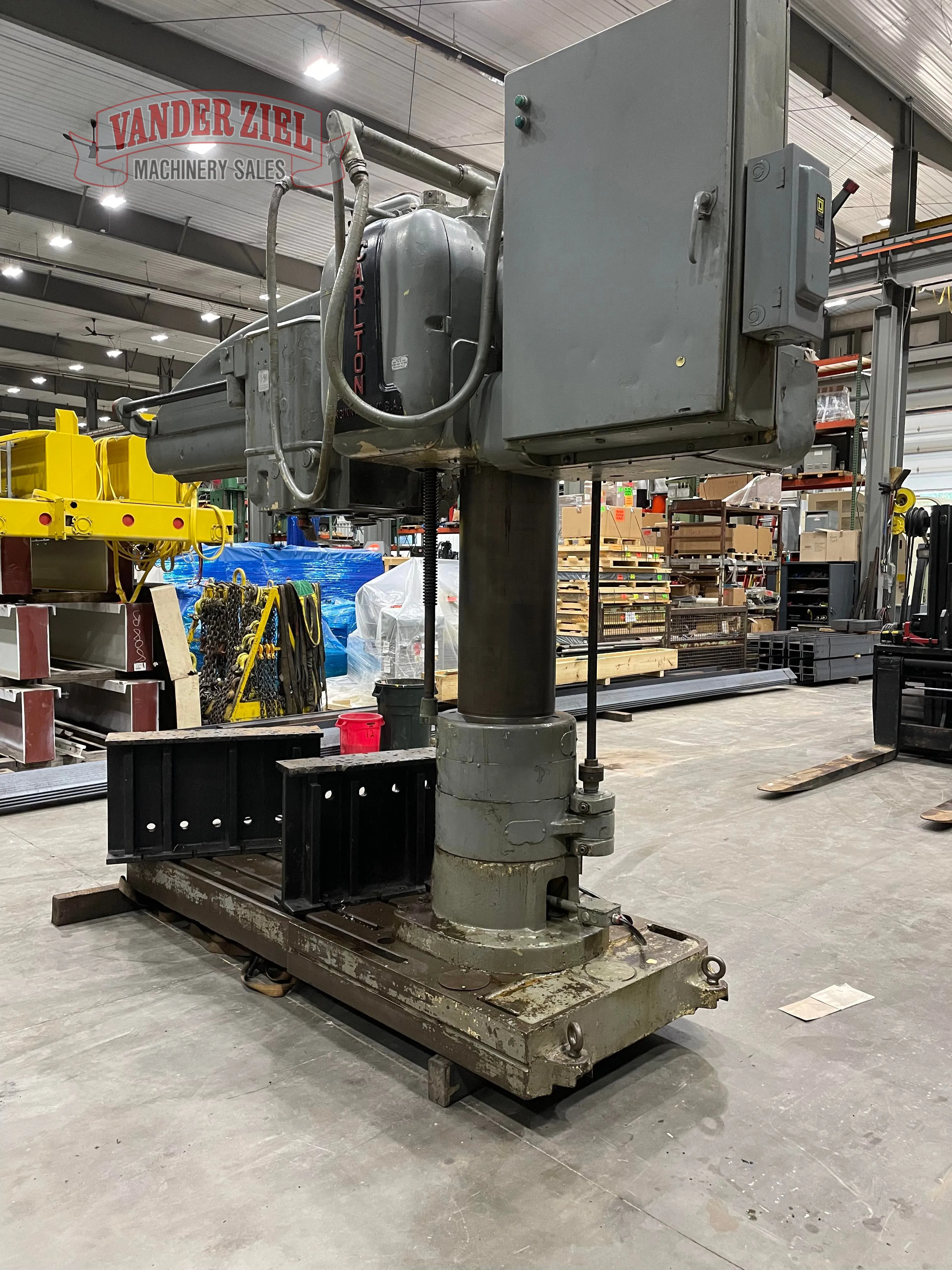

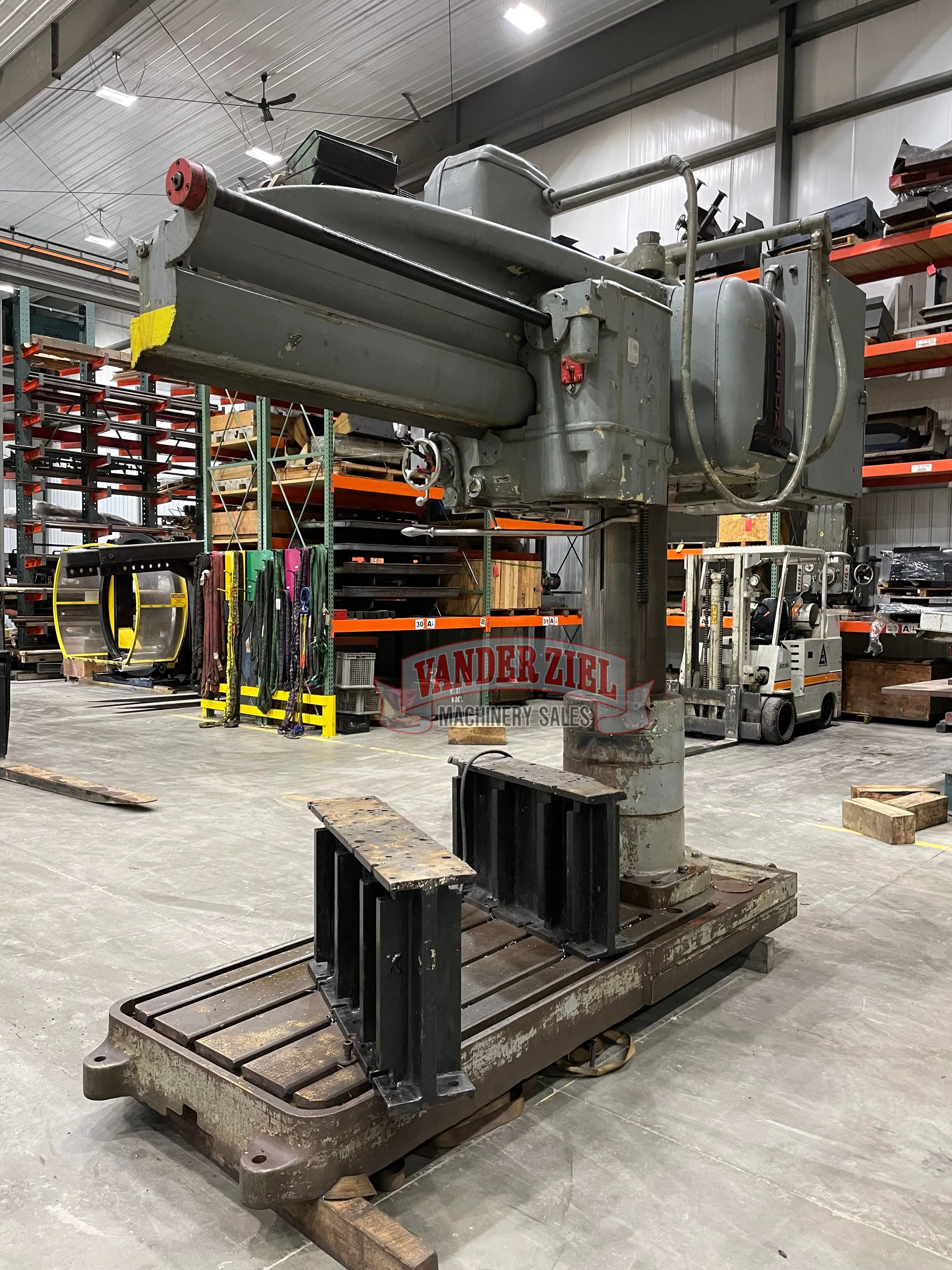

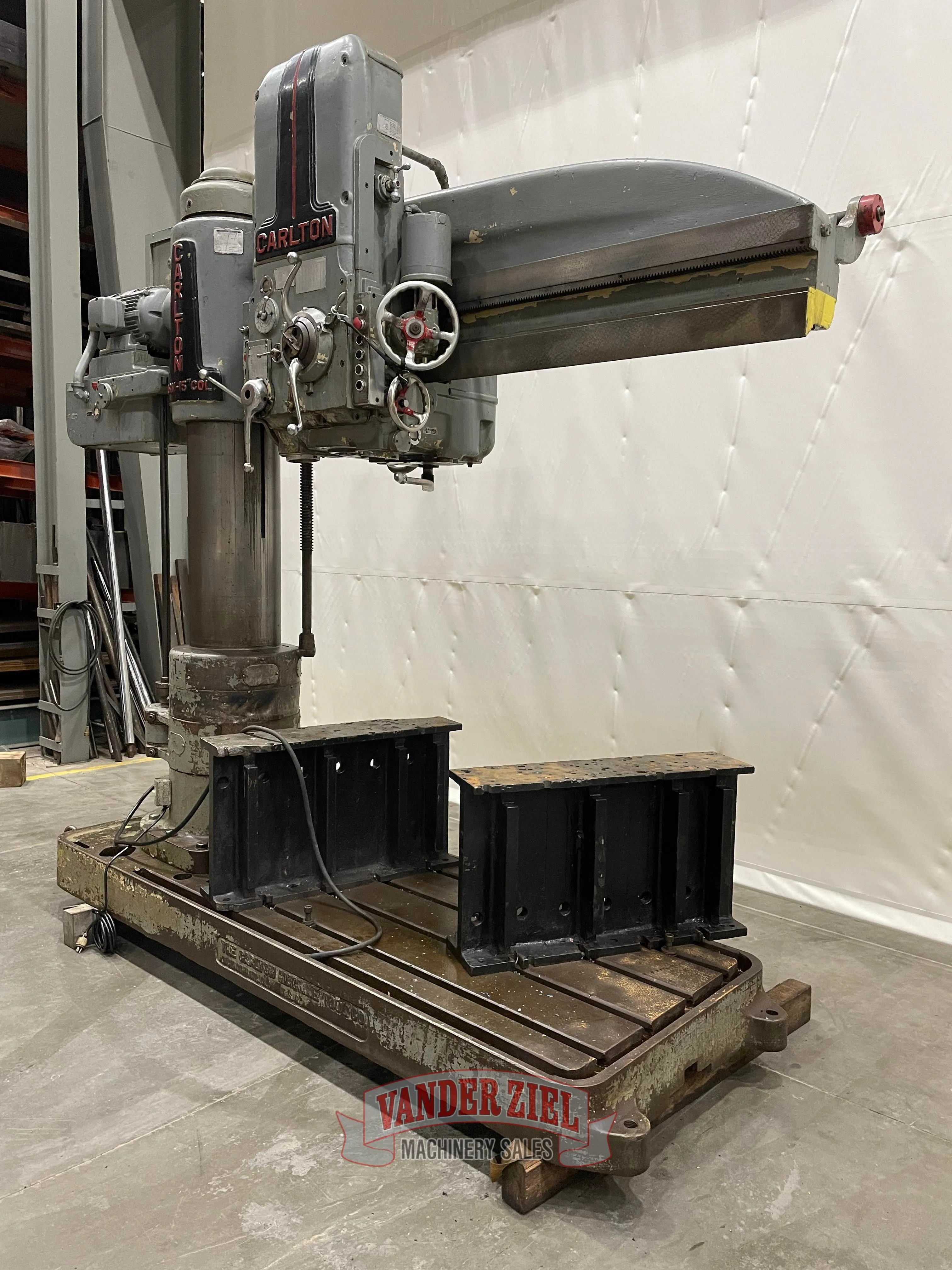

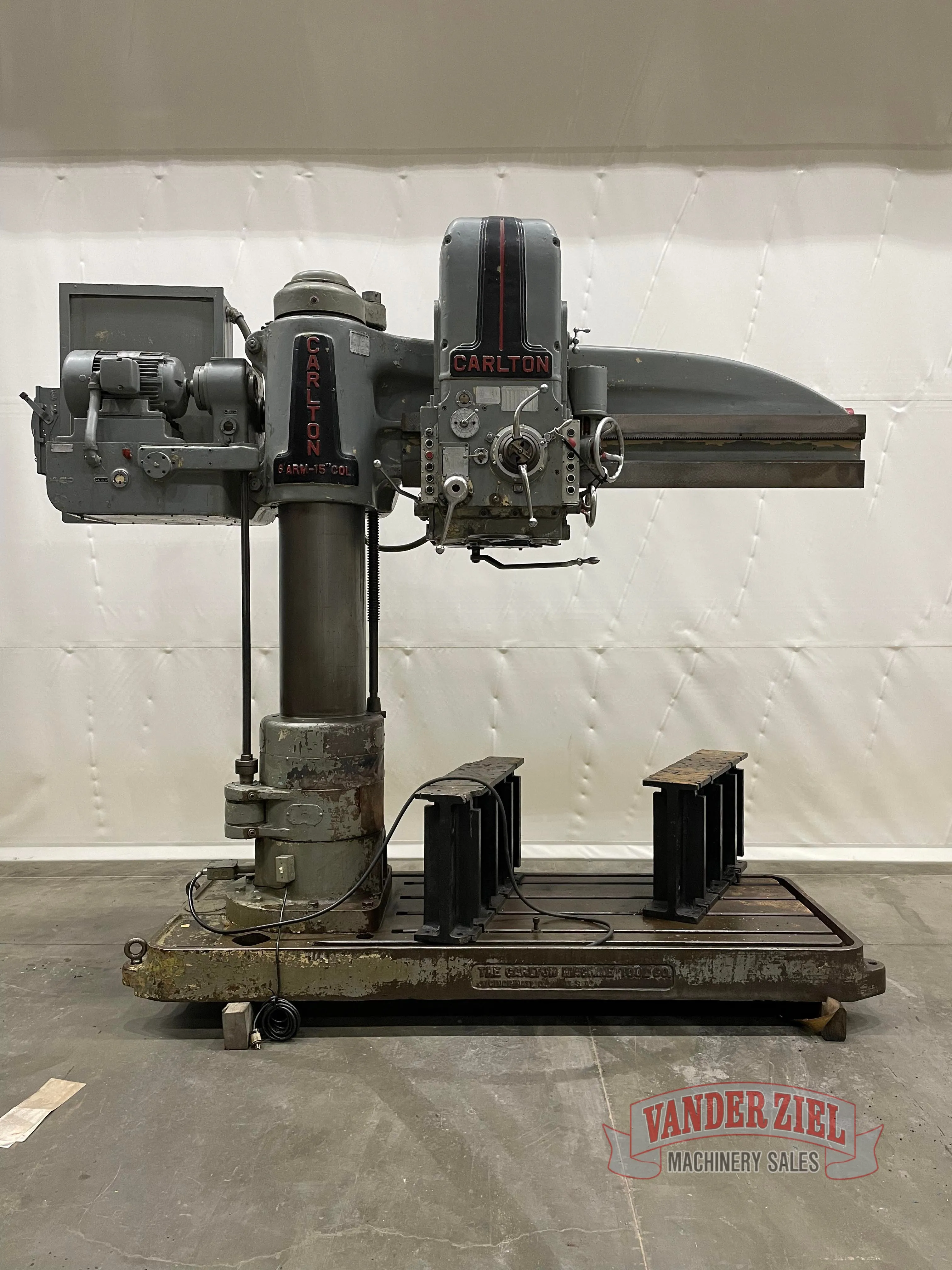

6' -15" Carlton #3A, Radial Drill, 8'-4" arm swing, 77" x 36" base working surface, 1200 RPM

Carlton 6' x 15" Radial Drill, Model 3A

Serial # 3A-5571
Asset # 16024

Specifications:
Column Diameter 15"
Arm Length 6'
Face of Column to Center of Spindle 15" - 6'
Spindle Radius 26" - 6' 11"
Spindle to Base 10 1/2" - 5' 6"

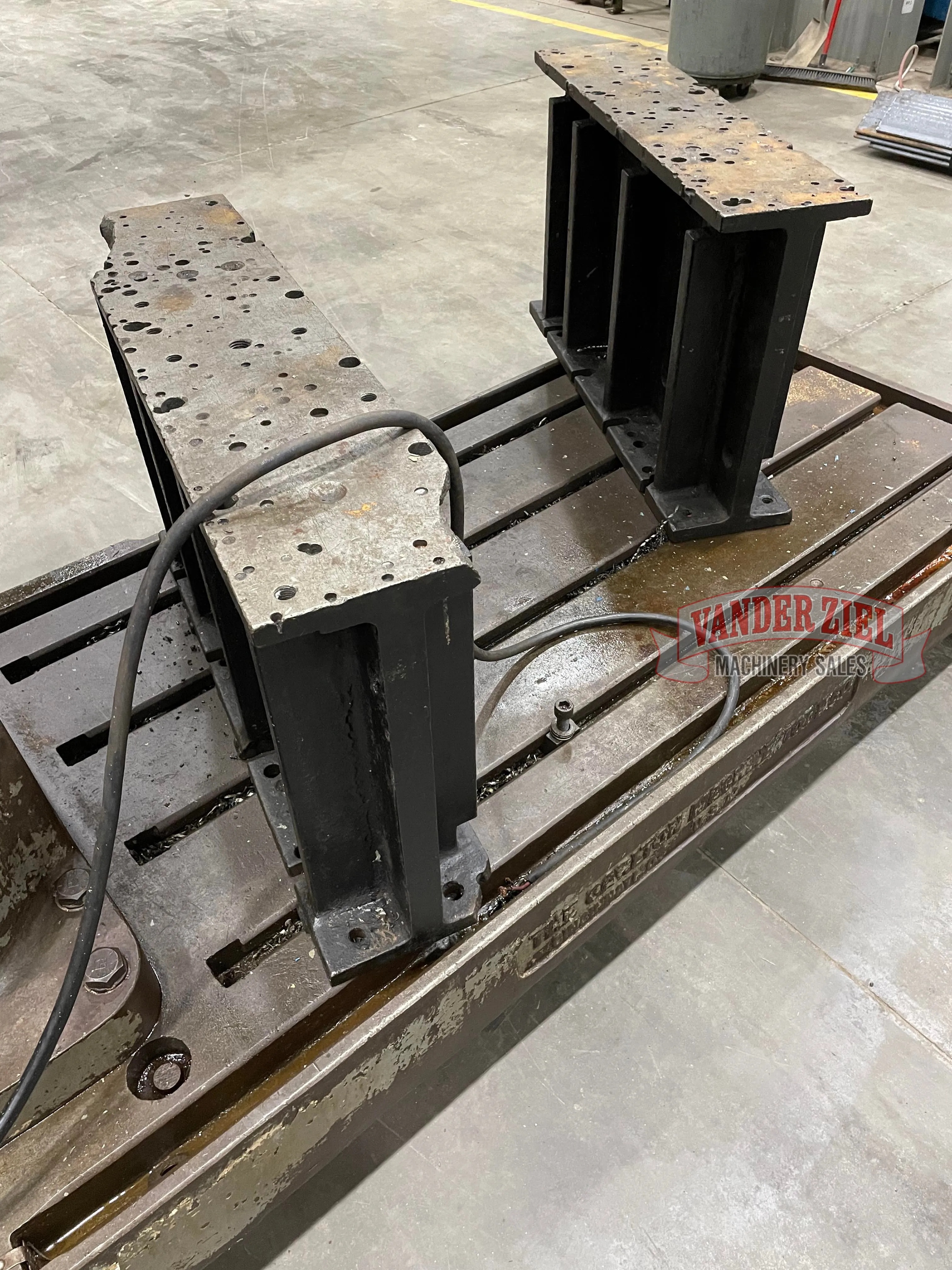

Working Surface of Base 6'5" x 3'6"
Height of Base 8"
Vertical Travel of Spindle in Head 18"
Bearing of Head on Arm 21 7/8"
Bearing of Arm on Column 30"
Height over Head 10' 7"
Height over Column 9' 11"
Spindle Diameter 3 3/16"
Morse Taper in Spindle #5
Traverse of Arm on Column 3' 1 1/2"
Traverse of Head on Arm 4'9"
Drills to Center of Circle 12'
Swing of Arm 8'4"
Feeds and Tap Leads (18) .004" - .125"
Spindle Speeds (36) 12-1200 RPM
Dimensions 153" x 42"
Height 119"
Weight 18,355

Preliminary Specifications - Subject to Verification
