For Sale by Norman Machine Tool Ltd
Surplus Record Dealer Since 2025
Location: Baltimore, MD
Contact Mike Diblasi
Phone Number: 410...> Show Phone Number 410-210-4690
Let the seller know you found their listing on Surplus Record!
$10,500 USD
Finance for as low as $213/mth
Description
Description

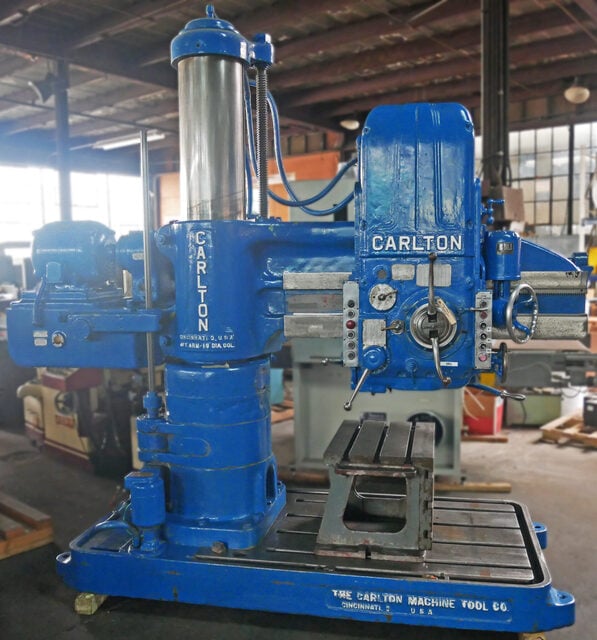

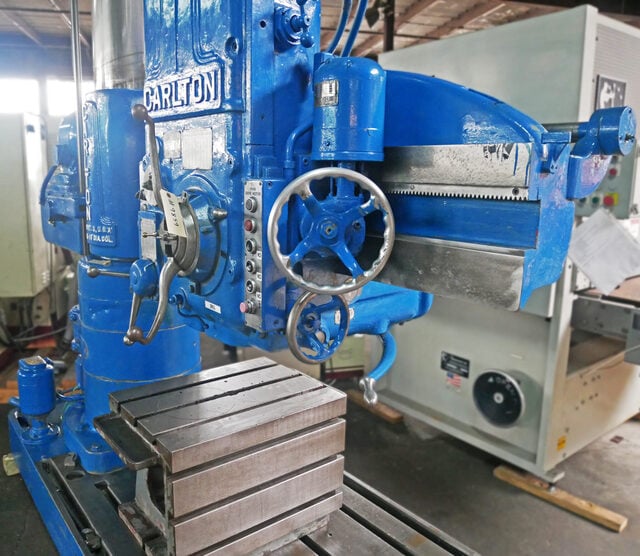

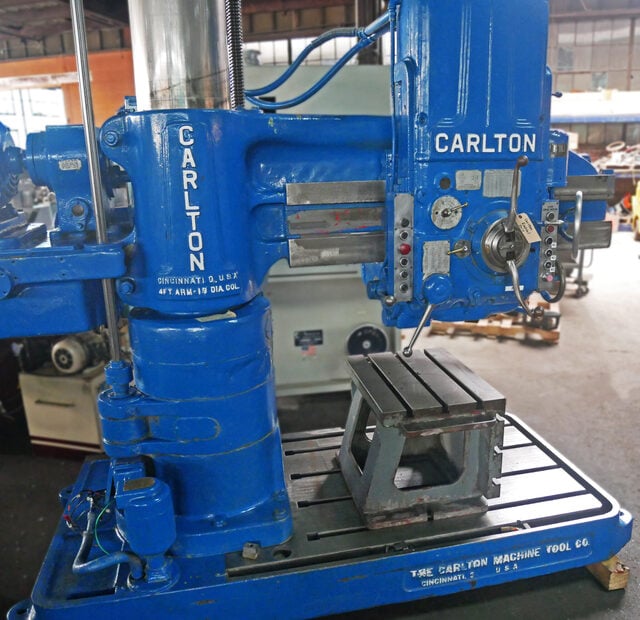

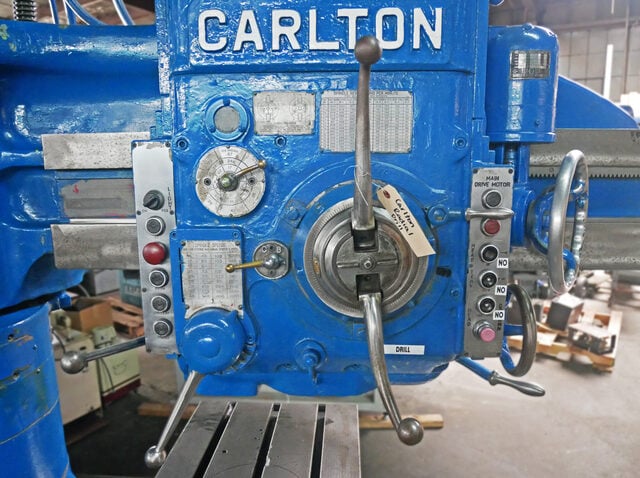

Carlton 48″ x 13″ Radial Arm Drill Press, 3A
Inventory # 9859
Model: 3A
S/N: 3A 3645
Specifications:
Arm Length: 48″
Column Diameter: 13″
Horizontal Head Travel on Arm: 36″
Vertical Arm Travel on Column: 31″
Vertical Spindle Travel in Head: 18″
Spindle Speed: 15 – 1,500 RPM (36 Speeds)

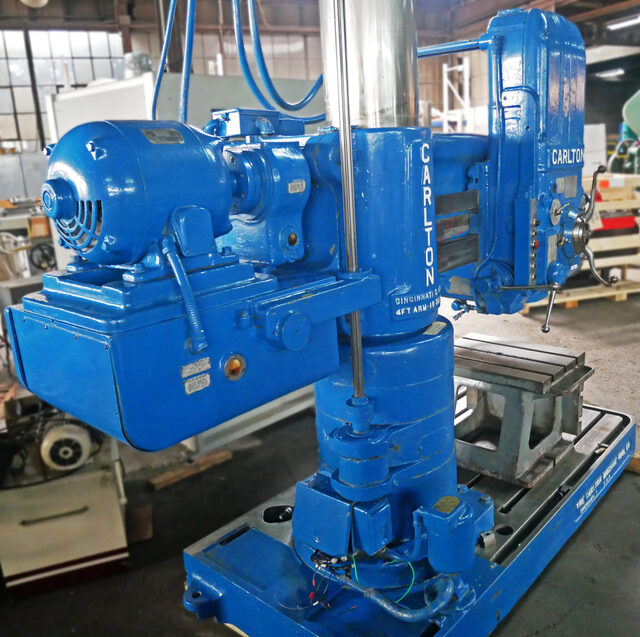

Motor: 10 HP / 220v, 440v / 3ph (Pre-Wired 440v)
Standard Features & Equipment Included:
Power Clamping
Power Carriage

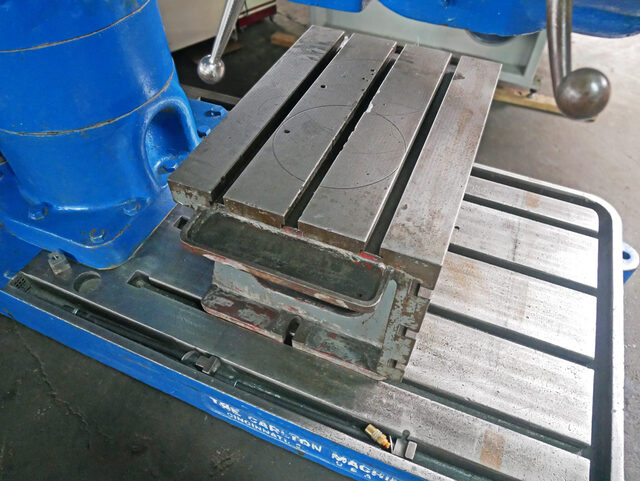

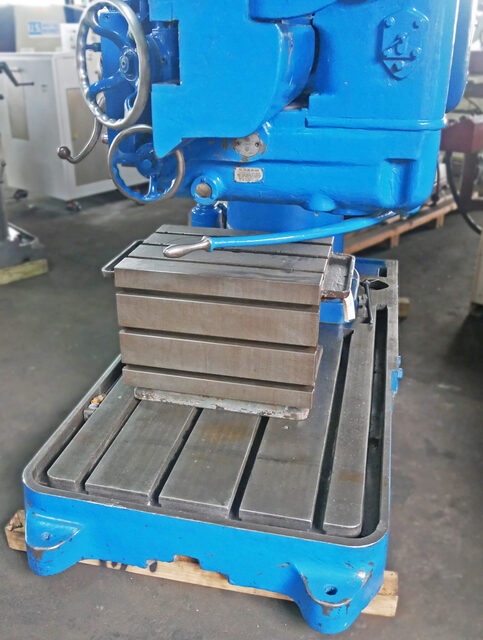

Meuser & Co. 25 5/8″ x 19 3/8″ Box Table
Mechanical Specifications:
Dimensions: 124″ x 64″ x 125″ H
Weight: approx. 16,000 lbs.
FOB Our Baltimore, MD Warehouse
Inquire Further with Norman Machine Tool Ltd!
