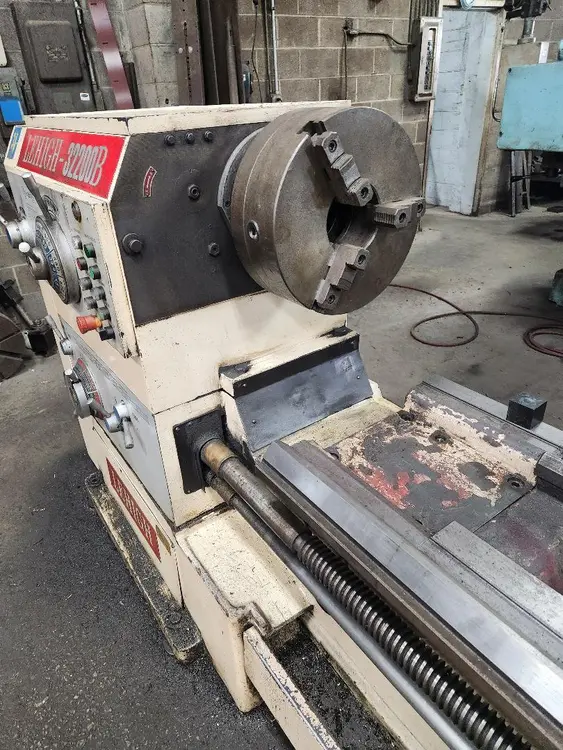

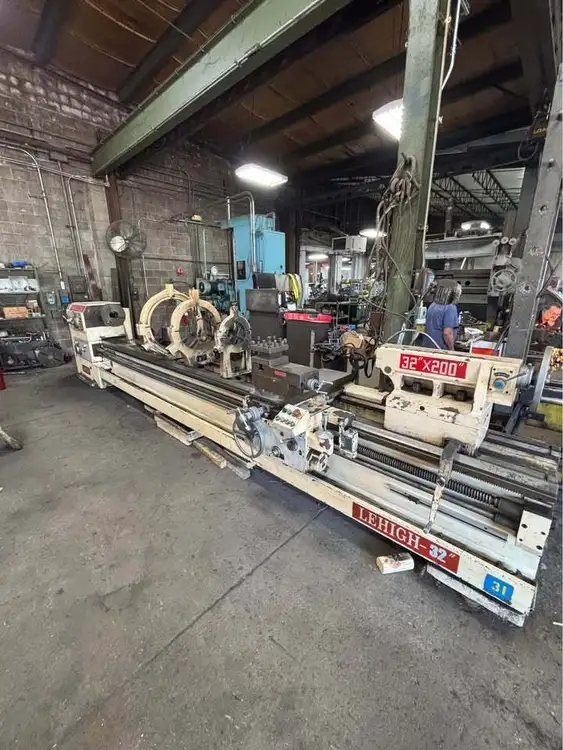

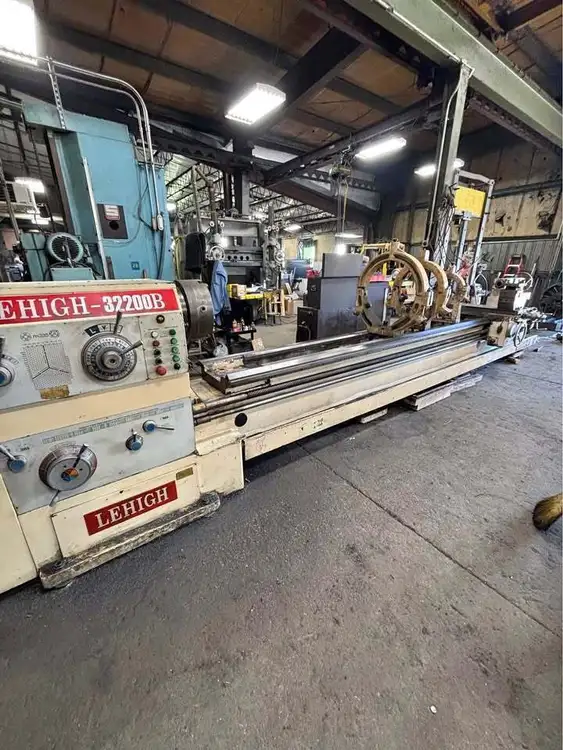

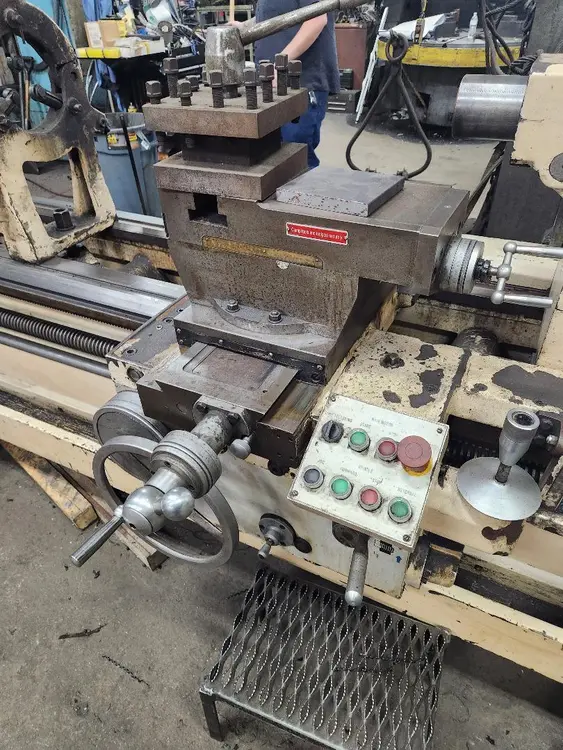

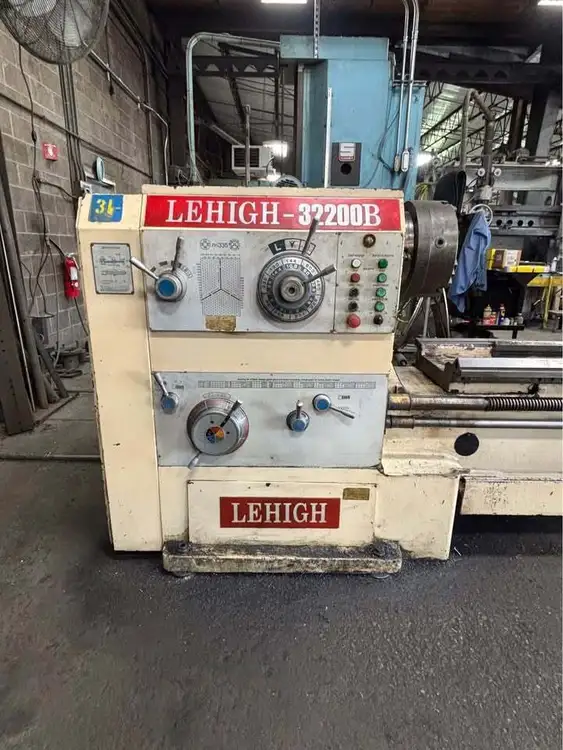

Description: 2008 LEHIGH 32200B heavy-duty gap bed lathe with 5" spindle bore, 20 HP motor. Features a 32/44"x200" capacity, 15" 3-jaw chuck, inch-metric threading, and rapid traverse. Ideal for precision tasks demanding robust performance. Used, excellent condition. Spec Sheet: 32/44" x 200" LEHIGH HEAVY-DUTY GAP-TYPE ENGINE LATHE Model 3200B, Series H, HEAVY-DUTY
CATALOG SPECIFICATIONS: Hole Thru Spindle 5" Swing Over Bed Ways, Rated 32" Swing Over Bed Ways, Actual 33" Swing thru Gap 44" Swing Over Cross-Slide 22" Distance Between Centers 200" Cross-Slide Cross-Feed Travel 16" Compound Rest Travel 8" Tailstock, Quill Diameter 4" Tailstock, Quill Travel 12" Tailstock, Spindle Taper #5 MT Spindle Speeds, Range 6 to 800 RPM (58) Thread Changes, Range 1 to 42 TPI (51) Metric Thread Changes, Range 1 to 240 MM (53) Modular Threads, Range 0.5 to 120 MM (42) DP Threads, Range 1/8 to 30 D.P. Motor Horsepower 20 HP Rapid Motor Horsepower 1.5 HP Overall Dimensions, L x W 286" x 76" Overall Height 64" Weight Approximately 18500 LBS
THIS LEHIGH 32/44" X 200" HEAVY-DUTY GAP-TYPE ENGINE LATHE, MODEL 3200B, SERIES H, S A 5-INCH HOLE THROUGH THE SPINDLE AND A D1-11 SPINDLE NOSE. IT IS INCH-METRIC THREADING CAPABILITIES, A THREADING DIAL, AND POWER RAPID TRAVERSE. THE LATHE HAS A RATED SWING OVER BED WAYS OF 32 INCHES, AN ACTUAL SWING OVER ...more
SERIAL. 96004YEAR. 1981SWING OVER BED. 32DISTANCE BETWEEN CENTERS. 120SWING IN GAP. 40GAP LENGTH. 8-1/2SWING OVER CROSS SLIDE. 19-7/8ENGLISH FEED. (72) 0.007 TO 1.52 IPRENGLISH THREAD. 1 TO 76 TPIMETRIC THREAD. 1 TO 240 MM PITCHSPINDLE SPEEDS. (18) 16 TO 900 RPMDIAMETER OF SPINDLE HOLE. 4-1/8CHUCKS. 23-3/4" 4-JAW, 12" ...more
Swing Over Bed 34 inches Swing Over Cross Slide 25.1 inches Swing Over Gap 45.6 inches Distance Between Centers 120 inches Width of Bed 22 inches Height from floor to work center 48.6 inches Spindle Bore 4.09 inches Taper of Spindle Bore & Center ASA #450 x M.T. #6 Type of Spindle Nose D1-11 Number of Spindle ...more
