For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$29,500 USD
Finance for as low as $598/mth
Description

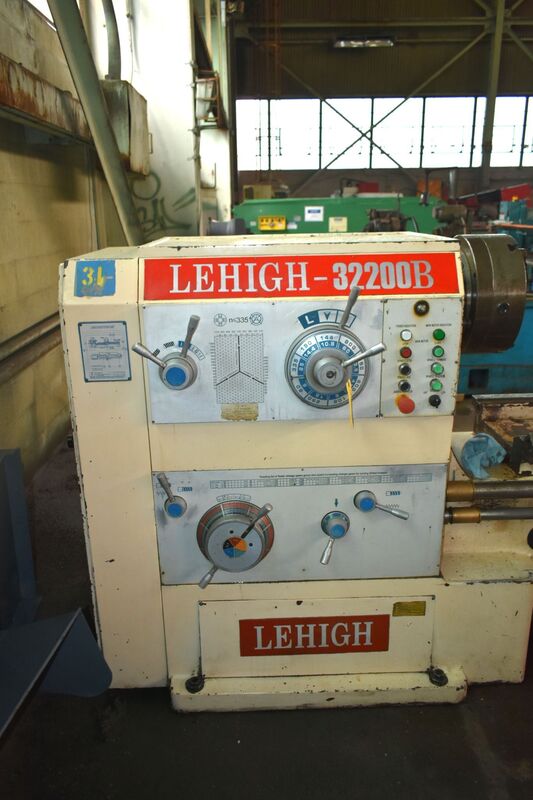

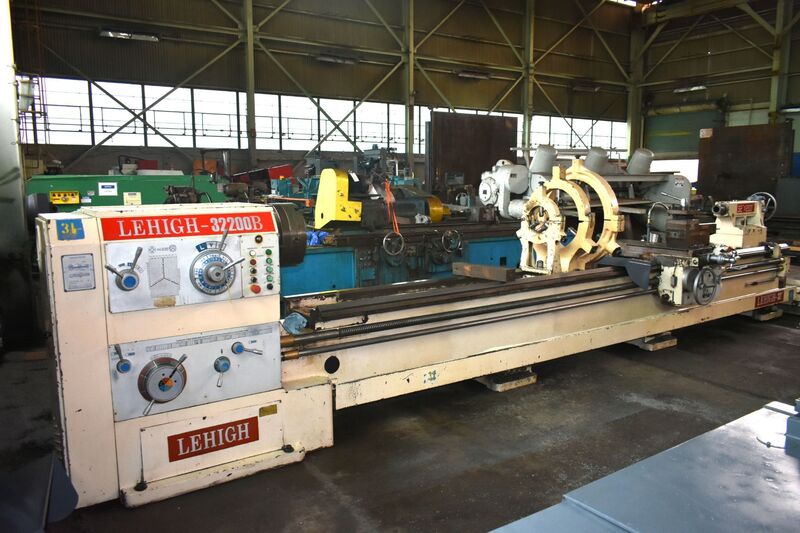

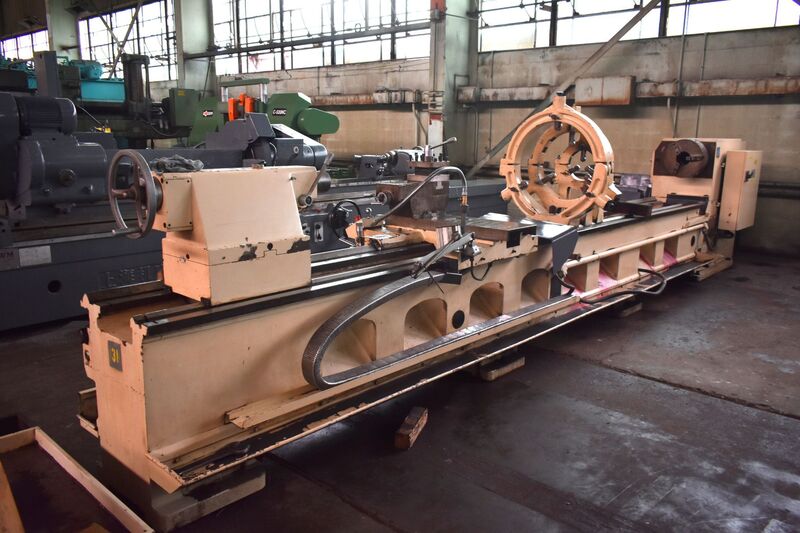

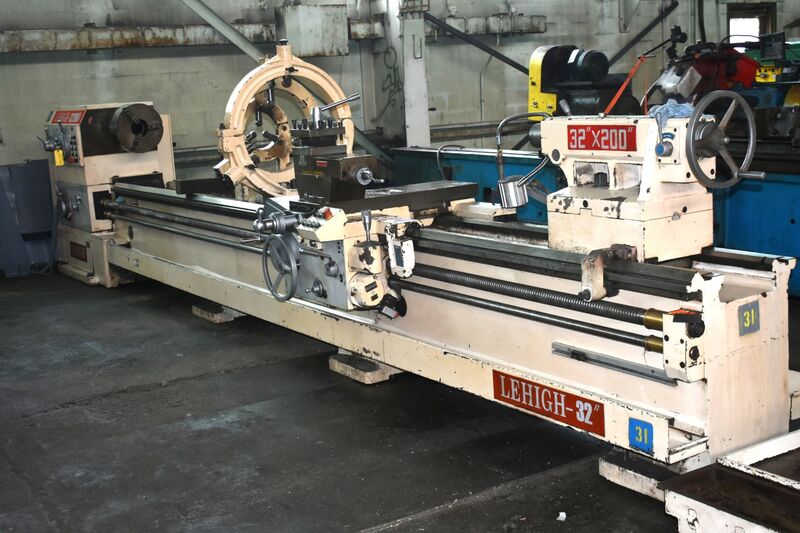

32/44" x 200" LEHIGH "32200B" HEAVY-DUTY GAP-TYPE ENGINE LATHE - 5" Hole Thru Spindle - Inch/Metric Threading - 15" 3-Jaw Chuck - (3) Steady Rests - 4-Way Tool Post
32/44" x 200" LEHIGH HEAVY-DUTY GAP-TYPE
ENGINE LATHE W/5" HOLE THRU SPINDLE
Model 3200B, Series H, HEAVY-DUTY
EQUIPPED WITH:
5" Hole Thru Spindle
Inch-Metric Threading Capabilities
Threading Dial - Power Rapid Traverse

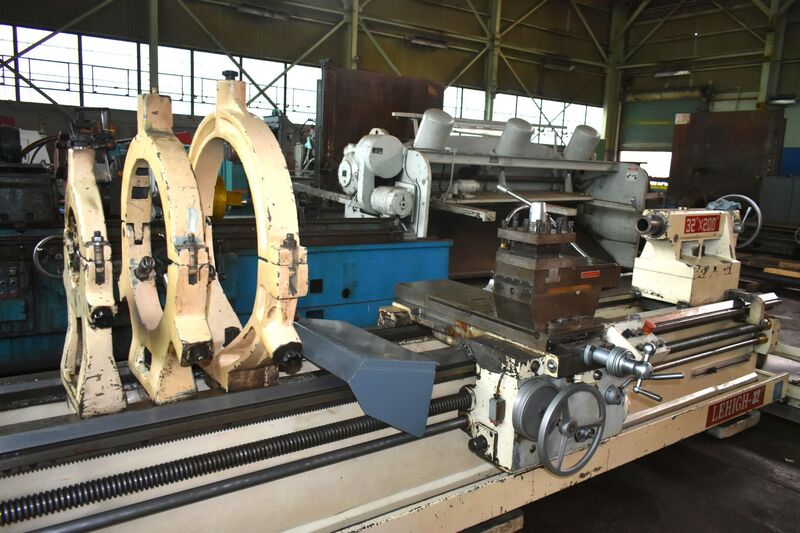

15" 3-Jaw Chuck w/Jaws - (3) Steady Rests
4-Way Toolpost - Hardened & Ground Bed Ways
D1-11 Spindle Nose

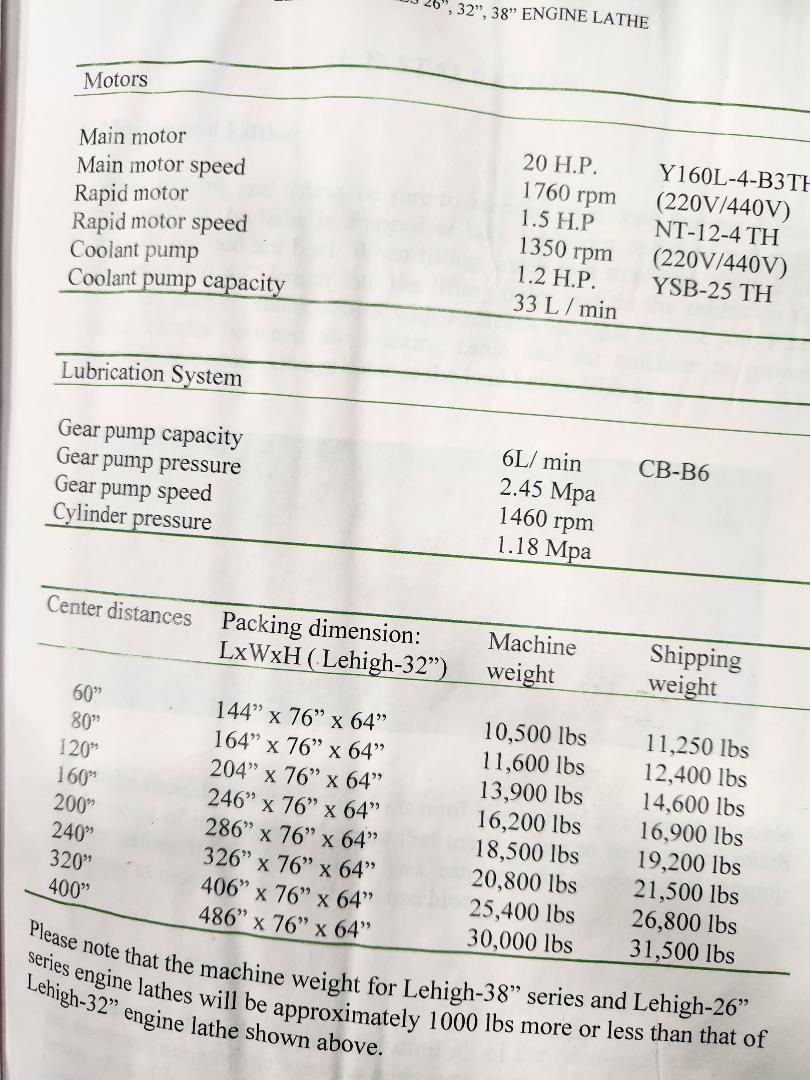

CATALOG SPECIFICATIONS:
Hole Thru Spindle 5"
Swing Over Bed Ways, Rated 32"
Swing Over Bed Ways, Actual 33"
Swing thru Gap 44"
Swing Over Cross-Slide 22"
Distance Between Centers 200"
Cross-Slide Cross-Feed Travel 16"
Compound Rest Travel 8"
Tailstock, Quill Diameter 4"
Tailstock, Quill Travel 12"
Tailstock, Spindle Taper #5 MT
Spindle Speeds, Range 6 to 800 RPM
(58) Thread Changes, Range 1 to 42 TPI
(51) Metric Thread Changes, Range 1 to 240 MM
(53) Modular Threads, Range 0.5 to 120 MM
(42) DP Threads, Range 1/8 to 30 D.P.
Motor Horsepower 20 HP
Rapid Motor Horsepower 1.5 HP
Overall Dimensions, L x W 286" x 76"
Overall Height 64"
Weight Approximately 18500 LBS
F.O.B. OUR WAREHOUSE
32/44" x 200" LEHIGH HEAVY-DUTY GAP-TYPE
ENGINE LATHE W/5" HOLE THRU SPINDLE
Model 3200B, Series H, HEAVY-DUTY
EQUIPPED WITH:
5" Hole Thru Spindle
Inch-Metric Threading Capabilities
Threading Dial - Power Rapid Traverse
15" 3-Jaw Chuck w/Jaws - (3) Steady Rests
4-Way Toolpost - Hardened & Ground Bed Ways
D1-11 Spindle Nose
CATALOG SPECIFICATIONS:
Hole Thru Spindle 5"
Swing Over Bed Ways, Rated 32"
Swing Over Bed Ways, Actual 33"
Swing thru Gap 44"
Swing Over Cross-Slide 22"
Distance Between Centers 200"
Cross-Slide Cross-Feed Travel 16"
Compound Rest Travel 8"
Tailstock, Quill Diameter 4"
Tailstock, Quill Travel 12"
Tailstock, Spindle Taper #5 MT
Spindle Speeds, Range 6 to 800 RPM
(58) Thread Changes, Range 1 to 42 TPI
(51) Metric Thread Changes, Range 1 to 240 MM
(53) Modular Threads, Range 0.5 to 120 MM
(42) DP Threads, Range 1/8 to 30 D.P.
Motor Horsepower 20 HP
Rapid Motor Horsepower 1.5 HP
Overall Dimensions, L x W 286" x 76"
Overall Height 64"
Weight Approximately 18500 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
