Machinery & Equipment > Lathes - Engine > Sliding & Gap Bed Lathes

34"/45.6" x 120" Kingston #HR-34120, precision gap lathe, 4.1" bore, 8-800 RPM, 25.1" swing over cross slide, inch/metric thread, 20 HP, new

Manufacturer: Kingston
Model: HR-34120
Swing: 34.0
Centers: 120.0
Stock # 87430

For Sale by Smith Machinery Co

Surplus Record Dealer Since 2001
Platinum Level Dealer
Location: Ames, IA
Contact Jim Smith
Let the seller know you found their listing on Surplus Record!

Description

Specifications
Swing Over Bed34 inches
Swing Over Cross Slide25.1 inches
Swing Over Gap45.6 inches
Distance Between Centers120 inches
Width of Bed22 inches
Height from floor to work center48.6 inches
Spindle Bore4.09 inches
Taper of Spindle Bore & CenterASA #450 x M.T. #6
Type of Spindle NoseD1-11
Number of Spindle Speeds16
Spindle Speed8 800 RPM (12 1200 Optional)
Number of Feed ChangesFine (20), Normal (40), Course (30)
Range of Feeds per Revolution0.0024-0.0337
Longitudinal Cross1/2 of Longitudinal Feed
Leadscrew Diam. & Threads per Inch1.9 / 2 TPI
Threading range (Whitworth)2 to 28 TPI (40) / Coarse 5/8 to 8 Pitch (16)
Threading range (Metric)1 to 14 mm (31) / Coarse 16 to 200 mm Pitch (61)
Threading range (Module)0.5 to 7 M (20) / Coarse 8 to 56 M (30)
Threading range (D.P.)56 to 4 D.P. (40) / Coarse 3.5 to .5 D.P. (30)
Maximum Travel of Compound9.4 inches
Maximum Travel of Cross Slide21.2 inches
Tailstock Quill Travel11.8 inches
Tailstock Quill Diameter5.1 inches
Tailstock CenterM.T. #6
Main Drive Motor20 HP (25 HP, 30 HP Optional)
Coolant Pump Motor1/4 HP
Floor SpaceW: 82 1L: 233
Weight11990 pounds
Shipping Dimensions215" x 60" x 70"
Shipping Weight13300 pounds

Equipped With
Equipped With
STANDARD EQUIPMENT & ACCESSORIES:
• Main Motor: 20 HP, 230V / 460V, 3 Phase, 60 Cycle,
Switch and Wiring Complete
• 4.09” Spindle Bore
• Spindle Nose: D1-11 Camlock
• Headstock Spindle Adapter ASA#450 to MT#6
• Chuck Guard
• Set of Change Gears for Special Leads
• Hardened and Ground Bedways
• Tool Slide with T-Slot
• 4-Way Rapid Traverse
• Thread Chasing Dial
• Tailstock Safety Locking Chock
• 2-Speed Drive Tailstock Quill
• Coolant System with Pump and Piping
• Pull Drawer Chip (Coolant) Pan
• UL Electrical Components & Cables
• Tool Box with Necessary Wrenches & Spanners
• Instruction Manual and Parts List
OPTIONAL ACCESSORIES:
11.9” Steady Rest with Roller Jaws (Min. Capacity 1.25”) $ 4,800
19.7” Steady Rest with Roller Jaws (Min. Capacity 11.1”) $ 5,850
23.5” Steady Rest with Roller Jaws (Min. Capacity 11.9”) $ 8,250
7.9” Follow Rest (Min. Capacity 0.75”) $ 3,400
Roller Bracket (34”: 15.75” – 27.5” / 40”: 20” – 33.5”) $ 9,350
25 HP Main Motor Upgrade [Factory Installation Only] $ 2,450
30 HP Main Motor Upgrade [Factory Installation Only] $ 3,550
Lower RPM Modification: 0.4 – 40 RPM [Factory Installation Only] $ 1,320
Higher RPM Modification: 12 – 1200 RPM [Factory Installation Only] $ 1,320
Telescopic Taper Attachment (Hardened & Ground) $ 7,500
Drilling Attachment $ 3,550
Micrometer Carriage Stop $ 940
Turret Carriage Stop $ 940
LED Work Light $ 325
Bison Super Precision Live Center MT#6 (8140 lbs, 0.0002 max runout) $ 950
Add Limit Switch to Chuck Guard $ 185
Aloris DA Tool Post Only $ 1,600
Aloris DA Tool Post + 6 Holders (Set #5) $ 3,200
Aloris EA Tool Post Only $ 2,550
Aloris EA Tool Post + 6 Holders (Set #6) $ 5,050
Newall 2-Axis Digital Readout + Installation (Net):
HR-2000 $4,900 + $550 (includes freight)
HR-3000 $6,000 + $600
HR-4000 $7,500 + $700
HR-5000 $9,750 + $800
HR-6000 $10,500 + $900
HR-7000 $13,200 + $1,000
HR-8000 $13,950 + $1,100
Chip Conveyor Upon Request
Toolpost Guard $ 1,500
Full Length Splash Guard Upon Request
NRTL / UL Certification Net $ 6,500
WORKHOLDING:
Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 15,400
Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11, 4.92” hole, 2pc jaws) $ 9,125
Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) $ 4,950
Bison 25” 3-Jaw Forged Steel Scroll Chuck (D1-11, 7.48” hole, 2pc jaws) $ 20,750
Bison 25” 4-Jaw Forged Steel Independent Chuck (D1-11, 6.3” hole,2pc jaws) $ 12,350
26” Face Plate $ 2,500
30” Face Plate $ 3,000
Other Chucks [i.e. Bison, Toolmex, Pratt Burnerd] Upon Request

Get Your Price from Smith Machinery Co!

Buyers Who Viewed This Listing Also Viewed:

JUST ADDED!

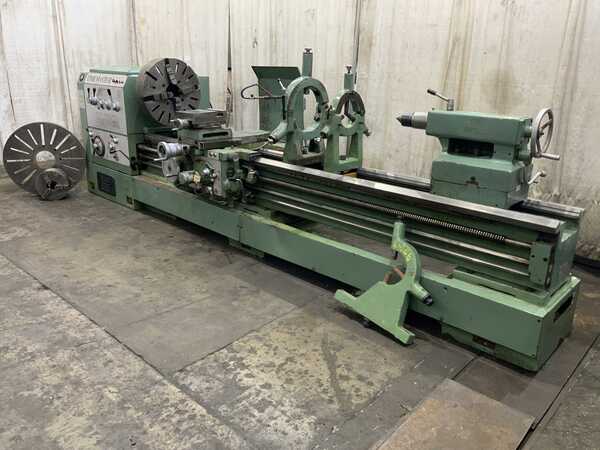

32" x 120" Timemaster, gap bed engine lathe, 40" swing in gap, 19-7/8" swing over cross slide, 4-1/8" bore
