Description

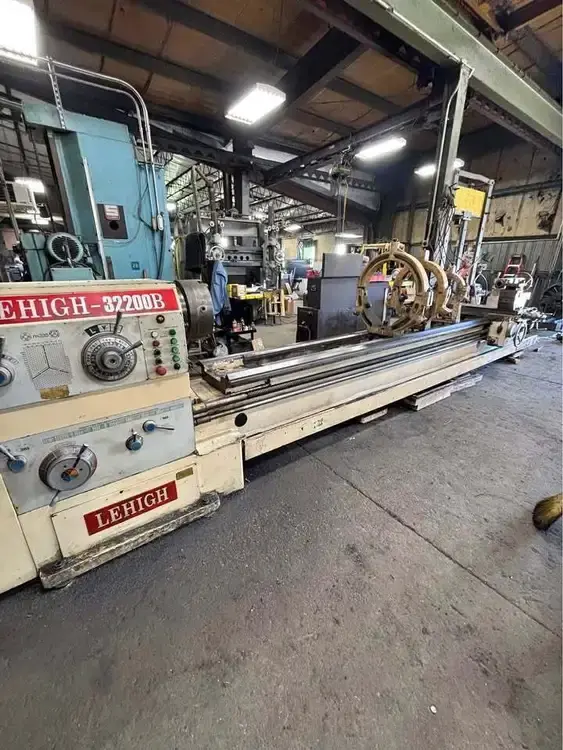

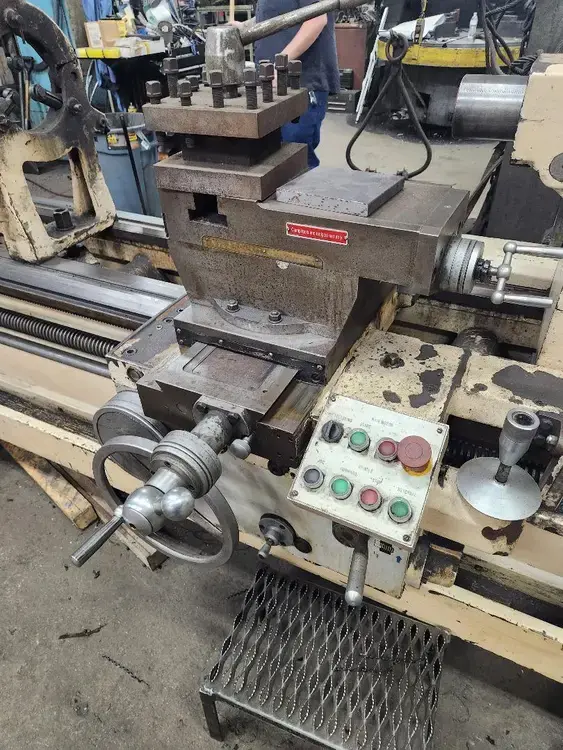

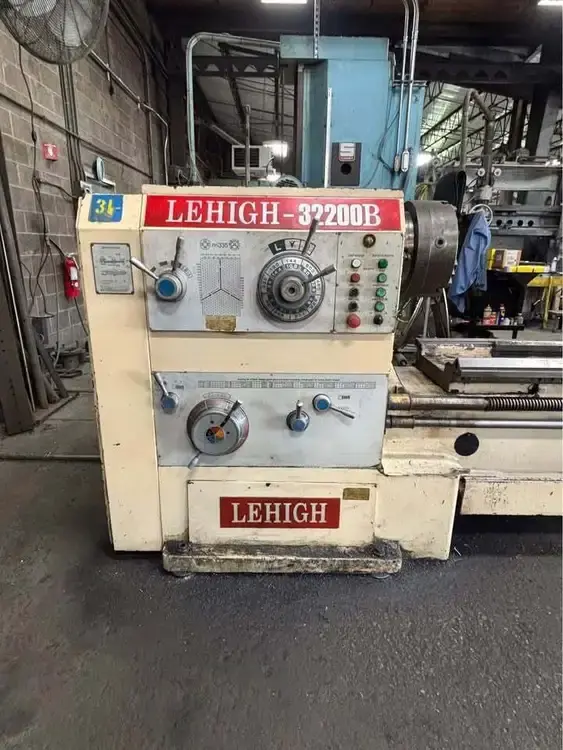

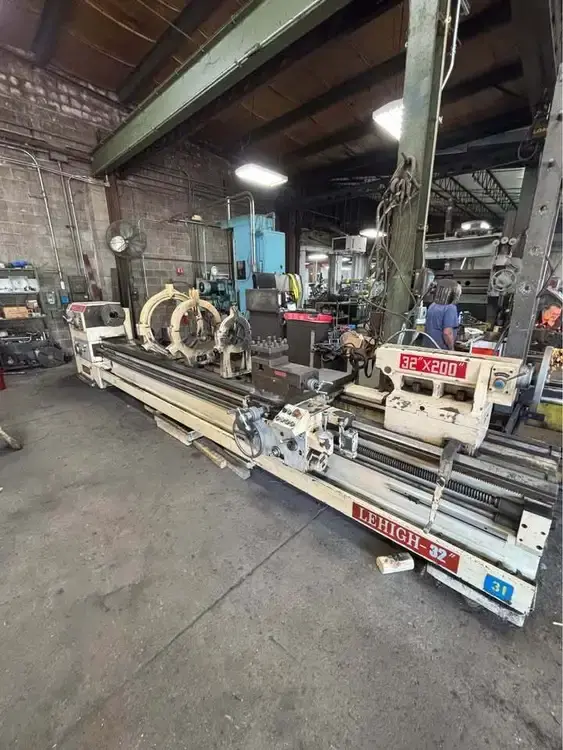

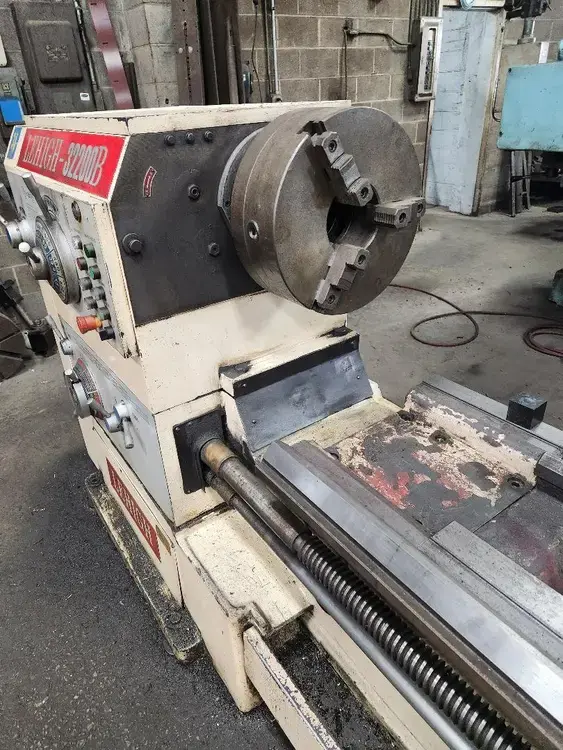

THIS LEHIGH 32/44" X 200" HEAVY-DUTY GAP-TYPE ENGINE LATHE, MODEL 3200B, SERIES H, FEATURES A 5-INCH HOLE THROUGH THE SPINDLE AND A D1-11 SPINDLE NOSE. IT IS EQUIPPED WITH INCH-METRIC THREADING CAPABILITIES, A THREADING DIAL, AND POWER RAPID TRAVERSE. THE LATHE HAS A RATED SWING OVER BED WAYS OF 32 INCHES, AN ACTUAL SWING OVER BED WAYS OF 33 INCHES, A SWING THROUGH THE GAP OF 44 INCHES, AND A DISTANCE BETWEEN CENTERS OF 200 INCHES. THE SWING OVER THE CROSS-SLIDE IS 22 INCHES. THE MACHINE INCLUDES A 15-INCH 3-JAW CHUCK, THREE STEADY RESTS, AND A 4-WAY TOOLPOST. BED WAYS ARE HARDENED AND GROUND. THE TAILSTOCK HAS A QUILL DIAMETER OF 4 INCHES, 12 INCHES OF TRAVEL, AND A #5 MT TAPER. SPINDLE SPEEDS RANGE FROM 6 TO 800 RPM. THREAD CHANGES INCLUDE 58 RANGES FROM 1 TO 42 TPI, 51 METRIC CHANGES FROM 1 TO 240 MM, 53 MODULAR CHANGES FROM 0.5 TO 120 MM, AND 42 DP CHANGES FROM 1/8 TO 30 D.P. POWER IS SUPPLIED BY A 20 HP MAIN MOTOR AND A 1.5 HP RAPID MOTOR. OVERALL DIMENSIONS ARE 286 INCHES IN LENGTH BY 76 INCHES IN WIDTH, WITH AN OVERALL HEIGHT OF 64 INCHES, AND AN APPROXIMATE WEIGHT OF 18,500 LBS.
