For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!

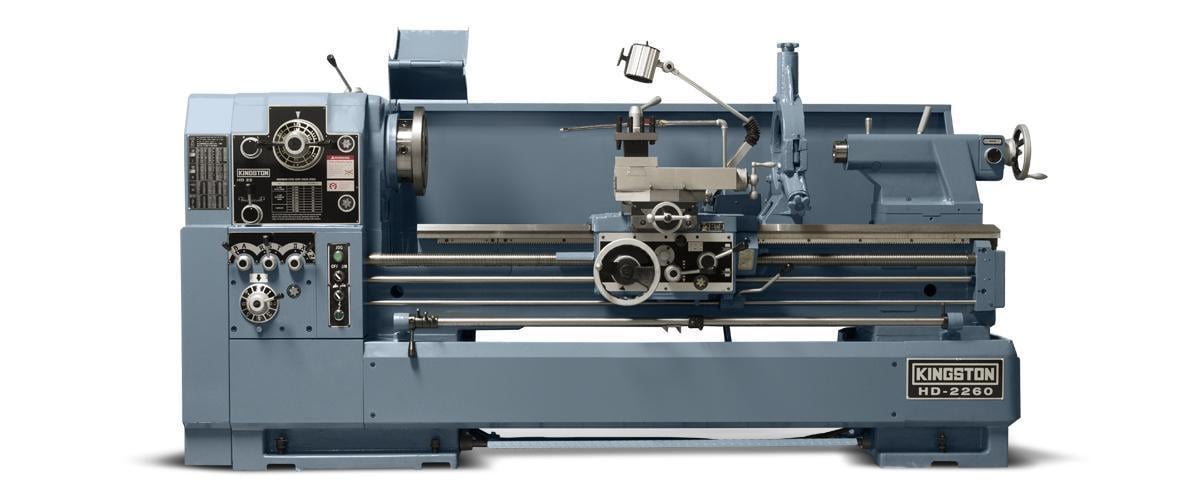

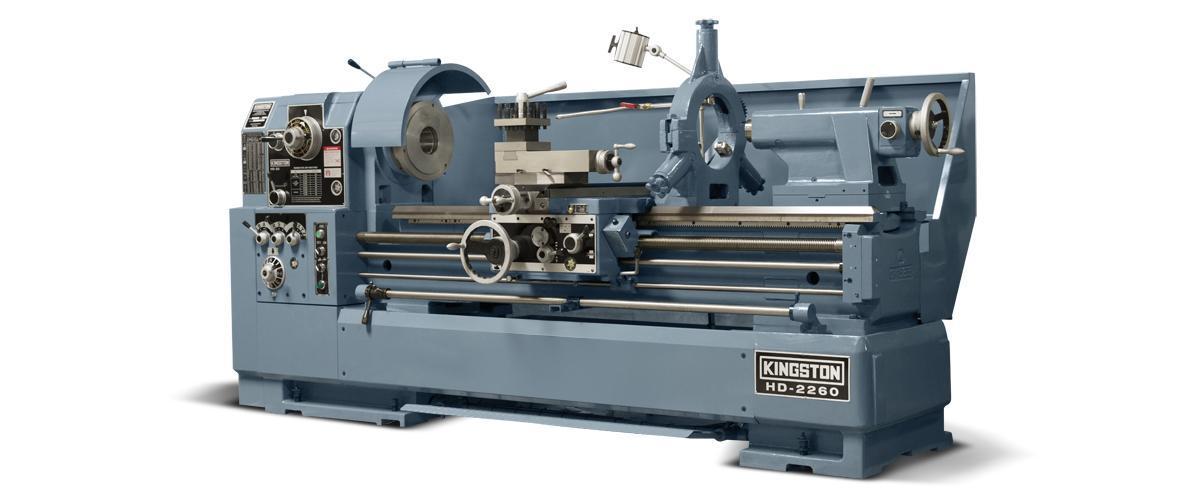

Description
Specifications
Equipped With
Equipped With OPTIONAL FEATURES:
SUBJECT TO STOCK
| Swing Over Bed | 22 inches |
| Swing Over Cross Slide | 13 inches |
| Swing In Gap | 31.375 inches |
| Gap Width in Front of the Face Plate | 10.625 inches |
| Distance Between Centers | 119.9999 inches |
| Width of Bed | 15.75 inches |
| Height of Center from Leg Bottom | 42 inches |
| Spindle Bore | 4.0625 inches |
| Taper of spindle bore and center | MT#7 x #5 |
| Type of Spindle Nose | D1-8 |
| Number of Spindle Speeds | 12 |
| Spindle Speed | 13-1,200 RPM |
| Number of Feed Changes | 16 |
| Feeds per revolution Longitudinal | 0.0012-0.039 |
| Feeds per revolution Cross | 0.0004 0.0117 |
| Leadscrew Diameter & Threads Per Inch | 1.77 , 4 TPI |
| Range of Inch Threads | 2 72 TPI (44) |
| Range of Metric Pitches | 0.2 14 (39) |
| Maximum Travel of Compound | 9.5 inches |
| Maximum Travel of Cross Slide | 15.8 inches |
| Tailstock Quill Travel | 9.8 inches |
| Tailstock Quill Diameter | 2.9 inches |
| Taper in Tailstock Quill | M.T. #5 |
| Main Drive Motor | 10 HP |
| Coolant Pump Motor | 1/8 HP |
| Floor Space | W: 47 L: 177 |
| Machine Weight | 7000 pounds |
Equipped With
Equipped With
EQUIPPED WITH:

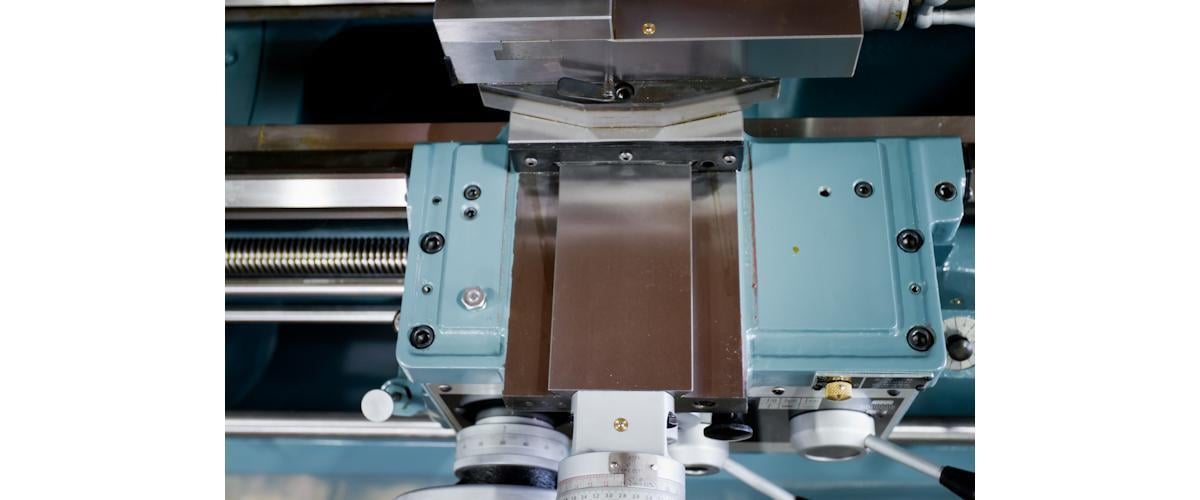

• Hardened & Ground Bed & Cross Slide Ways
• Thread Chasing Dial
• Automatic Longitudinal Feed Stop Bar

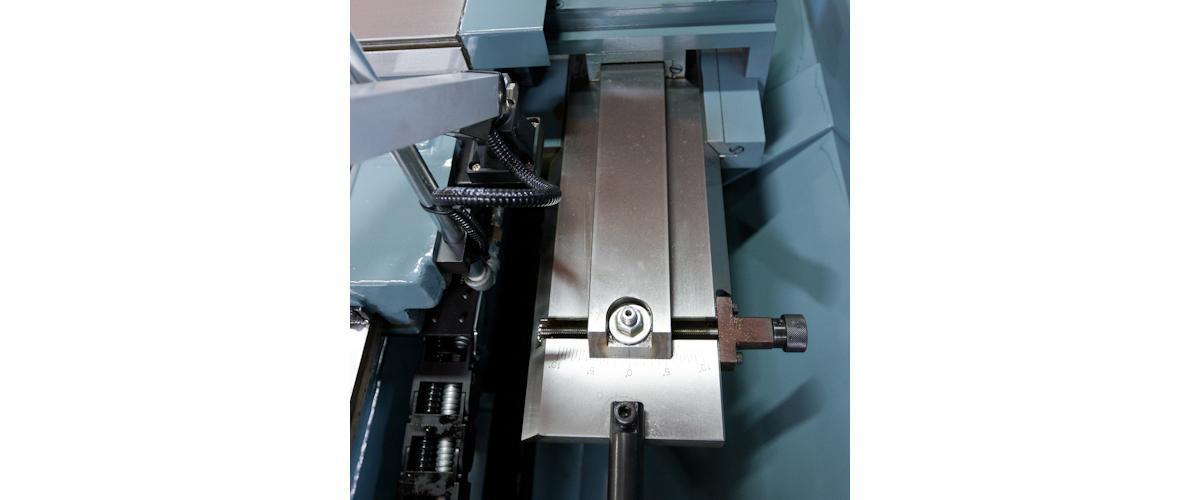

• 4-Way Tool Post Fitted To T-Slotted Compound
• LED Work Light
• 10” Steady Rest with Roller Jaws
• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)
• Chuck Guard
• Headstock Spindle Center Adaptor: MT#7 to #5
• Ground Steel Center MT#5 For Headstock
• 12" Back Plate

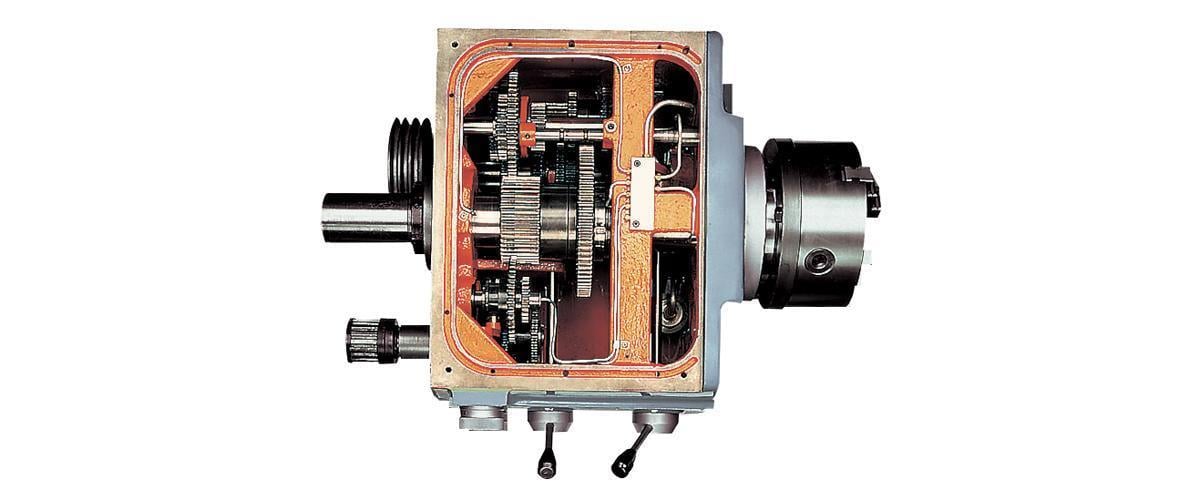

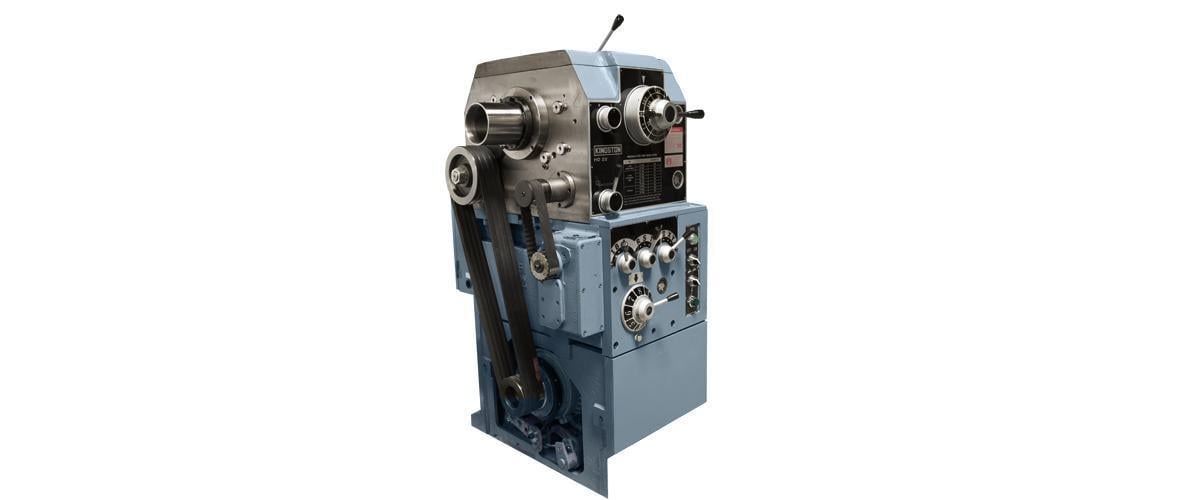

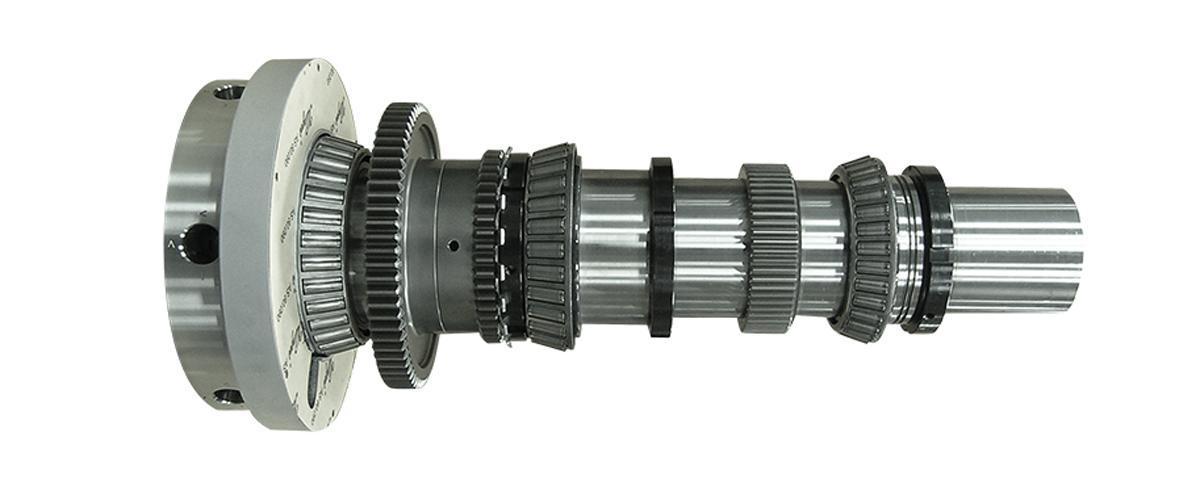

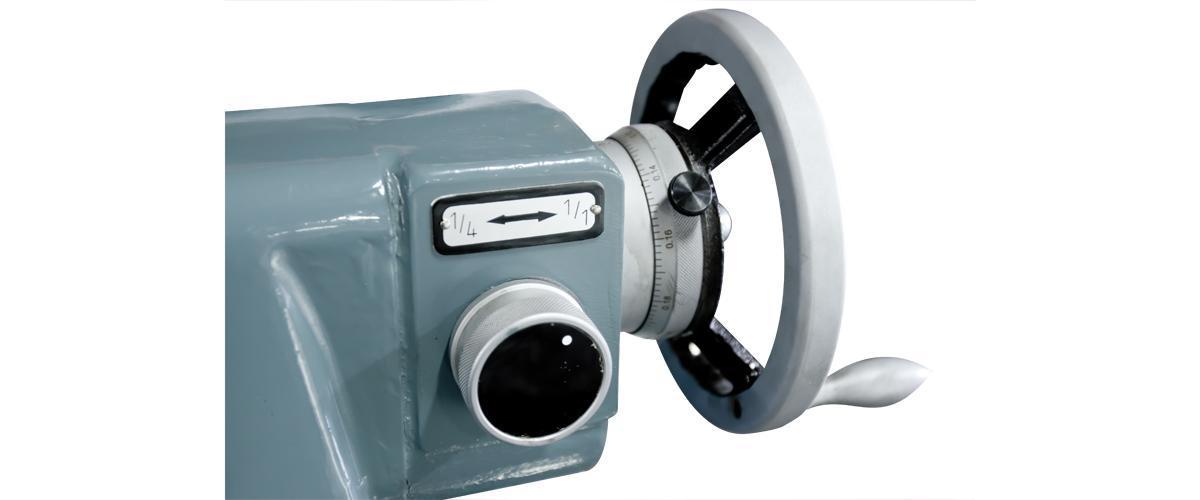

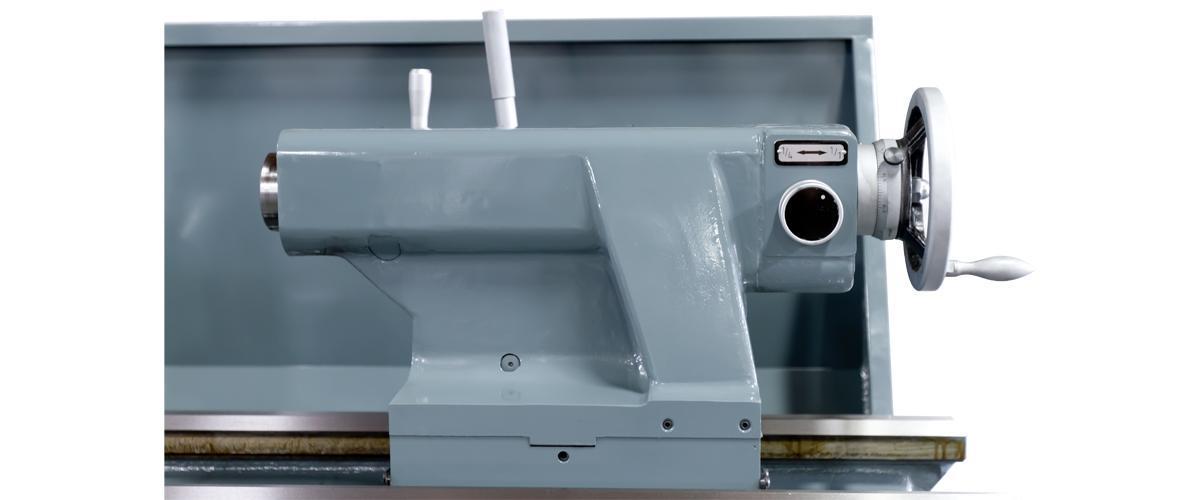

• Two-Speed Drive Tailstock Spindle (MT#5)
• Coolant System with Pump and Piping
• Full Length Splash Guard
• Pull Drawer Chip (Oil) Pan
• Tool Box w/ Necessary Wrenches & Spanners
• Instruction Manual & Parts List
• Emergency Stop Button
• Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500
• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
• 7" Follow Rest $1,500
• Telescopic Taper Turning Attachment $5,900
• Drilling Attachment $1,900
• Z-axis Rapid Traverse on 35” or 60” Bed $3,500
• Carriage Stop: Turret-Type or Micrometer Available $ 450
• Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $ 425
• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
• Aloris CA Tool Post Only $1,050
• Aloris CA Tool Post + 6 Tool Holders (Set #4) $2,125
• Aloris DA Tool Post Only $1,475
• Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,795
• Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $4,950 + $650
120” C.C. $5,800 + $750
160” C.C. $7,100 + $850
WORKHOLDING
• D1-8: Taiwan SK 12” 3-Jaw Semi-Steel Scroll Chuck + Plate (solid jaws) $ 2,100
• D1-8: Taiwan KT 12” 3-Jaw Steel Body Adjustable Chuck + Plate (hard+soft solid jaws) $ 2,900
• D1-8: Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 1,450
• D1-8: Bison 16” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $ 5,700
• D1-8: Bison 16” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 4,750
• D1-8: Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 2,400
• D1-11: Bison 20” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $12,500
• D1-11 Bison 20” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 7,500
• D1-11: Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 3,250 20”
• Face Plate $ 1,500
• Other Chucks Upon Request
SAFETY ACCESSORIES
• Add Limit Switch to Chuck Guard $ 150
• Clear Lexan Chuck Guard [Installed] $ 500
• Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
• Travelguard Tool Post Guard [Kingston Installation] $ 550
• Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
• Rear Spindle Cover $ 250
• NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
• NRTL / UL Certification Upon Request
DELIVERY:• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
• 7" Follow Rest $1,500
• Telescopic Taper Turning Attachment $5,900
• Drilling Attachment $1,900
• Z-axis Rapid Traverse on 35” or 60” Bed $3,500
• Carriage Stop: Turret-Type or Micrometer Available $ 450
• Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $ 425
• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
• Aloris CA Tool Post Only $1,050
• Aloris CA Tool Post + 6 Tool Holders (Set #4) $2,125
• Aloris DA Tool Post Only $1,475
• Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,795
• Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $4,950 + $650
120” C.C. $5,800 + $750
160” C.C. $7,100 + $850
WORKHOLDING
• D1-8: Taiwan SK 12” 3-Jaw Semi-Steel Scroll Chuck + Plate (solid jaws) $ 2,100
• D1-8: Taiwan KT 12” 3-Jaw Steel Body Adjustable Chuck + Plate (hard+soft solid jaws) $ 2,900
• D1-8: Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 1,450
• D1-8: Bison 16” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $ 5,700
• D1-8: Bison 16” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 4,750
• D1-8: Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 2,400
• D1-11: Bison 20” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $12,500
• D1-11 Bison 20” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 7,500
• D1-11: Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 3,250 20”
• Face Plate $ 1,500
• Other Chucks Upon Request
SAFETY ACCESSORIES
• Add Limit Switch to Chuck Guard $ 150
• Clear Lexan Chuck Guard [Installed] $ 500
• Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
• Travelguard Tool Post Guard [Kingston Installation] $ 550
• Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
• Rear Spindle Cover $ 250
• NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
• NRTL / UL Certification Upon Request
SUBJECT TO STOCK
