For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

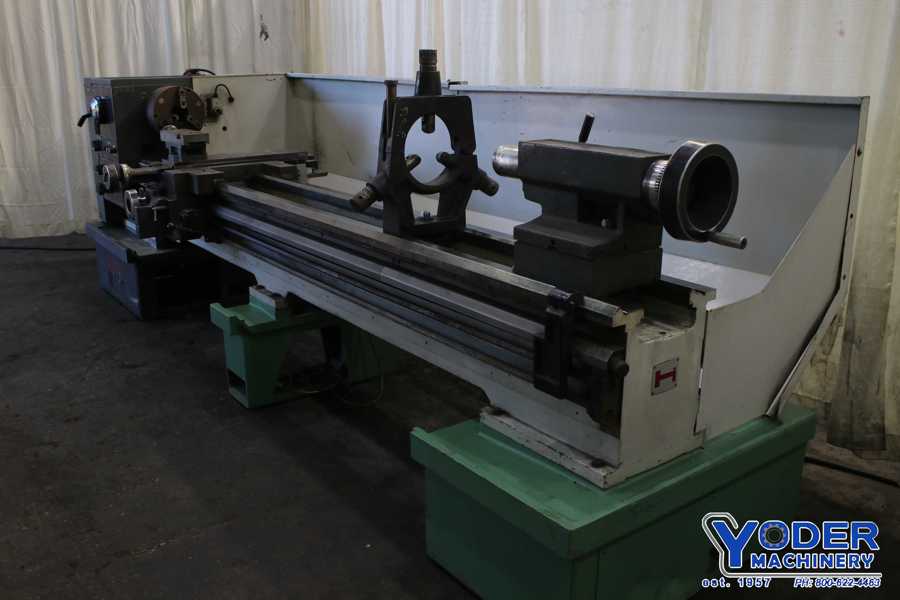

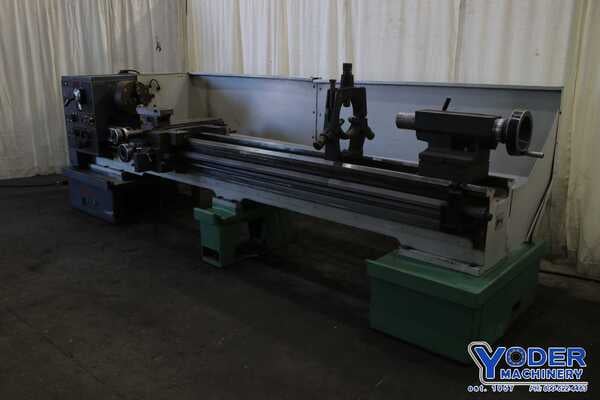

Description
SERIAL .......................... SM001-004
MODEL ........................... M550
SWING OVER BED WAYS ............. 18"
SWING OVER CROSS SLIDE .......... 15"
SWING IN GAP .................... 33"
DISTANCE BETWEEN CENTERS ........ 120"
SPINDLE SPEEDS .................. 18 TO 1400 RPM
LONGITUDINAL FEEDS .............. 0016 TO .11 IPR
THREADS (INCH) .................. 2 TO 84 TPI
METRIC THREADS .................. .2 TO 14 MM PITCH
DIAMETER OF SPINDLE HOLE ........ 3-1/2"
CHUCK ........................... 12" 3-JAW
RAPID TRAVERSE .................. 4 WAY
THREAD DIAL ..................... YES

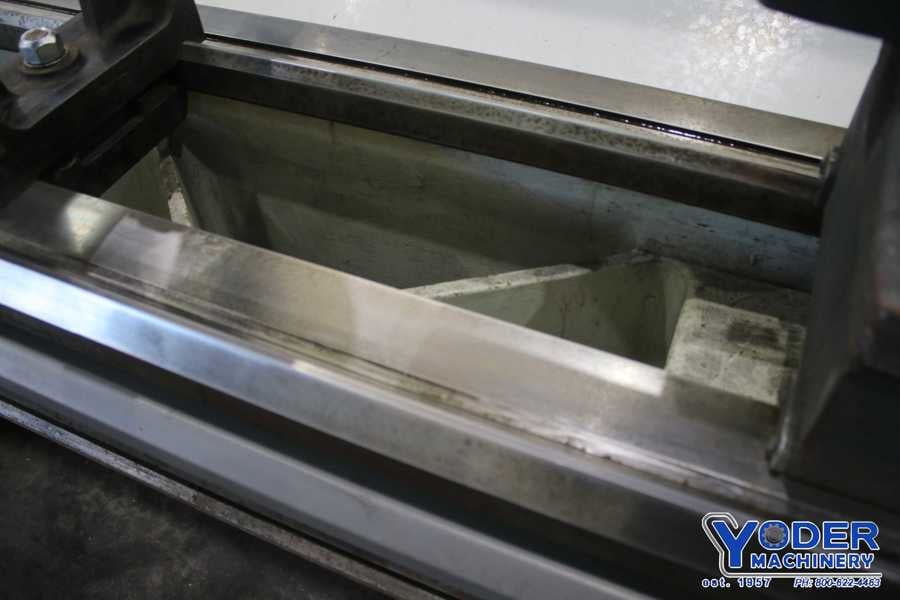

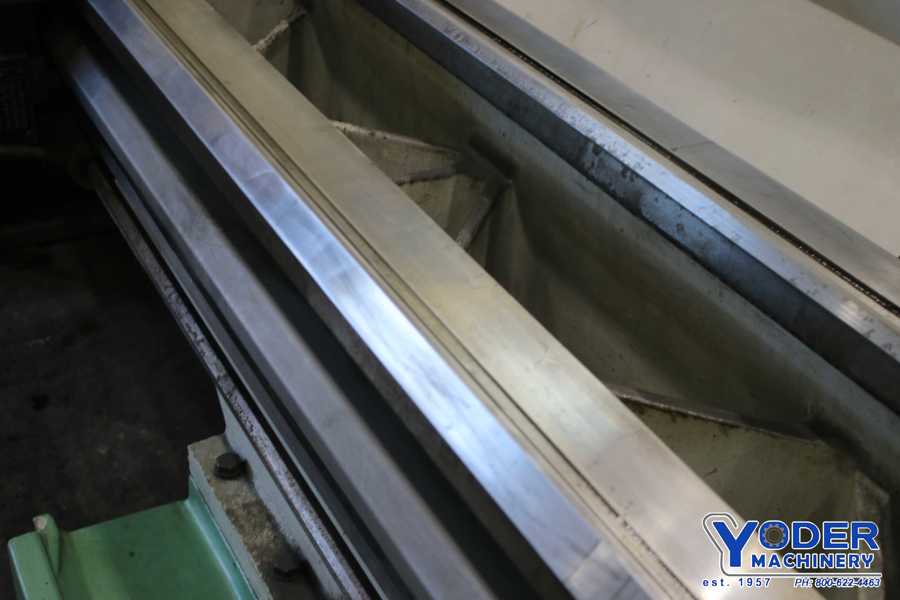

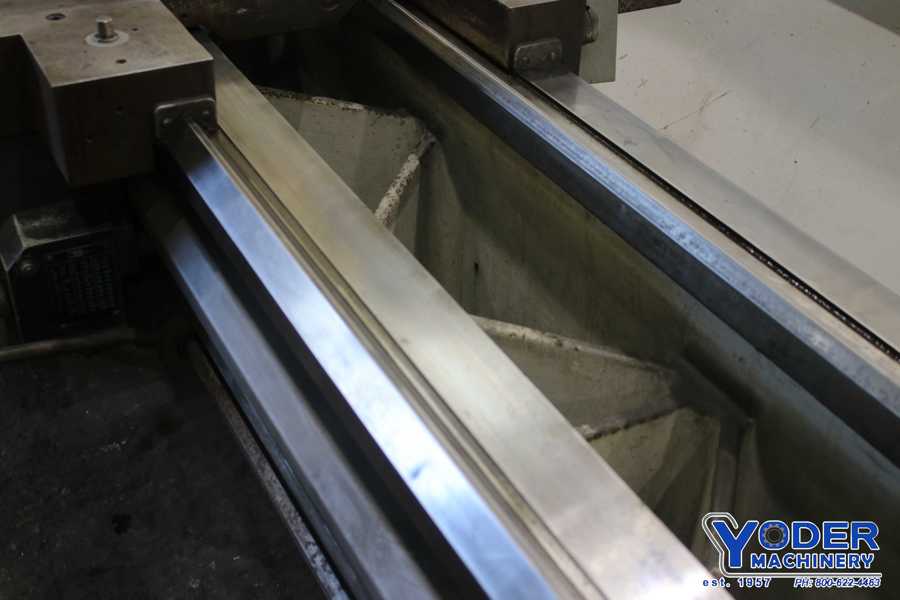

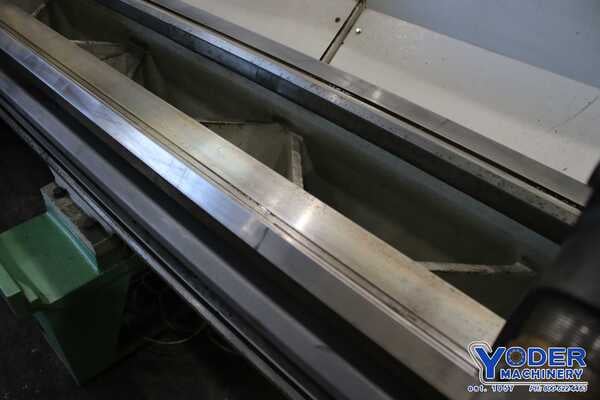

HARD WAYS ....................... YES
COOLANT WITH CHIP PAN ........... YES

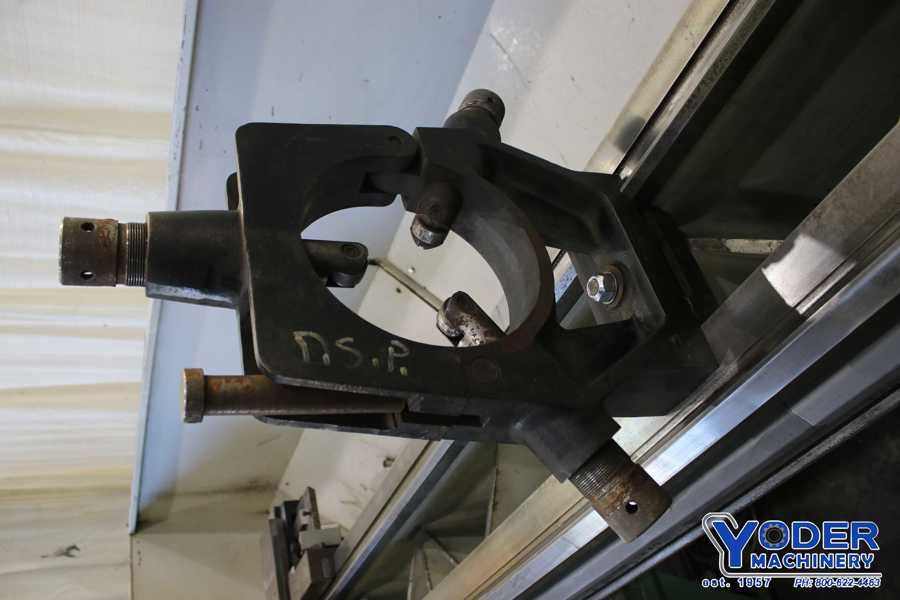

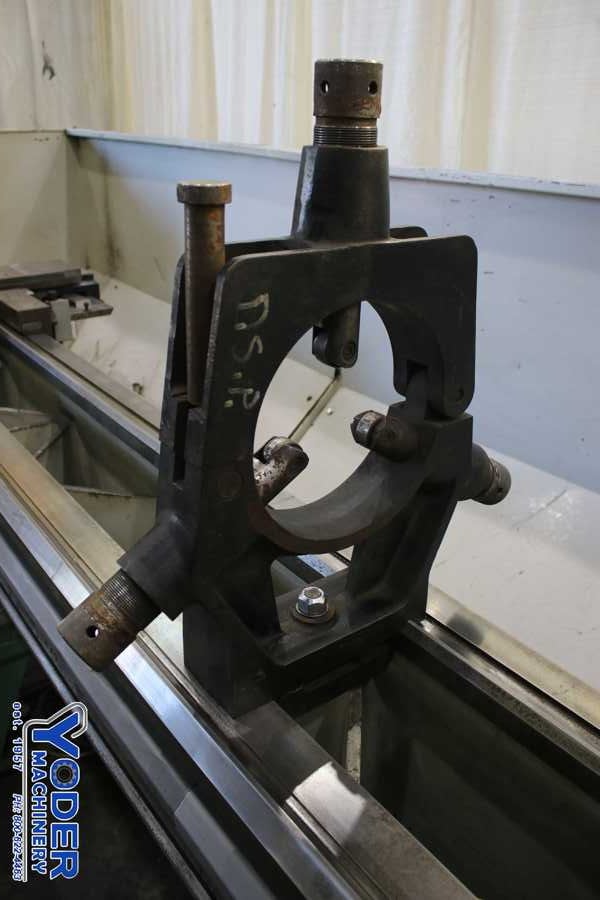

STEADY REST ROLLER TYPE ......... 9-1/2"
MOTOR ........................... 15 HORSEPOWER
MODEL ........................... M550
SWING OVER BED WAYS ............. 18"
SWING OVER CROSS SLIDE .......... 15"
SWING IN GAP .................... 33"
DISTANCE BETWEEN CENTERS ........ 120"
SPINDLE SPEEDS .................. 18 TO 1400 RPM
LONGITUDINAL FEEDS .............. 0016 TO .11 IPR
THREADS (INCH) .................. 2 TO 84 TPI
METRIC THREADS .................. .2 TO 14 MM PITCH
DIAMETER OF SPINDLE HOLE ........ 3-1/2"
CHUCK ........................... 12" 3-JAW
RAPID TRAVERSE .................. 4 WAY
THREAD DIAL ..................... YES
HARD WAYS ....................... YES
COOLANT WITH CHIP PAN ........... YES
STEADY REST ROLLER TYPE ......... 9-1/2"
MOTOR ........................... 15 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
