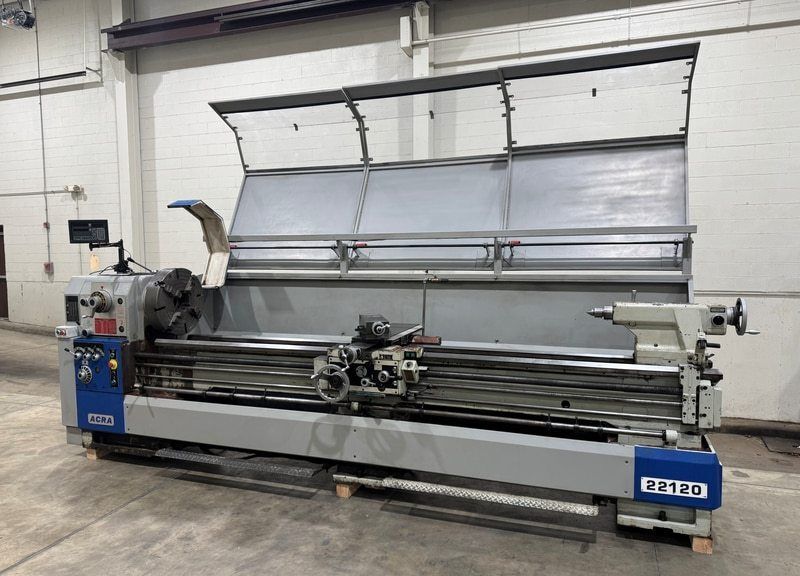

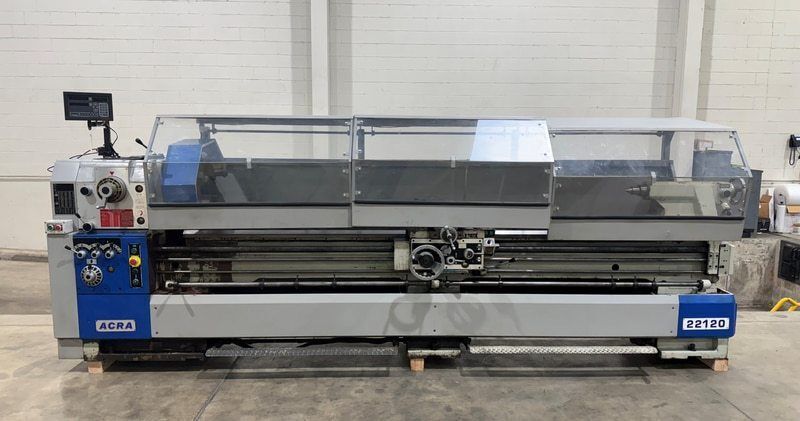

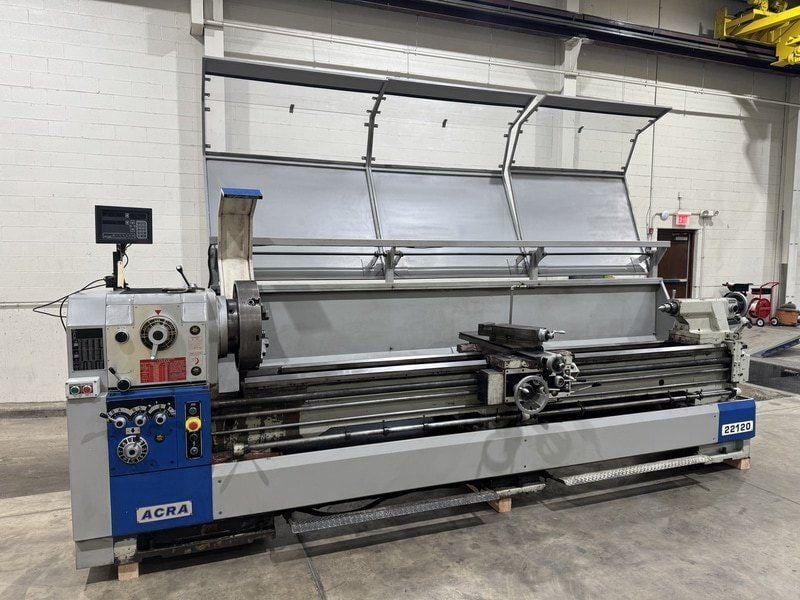

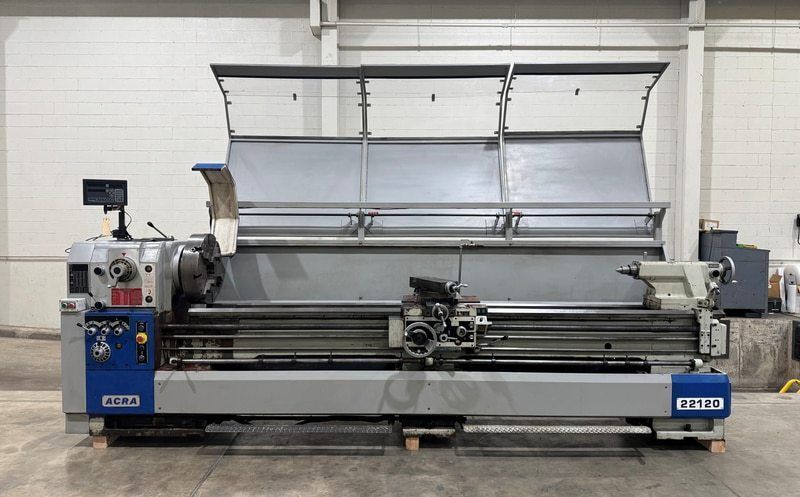

22"/31" x 120" Acra #22120, 19.5" 4-Jaw Chuck, 4" Bore, 2-Ax digital read out, Splash Guard, 2007

Serial No. CH08824
Year Built - 2007
CATALOG SPECIFICATIONS:
Swing:
- Over bed............22"
- Over cross slide............13-3/8"
- In gap............31-3/8"
Distance between centers............120"

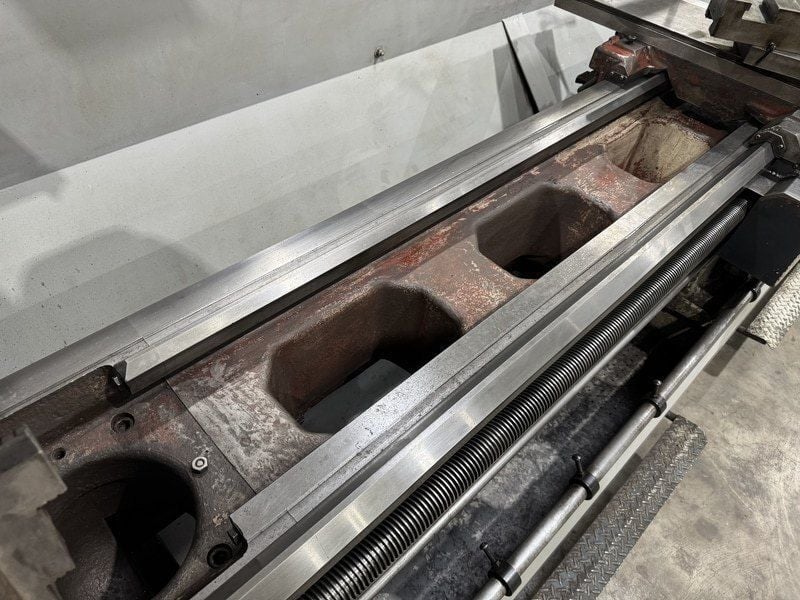

Bed width............15-3/4"
Gap width............10-5/8"

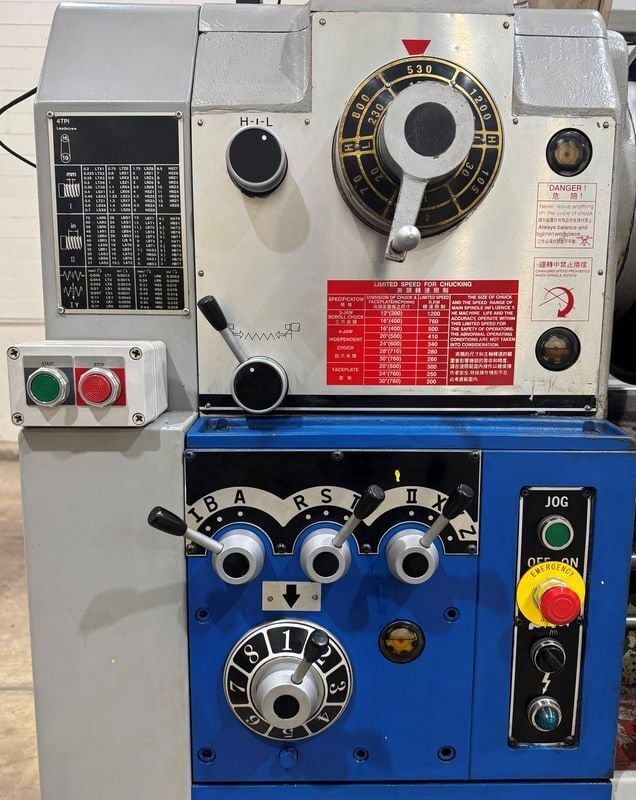

Spindle:
- Nose............D1-11
- Bore............4-1/8"
- Taper............MT No. 7
- Speeds(12) - Hi & Lo Range............13 - 1,200 RPM
- Drive motor............15 HP
Travel:
- Cross slide............9-9/16"
- Compound slide............5 3/8"
Threads:
- Inch............2 - 72 TPI
- Metric............0.2 - 14 MM
Feeds:
- Longitudinal............0.035 - 0.09"/rev
- Cross............0.0175 - 0.045"/rev
Quill:
- Diameter............2-15/16"
- Travel............7"
- Taper............MT No. 5
Electrics............440V/3Ph/60Hz
Weight - tag............6,724 Lbs.
Dimensions - catalog............177"(L-R) x 48"(F-B) x 49"(H)
EQUIPPED WITH:

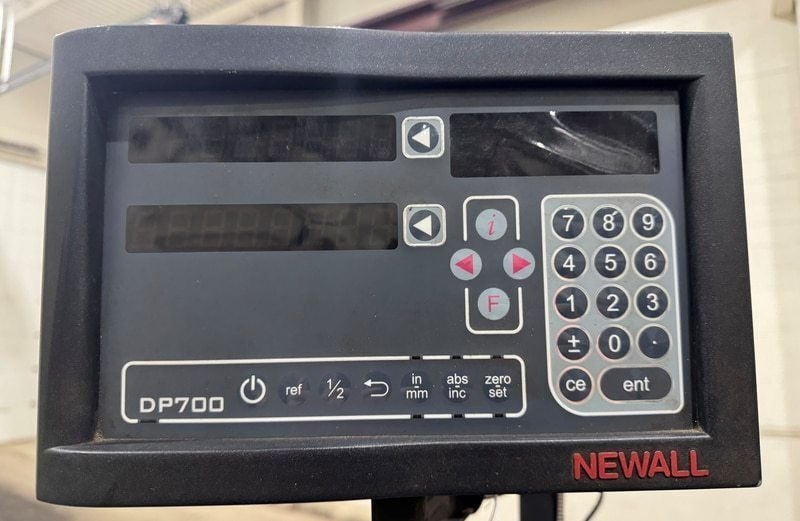

Newall DP700 2-Axis DRO

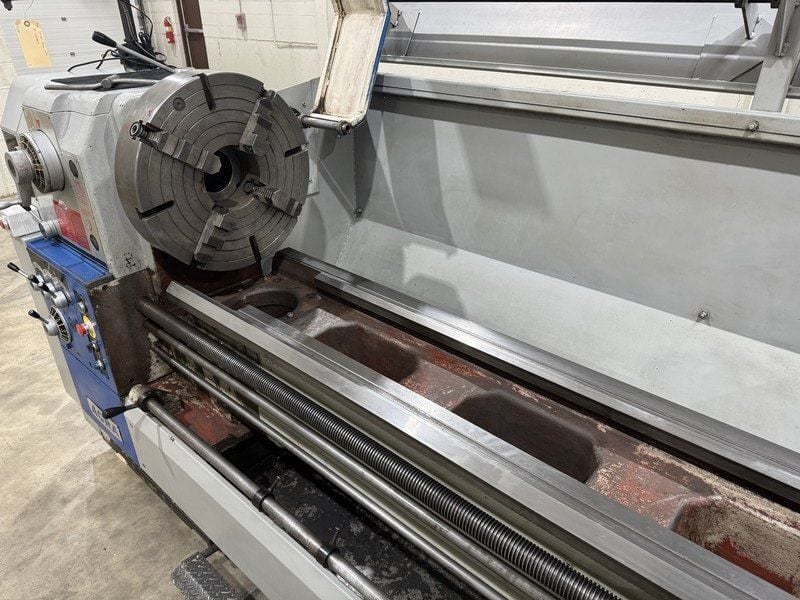

19.5" 4-Jaw Chuck
In/MM Threading

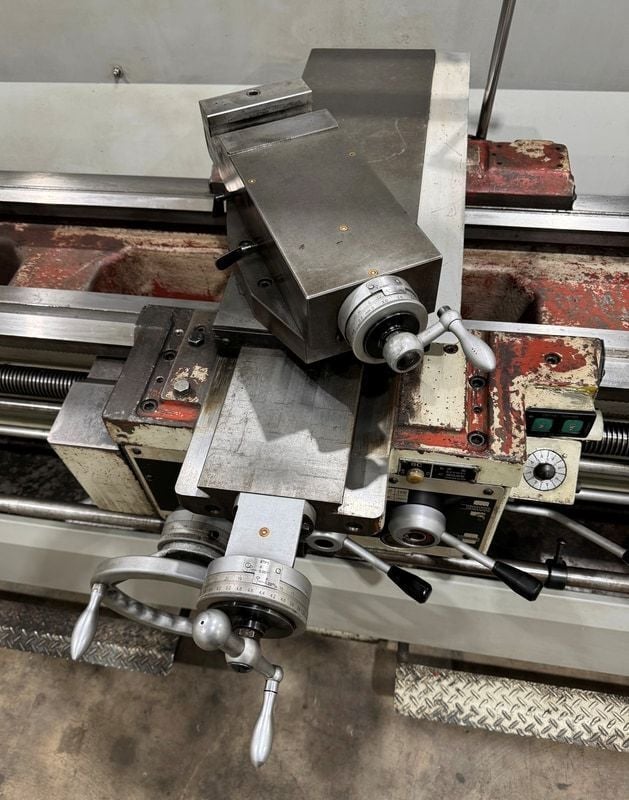

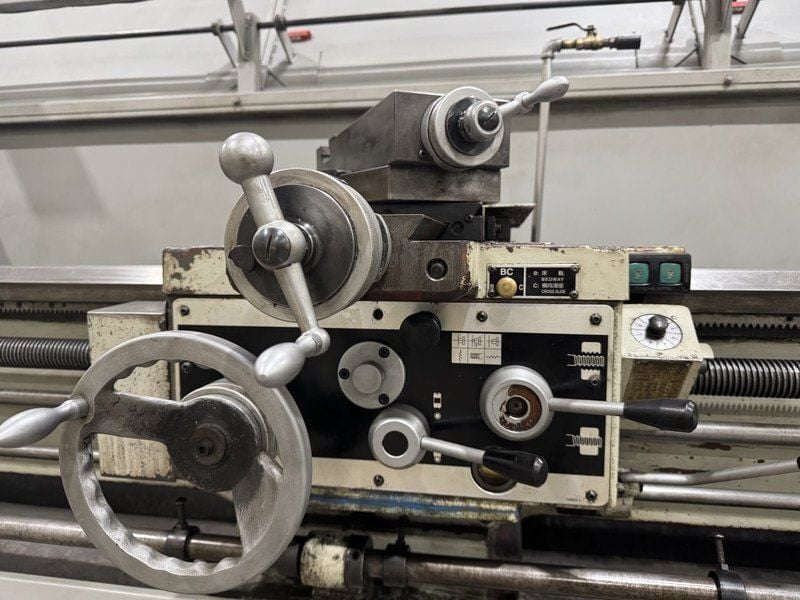

Compound Cross Slide
Tailstock
Power Rapid Traverse
Dual Foot Treadle
Trav-A-Dial
Full Length splash Guard
*Preliminary specifications, pending confirmation.
