151 - 200 of 358 listings
150 Ton, Down-act, 98" x49", 79" daylight, 48" stroke, 36" work hgt, 224" tall, bed & crown tilt, #1434
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
PRESS IS DESIGNED FOR OPTIONAL BOOKING/TILTING OF TOP AND BOTTOM PLATENS (WAS USED AS A R.I.M. PRESS). APPROX 79" DAYLIGHT; 48" STROKE; 31" SHUT HEIGHT; 36" OPERATOR HEIGHT. FULLY GUIDED (45" GUIDES) ON 7.5" DIAMETER TIE RODS. TWO 8" BORE CYLINDERS WITH 5" RODS. CENTER MOUNTED SAFETY CATCH WITH 4" DIAMETER ROD. TWO ...more
150 Ton, Up-acting, 52" LR x 126" FB, 13.5" daylight, 8" stroke, (8) 5" bore cyls, #1186
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
MANUFACTURED BY PRESTON. EIGHT 5" BORE SINGLE ACTING CYLINDERS. APPROX 8" STROKE. OVERALL CLEARANCE L TO R: 57". FIVE FRAME SECTIONS; DISTANCE BETWEEN FRAMES: 17.5". 13.5" DAYLIGHT. RACK AND PINION GUIDING. NOTE: PRESS ORIGINALLY SET UP WITH 3 CYLINDERS PER FRAME FOR A TOTAL 15 WHICH WOULD MAKE PRESS 300 TONS @ 2000 ...more
150 Ton, 37" x 36", down-act 4-post, 41" daylight, 16" stroke, 32.5" work hght, 110" tall, #2195
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
OVERALL L TO R IS 48.5"; F TO B BETWEEN THE POSTS IS 25". THE NOMINAL BED IS 37" X 36". MAX DAYLIGHT IS APPROX 41". TWO CYLINDERS WITH APPROX 8" BORE; 5" DIAMETER ROD; 16" MAX STROKE. OPERATOR HEIGHT IS APPROX 32.5". FULLY GUIDED ON 3" DIAMETER POSTS WITH 5" BUSHINGS. APPROX 9" X 12" SQUARE HOLE IN CENTER OF BED. ...more
154 Ton, French Oil, 26" x26", up-act, slab side, 16" daylight, 10" stroke, 31" work hght, 56" tall, #2238
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
PH-29064A. MACHINE #15391. 28" CLEARANCE L TO R BETWEEN THE SIDES. 26" X 26" NOMINAL PLATEN SIZE. RAM IS 14" DIAMETER WITH APPROX 10" MAX STROKE AND RATED TO 2000 PSI. APPROX 16" DAYLIGHT. APPROX 31" OPERATOR HEIGHT. GIB GUIDES. SLAB-SIDES ARE 3" THICK AND EACH HAS A 2" X 16" WINDOW NEAR FRONT EDGE. OVERALL DIMENSIONS ...more
154 Ton, HPM, 16" x 24", upact 4-post, 12" stroke, 18" daylight, 14" ram, 32" work height, #270 (4 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
BED 16" L to R X 24" F to B. DISTANCE BETWEEN POSTS: 18" L to R X 15" F to B. POST DIAMETER 3 \u00bd". DAYLIGHT 18". APPROX STROKE 12". 14" MAIN RAM, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. HALF SURROUND GUIDES ON MOVING BOLSTER. OPERATOR HEIGHT: 32 \u00bd". OVERALL DIMENSIONS: 32" W X 32" D X 66" TALL. APPROX ...more
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.
160 Ton, M & N, 5000 psi, 12" x15", up-act 4-post, 15" stroke, 17" daylight, 9" ram, #299
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: M & N
OVERALL PLATEN SIZE 15" L TO R X 15" F TO B, DISTANCE BETWEEN POST 12" L TO R X 8" F TO B, NOMINAL PLATEN SIZE 12" L TO R X 15" F TO B. 17" DAYLIGHT. APPROX 15" STROKE. 9" SINGLE ACTING MAIN RAM. 160 TONS AT 5000 PSI. 3" DIAMETER POSTS. HALF SURROUND GUIDES ON MOVING BOLSTER. SERIAL NO. 0791; MODEL NO. 0419. OPERATOR ...more
170 Ton, Elmes, 24" x26.5", up-act, stripper bars, 12" bore w/11.5" stroke, 27" daylight, #2700/01 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Elmes
Press is stripper bars on the bed (3.25" bore; 4" stroke cylinders). Left to right between the bars is 24". Front to back between the posts is 13" and overall is 26.5". Left to right between the posts is 29" (bars would have to be removed to utilize). Useable bed area with bars is 24" x 26.5". The ram is 12" bore with ...more
170 Ton, TMP, vacuum, 26" x34", up-act, slab side, 47" daylight, 24" stroke, no controls or hydraulic, 1991, #774
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Tmp
Year: 1991
SERIAL 20493-2. 1991. MAIN RAM 12" BORE SINGLE ACTING WITH 1 \u00bd" NPT PORT RATED TO 3000 PSI. OVERALL CLEARANCE L TO R BETWEEN SLABS IS 41 \u00bd". DAYLIGHT 47 \u00bd". APPROX STROKE 24". 45 DEGREE GIB GUIDED MOVING BOLSTER. PNEUMATICALLY OPERATED FRONT DOOR. HINGED REAR DOOR. OPERATOR HEIGHT 51". OVERALL ...more
170 Ton, Wallace, 60" x48", down-act, 92" daylight, 36" stroke, 600 IPM, (2) 75 HP motors, #140 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wallace
12" BORE CYLINDER WITH 8" ROD. 92" DAYLIGHT. APPROX 36" STROKE. 56" SHUT HEIGHT. 40" OPERATOR HEIGHT. SLIDE HAS 42" GIBB GUIDES. FLOOR STANDING. INCLUDES CONTROLS, PALM BUTTONS, AND HYDRAULICS. HYDRAULIC UNIT IS MOUNTED ON TOP OF PRESS. IT HAS TWO 75 HP, 1800 RPM MOTORS. 230/460 VOLTS, 3 PHASE, 60 HZ. TWO VICKERS VANE ...more
170 Ton, Up-acting, 32" x 12", 2.5" stroke, 5"-32" adj. daylight, (3) 7" bore double-acting cylinders (#1552)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Model: 1552)
THREE 7" BORE DOUBLE-ACTING CYLINDERS WITH 6" DIAMETER RODS AND APPROX 2.5" STROKE. DAYLIGHT IS ADJUSTABLE FROM APPROX 5" TO 32". THE UPPER PLATEN RIDES ON TWO 6" DIAMETER THREADED POSTS. THERE IS A DOUBLE SHAFT MOTOR ON TOP OF THE PRESS THAT IS TIED INTO TWO GEAR BOXES THAT TURN THE THREADED POSTS. THE DAYLIGHT IS ...more
170 Ton, 32" x 12", 5"-32" mtrzd adjust.daylight, (3) 6" cyls, 2.5" stroke, up-act, #1550 (3 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
THREE 7" BORE DOUBLE-ACTING CYLINDERS WITH 6" DIAMETER RODS AND APPROX 2.5" STROKE. DAYLIGHT IS ADJUSTABLE FROM APPROX 5" TO 32". THE UPPER PLATEN RIDES ON TWO 6" DIAMETER THREADED POSTS. THERE IS A DOUBLE SHAFT MOTOR ON TOP OF THE PRESS THAT IS TIED INTO TWO GEAR BOXES THAT TURN THE THREADED POSTS. THE DAYLIGHT IS ...more
170 Ton, 19" x 17", up-act.4 post, 16" daylight, 12" stroke, newer controls & hydraulic, AB PLC, #1270
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
NEW ELECTRICAL CONTROLS AND REFURBISHED HYDRAULIC SYSTEM IN 2002. OVERALL BED SIZE: 29" L TO R X 17" F TO B. DISTANCE BETWEEN POSTS: 19" L TO R X 8" F TO B. NOMINAL BED: 19" X 17". APPROX 16" DAYLIGHT. DOUBLE ACTING RAM WITH APPROX 12" STROKE: 12" BORE; 11" ROD; TWO.75" NPT PORTS; ONE FOUR-BOLT 2" PRE-FILL PORT. FULLY ...more
170 Ton, 18" x22", upact 4-pst, 16" stroke, 18" -24" DL, 12" ram, 40" work height, 105" tall, #709
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
ADJUSTABLE DAYLIGHT FROM 18 \u00bd" TO 24". APPROX STROKE 16". 12" DIAMETER SINGLE-ACTING MAIN RAM RATED AT 3000 PSI. 1" NPT PORT. 3" DIAMETER POSTS. HALF SURROUND GUIDES ON MOVING BOLSTER. OVERALL PLATEN SIZE 25" L to R X 22" F to B. DISTANCE BETWEEN POSTS 22" L to R X 9" F to B. TWO PUSH BACK CYLINDERS: 2" BORE, 1 ...more
170 Ton, Up-act., 21" x21", 4-post, 12" bore/10" rod, 37" daylight, 16" stroke, 4" dia posts, #2382 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
*THERE IS 17" L TO R BETWEEN THE BUSHING RETAINERS X 30" F TO B OVERALL. THE "SQUARE AREA" BETWEEN THE POSTS IS APPROX 21" X 21". CYLINDER IS APPROX 12" BORE WITH A 10" BORE (DOUBLE-ACTING; 3000 PSI; 1" PORTS) AND APPROX 16" MAX STROKE. FULLY GUIDED ON 4" DIAMETER POSTS WITH 8" BUSHINGS. APPROX 45.25" OPERATOR HEIGHT. ...more
170 Ton, 29" x 23", down-acting, 38" daylight, 18" stroke, 12" bore, 4-post, 16" work height, #2299
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
7" F TO B BETWEEN THE POSTS; 41.5" L TO R OVERALL; 29" X 23" NOMINAL BED SIZE. 12" BORE MILLER CYLINDER: MODEL H63B; DOUBLE-ACTING (1.5" REAR PORT; 1" FRONT); 8" DIAMETER ROD; 3000/5000 PSI; 18" MAX STROKE. MAX DAYLIGHT IS APPROX 38.5". FULLY GUIDED WITH 7" BUSHINGS ON 4" DIAMETER POSTS (3.75" DIA THREADED AREA). ...more
170 Ton, 24" x 24", up-acting, slab-side, 34" daylight, 22" stroke, some valves, 83" tall, #1995
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
12" DIAMETER RAM WITH APPROX 22" TO 24" STROKE. APPROX 34.75" DAYLIGHT. 42" OPERATOR HEIGHT. ADJUSTABLE GIB GUIDES. SLABS ARE 2.5" THICK AND EACH SIDE HAS TWO 4" WIDE WINDOWS. SOME VALVING. OVERALL DIMENSIONS: 55" X 32" X 83" TALL. APPROX 8,000 POUNDS. R3. ITEM #1995C.
170 Ton, Hydraulic press, up-act, 16" stroke, 37"/41" daylight, 21" x 21" between posts
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
*THERE IS 17" L TO R BETWEEN THE BUSHING RETAINERS X 30" F TO B OVERALL. THE "SQUARE AREA" BETWEEN THE POSTS IS APPROX 21" X 21". CYLINDER IS APPROX 12" BORE WITH A 10" BORE (DOUBLE-ACTING; 3000 PSI; 1" PORTS) AND APPROX 16" MAX STROKE. FULLY GUIDED ON 4" DIAMETER POSTS WITH 8" BUSHINGS. APPROX 45.25" OPERATOR HEIGHT. ...more

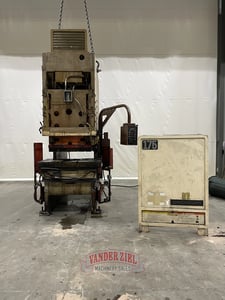

175 Ton, Cincinnati #175-OBS, hydraulic punch press, 10" stroke, 50" x30" bed, #15815
Vander Ziel Machinery Sales | Alto, MI
Category: Hydraulic Presses
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Cincinnati
Model: 175-OBS
Cincinnati Hydraulic Punch Press, Model 175-OBS, Serial #43896, Asset #15815, 460V, 3PH, 175 Ton, 10" Stroke, 12" Shut Height, 50" x 30" Bed, 34" x 24" R High Speed, 240-460 IPM Return.
175 Ton, 17.5" x 17.5", up-act, 4-post, 11.5" daylight, 9.5" stroke, 41" work height, #122
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
OVERALL CLEARANCE L TO R IS 18" AND F TO B BETWEEN POSTS IS 3.5". NOMINAL BED SIZE OF 17.5" X 17.5". APPROX. 15" DIAMETER SINGLE-ACTING MAIN RAM WITH APPROX 9.5" STROKE. DAYLIGHT IS 11.5". POSTS ARE 3" DIAMETER. SLIDE IS PARTIALLY GUIDE. 41" OPERATOR HEIGHT. PRESS IS MOUNTED ON A 50 GALLON HYDRAULIC RESERVOIR. THERE ...more
176 Ton, Accurl #HPPx160T/16T, 4-post guided ram gap frame hydraulic press, 22" stroke, 44" daylight, 39" x25.5" bed, 2014
Universal Press & Machinery (UPM) | Ferndale, MI
Category: Hydraulic Presses
Seller: Universal Press & Machinery (UPM)
Location: Ferndale, MI
Mfr: Accurl
Model: HPPX160T/16T
Year: 2014
Used 176 Ton ACCURL 4 Post Hydraulic Press, model HPP x 160T / 16T, 2014. s include 22" stroke, 44" daylight, dual palm buttons, and touch screen. Bed 39"x25.5", robust speed, and T-slotted design. Ideal for dynamic industrial applications., Capacity: 176 US Tons, Return Force: 23 US Tons, Max Stroke: 22", Daylight ...more
176 Ton, Adamson, 20" x20", upact 4-post, 5.5" stroke & daylight, 15" ram, steam platens, #24 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
PUMP RATED TO 3,000 PSI; APPROX 24 GALLON TANK; ETC… RELAY CONTROL CONSOLE: ADJUSTABLE PRESSURE GAGE; CHROMOLOX TEMP CONTROLLER; CURE TIMER; HEAT TIMER; CLOSE/OPEN; E-STOP; 100 AMP DISCONNECT, ETC…PRESS HAS 48" LIGHT CURTAINS ON FRONT; STEEL MESH ON BACK. OIL HEATER ON TOP OF PRESS: 2 HP (1800 RPM); ...more
176 Ton, Hysco, 42" x42", downact 4-post, 36" stroke, 36" -42" DL, hyds. & controls, #230
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hysco
NOMINAL PLATEN SIZE 42" X 42". DISTANCE BETWEEN POSTS IS 44" L TO R X 30" F TO B. OVERALL BED DIMENSIONS ARE 56" L TO R X 42" F TO B. DAYLIGHT WITH PLATENS: 36". DAYLIGHT WITHOUT PLATENS: 42". APPROX STROKE 36". FULLY GUIDED MOVING BOLSTER WITH 6" LONG BRONZE BUSHINGS. POST DIAMETER 4". DOUBLE ACTING MAIN RAM WITH 15" ...more
176 Ton, Wanzke #176, hydraulic press, 10" stroke, 23" daylight, 43" x32" bed, Omron PLC
Universal Press & Machinery (UPM) | Ferndale, MI
Category: Hydraulic Presses
Seller: Universal Press & Machinery (UPM)
Location: Ferndale, MI
Model: 176
Used 176 Ton Wanzke Hydraulic Press in plant and powered. s a 43"x32" bolster, 10" stroke, 23" daylight opening, and Omron PLC control. Includes manuals and schematics., Capacity: 176 US Ton, Bolster Area: 43" lr x 32" fb, Stroke: 10", Daylight Opening: 23", 16 Ton Hydraulic Cushion (2" Stroke), Omron PLC Control ...more
180 Ton, Lake Erie, 26" x20", upact slab side, 7.5" stroke & daylight, 20" ram, 3 HP pwr.unit, #28
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Lake Erie
MODEL: ACRAPLATE; SERIAL #4529. 20" DIA. RAM. APPROX. 7 \u00bd" DAYLIGHT WITH 7 \u00bd" STROKE. OPERATOR HEIGHT OF 35". OVERALL DIMENSIONS: 59" TALL X 48" L TO R X 36". ADJUSTABLE GIBB GUIDES. REMOVABLE FRONT LOADING TABLE. CONTROLS ON PRESS. INCLUDES POWER UNIT: 3 HP (WITH STARTER). 208-220/440 VOLT, 1200 RPM. ...more
200 Ton, Adamson, 25-3/4" x16", slab side, 12" stroke, 18" daylight, 33" oper.height, qty.avail.#35
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Adamson
DISTANCE LEFT TO RIGHT BETWEEN SLAB SIDES IS 28". 16" DIA. RAM WITH APPROX. 12" STROKE. 12 \u00bd" DAYLIGHT WITH TWO STEAM PLATENS IN PLACE. 18" DAYLIGHT WITHOUT PLATENS. 33" OPERATOR HEIGHT. QTY. 10. C. (ITEM #35C).
200 Ton, Albert, 24" x 24", upact.4-post, 16" stroke, 17" daylight, 16" ram, 38" work height, #593
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Albert
DISTANCE BETWEEN POSTS: 25" L to R X 14" F to B. NOMINAL PLATEN AREA: 24" X 24". DAYLIGHT 17". STROKE 16". MAIN RAM: 16" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. MOVING BOLSTER HALF SURROUND GUIDES. OPERATOR HEIGHT: 38". OVERALL DIMENSIONS: 40" L to R X 32" F to B X 75" TALL. APPROX WEIGHT: 10,000 ...more
200 Ton, Clifton, 16" x23", down-acting, 12" bore cylinder, 9.5" stroke, 12.5" -19" DL, 10hp, #2429
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Clifton
MODEL 0370. THE OVERALL CLEARANCE L TO R BETWEEN THE POSTS IS APPROX 18.5"; BUT NARROWER BY NUTS. F TO B BETWEEN THE NUTS IS APPROX 11" (13" OVERALL). THE NOMINAL BED (INCLUDING NUTS) IS 16" X 23". CLAMP CYLINDER IS 12" BORE WITH A 10" DIAMETER ROD AND APPROX 9.5" MAX STROKE. THE DAYLIGHT IS ADJUSTABLE FROM APPROX ...more
200 Ton, Eemco, 24" x 24", up-acting, 4-post, 20" daylight & stroke, 5.5" dia posts, 84" tall, #2045
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Eemco
APPROX 20" MAX DAYLIGHT AND STROKE. 16" DIAMETER RAM. GUIDED ON 5.5" DIAMETER POSTS WITH HALF-SURROUND GUIDES. APPROX 45.5" OPERATOR HEIGHT. 1.5" PORT. OVERALL DIMENSIONS APPROX 48" X 32" X 84" TALL. APPROX 10,000 POUNDS. ITEM #2045.
200 Ton, Eemco, hydraulic up-acting press, 24" x 24", 20 stroke, 20" daylight, 16" ram, 4-post
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Eemco
APPROX 20" MAX DAYLIGHT AND STROKE. 16" DIAMETER RAM. GUIDED ON 5.5" DIAMETER POSTS WITH HALF-SURROUND GUIDES. APPROX 45.5" OPERATOR HEIGHT. 1.5" PORT. OVERALL DIMENSIONS APPROX 48" X 32" X 84" TALL. APPROX 10,000 POUNDS. ITEM #2040.
200 Ton, HPM, 25.5" x24", up-act 4-post, 8" stroke, 12" daylight, 16" ram, 38" work height, #129 (12 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hpm
F TO B BETWEEN POSTS IS 10". 16" SINGLE-ACTING RAM. DAYLIGHT WITHOUT PLATENS IS 12". APPROX. 8" STROKE. 4" DIAMETER POSTS. 38" OPERATOR HEIGHT. HALF-SURROUND GUIDES. 2" NPT 4-BOLT FLANGE PORT. OVERALL DIMENSIONS: 48" X 36" X 65" TALL. QTY. OF 12. (ITEM #129).
200 Ton, Lawton, 38" x35.75", 42" daylight, 18" stroke, optional floating platen, #1637
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Lawton
CURRENTLY SET UP WITH 32" X 32" X 1.5" T-SLOTTED PLATES ATTACHED TO SLIDE AND CROWN. NOMINAL BED SIZE WITH PLATES REMOVED WOULD BE 38" X 35.75". FRONT TO BACK BETWEEN THE POSTS IS 26". HAS 3.25" THICK INTERMEDIATE PLATE WITH T-SLOTS. EACH CORNER OF INTERMEDIATE PLATE HAS A 3.25" BORE CYLINDER WITH 12" STROKE. MAIN RAM ...more
200 Ton, Lawton (Lawtomatic), 71" x48", 16" bore cylinder/14" rod, 56" daylight, 48" stroke, #2720
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Lawton
Lawtomatic. Serial #2001360. 71" x 48" nominal bed size. Overall between the posts is 72" L to R x 35" F to B. 16" bore cylinder with a 14.5" dia rod and 54" max stroke. Daylight is approx. 68" (by removing 12" rod spacer the daylight can be increased to 80"). Fully guided with 16" guides on 5.5" dia posts. T-slotted ...more
200 Ton, Pacific #200-D8-48, 48" x 96" bed, 24" stroke, 36" daylight, cushions, 1995 (2 available)
Planet Machinery Co | Grand Haven, MI
Category: Hydraulic Presses
Seller: Planet Machinery Co
Location: Grand Haven, MI
Mfr: Pacific
Model: 200-D8-48
200 Ton, Pacific #200-D8-48-96, straight side hydraulic press, 24" stroke, 36" daylight, 1992, #8747
Universal Press & Machinery (UPM) | Ferndale, MI
Category: Hydraulic Presses
Seller: Universal Press & Machinery (UPM)
Location: Ferndale, MI
Mfr: Pacific
Model: 200-D8-48-96
Year: 1992
Used 1992 PACIFIC #200-D8-48-96, 200-ton hydraulic press with 96"x48" bed, 24" stroke, and 36" daylight. s hydraulic die cushion, programmable control, 40 HP motor, and Allen Bradley PLC. Includes light curtains and window openings at 26"., Serail Number: A963, Stroke: 24, Daylight: 36, Bed Size: 96LR x 48FB, Speeds: ...more
200 Ton, Robas, 24" x 24", upact 4-post, 18" stroke, 19" daylight, 16" ram, 44" work height, #2038, 2039 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Robas
26" CLEARANCE L TO R BETWEEN THE POSTS; 10" F TO B BETWEEN THE POSTS. NOMINAL 24" X 24". RAM IS APPROX 16" DIAMETER. MAX DAYLIGHT AND STROKE OF APPROX 19". GUIDED ON 5" DIAMETER POSTS WITH \u00bc-SURROUND GUIDES. APPROX 45" OPERATOR HEIGHT. 1" PORT. OVERALL DIMENSIONS APPROX: 48" X 32" X 82" TALL. APPROX 8,500 POUNDS. ...more
200 Ton, Verson, 72" x 48", 60" daylight, 54" stroke, 40" work height, (2) 8" bore cylinders (4000 PSI), #2715
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Verson
Model 200-HD2-72-YP. Serial #19908. 72" x 48" nominal bed size. Overall between the posts is 74" L to R x 34" F to B. Two 8" bore Miller cylinders: 6" dia rods; 54" max stroke; operating at 4000 PSI. Max daylight approx. 60". Operator height approx. 39.5". Bed and slide have 11 T-slots on 6" centers. Saw-tooth style ...more
200 Ton, 24" x 24", upact.slabside, 10.5" stroke, 10.5" daylight, 16" ram, 38" work hght, #590
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
CLEARANCE BETWEEN SLAB SIDES: 28" L to R. DAYLIGHT 10 \u00bd". STROKE 10 \u00bd". MAIN RAM: 16" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. MOVING BOLSTER, SQUARE BLOCK GUIDED. OPERATOR HEIGHT 38". OVERALL DIMENSIONS: 40" L to R X 36" F to B X 60" TALL. APPROX WEIGHT: 10,000 LBS. R2 (ITEM #590).
200 Ton, 24.5" x 30", upacting 4-post, 13" stroke, 21" daylight, 14" ram, 36" work hgt, 71" tall, #268CR
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
MAIN RAM 14" DIA; SINGLE ACTING. 4" DIA POSTS. 200 TONS AT 2500 PSI. 21" DAYLIGHT. APPROX STROKE 13". DISTANCE BETWEEN POSTS: 24 \u00bd" L TO R X 11" F TO B. HALF SURROUND GUIDES ON MOVING BOLSTER. \u00be" NPT PORT ON RAM. OPERATOR HEIGHT 36". OVERALL DIMENSION 45" WIDE X 30" DEEP X 71" HIGH. C. ITEM #268C.
200 Ton, 24" x 24", upacting slabside, 14" stroke, 15" daylight, 16" ram, 38" work hgt, 66" tall, #591
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
CLEARANCE BETWEEN SLAB SIDES: 28" L to R. DAYLIGHT 15". STROKE 14". MAIN RAM: 16" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI. 1 \u00bc" NPR PORTS. OPERATOR HEIGHT: 38 \u00bd". OVERALL DIMENSIONS: 36" L to R X 36" F to B X 66" TALL. APPROX WEIGHT: 10,000 LBS. R2 (ITEM #591).
200 Ton, 24" x 24", upact.slab side, 14" stroke, 16" daylight, 16" ram, 37" work height, 68" tall, #206
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
CLEARANCE BETWEEN SLAB SIDES: 28" L to R. DAYLIGHT 16". APPROX STROKE 14". MAIN RAM: 16" DIAMETER, SINGLE ACTING, 1 \u00bd" NPT PORTS, RATED AT 2000 PSI. SQUARE BLOCK GUIDED MOVING BOLSTER. OPERATOR HEIGHT 37". OVERALL DIMENSIONS: 48" L to R X 36" F to B X 68" TALL. APPROX WEIGHT: 10,000 LBS. R1 (ITEM #206).
200 Ton, 24" x 24", upact.slabsd, 14" stroke, 26" daylight, 16" ram, 38" work hgt, 66" tall, #592
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
CLEARANCE BETWEEN SLAB SIDE: 28" L to R. DAYLIGHT 26". STROKE 14". MAIN RAM: 16" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI. 1 \u00bc" NPT PORTS. MOVING BOLSTER SQUARE BLOCK GUIDED. OPERATOR HEIGHT: 38". OVERALL DIMENSIONS: 36" L to R X 36" F to B X 66" TALL. APPROX WEIGHT: 10,000 LBS. R2 (ITEM #592).
200 Ton, Up-act., 4-post, 24" x24", elec.platens, 15" -28" DL, 15" stroke, controls, #1553 (10 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO 24" X 24" X 2" ELECTRIC PLATENS EACH WITH SIX 5/8" CARTRIDGE HEATERS (FRONT TO BACK DIMENSION IS 26.5" INCLUDING TERMINAL COVER). DAYLIGHT IS ADJUSTABLE FROM APPROX 15.5" TO 28.5" WITH PLATENS; 21" TO 34" WITHOUT. 16" DIAMETER MAIN RAM WITH APPROX 15" STROKE. TWO 2.5" BORE PUSHBACK CYLINDERS WITH 1" RODS AND ...more
224 Ton, Italpresse #GL90, 35.5x19.75" electric platens, 13" daylight, 12" stroke, self-contained, #2654
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Italpresse
Model: GL90
ITALPRESSE MODEL GL-90. SERIAL #40370790. NEW IN 1990. ELECTRIC PLATENS RATED TO APPROX 570 F (300C). THREE 6" BORE CLAMP CYLINDERS WITH APPROX 12" MAX STROKE. TWO 1.5" BORE SIDE CYLINDERS FOR FAST CLOSE (6" CYLINDERS PREFILLED). MAX DAYLIGHT APPROX 13". APPROX 43.5" OPERATOR HEIGHT. CONTROLS INCLUDE TONNAGE GAGE; TWO ...more
227 Ton, 24" x 25", upact.4-post, 22" stroke, 42" daylight, 17" ram, 47" wk.height, 100" tall, #666 & 667
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
DAYLIGHT 42 \u00be". APPROX STROKE 22". SINGLE ACTING 17" MAIN RAM WITH 2" NPT PORT RATED TO 2000 PSI. SQUARE GIB GUIDES ON MOVING BOLSTER. OPERATOR HEIGHT 47". OVERALL DIMENSIONS 44" L TO R X 32" F TO B X 100" TALL. APPROX WEIGHT 15,000 LBS. R2. C. (ITEM #666,667).
230 Ton, Hamilton, 86" LR x 60" FB (or 102" x 60" from sides), down-acting 4 post, 48" stroke, 87" daylight, #2698
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hamilton
Model: 2698
Hamilton. Serial #1788-8274-6. Overall bed L to R is approx. 102". F to B between the posts is approx. 61". The nominal bed size if working from the front is 86" x 60". Max daylight is approx. 87". Two 12" bore cylinders with 48" max stroke. Shut height is approx. 39". Operator height is approx. 32". Posts are 5" ...more
230 Ton, Up-acting slab-side press, 9" stroke, 14" ram, 9" daylight, 22" x20", #480
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
9" DAYLIGHT. APPROX 9" STROKE. 14" DIAMETER RAM. 230 TONS AT 3000 PSI. PIN GUIDED. 38 \u00bd" OPERATOR HEIGHT. 1" NPT PORT. OVERALL DIMENSIONS: 32" X 23" X 58" TALL (#480).
230 Ton, Up-acting slab side press, 12" stroke, 14" daylight, 14" ram, 24" x2 4", #465
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
14" DAYLIGHT. APPROX 12" STROKE. 14" DIAMETER RAM. 230 TONS AT 3000 PSI. 45 DEGREE GIB GUIDED. 34" OPERATOR HEIGHT. 1 \u00be" NPT PORT. OVERALL DIMENSIONS: 34" X 28" X 61" TALL. (#465).
230 Ton, Up-acting press, 12" stroke, 15.5" daylight, 14" ram, 20" x 20", #481
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
15 \u00bd" DAYLIGHT. APPROX 12" STROKE. 14" DIAMETER RAM. 230 TONS AT 3000 PSI. 45 DEGREE GIB GUIDED. 30 \u00bd" OPERATOR HEIGHT. 1 \u00bd" NPT PORT. OVERALL DIMENSIONS: 32" X 26" X 56" TALL (#481).
230 Ton, 22" x20", upacting slabside, 9" daylight, 9" stroke, 38" work height, 58" tall, 14" ram, #462 & 480
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
9" DAYLIGHT. APPROX 9" STROKE. 14" DIAMETER RAM. 230 TONS AT 3000 PSI. PIN GUIDED. 38 \u00bd" OPERATOR HEIGHT. 1" NPT PORT. OVERALL DIMENSIONS: 32" X 23" X 58" TALL (#462).
230 Ton, 18.5" x 18.5", upact.4-post, 9" stroke, 22" daylight, push back cyls, 100" tall, #696
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
DAYLIGHT 22". APPROX STROKE 9". 14" DIAMETER SINGLE-ACTING MAIN RAM RATED AT 3000 PSI. 1 \u00bc" NPT PORT. 3" DIAMETER POSTS. FULLY GUIDED MOVING BOLSTER WITH 3" BUSHINGS. OVERALL PLATEN SIZE: 31" L to R X 18 \u00bd" F to B. DISTANCE BETWEEN POSTS: 18 \u00bd" L to R X 9" F to B. TWO PUSH BACK CYLINDERS: 2" BORE, 1 ...more
