1 - 50 of 374 listings
3 Ton, Wabash, 4 post down acting, 21" daylight, 12" stroke, 10" x 16" table, Control panel & SLC150, 7.5 HP
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
2.5" DIA. RAM APPROX. 12" STROKE, APPROX. 21" DAYLIGHT. BED 16" L TO R X 10" F TO B 2" DIA. TIE RODS, WORKING HEIGHT APPROX. 40", OVERALL HEIGHT 8". COMPLETE WITH CONTROL PANEL WITH SLC 150, T-CAT, AND HEATER CONTROLS. 7.5 HP MOTOR VICKERS HYDRAULIC PUMP AND VALVES, PNEUMATIC SAFETY GATES. ( ITEM #30).
5 Ton, 53 x 18", down-act, 34" daylight, 24" stroke, (2) 4" bore cylinders rated to 1000 psi, #2188 (3 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO 4" BORE SCHEFFER CYLINDERS WITH 24" MAX STROKE; 3" DIA RODS: RATED TO 1000 PSI. CYLINDERS ARE MOUNTED BELOW AND SO WORK OFF OF THE ROD ENDS OF THE CYLINDERS. APPROX 34" MAX DAYLIGHT; 10" SHUT HEIGHT. OPERATOR HEIGHT IS APPROX 36". OVERALL DIMENSIONS APPROX 76" X 25" X 57" TALL. APPROX 1,500 P0UNDS. ITEM #2188.
8 Ton, Denison, Hydraulic Multipress, 12" stroke, 2.25" ram diameter, 7" throat, 18" daylight, 9 GPM pump, 1930 max. psi, 7.5 HP, 1800 RPM, 440 Volts, 3PH
Vander Ziel Machinery Sales | Alto, MI
Category: Hydraulic Presses
Seller: Vander Ziel Machinery Sales
Location: Alto, MI
Mfr: Denison
Denison 8-Ton Multipress, Asset # 17549.
10 Ton, TMP, double press (hot & cold side w/shuttle), 13.5" x13.5", 6" daylight, up-act, #2476
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Tmp
TMP SERIAL #22563. NEW IN 2007. THE "HOT SIDE" HAS TWO 13.5"X 13.5" ELECTRIC PLATENS (5/8" DIA CARTRIDGE HEATERS; 230 VOLT; 700 WATT; 2 ZONES PER PLATEN; 6 HEATERS PER PLATEN). APPROX 5.75" DAYLIGHT AND 4.5" STROKE. THE "COLD SIDE" HAS CORED PLATES FOR WATER COOLING. APPROX 6" DAYLIGHT AND 7" STROKE. BOTH CLAMP ...more
12 Ton, Carver #C, 6.75" x6.25", 5.1" stroke, 0-17.5" adj.daylight, hand pump, like new, #2585
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Carver
Model: C
CARVER MODEL "C". SERIAL #37000-059. NOMINAL PLATEN AREA IS APPROX 6.75" L TO R X 6.25" F TO B (7.25 L TO R BETWEEN THREADED RODS; BUT L TO R CLEARANCE RESTRICTED BY TIE-ROD NUTS). DAYLIGHT IS ADJUSTABLE FROM APPROX 0-17.5". MAX STROKE IS 5.125". TIE RODS ARE 1.25" DIA. PRESSURE GAUGE. OVERALL APPROX DIMENSIONS: 18" X ...more
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.
12 Ton, Wabash #12-1212-2TM, up-acting, 4-post, 12" x 12" platen,, 6" stroke, 6"-12" DL, #2567
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
Model: 12-1212-2TM
MODEL 12-1212-2TM. SERIAL #9019. SET UP WITH 12" X 12" X 3" ELECTRICALLY HEATED PLATENS. NOMINAL BED SIZE IF PLATENS ARE REMOVED IS APPROX 15" X 15". DAYLIGHT IS ADJUSTABLE FROM APPROX 6" TO 12". CLAMP CYLINDER: 5" BORE WITH APPROX 6" MAX STROKE. FULLY GUIDED ON 1.25" DIA POSTS WITH 3" BUSHINGS. APPROX 44.5" OPERATOR ...more
12 Ton, Wabash, 10" x7", up-act bench top, new air pump, 2.5" -11.5" DL, 6" stroke, #1577
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
MODEL #12-10S. SERIAL #2707. 10" L TO R X 7" F TO B NOMINAL PLATEN SIZE. CLEARANCE L TO R BETWEEN THE POSTS IS 11.25". CYLINDER IS 2" BORE WITH 6" STROKE. 1.25 THICK STEEL PLATE AND 1" THICK INSULATION BOARD ATTACHED TO CROWN AND SLIDE. TWO 1.25" DIAMETER TIE RODS. ADJUSTABLE DAYLIGHT FROM APPROX 2.5" TO 11.5" (ADD ...more
12 Ton, Wabash, 12" x12", up-act, steam/oil pltns, 4" -13" DL, 6" stroke, self-cont., #1530
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
MODEL 12-12-STMBAC. SERIAL #5947. CLEARANCE BETWEEN POSTS IS 13.75" L TO R AND 7.75" F TO B. TWO 12" X 12" X 1.25" STEAM/OIL PLATENS WITH 1" INSULATION UNDER EACH PLATEN. ADJUSTABLE DAYLIGHT FROM 4" TO 13" (IF PLATENS ARE REMOVED IT WOULD BE 8.25" TO 17.25"). CYLINDER IS 4" BORE, 1.75" ROD AND 6" STROKE. FULLY GUIDED ...more
12 Ton, Wabash, 12" x 12", hand-pump, bench top, 11" daylight, 6" stroke, 4-post, #1538
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
MODEL 12-12-2T. SERIAL #235. ADJUSTABLE DAYLIGHT OF APPROX 2.25" TO 11.25". CYLINDER IS 2" BORE WITH 6" STROKE. GUIDED ON 1.25" DIAMETER POSTS. CLEARANCE BETWEEN THE POSTS IS 13.75" L TO R X 7.75" F TO B (13" X 6.75" BETWEEN THE NUTS). OVERALL DIMENSIONS: 19" X 19" X 43" TOTAL. APPROX 350 LBS. (ITEM #1538).
12 Ton, Down-act., 4-post, 33" x 28", 7" stroke, 20" daylight, 37" work height, 15 HP, 3.5" cyl., #182
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
20" DAYLIGHT, APPROX 7" STROKE. DOUBLE ACTING 3 \u00bd" MAIN RAM RATED TO 3000 PSI. PNEUMATIC PALM BUTTON CONTROLS. 2-POST GUIDED. 37" OPERATOR HEIGHT. HYDRAULIC POWER UNIT: 15 HP, 1800 RPM, 230/460 VOLT; VICKERS PRESSURE COMPENSATED PISTON PUMP MODEL #PVB10 RSY 31 C 11; 50 GALLON RESERVOIR. OVERALL DIMENSIONS: PRESS ...more
17 Ton, 53" x 18", down-act, 34" daylight, 24" stroke, (2) 5" bore cylinders, rated to 1400 psi, #2187
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO 5" BORE LYNAIR (MOD H-C622; S/N 59987) CYLINDERS WITH 24" MAX STROKE; 3" DIA RODS: RATED TO 1400 PSI. CYLINDERS ARE MOUNTED BELOW AND SO WORK OFF OF THE ROD ENDS OF THE CYLINDERS. APPROX 34" MAX DAYLIGHT; 10" SHUT HEIGHT. OPERATOR HEIGHT IS APPROX 36". OVERALL DIMENSIONS APPROX 76" X 25" X 57" TALL. APPROX 1,500 ...more
18 Ton, Hydraulic down-acting press, 7" stroke, 16" daylight, 4" bore, 24" x24" bed, #1458
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
24" X 24" BED AREA WITH A 6" WIDE CUT-OUT RUNNING FRONT TO BACK THROUGH THE CENTER OF THE BED. 7.5" X 2.5" X 2.5" STEEL BLOCK ATTACHED TO ROD OF CYLINDER (CAN BE EASILY MODIFIED). APPROX 16" VERTICAL CLEARANCE BETWEEN BED AND CYLINDER. SCHRADER BELLOWS DOUBLE ACTING CYLINDER: 4" BORE; 7" STROKE; 1.75" ROD; 3000 PSI. ...more
20 Ton, JR Automation, 42" x42", down-act, 38" daylight, 24" stroke, 36.5" work height, AB PLC, #2536
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Jr Automation
J.R. AUTOMATION # 8140. NOMINAL BED SIZE OF 46" X 45" OVERALL L TO R IS APPROX 58"; APPROX 32" F TO B BETWEEN THE POSTS. TWO PARKER 4" BORE CYLINDERS WITH 2.5" DIA RODS AND 24" MAX STROKE. MAX DAYLIGHT IS APPROX 38". OPERATOR HEIGHT IS APPROX 36.5". FULLY GUIDED ON 3.25" DIA POSTS WITH 36" BUSHINGS. ONE HYDRAULIC ...more
20 Ton, PHI #SZ0R08085-2CCS-K-MS7-R-X15, 4-post, up-act, 16" x13", 5" stroke, 4" -9.5" DL, up-acting press, #766
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Phi
Model: SZ0R08085-2CCS-K-MS7-R-X15
PHI MODEL #SZ0R08085-2CCS-K-MS7-R-X15; SERIAL #81-4-008; NEW IN 1981. DOUBLE ACTING MAIN RAM. 1 \u00be" POST DIAMETER. OVERALL BED SIZE 21" L TO R X 13" F TO B. DISTANCE BETWEEN POSTS IS 16" L TO R X 8" F TO B. 16" X 13" NOMINAL BED SIZE. TWO 8" X 8" STEAM/OIL PLATENS. ADJUSTABLE DAYLIGHT FROM 4" TO 9 \u00bd" WITH ...more
20 Ton, PHI, 16" x 13", up-acting, 4-post, 5" stroke, 4" daylight, self-contained, #773 (2 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Phi
PHI MODEL #SZ0R08085-2CCS-K-MS7-R-X15, SERIAL #81-4-009. NEW IN 1981. DOUBLE ACTING MAIN RAM. 1 \u00be" POST DIAMETER. OVERALL BED SIZE 21" L TO R X 13" F TO B. DISTANCE BETWEEN POSTS IS 16" L TO R X 8" F TO B. 16" X 13" NOMINAL BED SIZE. TWO 8" X 8" STEAM/OIL PLATENS. ADJUSTABLE DAYLIGHT FROM 4" TO 9 \u00bd" WITH ...more
20 Ton, TOX Pressotechnik #MAG-030.663.A.001, Hydraulic Air Press, 205 kN capacity, 200 mm Total Stroke, 12 mm Power Stroke, 86 psi, 2021
iGAM | Detroit, MI
Category: Hydraulic Presses
Seller: iGAM
Location: Detroit, MI
Mfr: Tox Pressotechnik
Model: MAG 030.663.A.001
Year: 2021
The Used 2021 TOX PRESSOTECHNIK MAG 20 Ton Hydraulic Air Press is a robust industrial press engineered for high-performance applications requiring reliable and repeatable force. Designed with TOXs innovative air-over-oil technology, this 20-ton capacity press delivers strong, smooth pressing power while conserving ...more
20 Ton, Wabash, hot press w/opt 5 ton cold press, (2) 2.75" htd daylight, (1) cooled 9" daylight, #2283
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
MODEL MIL20-1818-4TM. SERIAL #7899. HOT PRESS IS SET-UP WITH FOUR 18" X 18" ELECTRICALLY HEATED (OPTIONAL WATER COOLING) PLATENS RESULTING IN TWO DAYLIGHT OPENINGS (TWO CENTER PLATENS MOUNTED TO A GUIDED CARRIER PLATE). ONE DAYLIGHT IS APPROX 2.5" AND THE OTHER APPROX 3". SIX STRIP HEATERS PER PLATEN; 750 WATT; 240 ...more

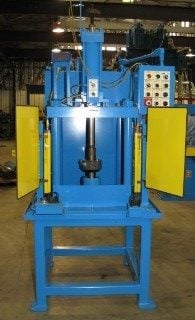

20 Ton (approx), Test Press, 5" bore, 12" stroke, load cell, strain gage, SLC 150, #1935
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
APPROX 5" BORE DOUBLE ROD HYDRAULIC CYLINDER WITH A 2" DIA ROD AND 12" STROKE. FOUR POST (2.5" DIA) STRUCTURE. FULL ENCLOSURE WITH SWING OPEN DOORS AND 16" LIGHT CURTAINS ON FRONT. OPERATOR HEIGHT IS APPROX 31". 18.5" L TO R BETWEEN THE POSTS AND 22" F TO B OVERALL. CYLINDER ROD IS SITUATED APPROX 5" IN FROM FRONT ...more
25 Ton, PHI, 12.5" x12.5", elec.heat/water cool, 8.5" daylight, 6" stroke, 1.5 HP, 1700 pounds, #2000
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Phi
OVERALL DIMENSIONS APPROX. 50" X 46" X 84" T APPROX. 2500 POUNDS. PRINTS ITEM #2541.

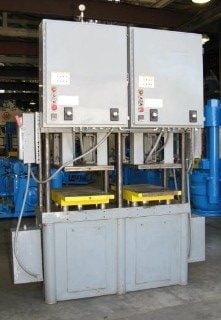

28 Ton, Double Press (56T combined), 18" x30", 9" -21" DL, 10" stroke, 3 HP hydraulic, #1842
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
SELF- CONTAINED CONTROLS: ALLEN BRADLEY SLC 500 PLC; AB PANELVIEW 600; ADJUSTABLE LIMIT SWITCHES (PROX); PALM BUTTONS; 480 VOLT/3 PHASE; 16 FLA; ELECTRICAL INTERLOCK ON PANEL DOOR;.
30 Ton, Carver/Wabash, 2 openings (6.5"-10" each), 6" stroke, 9" x9" elec.pltns, 2 HP, PLC, #2589
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Carver
PRESS IS SET UP WITH TWO-OPENINGS (CAN BE CHANGED TO ONE). NOMINAL BED/PLATEN SIZE IS APPROX 16.25" L TO R X 15" F TO B*; HOWEVER IT IS 4 (2 EACH OPENING) 9" X 9" X 1" ELECTRICALLY HEATED AND WATER COOLED PLATENS. EACH PLATEN HAS INSULATION UNDERNEATH AND 4 CARTRIDGE HEATERS (0.625" X 6.5"; CEMROD CRX665-21; 500W; ...more

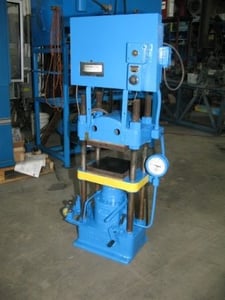

30 Ton, Elmes, 10" x10" elec.pltns, 1.5" -10.5" DL, 6" stroke, up-act, air over oil system, #2564
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Elmes
SET UP WITH 10" X 10" X 1.25" ELECTRIC PLATENS (0.5" INSULATION). RATED TO 550 F. CLEARANCES BETWEEN THE POSTS ARE 12" X 5.5". NOMINAL BED SIZE IS 12" X 10". DAYLIGHT IS ADJUSTABLE FROM APPROX 1.5" TO 10.5" BETWEEN THE HEATED PLATENS (SET AT 5.5"). 4" BORE CYLINDER WITH APPROX 6" STROKE. FULLY GUIDED ON 1.5" DIA TIE ...more
30 Ton, Herman Schwabe #4PHS, 48" x48" bed, 40" daylight, 20" stroke, set up with a pneumatically operated slide-out plate
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Herman Schwabe
Model: 4PHS
MODEL 4PHS. SERIAL #30006. NOMINAL BED AREA IS 48" L TO R X 48" F TO B; HOWEVER THE PRESS IS SET UP WITH A PNEUMATICALLY OPERATED SLIDE-OUT PLATE THAT HAS SEVERAL CUT-OUT AREAS (18" X 12" FRONT-CENTER; ETC…). THE ENTIRE OPTIONAL SLIDE-OUT ASSEMBLY CAN BE EASILY REMOVED/UN-BOLTED. THE MAX DAYLIGHT IS APPROX 40" ...more

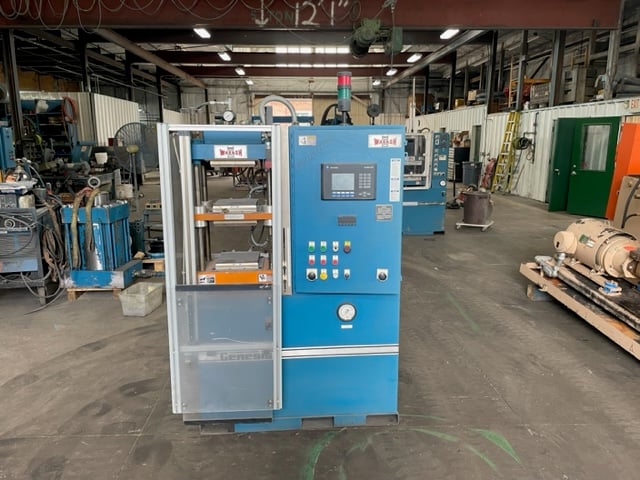

30 Ton, Wabash #G302H-9-X, Up-acting 4 post hydraulic press, 4x 9" x 9" electric platens, 5" bore, 2" rod, 8" stroke, 30" daylight, 2 HP, AB SLC 500 PLC
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
Model: G302H-9-X
WABASH MODEL G302H-9-X. SERIAL #10680. SET UP WITH FOUR 9" X 9" ELECTRIC PLATENS. (FOUR 500 WATT HEATERS EACH) RATED TO 600 F AND TWO 8" OPENINGS (COULD BE ADJUSTED UP TO TWO 11" OPENINGS). CLAMP CYLINDER: 5" BORE; 2" ROD; 8" MAX STROKE. NOMINAL PLATEN AREA WITHOUT HEATED PLATENS WOULD BE APPROX. 13" X 13". IF ALL ...more

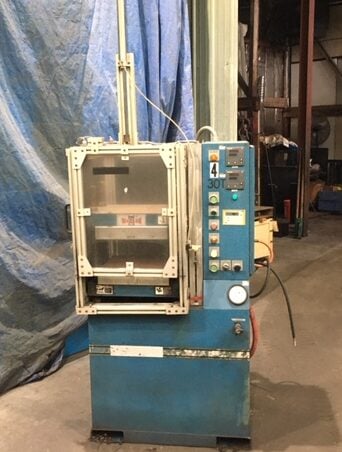

30 Ton, Wabash #G30H-15-B, 15" x15" electric platens, 6" stroke, 5" -12" daylight, 2 HP hydraulic system, #2691
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
Model: G30H-15-B
Model G30H-15-B. Serial #9746. 15" x 15" electric platens: six heaters per platen (1/2" dia x 15"; 230 volt; 900 watt; 5400 watts per platen; rated to 800 F). Clamp cylinder is 5" bore with 6" max stroke and a 2" diameter rod. Daylight is adjustable from approx. 5" to 12" (set at 7"). Approx 41" operator height ( 38" ...more
30 Ton, Wabash #Genesis, ASTM, 12" x12", elec.heat/water cooled, (2) 3" daylight, 800°F, #1869
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Wabash
Model: GENESIS
MODEL G302H-12-ASTM. SERIAL #10048. NEW IN 1999. SET UP WITH FOUR ELECTRICALLY HEATED AND WATER COOLED PLATENS RESULTING IN TWO DAYLIGHT OPENINGS OF APPROX 3" EACH. PLATENS ARE 12" X 12" X 2.25"; EACH WITH FOUR (4) CARTRIDGE HEATERS: 850W, 230V, 0.50" DIA, 800F, 12" X 12" X 1" MARINITE INSULATION. SIDES OF PLATENS ARE ...more
30 Ton, Up-acting, 12" x12" elec.platens, 5.5" daylight, 4.5" stroke, 5" bore single-acting, 5 HP, #2233
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO 12" X 12" X 1.25" ELECTRIC PLATENS THAT EACH HAVE FOUR \u00bd" DIAMETER CARTRIDGE HEATERS. MAX DAYLIGHT IS APPROX 5.5" WITH PLATENS; 10" WITHOUT. OPERATOR HEIGHT IS 57" WITH PLATEN; 54.75" WITHOUT. SINGLE-ACTING 5" BORE CYLINDER WITH APPROX 4.5" STROKE RATED TO 3000 PSI. SELF-CONTAINED HYDRAULIC POWER UNIT: APPROX ...more

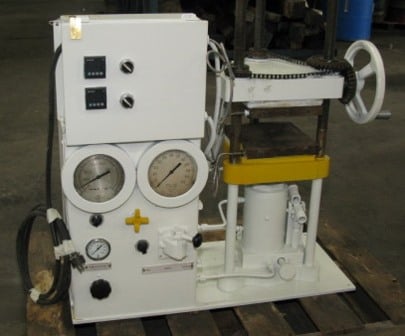

30 Ton, Air-over-Oil, 9" x9" elec.platens, 5" stroke, 0"-17" adjustable daylight, 3-post, #2519
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
9" X 9" X 1.25" ELECTRIC PLATENS (110V; SINGLE PHASE; 1" INSULATION; TWO WATLOW 93 TEMP CONTROLLERS). APPROX 3" DIAMETER RAM WITH APPROX 5\.

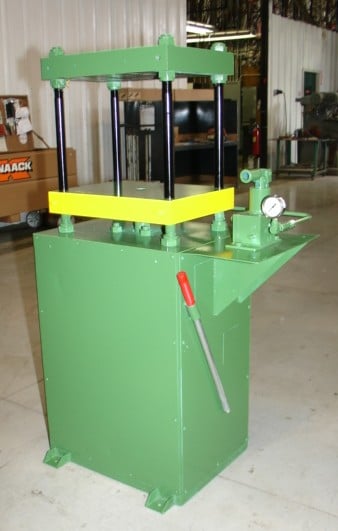

30 Ton, Hand Pump, 16.25" x 15", up-act, 14.7" daylight, 8" stroke, new, #101
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
NEW HAND PUMP WITH 3000 PSI GAUGE. OVERALL PLATEN L TO R IS 20"; FRONT TO BACK BETWEEN POSTS IS 10.25". NOMINAL BED SIZE IS 16.25" X 15". POSTS ARE 1.25" DIAMETER. DAYLIGHT IS 14.75". APPROX 8" STROKE. 5" BORE DOUBLE-ACTING CYLINDER WITH A 2" ROD. FULLY GUIDED. 40" OPERATOR HEIGHT. OVERALL DIMENSIONS: 35" X 24" X 59" ...more
30 Ton, 16.25" x 15", upact, 4-post, 8" stroke, 15.7" -18" DL, 5" bore, 120/240v-1 phase, #99/#102
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
PLATEN L TO R OVERALL IS 20" AND F TO B BETWEEN POSTS IS 10.25". NOMINAL BED SIZE IS 16.25" X 15". CLAMP CYLINDER IS 5" BORE WITH A 2" DIAMETER ROD AND 8" MAX STROKE AND RATED TO 3000 PSI. CYLINDER HAS BEEN REBUILT AND HAS NEW SEALS. DAYLIGHT IS ADJUSTABLE FROM APPROX 15.75" TO 18.25". FULLY GUIDED ON 1.25" DIA POSTS ...more
30 Ton, 19.5" x 19.75", 16.5" daylight, 9" stroke, 15 HP hyd.unit, cntrls, light curtains, #1890
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
OVERALL BED SIZE L TO R IS 25.75"; F TO B BETWEEN THE POSTS IS 13.5"; NOMINAL BED SIZE IS 19.5" X 19.75". THERE IS A 16.5" X 8" CUT-OUT IN THE CENTER OF THE BED. PARKER CYLINDER: 5" BORE; 2" ROD; 9" STROKE (SERIES 2H; MOD 5.00 JB2HLT14A 9.00). MAX DAYLIGHT IS APPROX 16.5". FULLY GUIDED WITH 5" BUSHINGS ON 2" DIA ...more
30 Ton, 10" x10", upact slab sd, 22" stroke, 28" daylight, elec.pltns, 2 sets of 2 presses, #269
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO PRESSES ON A COMMON BASE WITH CONTROLS AND HYDRAULIC UNITS. 10" X 10" NOMINAL PLATEN SIZE. DISTANCE BETWEEN SLAB SIDES IS 11" L TO R. DAYLIGHT WITH PLATENS 28", DAYLIGHT WITHOUT 31". TWO ELECTRIC PLATENS 10" X 10" X 1" THICK WITH THREE CARTRIDGE HEATERS EACH. APPROX STROKE 22". DOUBLE ACTING MAIN RAM 5 \u00bd" ...more
30 Ton, 10" x 10", upact.slab sd, 22" stroke, 29.5" daylight, 5.5" ram, 2 sets of 2 presses, #271
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TWO PRESSES ON A COMMON BASE WITH CONTROLS AND HYDRAULIC UNITS. 10" X 10" NOMINAL PLATEN SIZE. DISTANCE BETWEEN SLAB SIDES 11" L TO R, DAYLIGHT 29 \u00bd". APPROX STROKE 22", DOUBLE ACTING MAIN RAM 5 \u00bd" BORE, 4 \u00bc" ROD, BOTTOM PORT 1 \u00bd" NPT, ROD PORT 1" NPT, RATED TO 2500 PSI. MOVING BOLSTER GUIDED ON ...more
30 Ton, 72" x36", upacting, 24" stroke, 44.5" daylight, (2) 4" bore cyls, 30" work height, #91
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
44 \u00bd" DAYLIGHT. APPROX 24" STROKE. TWO 4" BORE DOUBLE-ACTING CYLINDERS WITH 1 \u00be" RODS. 30" OPERATOR HEIGHT. GUIDED ON FRAME AND HAS A CHAIN LEVELING SYSTEM. CONTROL PANEL IS MISSING PC. HYDRAULICS ARE MOUNTED ON TOP OF PRESS. 75 HP, 1800 RPM, 230/460 VOLTS. HYDURA PRESSURE COMPENSATED PISTON PUMP ...more

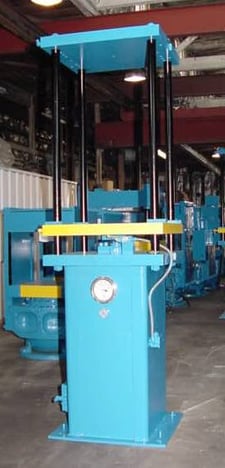

30 Ton, Up-acting, 24" x31", 4-post, 50" daylight, 40" stroke, double acting, 116" tall, #843
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
MFG 1991. NOMINAL PLATEN 24 \u00be" L TO R X 31" F TO B. OVERALL PLATEN SIZE 34 \u00bd" L TO R X 31" F TO B. DISTANCE BETWEEN POSTS 26" L TO R X 20 \u00bd" F TO B. 2 \u00bd" POST DIAMETER. APPROX. 41" STROKE. 50 \u00be" DAYLIGHT. FULLY GUIDED MOVING BOLSTER WITH 4" TALL BUSHINGS. DOUBLE ACTING MAIN RAM: RATED TO 3000 ...more

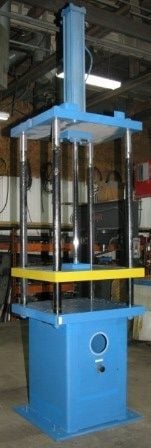

30 Ton, 26" LR x 31" FB, down-act, 50" daylight, 41" stroke, 5" cylinder, 39" work hght, 146" tall, #839
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
NOMINAL BED AREA OF 26" X 31". OVERALL PLATE DIMENSIONS OF 34.5" X 31". DISTANCE BETWEEN THE POSTS IS 26" X 20.5". APPROX 50" MAX DAYLIGHT. 5" BORE DOUBLE-ACTING CYLINDER WITH A 2" DIAMETER ROD; APPROX 41" MAX STROKE; RATED TO 3000 PSI; 0.875" STRAIGHT THREAD PORTS (-14 SAE); APPROX 23 TONS OF PULLBACK FORCE. FULLY ...more
31 Ton, Beckwood #4P31F4238, 4-post hydraulic press, 10" stroke, 19" daylight, 42" x38" bolster, 2000
R & J Machinery Sales | Milford, MI
Category: Hydraulic Presses
Seller: R & J Machinery Sales
Location: Milford, MI
Mfr: Beckwood
Model: 4P31F4238
Year: 2000
Beckwood 4-Post Hydraulic Press, Model # 4P31F4238, Year: 2000, Capacity:, 31 Ton Forming, 22 Ton Punching, Bolster Size: 42" x 38", Daylight: 19", Stroke: 10", Bed Height: 38", Horsepower: 7.5 HP, Approach: 280 IPM, Pressing: 46 IPM, Return: 330 IPM, Dimensions: 74"L x 61"W x 108"H, Weight: 5,000 Lbs.
35 Ton, Ahaus Tool & Engineering, down-acting hydraulic press, 45" x26" bed, 8" stroke, 21" daylight, Allen-Bradley SLC 500 PLC
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Ahaus Tool & Engineering
Ahaus Tool & Engineering. 45.75" L to R between uprights x 26" F to B overall. 16" F to B clearance between the uprights x 56" L to R overall. There is an open slot in the bed: 48" x 5.5". Cylinder :10" bore; 7" rod; 8" max stroke; double-acting; rated to 3000 PSI. Approx 18" x 12" plate attached to cylinder rod ...more
35 Ton, AIM, Hydraulic Press, 36" width between cylinders, 46.5" Bed length
iGAM | Detroit, MI
Category: Hydraulic Presses
Seller: iGAM
Location: Detroit, MI
Mfr: Aim
Model: UNKNOWN
*System is presumed to be a 35 Ton system but can not be confirmed., Bed width is 35" between cylinders and the bed length across the full table is 46.5". The max height clearance under the top plate is 23" allowing for you to load tooling roughly 35" x 46" x 23.", Discover a quality used AIM press in good condition. ...more
35 Ton, AIM, hydraulic press, as-is
iGAM | Detroit, MI
Category: Hydraulic Presses
Seller: iGAM
Location: Detroit, MI
Mfr: Aim
The AIM 35 Ton Hydraulic Press* is a used industrial pressing system sold AS-IS, offered with a bin of loose components presumed to complete the unit. While originally understood to be a 35-ton capacity system, this rating cannot be confirmed. Designed with a generous bed size and height clearance, this hydraulic ...more
38 Ton, 31" x 14" Up-act.double press, 1 section w/elec.platens, 5 openings, 8" stroke, #2239
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
TOTAL OF FOUR DOUBLE-ACTING HYDROLINE HYDRAULIC CYLINDERS (TWO ON "FRONT" PRESS; TWO ON "REAR" PRESS) MODEL N2R-4X8-4C8210-099-01B RATED TO 3000 PSI. 4" BORE WITH 8" MAX STROKE. "FRONT" PRESS IS SET UP WITH SIX 31" X 14" X 2.5" ELECTRICALLY HEATED PLATENS RESULTING IN FIVE OPENINGS OF APPROX 4.5" TO 5" EACH. THE TOTAL ...more
40 Ton, Hess-Mae, 34x39", 28" daylight, 10" stroke, Vickers vane pump, AB SLC 500,30" work height, #2641
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Hess-Mae
HESS MODEL 40-3238-10-18. S/N A3517. BETWEEN THE POSTS: 37" X 27". BETWEEN THE GUIDE BUSHINGS: 34" X 24". NOMINAL: 34" X 39". CLAMP CYLINDER: PARKER 8" BORE (SERIES 3H; 5" DIA ROD; 3000 PSI) WITH 10" MAX STROKE. MAX DAYLIGHT IS APPROX 28". OPERATOR HEIGHT APPROX 30.5". FULLY GUIDED WITH 20" BUSHINGS ON 4" DIAMETER ...more
40 Ton, HSI, hydraulic 4-post down acting press, 14.5" stroke, 21.5" D, 48" x 31" bed, cushion
Presses for Industry | Detroit, MI
Category: Hydraulic Presses
Seller: Presses for Industry
Location: Detroit, MI
Mfr: Hsi
Preliminary, HSI Hydraulic Specialties Inc 4 Post Down Acting Hydraulic Press, 40 Ton Capacity, 14.50" Stroke, 21.50" Daylight Opening (Without Ram Adapter Bolster), 48" LR x 31" FB Bed Area, 36" LR x 9.75" FB Between Post Opening, Cushion, 4.50" Thick Ram Adapter Bolster (Removable), Tapped Holes in Bed & Ram ...more
40 Ton, JR Automation, 65" x29", 48" daylight, 24" stroke, 20 HP, Allen-Bradley PLC, #2594(4 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Jr Automation
TONNAGE BASED ON 2000 PSI. BUILT BY J.R. AUTOMATION. CLEARANCE BETWEEN THE POSTS IS APPROX 68" X 28.5". NOMINAL SLIDE (MOVING BOLSTER) DIMENSIONS ARE 65" X 29". THE BED EXTENDS TOWARDS THE REAR OF THE PRESS APPROX 64" F TO B OVERALL. THERE ARE SEVERAL "CUT-OUTS" IN THE BED. TWO 5" BORE PARKER CYLINDERS WITH 3.5" DIA ...more
40 Ton, 18" x 18", up-act. 6-post, double bed, 12" stroke, 28" daylight, 6" cyl each side, #174
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
42 Ton, Neff, 4-Post, hydraulic press, 12" stroke, 24" daylight, 60" x60" bed, 15 HP, 1999, #11211
Universal Press & Machinery (UPM) | Ferndale, MI
Category: Hydraulic Presses
Seller: Universal Press & Machinery (UPM)
Location: Ferndale, MI
Mfr: Neff
Model: 11211
Year: 1999
(1) Used 42 Ton Neff 4 Post Hydraulic Press, Serial#11069, Capacity: 42.4 Ton, Stroke: 12, Daylight Opening: 24, Bed Area: 60 lr x 60 fb, Didtance Between Posts: 48 lr x 48 fb, Main Cylinder: 4 diameter, Guide Posts: 4 diameter, Main Motor: 15 HP, Approx Dimensions: 68 lr x 65 fb x 98 tall, Approx Weight: 10,000# ...more
42 Ton, 39.5" LR x 29" FB, down-acting, 37.5" daylight, 30" stroke, 27.5" work hght, 4-post, #2548 (4 available)
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
OVERALL L TO R IS 47.5"; F TO B BETWEEN THE POSTS IS 20.75". THE NOMINAL BED SIZE IS 39.5" X 29". CYLINDER IS 6" BORE WITH A 3.5" DIA ROD AND 30" OF STROKE. RATED TO 3000 PSI. MAX DAYLIGHT IS APPROX 37.5". FULLY GUIDED ON 2.5" DIA POSTS WITH 3" GUIDES. APPROX 27.5" OPERATOR HEIGHT. OVERALL DIMENSIONS APPROX 55" X 32" ...more
42 Ton, Up-acting, 80" x 42", 4-post, 32" -44" DL, 20" stroke, T-slots, 92" tall, #1988
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
FRONT TO BACK BETWEEN THE POSTS IS APPROX 28"; OVERALL BED LEFT TO RIGHT IS APPROX 90". NOMINAL BED SIZE IS APPROX 80" X 42". CLAMP CYLINDER IS 6" BORE DOUBLE-ACTING WITH APPROX 20" STROKE. DALIGHT IS ADJUSTABLE FROM APPROX 31.5" TO 44". OPERATOR HEIGHT IS APPROX 36". FULLY GUIDED ON 3.75" DIAMETER POSTS WITH 10" ...more
42 Ton, downacting press, 22 daylight, 3.5" rod, 6" bore, 14 stroke, 27.5" x 39.5" bed, 10 HP, Mitubishi PLC
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
39.5" OVERALL L TO R AND F TO B; 27.5" BETWEEN THE TIE-BARS L TO R AND F TO B. NOMINAL BED SIZE OF 27.5" X 39.5". APPROX 22" MAX DAYLIGHT. APPROX 6" BORE DOUBLE-ACTING CYLINDER WITH A 3.5" DIAMETER ROD AND 14" MAX STROKE. 28.5" OPERATOR HEIGHT. FULLY GUIDED WITH 16.5" BUSHINGS ON 4" DIAMETER POSTS. A ROUND AND A ...more
44 Ton, Williams, 21.5x17", up-act, 26" daylight, 12" stroke, 25 HP hydraulic system, 41" work hght, #34
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
SERIAL #C-3027. FRONT TO BACK BETWEEN POSTS IS 9.5". NOMINAL BED AREA IS 21.5" X 17". MAIN RAM IS APPROX 7" DIAMETER WITH 12" STROKE. 26" DAYLIGHT. FULLY GUIDED WITH 4.75" BUSHINGS ON A 2.5" DIAMETER POSTS. 41" OPERATOR HEIGHT. TWO 3" BORE SINGLE-ACTING PUSH-BACK CYLINDERS. T-SLOTTED BED AND CROWN. HYDRAULIC ...more
