For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

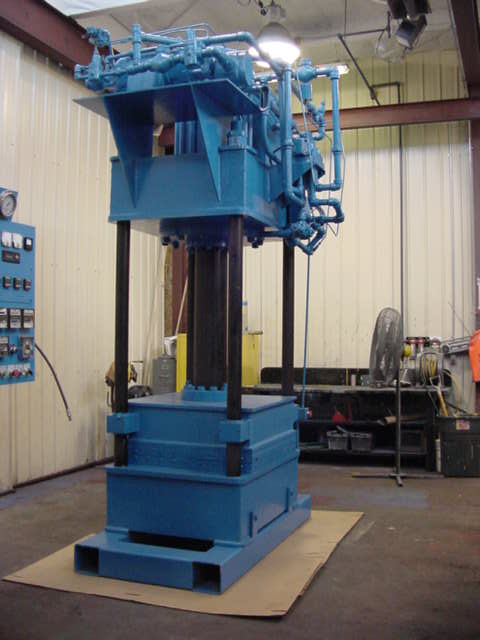

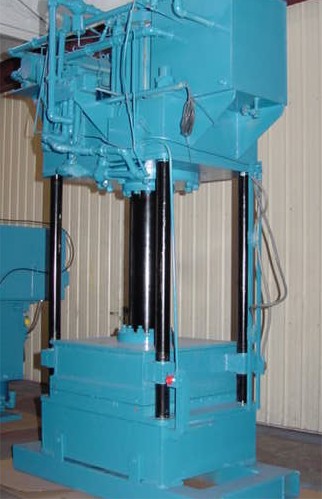

NOMINAL PLATEN SIZE 42" X 42". DISTANCE BETWEEN POSTS IS 44" L TO R X 30" F TO B. OVERALL BED DIMENSIONS ARE 56" L TO R X 42" F TO B. DAYLIGHT WITH PLATENS: 36". DAYLIGHT WITHOUT PLATENS: 42". APPROX STROKE 36". FULLY GUIDED MOVING BOLSTER WITH 6" LONG BRONZE BUSHINGS. POST DIAMETER 4". DOUBLE ACTING MAIN RAM WITH 15" PISTON, 10" ROD, 1 1/2" PORTS. 176 TONS AT 2000 PSI. TWO 42" X 42" X 2" HOT WATER PLATENS WITH WATER HEATERS AND CIRCULATION PUMPS; \u00bd" PORTS ON PLATENS. OPERATOR HEIGHT 32". SELF CONTAINED HYDRAULIC SYSTEM MOUNTED ON TOP OF PRESS. 15 HP MOTOR: 1200 RPM, 22/440 VOLT, 60 HZ, 3 PH. LOW PRESSURE COMMERICAL GEAR PUMP RATED TO APPROX 30 GPM. GEROTOR 7.8 GPM HIGH PRESSURE PUMP (MAX 2000 PSI). 90 GALLON TANK. ELECTRICAL CONTROLS INCLUDING TEMPERATURE CONTROL, THREE LIMIT SWITCHES AND A MOTOR STARTER. OVERALL DIMENSIONS 96" L TO R X 72" F TO B X 158" TALL. APPROX WEIGHT 20,000 LBS. R3 (ITEM #230)
Get Your Price from Icon Industries, Inc!
