Ton: 230.0
Stroke: 9.0
Daylight: 22.0
Stock # 696
1 / 3
Click to zoom in
1 / 3
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

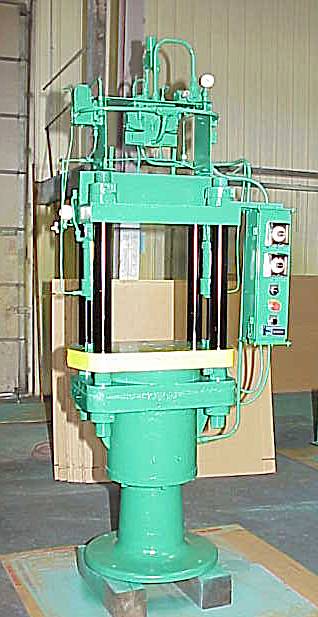

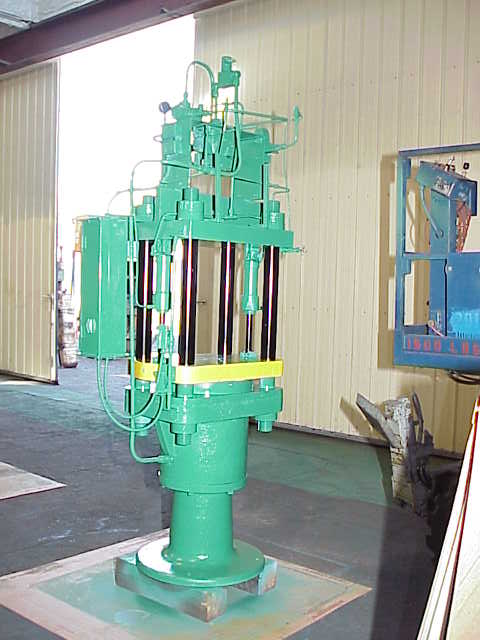

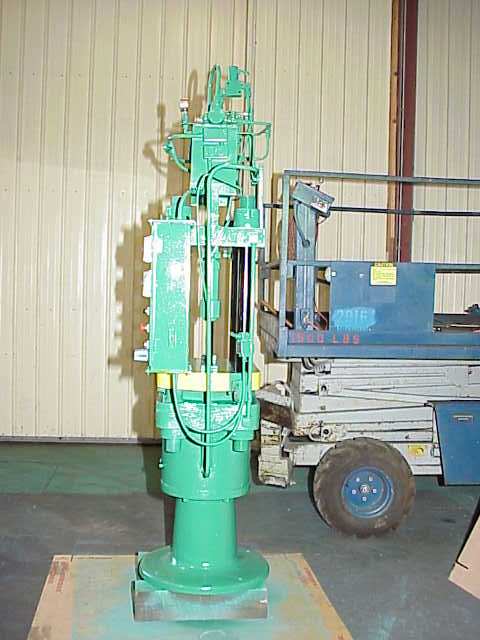

DAYLIGHT 22". APPROX STROKE 9". 14" DIAMETER SINGLE-ACTING MAIN RAM RATED AT 3000 PSI. 1 \u00bc" NPT PORT. 3" DIAMETER POSTS. FULLY GUIDED MOVING BOLSTER WITH 3" BUSHINGS. OVERALL PLATEN SIZE: 31" L to R X 18 \u00bd" F to B. DISTANCE BETWEEN POSTS: 18 \u00bd" L to R X 9" F to B. TWO PUSH BACK CYLINDERS: 2" BORE, 1 \u00bc" ROD, 6" STROKE. OPERATOR HEIGHT 40 \u00bd". HYDRAULIC SOLENOID VALVES AND PRESSURE CONTROLS MOUNTED ON TOP OF PRESS. SMALL CONTROL PANEL WITH TWO LIMIT SWITCHES AND TWO TIMERS. OVERALL DIMENSIONS: 48" L to R X 24" F to B X 100" TALL. APPROX WEIGHT: 6500 LBS. (ITEM #696)
Get Your Price from Icon Industries, Inc!
