Ton: 170.0
Stroke: 16.0
Daylight: 37.0
Stock # 2384
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

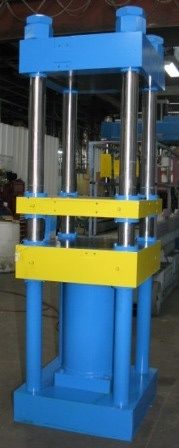

*THERE IS 17" L TO R BETWEEN THE BUSHING RETAINERS X 30" F TO B OVERALL. THE "SQUARE AREA" BETWEEN THE POSTS IS APPROX 21" X 21". CYLINDER IS APPROX 12" BORE WITH A 10" BORE (DOUBLE-ACTING; 3000 PSI; 1" PORTS) AND APPROX 16" MAX STROKE. FULLY GUIDED ON 4" DIAMETER POSTS WITH 8" BUSHINGS. APPROX 45.25" OPERATOR HEIGHT. OPTIONAL INTERMEDIATE PLATE: 4" THICK WITH 6" BUSHINGS; MAX DAYLIGHT WITH THE PLATE IS APPROX 37" AND 41" WITH THE PLATE REMOVED. OVERALL DIMENSIONS APPROX 30" X 30" X 101" TALL. APPROX 7,000 POUNDS. R2. ITEM #2384.
Get Your Price from Icon Industries, Inc!
