Gleason #23, segmental gear tester, 20" diameter, large spinbdle bore, high accuracy

Description

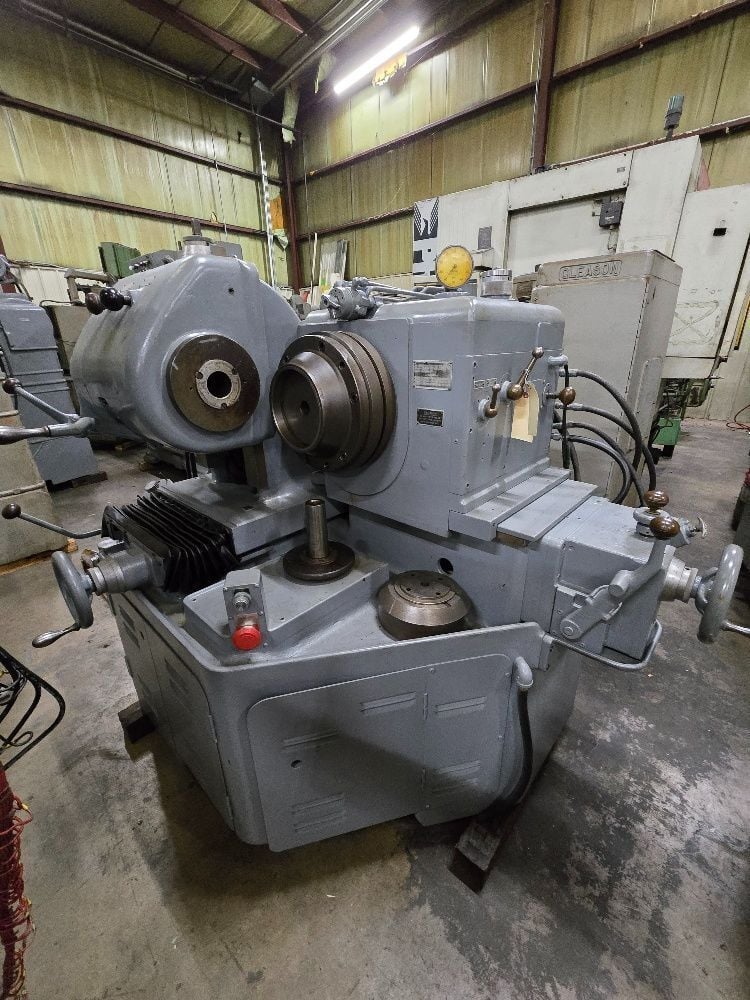

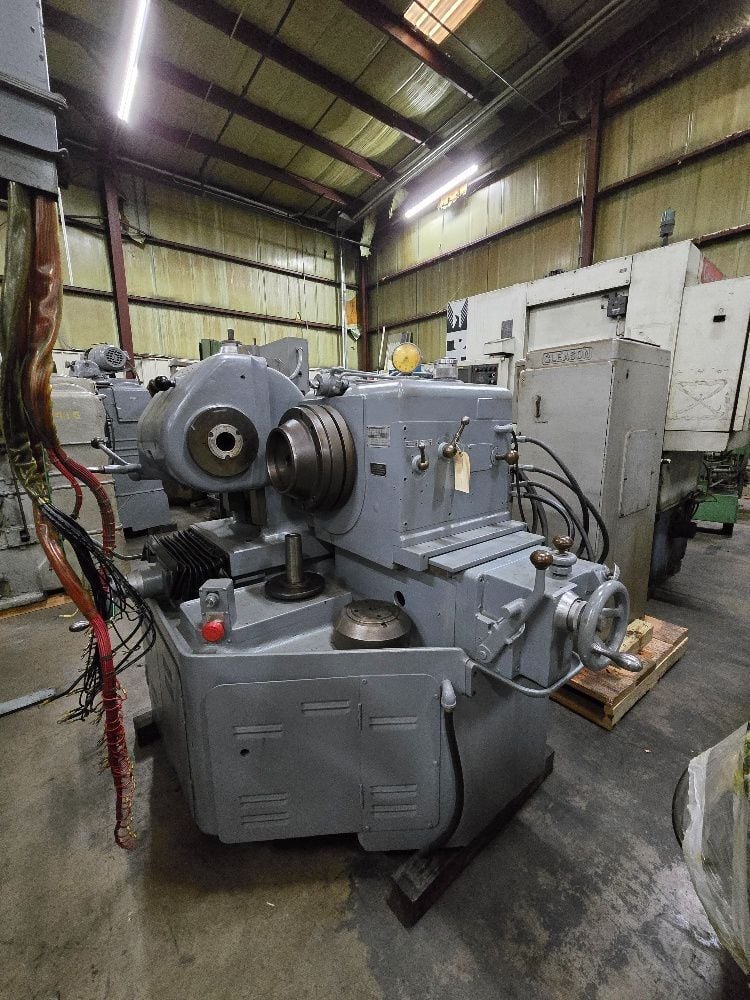

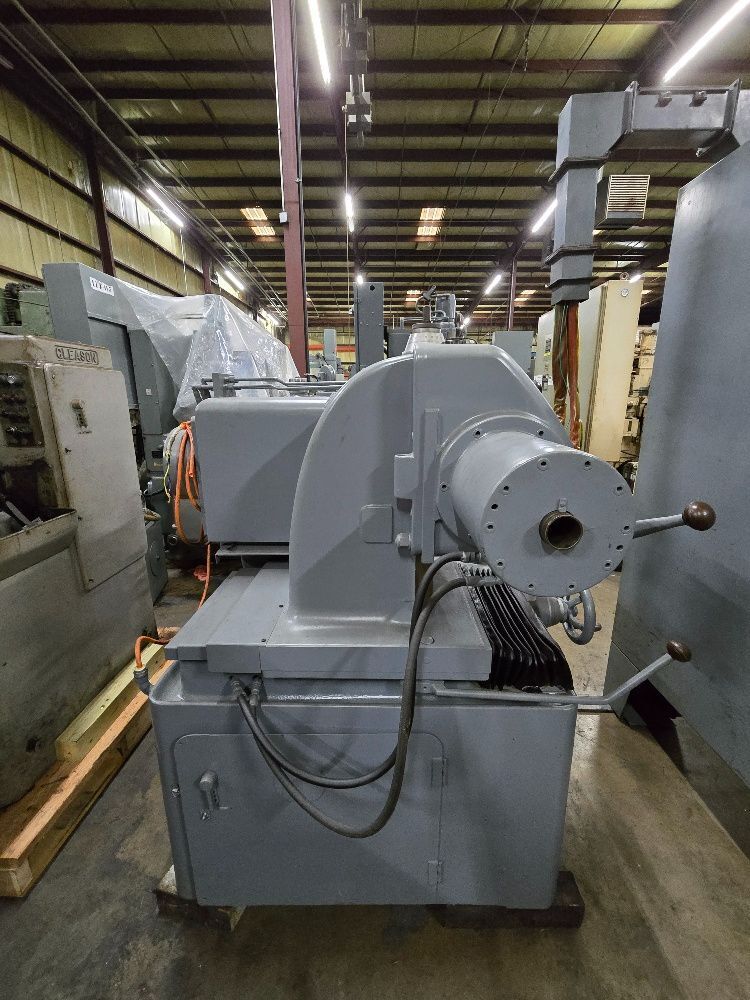

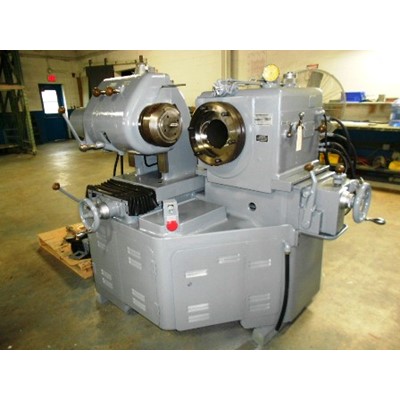

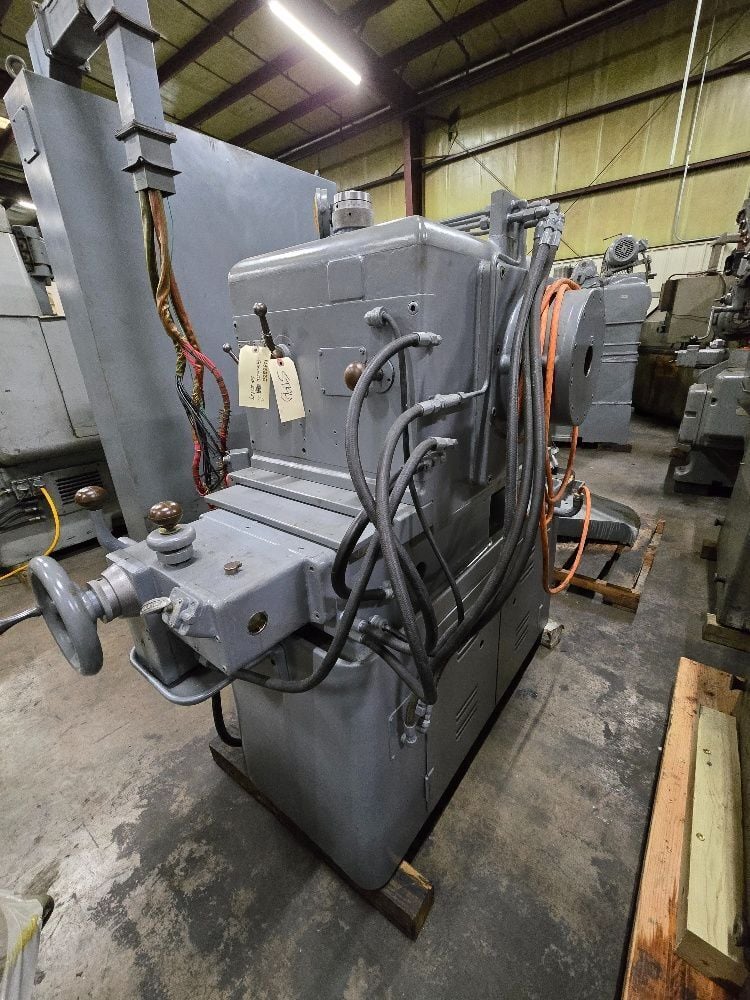

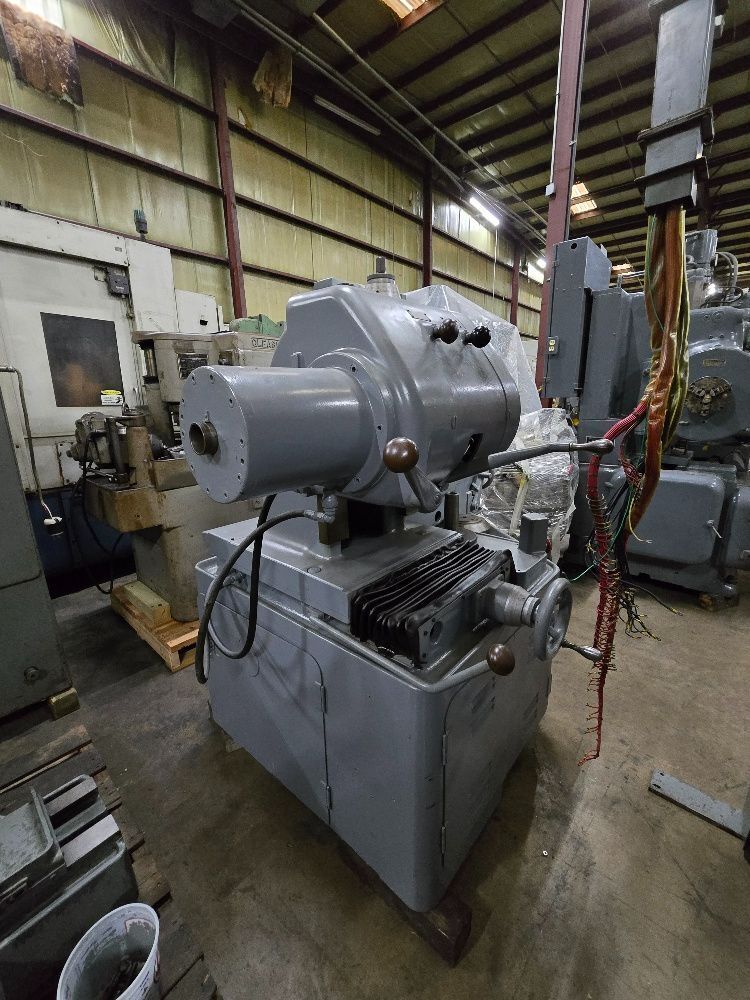

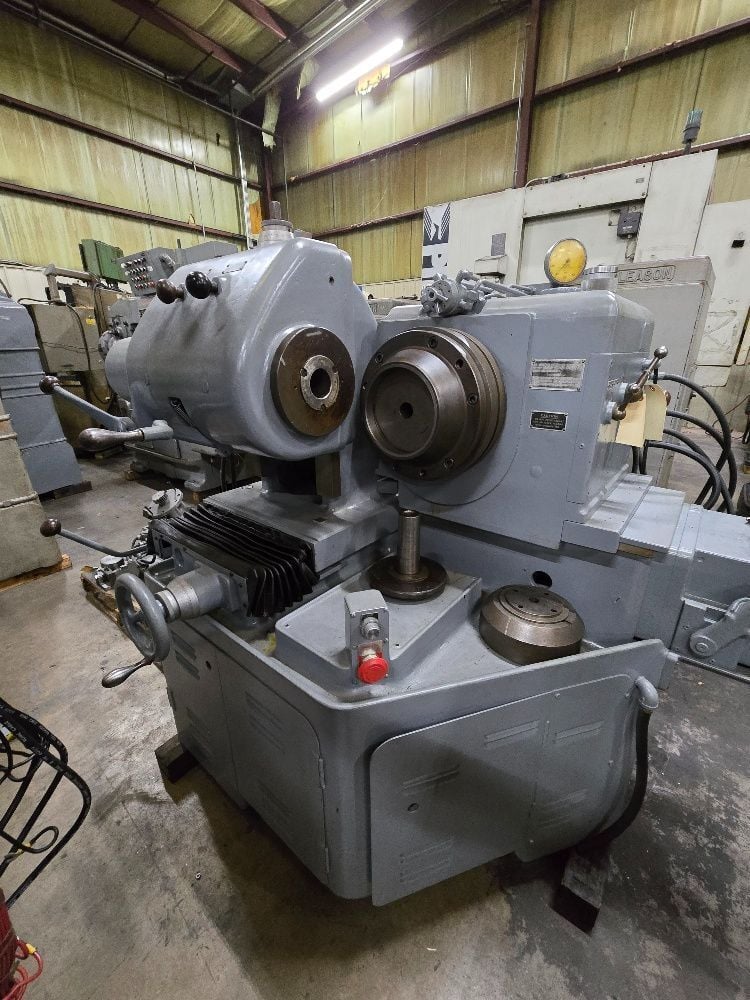

Gleason Model 23 Segmental Gear Tester. Max diameter 20", Large Spindle Bore, High Accuracy, Excellent Condition.
Specifications
Gleason segment tester
model 23

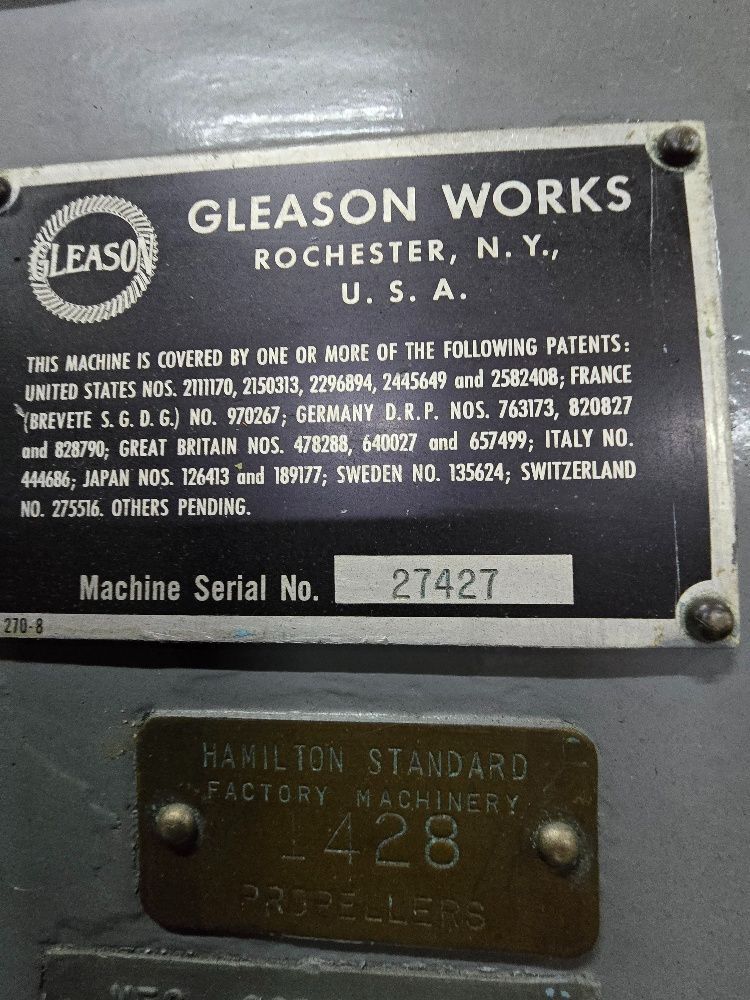

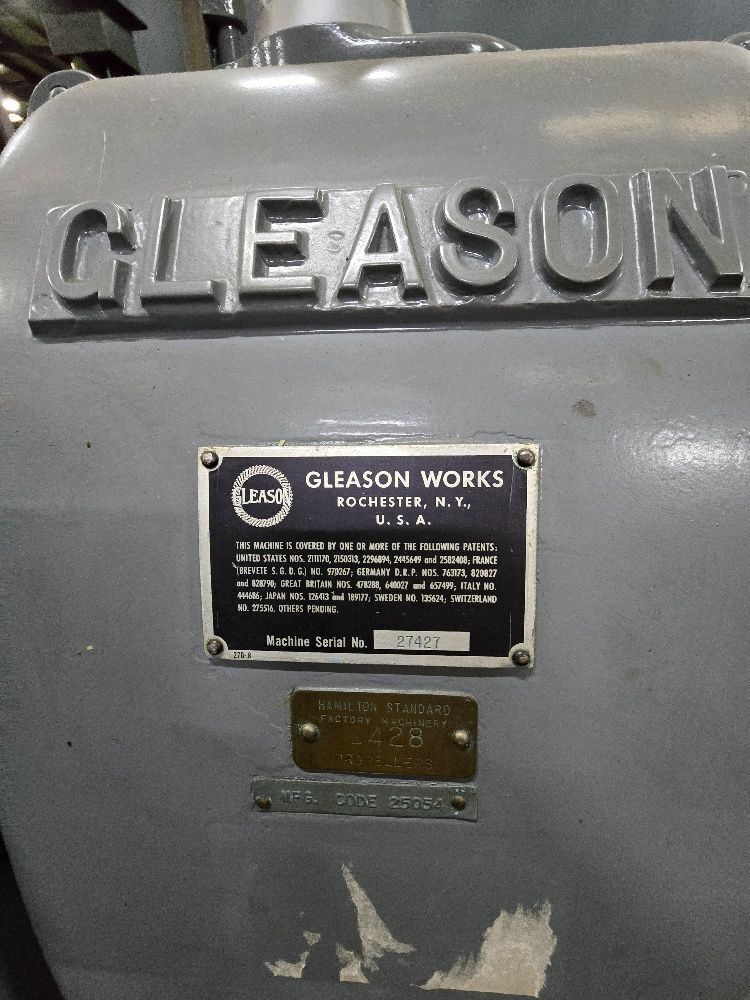

s/n 27427
condition : excellent
inspect machine under power in our statesville NC plant
MACHINE SPECIFICATIONS:
* Maximum diameter gear..................................................20"
* Max offset of gear spindle above or below center of pinion spindle...3.50"
* Max distance from center of gear spindle to nose of pinion spindle.....12"
* Min distance from center of gear spindle to nose of pinion spindle......6"
* Max distance from center of pinion spindle to nose of gear spindle...7.75"
* Min distance from center of pinion spindle to nose of gear spindle..4.125"

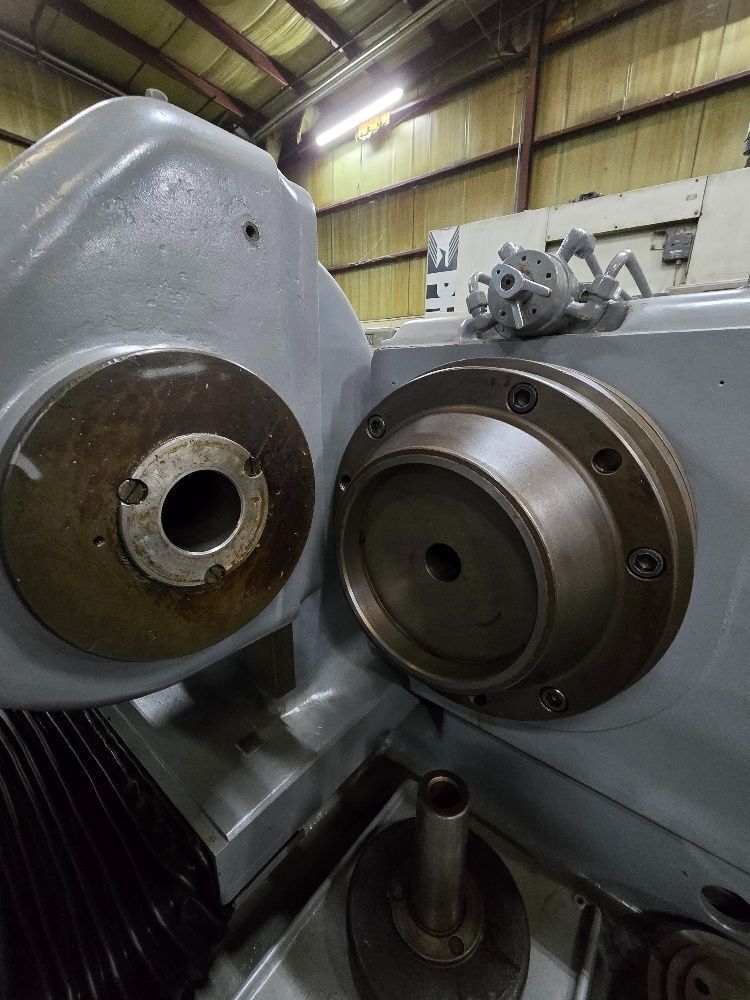

* Bore of pinion spindle (large end straight bore) ....................6.25"
* Taper of work spindle bore ..... .........................39/64" per foot
* Bore of gear/brake spindle (large end)..............................2.295"
* Taper of gear/brake spindle.................................1/2" per foot
* Floor space required.............................................60" x 73"
* Machine approx. net weight.......................................5300 lbs.
MACHINE EQUIPPED WITH:
* hydraulic work chucking cylinders on pinion and gear spindles,
(less draw-in bar & nuts)
* pinion (work) spindle bore 6.25" straight bore
* work spindle bore 19/64
* adjustable drive gear spindle head w/crank handle & graduated dial
* guards, covers, handwheels
* electrical controls
* operator's manual, wiring & hydraulic diagrams
Machine can be inspected under power in our Statesville NC plant .
let me know if you need further info as machine is equipped as
Photographed . visit www.pisellient.com for more photos or to set up
and inspection. contact richard piselli at Rich@pisellient.com
