Description
Inventory No.
0322-034-0002
Manufacturer
Gleason
Name

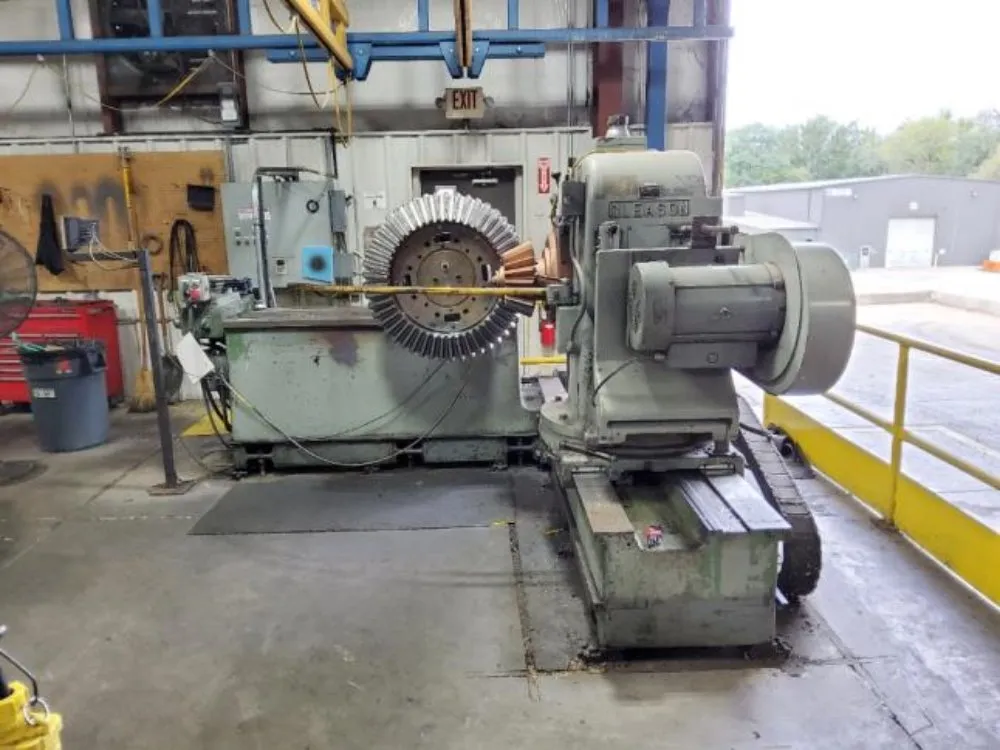

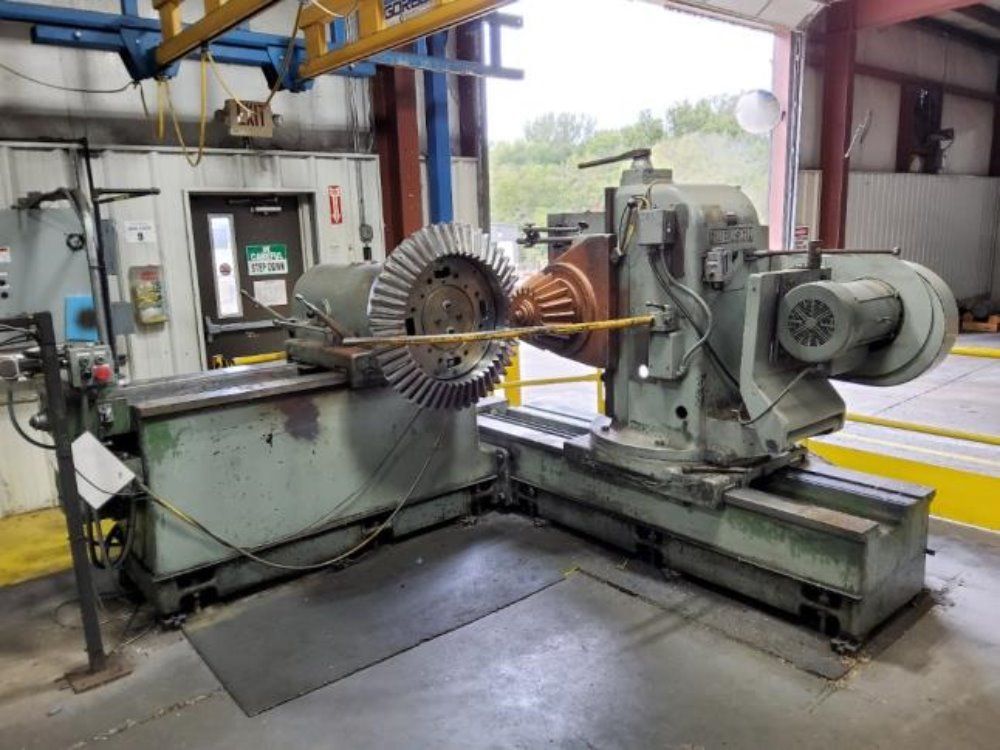

Gleason No. 61 Angular Hypoid Tester
Arrival Date
05-06-2022
Dimensions L x W x H (inches)
Unavailable
Weight (lb.)
24000
Category
Inspection
Condition
Used, tested
Available Quantity
1
Item Details
The No. 61 Angular Hypoid Tester Is Designed To Test Large Bevel And Hypoid Gears Up To 90" Diameter And With Shaft Angles From 0 - 135 Degrees. Spur, Helical And Internal Gears Can Also Be Accommodated. The Drive Or Pinion Spindle Can Be Rotated In Either Direction At A Recommended Spindle Speed Of 600 Rpm. It Is Mounted In A Head Which Is Vertically Adjustable On A Column, So That The Spindle Can Be Offset Either Above Or Below The Center Line Of The Gear Spindle For Testing Hypoid Gears. The Pinion Head Column Is Adjustable Angularly In A Horizontal Plane To Permit Testing Of Gears Of Any Shaft Angle From 0 - 135 Degrees. Maximum Workpiece Diameter 90"
The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated.The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is ...more
