Gear Testers

, Recorder, Pen, Chart Paper, Head and Tailstock Center, Max. Pitch Diameter: 18", Max. Centers: 28", Net Weight, Approximate: 1,600#, Dimensions (LxWxH): 48" x 18" x ...more

Fellows model 20M Red liner lead and involute Gear tester, w/ chart recorder s/n 28448, Excellent condition.

, Pivot Mounted Vertically Adjustable Pinion Head, Horizontally Adjustable Gear Head, Two-Speed Motor, Magnetic Reversing Control, Graduated Dials, Scales, & Verniers, Hardened & ...more

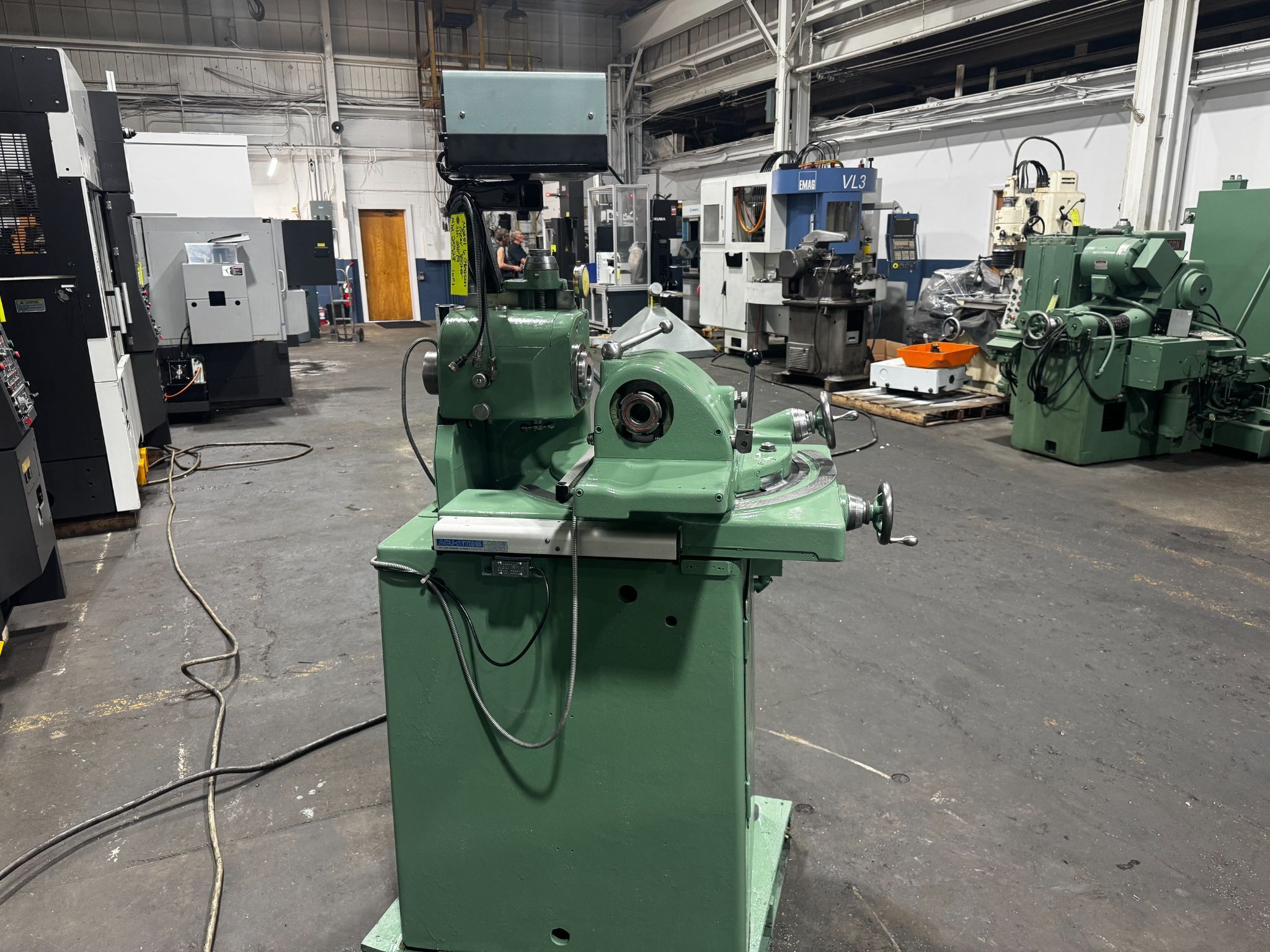

, Maximum Diameter of Gears: 7-1/2", Range of Angles: 0 to 180 Degrees, Range of Pinion Spindle Offset:, Above Center: 1-1/4", Below Center: 1-1/4", Distance From Center of Pinion Spindle ...more

NO. 13 GLEASON UNIVERSAL ANGULAR BEVEL TESTING MACHINE, SERIAL NO. 21177, SUITABLE FOR THE RUNNING TESTING/CHECKING FOR SMOOTHNESS AND, QUIETNESS OF OPERATION AND INSPECTION OF ACTUAL TOOTH ...more

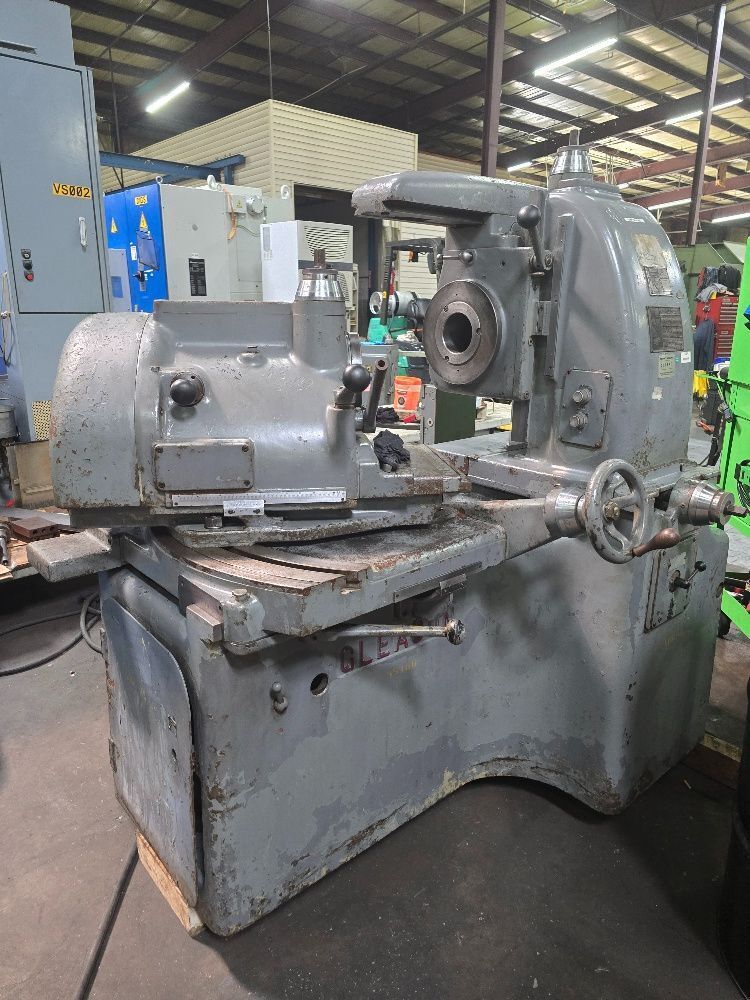

, Maximum Gear Diameter: 13", Ranges of Angles: 0-180 Degrees, Range of Offset Pinion Spindle:, Above Center: 8", Below Center: 2", Maximum Center Distance (Spurs, Helicals, Herringbones): ...more

MODEL NO. 15 GLEASON BLANK CHECKING MACHINE, SERIAL NO.674704 ( NEW 1968 ), SUITABLE FOR CHECKING BEVEL AND HPOID GEAR BLANKS FROM, 2" (50.8MM) TO 15" (381MM) DIAMETER, PRICE: F.O.B. OUR ...more

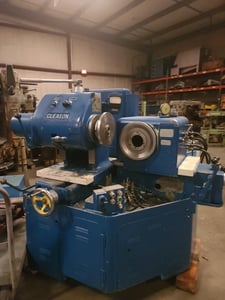

17A GLEASON Hypoid Bevel Gear Testing Machine, Manufacturer GLEASON Model 17A Condition Used Serial Number 25282.0 Stock Number 29464.

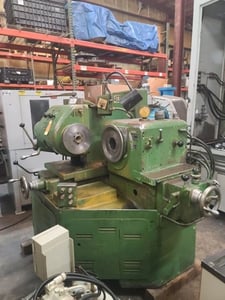

Gleason Model 17A Hypoid Tester, 20" Max Diameter capacity, Excellent Condition.

, Max. Offset of Spindle Above or Below Center of Pinion: 3 1/2", Max. Distance From Center of Gear Spindle: 13 1/4", Max. Distance From Center of Gear Spindle to Nose of Pinion Spindle: 6 ...more

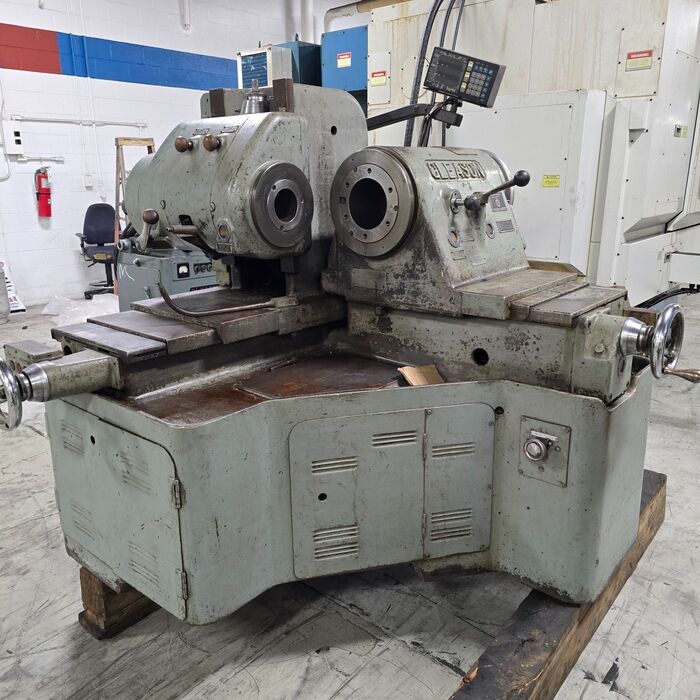

GLEASON 27M BEVEL GEAR TESTER, Distance from center of gear spindle to nose of pinion spindle (maximum): 26" (660mm), Distance from center of gear spindle to nose of pinion spindle ...more

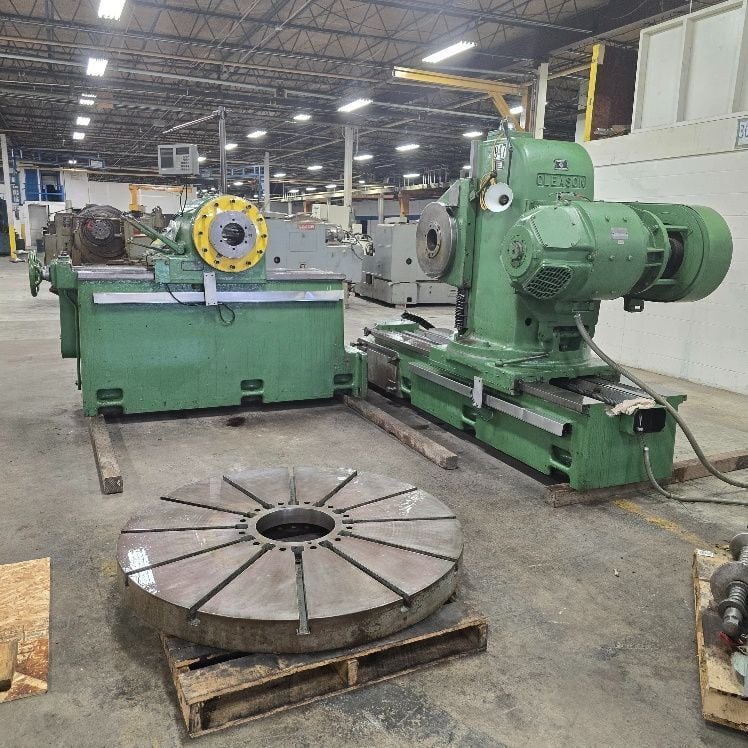

The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be ...more

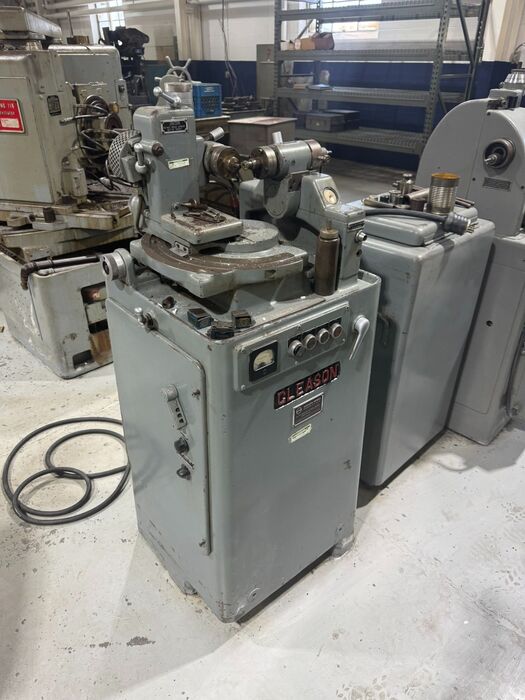

gleason model 104 angular gear testing machine for 4.25" straight and spiral bevel gear sets.

MODEL 17A-4000 GLEASON GEAR TESTER, Automatic Backlash Control, Hydraulic Chucking, Variable Drive Spindle, Workholding, Dial Indicator, Load Meter, Diameter of Gear: 18" Max., Offset Of ...more

, Gleason CNC Gear Testers Model 350 GMM, s/n 6258 1 Available in excellent condition Equipped as photographed, Updated in 2016/17 with Renishaw SP-80 probe system and latest version of ...more

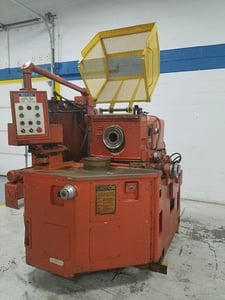

Gleason Model 512 hypoid gear tester. 20" max Gear Diam 10" max Pinion Diam. 39 degree taper, hydraulic clamping, automatic cycles, many s. Inspect in NC under power..

Gleason Model 519.

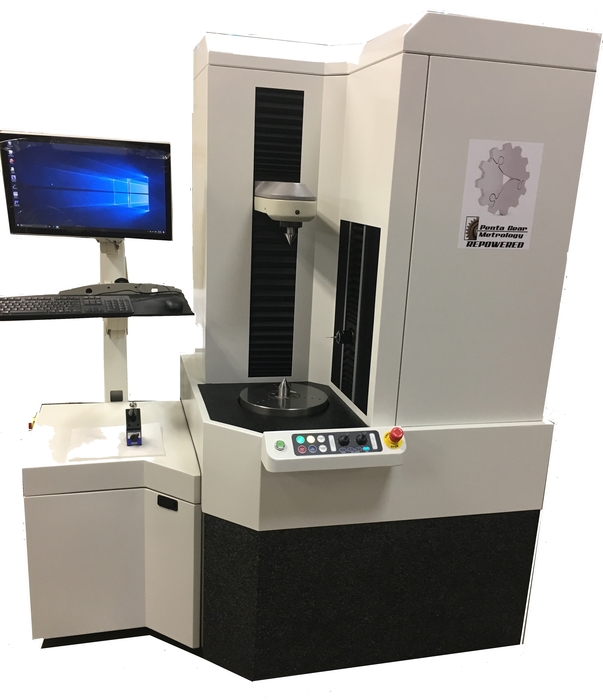

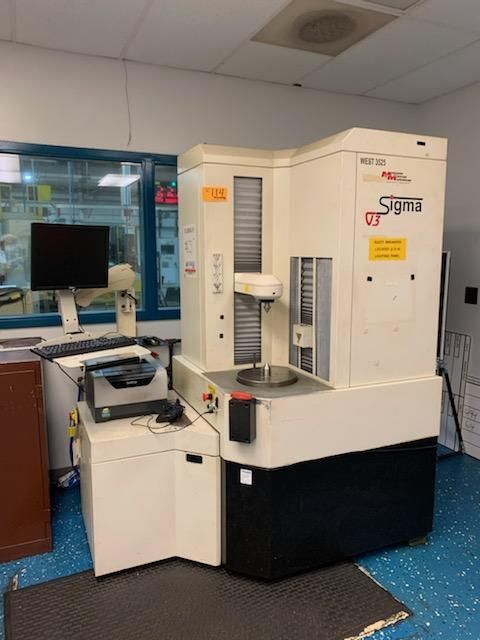

, Gleason M&M precision systems CNC Gear Tester, Model Sigma 3 New 2006 (2 machines now available), W/API Probes, Machine are as follows:, • Machine construction using a granite ...more

FOB.Casa Grande, AZ.

PFS-600 KLINGELNBERG 23.6\" LEAD & INVOLUTE TESTER, Min./Max. Gear: 0.59"/23.62", Max. Gear Width: 6.30", Stroke of Feeler: 6.50", Helix Angle: 0-90 deg., Max. Length of Workpiece: ...more

Reference #26863, WELTER Model UHT-800 CNC Universal Bevel Gear Checker, Serial No.:, Age, Model: UHT-800, Maximum Gear Diameter. 31.5", Shaft Angle Between The 2 Spindles. 45-180 ...more
