Gleason #17A, universal hypoid gear tester, 20" dia., excellent condition, serial #32216

Description

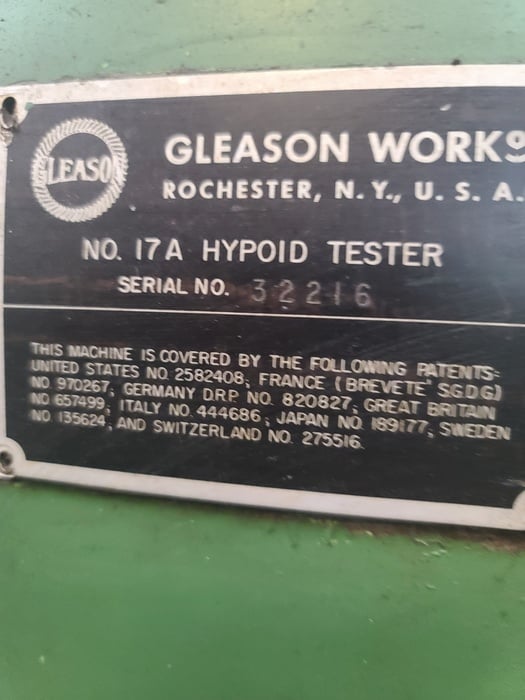

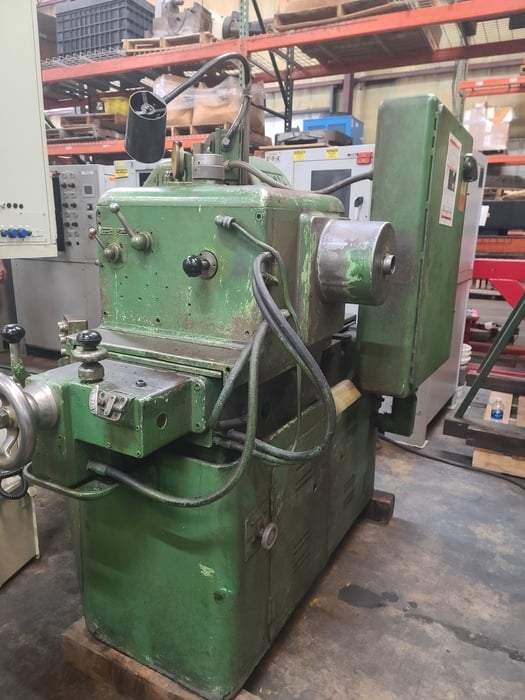

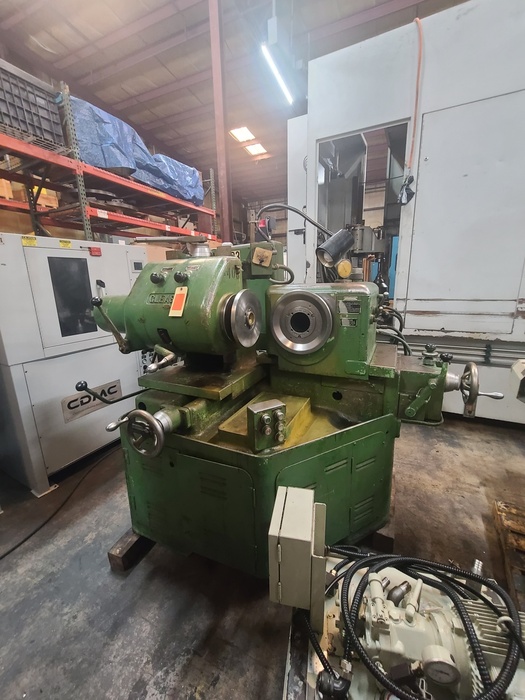

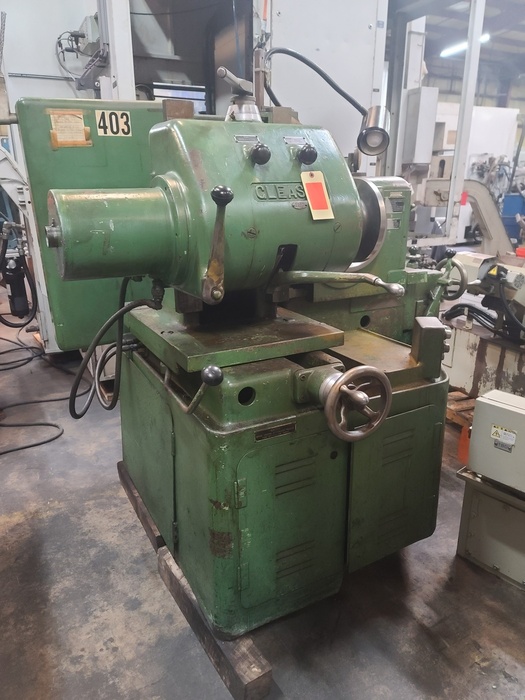

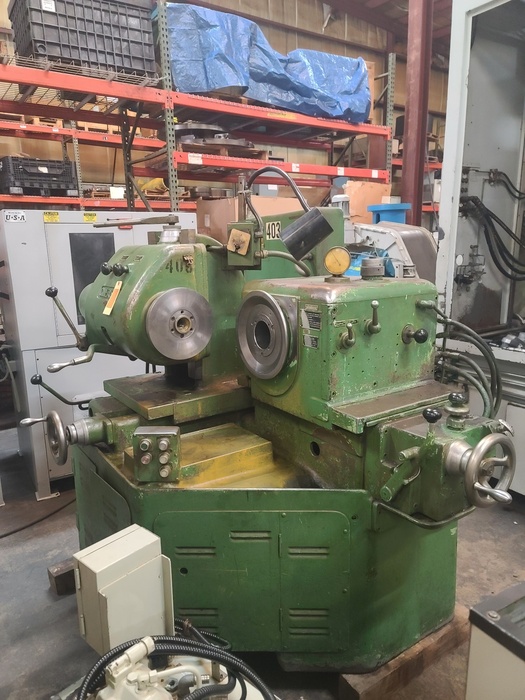

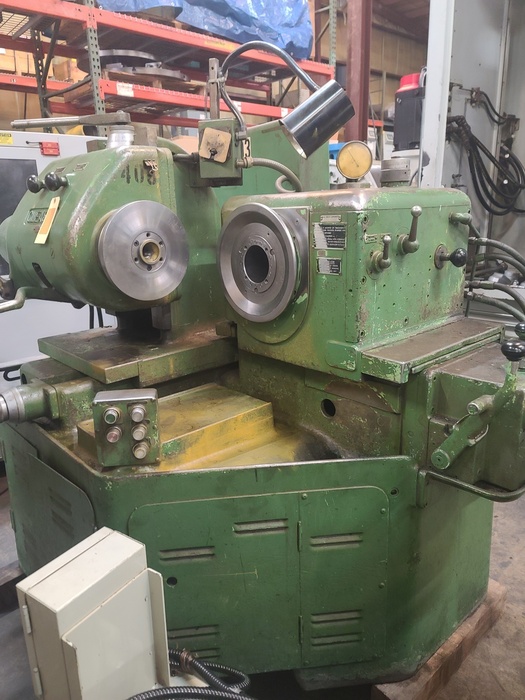

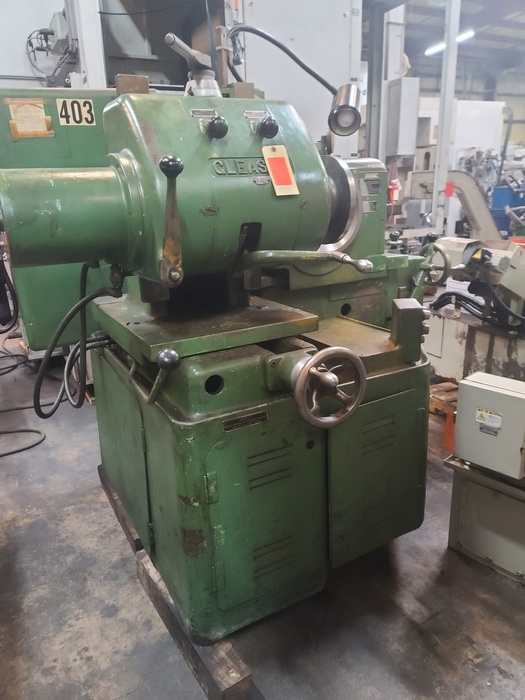

Gleason Model 17A universal Hypoid Bevel gear tester, 20" max diameter capacity , excellent condition ,
Specifications

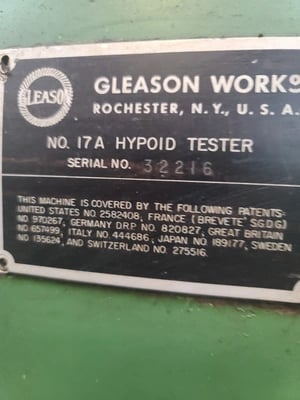

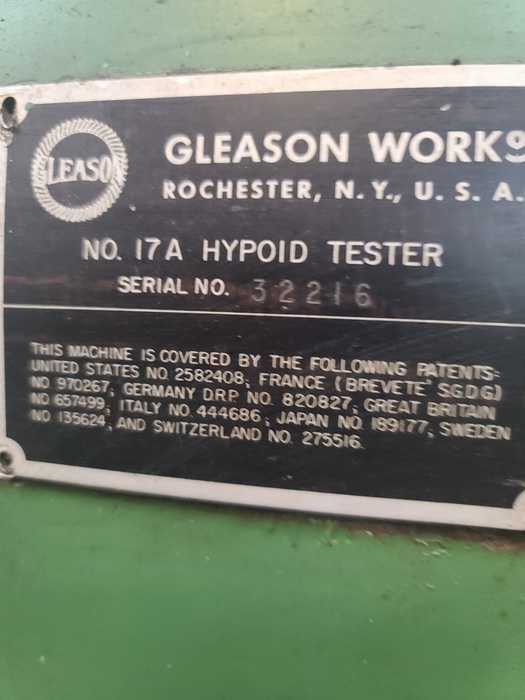

Gleason Universal Gear Tester
Model 17A
S/N 32216
Model No. 17A GLEASON Hypoid Bevel Gear Testing Machine, suitable for the testing
of straight bevel, spiral bevel, and hypoid gears with shafts intersecting at
90-degrees, with capacity to test gears up to 20" (508mm) pitch diameter
The machine corresponds to the attached copy of factory literature, featuring the
following:
EQUIPMENT / FEATURES:
hydraulic work chucking cylinders on pinion and gear spindles, (less draw-in bar
& nuts)
5-HP, 220/440 volt, 3-phase 60 cycle, 1670 rpm main drive motor
3/4 HP, 220/440 volt, 3-phase 60 cycle, 1745 rpm hydraulic motor
pre-set backlash control
brake spindle (2-19/64 bore dia. large end)
adjustable drive pinion spindle (3-29/32 bore dia. large end) w/crank handle &
graduated dial
load meter
guards, covers, handwheels
full complement of electrics, motors/controls)
operators manual wiring diagram & parts list
PRINCIPAL SPECIFICATIONS:
Maximum offset of gear spindle above or below center of
pinion spindle.............................................. .5 (88.9mm)
Maximum distance from center of gear spindle to nose of
pinion spindle................................................12 (304.8mm)
Minimum distance from center of gear spindle to nose of
pinion spindle.................................................6 (152.4mm)
Maximum distance from center of pinion spindle to nose of
gear spindle:..................................................7.75 (196.85mm)
Minimum distance from center of pinion spindle to nose of
gear spindle....................................................4.13 (104.8mm)
Maximum diameter of gear with zero offset of gear spindle.....20 (508mm)
Machine dimensions (approx.)....................................60 x 73 x 60
Machine net weight..............................................5,300 Lbs.
This machine can be inspected under power in my Statesville, NC Plant with proper
notice
