For Sale by Gibbs Machinery Co
Surplus Record Dealer Since 1956
Location: Warren, MI
Contact Sales Dept.
Phone Number: 586...> Show Phone Number 586-755-5353
Let the seller know you found their listing on Surplus Record!
Description

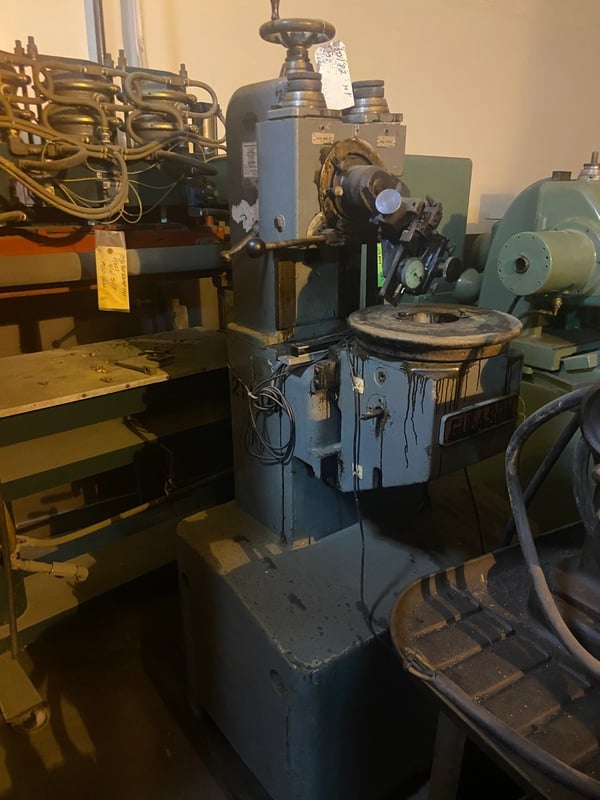

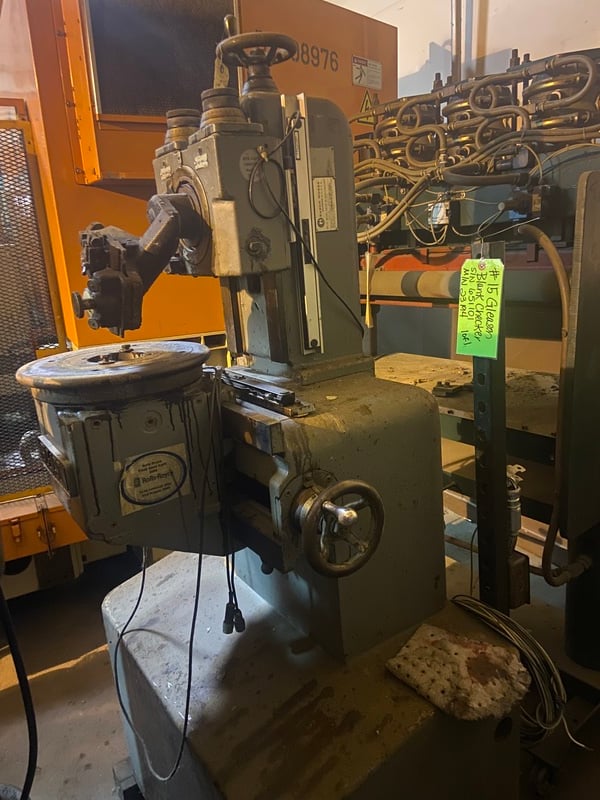

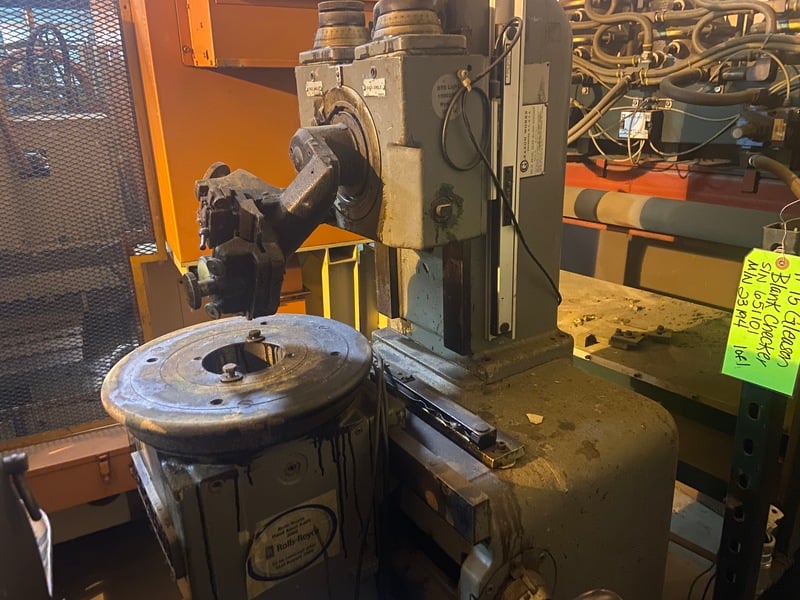

Used Gleason 15 Gear Blank Checker, ideal for precision work with max diameter of 20". Features include adjustable reading accuracy and resolution. Compact 22"x32-11/16" footprint, 68-1/2" height, and weighing 1,900 lbs.
EQUIPPED WITH:
SPECIFICATIONS:
Max. Diameter:20"
Min. Diameter: 2"
Max. Spindle Nose to Crown: 10"
Min. Spindle Nose to Crown: 2"
Back Angle up to 70 deg.: 4"
Back Angle 70-75 deg.: 4-1/4"
Back Angle 75-80 deg.: 4-1/2"
Back Angle 80-85 deg.: 4-3/4"
Back Angle Over 85 deg.
Travel of Indicator (Face Angle): 2"
Travel of Indicator (Back Angle): 1"
Max. Length Between Centers: 17-3/4"
Min. Length Between Centers: 6-1/2"
Diameter of Taper Bore, Large End: 3-29/32"
Taper Per Foot: 6"
Total Travel Vertical & Horizontal: 8.5", 10.5"
Reading Travel Vertical & Horizontal: 8", 10"
Ratio Display/Travel Vertical & Horizontal: 1/1, 2/1
Reading Accuracy at Sensor: +/-.0005"
Reading Accuracy at Display: +/-.0005"
Reading Resolution: +/-.0001"
Display Reset Adjust to "0" at Any Place in : 8" Travel
Min. High Reading: 7.9999
Floor Space: 22" x 32-11/16"
Height: 68-1/2"
Net Weight: 1,900 lbs
Shipping Weight (Boxed for Export): 2,175 lbs
Size of Case: 48" x 46" x 78"
EQUIPPED WITH:
SPECIFICATIONS:
Max. Diameter:20"
Min. Diameter: 2"
Max. Spindle Nose to Crown: 10"
Min. Spindle Nose to Crown: 2"
Back Angle up to 70 deg.: 4"
Back Angle 70-75 deg.: 4-1/4"
Back Angle 75-80 deg.: 4-1/2"
Back Angle 80-85 deg.: 4-3/4"
Back Angle Over 85 deg.
Travel of Indicator (Face Angle): 2"
Travel of Indicator (Back Angle): 1"
Max. Length Between Centers: 17-3/4"
Min. Length Between Centers: 6-1/2"
Diameter of Taper Bore, Large End: 3-29/32"
Taper Per Foot: 6"
Total Travel Vertical & Horizontal: 8.5", 10.5"
Reading Travel Vertical & Horizontal: 8", 10"
Ratio Display/Travel Vertical & Horizontal: 1/1, 2/1
Reading Accuracy at Sensor: +/-.0005"
Reading Accuracy at Display: +/-.0005"
Reading Resolution: +/-.0001"
Display Reset Adjust to "0" at Any Place in : 8" Travel
Min. High Reading: 7.9999
Floor Space: 22" x 32-11/16"
Height: 68-1/2"
Net Weight: 1,900 lbs
Shipping Weight (Boxed for Export): 2,175 lbs
Size of Case: 48" x 46" x 78"
