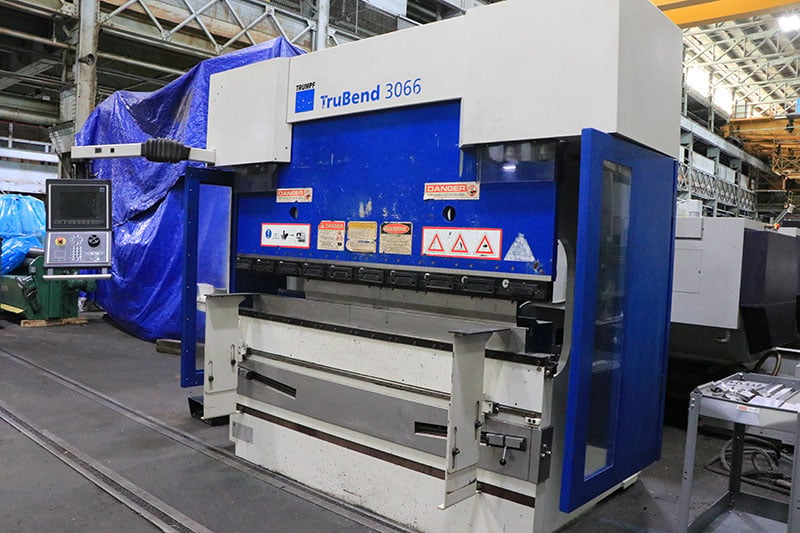

73 Ton, Trumpf #Trubend-3066, CNC hydraulic press brake, 6' overall, 69" between housing, Delem DA-65T Control, 2006

73 Tons X 80” Hydraulic Press Brake with Delem DA-65T Graphical Control, Palm Buttons Mounted on Pedestal Station w/ Foot Pedal, Trumpf CNC Multi - Axis Backgauge (X, Y, R, Z1, Z2).
GENERAL SPECIFICATIONS
Tonnage: 73 Tons
Bed Length: 80”
Distance Between Housings: 69”
Stroke: 7.87”
Open Height: 14”
Closed Height: 5.9”
Y - Axis Rapid Downward Movement: 200 mm/Sec
Y - Axis Operational Speed Max: 15 mm/Sec
Press Speed Rapid Advance: 472 IPM
Bending Speed: 35 IPM
Return Speed: 472 IPM
Main Motor: 10 HP
Max. Operating Pressure: 4,466 PSI
Motor Specs: 3 Ph / 460 V
Approx. Weight: 12,500 Lbs
Approx. Dimensions: 102” X 69” X 92”

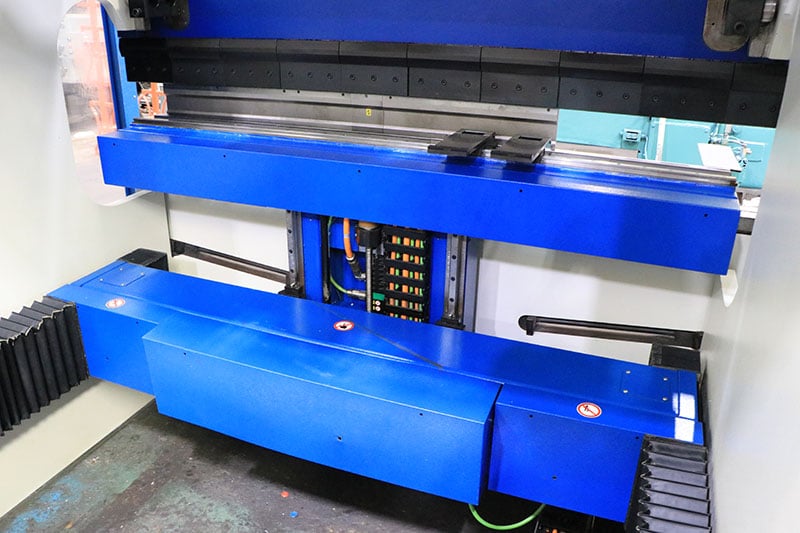

INCLUDES: Delem DA-65T Graphical Control, Palm Buttons Mounted on Pedestal Station w/ Foot Pedal, Trumpf CNC Multi - Axis Backgauge (X, Y, R, Z1, Z2).
