Manufacturer: Trumpf
Model: TRUBEND-3066
Year: 2006
Tons: 73.0
Overall: 6.8
Between Housings: 93.00
Stock # 45206
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

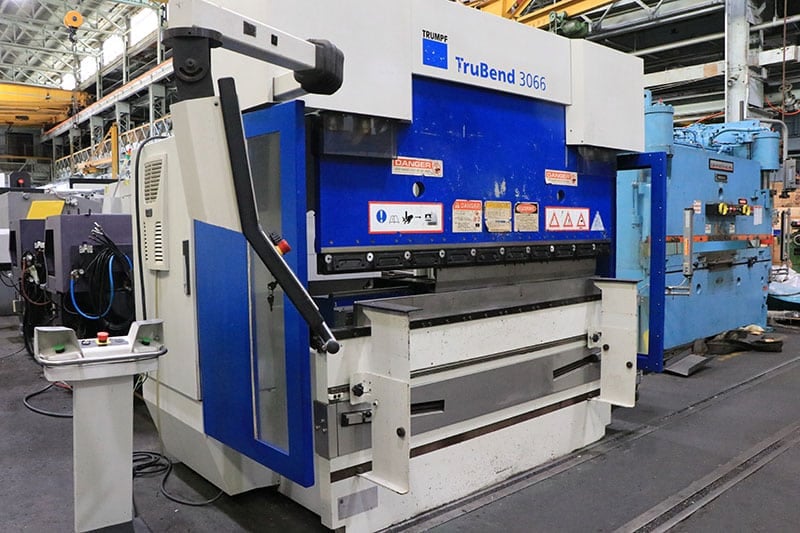

TRUMPF TRUBEND 3066 73 TON X 80″ HYDRAULIC PRESS BRAKE – 2006
TONNAGE ……………………. 73
BED LENGTH .. ………………. 80″
DISTANCE BETWEEN HOUSINGS ……. 69″
LENGTH BETWEEN THE HOUSINGS ….. 93″
STROKE …………………….. 7.87″
OPEN HEIGHT ………………… 14″
CLOSED HEIGHT ………………. 5.9″
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX …. 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ….. 472 IPM
BENDING ……….. 35 IPM
RETURN ………… 472 IPM
MAIN MOTOR HP ………………. 10
MAX OPERATING PRESSURE ……… 4,466 PSI
MOTOR SPECS ………………… 3 PH / 460 V
APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102″ X 69″ X 92″ H
EQUIPPED WITH:
– PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL
– DELEM DA-65TW GRAPHIC CONTROL
– TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)
– MISC. TOOLING
