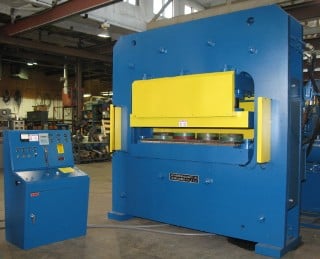

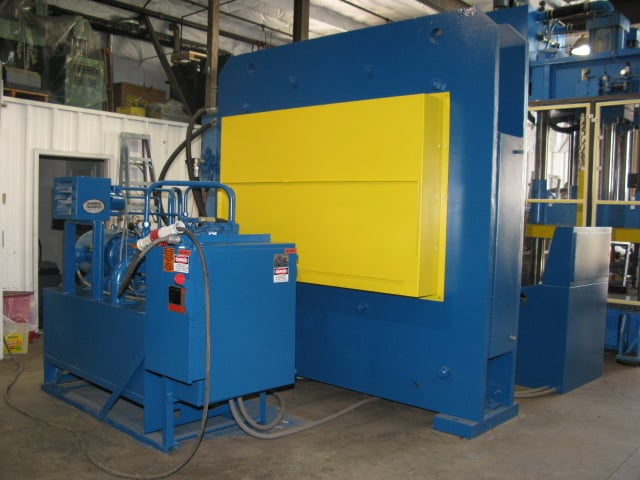

450 Ton, Newman, hydraulic, 60" x26", 12" daylight & stroke, 20 HP, emboss &/or compression mold, #2236

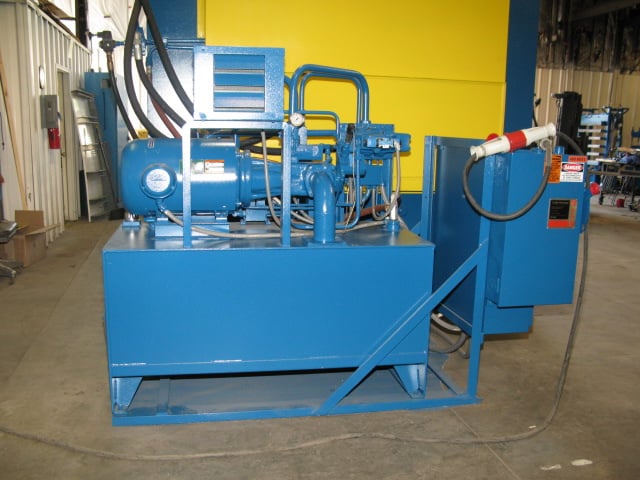

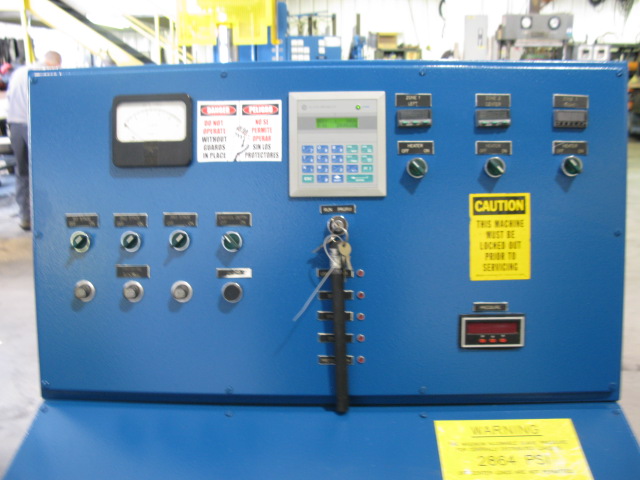

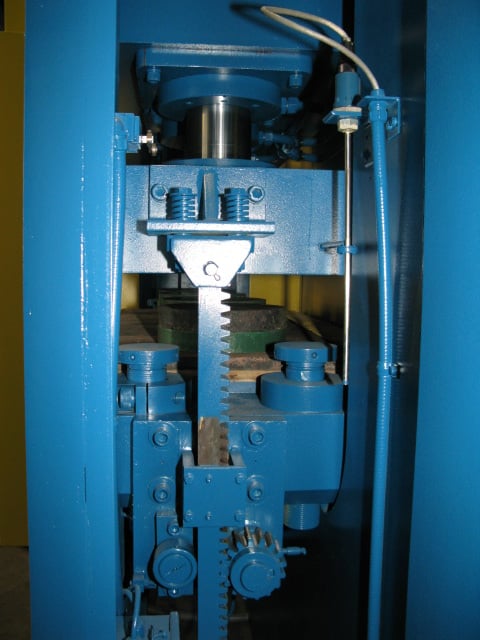

MODEL HP 460-450. SERIAL #15095. CLEARANCE L TO R BETWEEN THE FRAMES IS APPROX 78" (APPROX 63" BETWEEN THE STOP BLOCKS). BOTTOM PLATEN ONLY HAS 3-ZONE ELECTRICALLY HEATED PLATEN THAT IS 1" THICK (PLUS 1" OF INSULATIONS) AND RATED TO 550F. FOUR HYDRAULIC CYLINDERS: 10" BORE; 6" DIAMETER ROD; MAX STROKE OF 12". THE TWO OUTSIDE CYLINDERS ARE DOUBLE-ACTING AND USED TO APPLY PRESSURE AND LIFT THE SLIDE. MAX DAYLIGHT WITH THE HEATED PLATEN IS 12"; 14" WITHOUT. BURNT PLATE FRAME CONSTRUCTION. ADJUSTABLE STOP BLOCKS AT THE FOUR CORNERS. OPERATOR HEIGHT IS 51.5" WITH THE PLATEN; 49.5" WITHOUT. GUIDED WITH THE FOUR CYLINDERS AND TWO RACK & GEAR GUIDES. HARD GUARD ON REAR; 24" LIGHT CURTAINS ON FRONT. ELECTRICAL CONTROL SYSTEM INCLUDING ALLEN-BRADLEY SLC 5/02 PLC; ALLEN-BRADLEY T-CAT; LINEAR TRANSDUCER; VOLTMETER; DIGITAL PRESSURE READ-OUT; 3-ZONE HEAT ON/OFF. 1ST, 2ND AND 3RD PRESSURE STAGES ON/OFF; EMBOSSING DEPTH ON/OFF; OPTIONAL ADJUSTABLE PRESSURE ON EACH STAGE; FREE-STANDING CONTROL CONSOLE; 460 VOLTS; 200 AMP DISCONNECT; PALM BUTTONS ON CONSOLE, ETC… FREE-STANDING HYDRAULIC POWER UNIT: 20 HP MOTOR (230/460 VOLTS; 1200 RPM); 150 GALLON RESERVOIR; VICKERS RELIEF VALVES; THERMAL TRANSFER A05 COOLER; VICKERS RCS-10-B1-30EA COUNTER BALANCE VALVE; ETC… APPROX SPEEDS: 60 IPM FAST CLOSE; 3 IPM PRESSING; 130 IPM FAST OPEN. OVERALL DIMENSIONS: PRESS 114" X 42" X 115" TALL; HYDRAULIC UNIT 89" X 43" X 68" TALL; CONTROL CONSOLE 38" X 28" X 58" TALL. APPROX 34,000 POUNDS. SOME PRINTS. ITEM #2236.
