Description

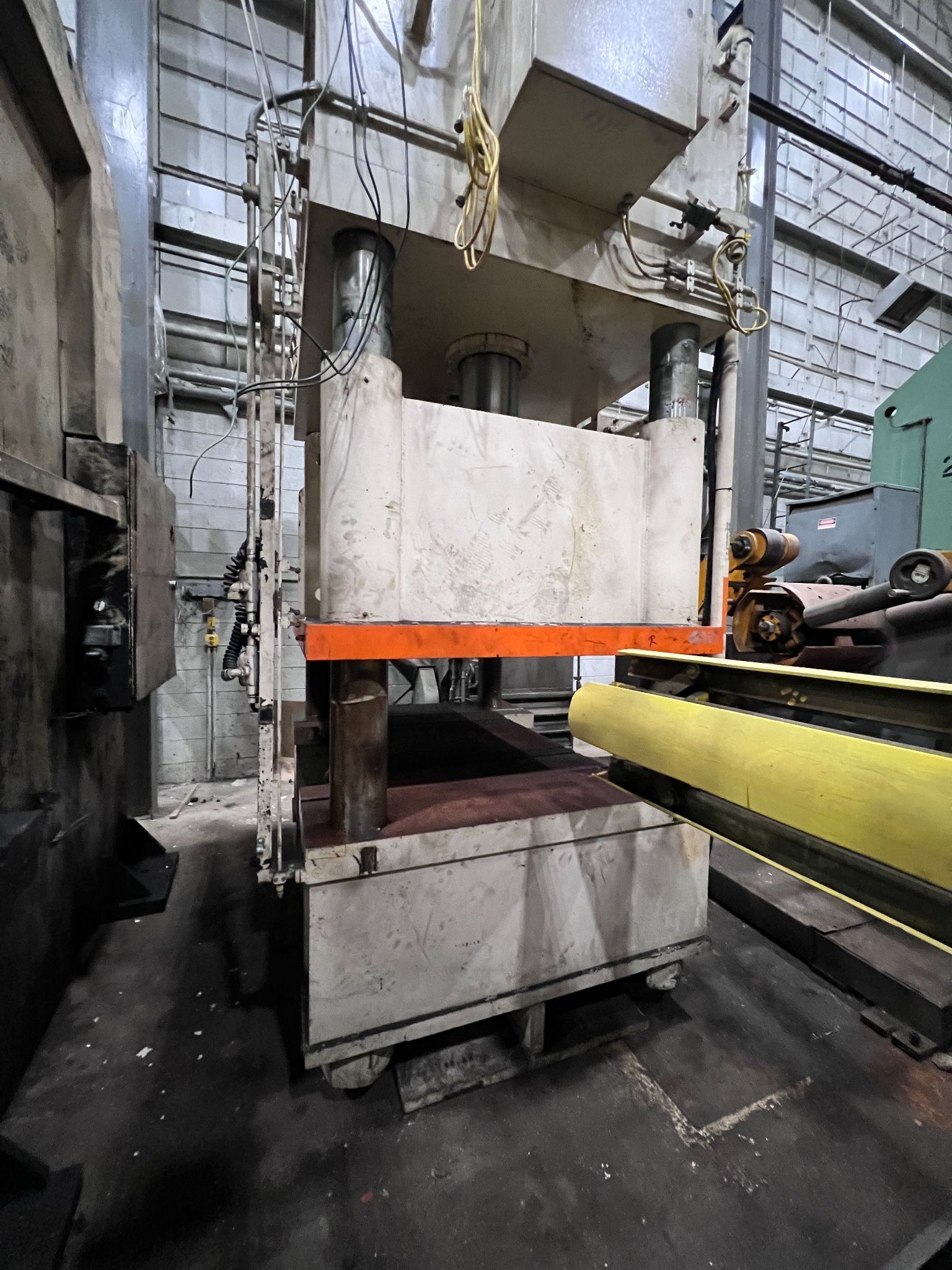

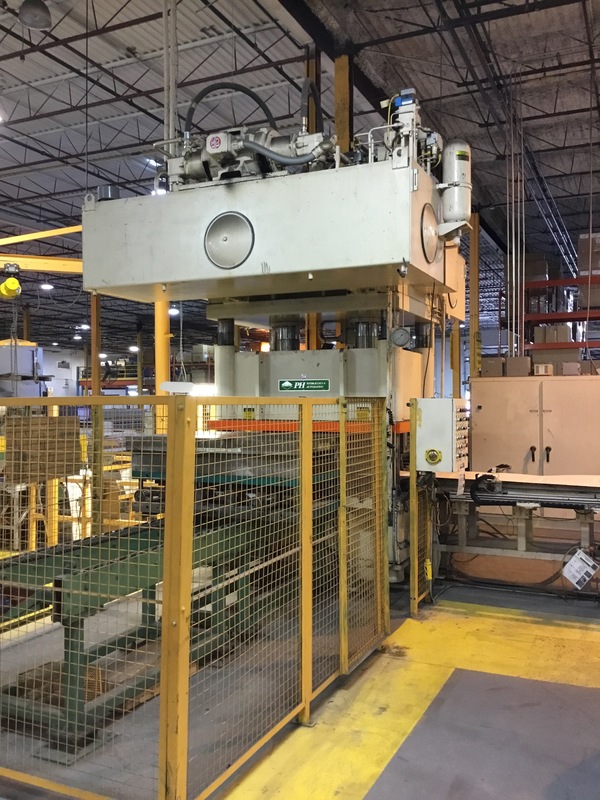

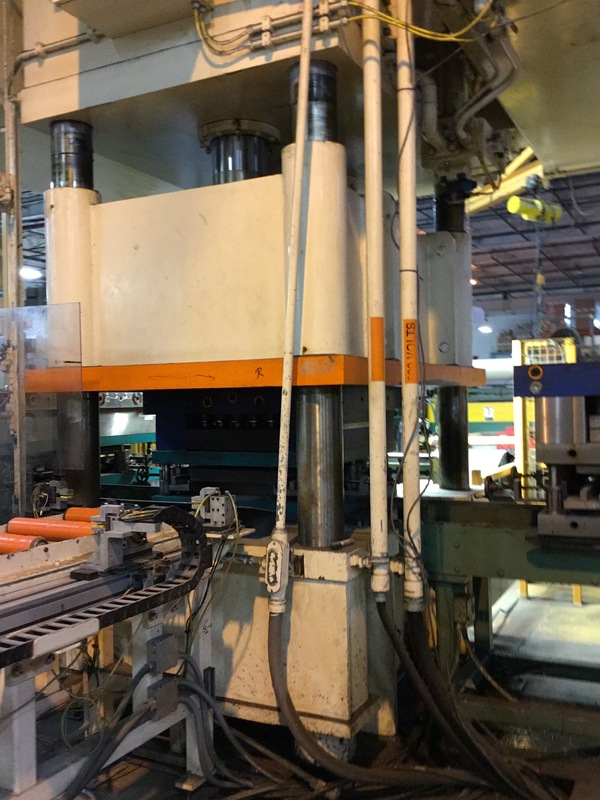

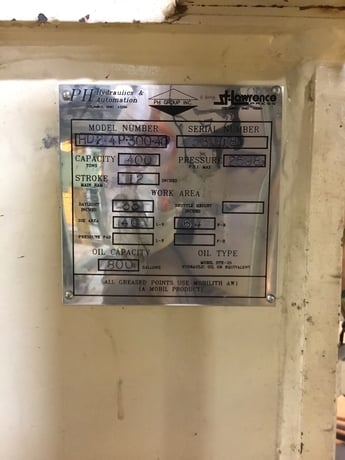

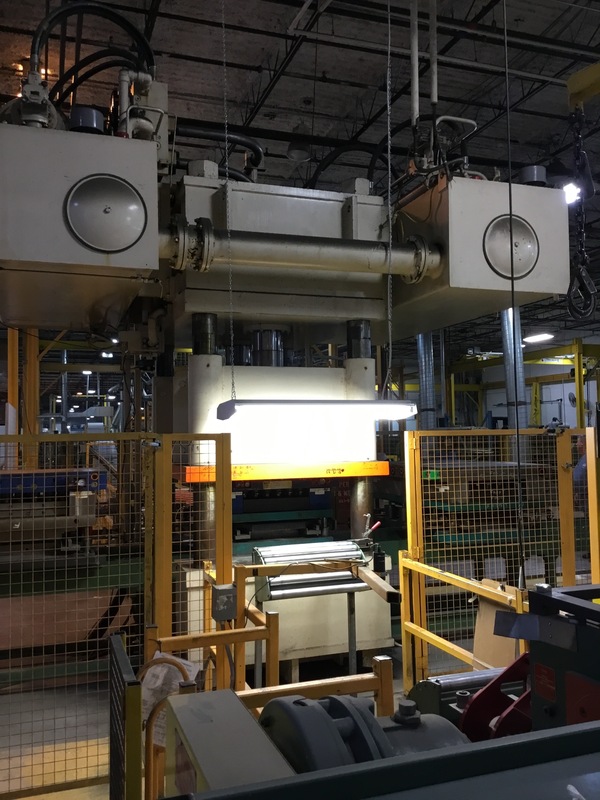

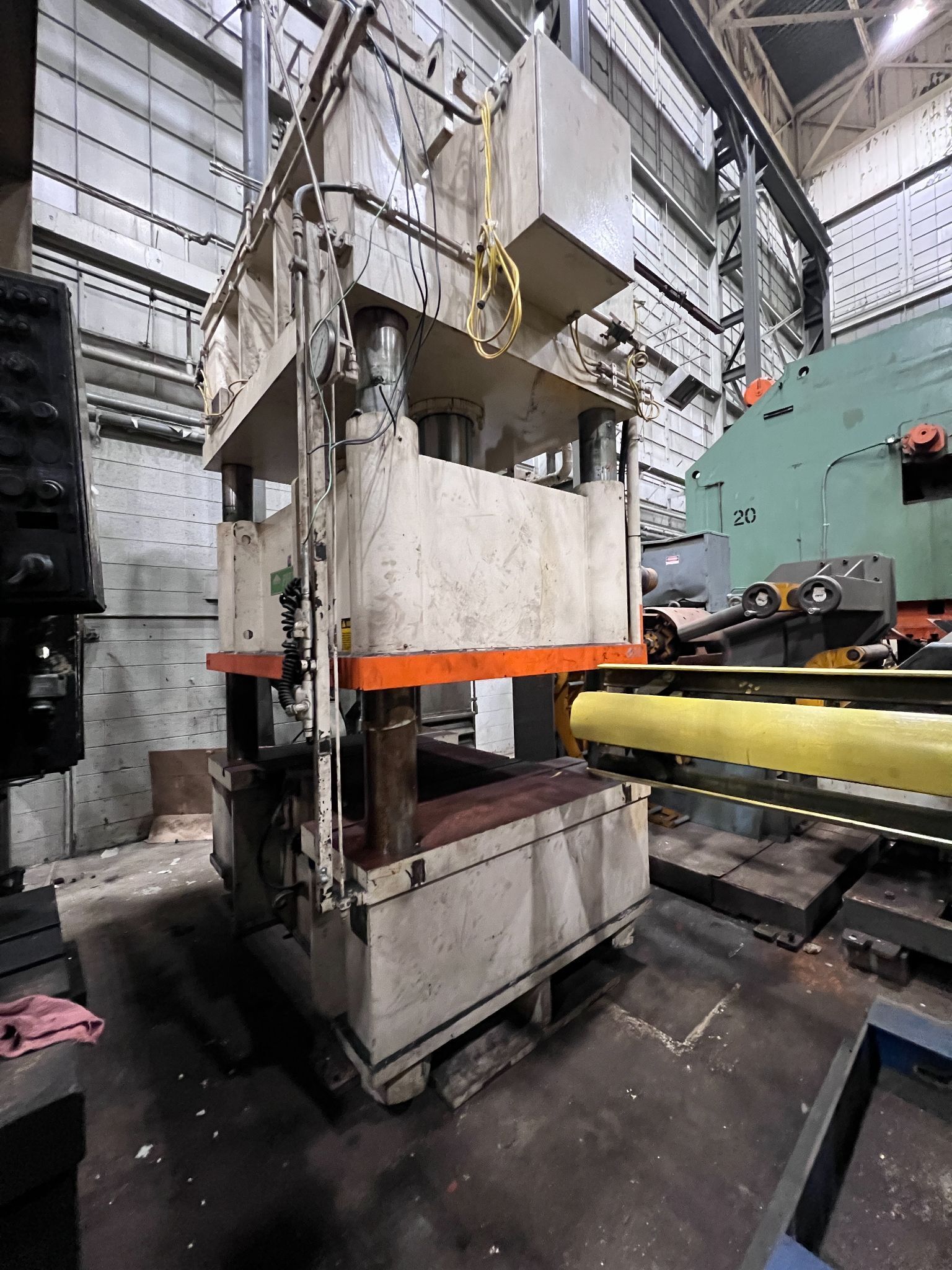

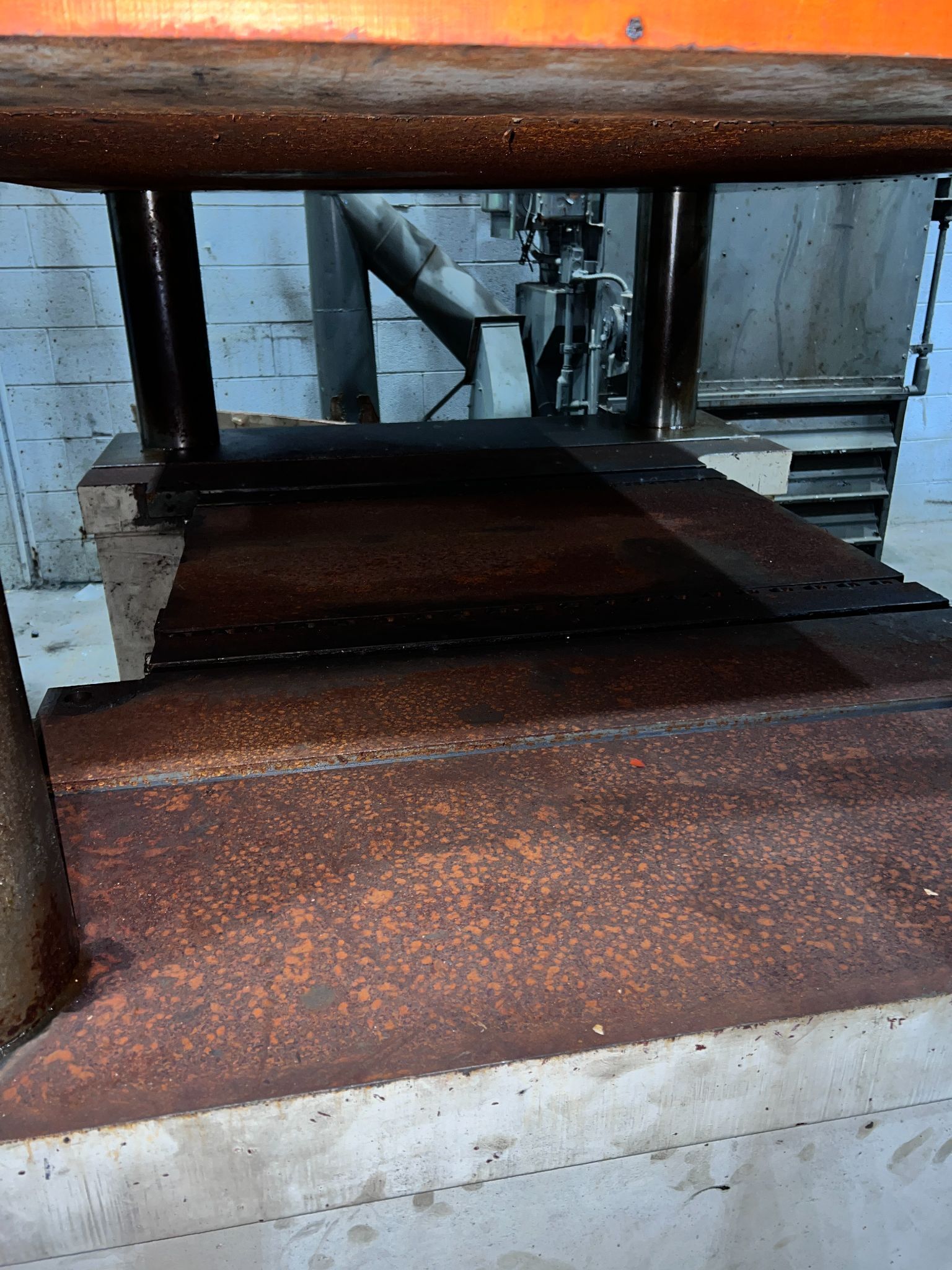

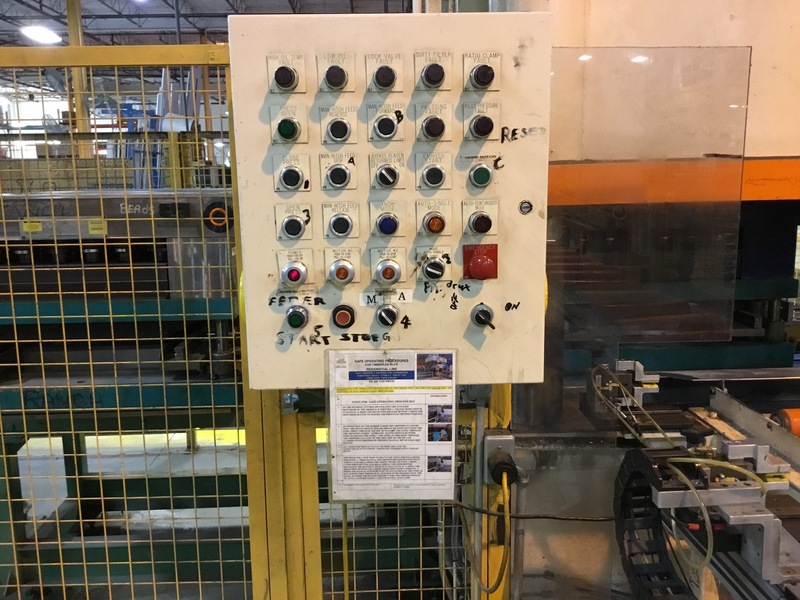

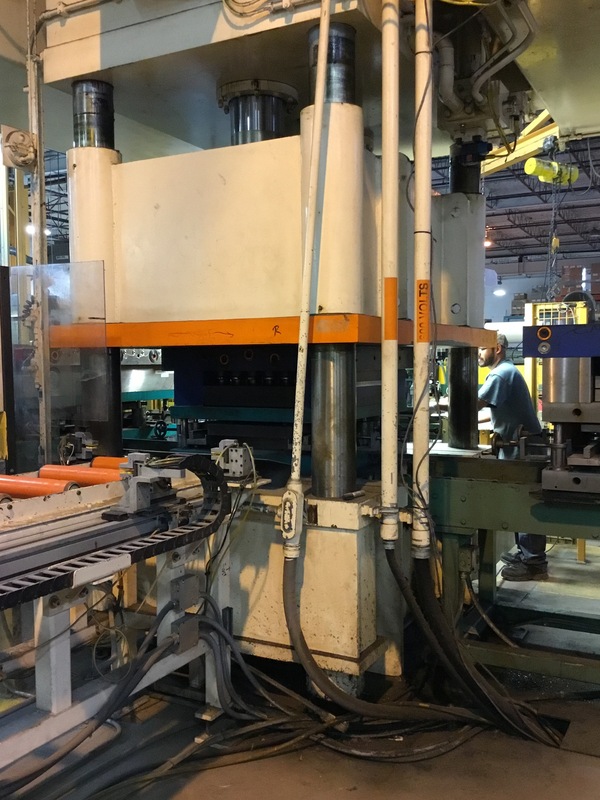

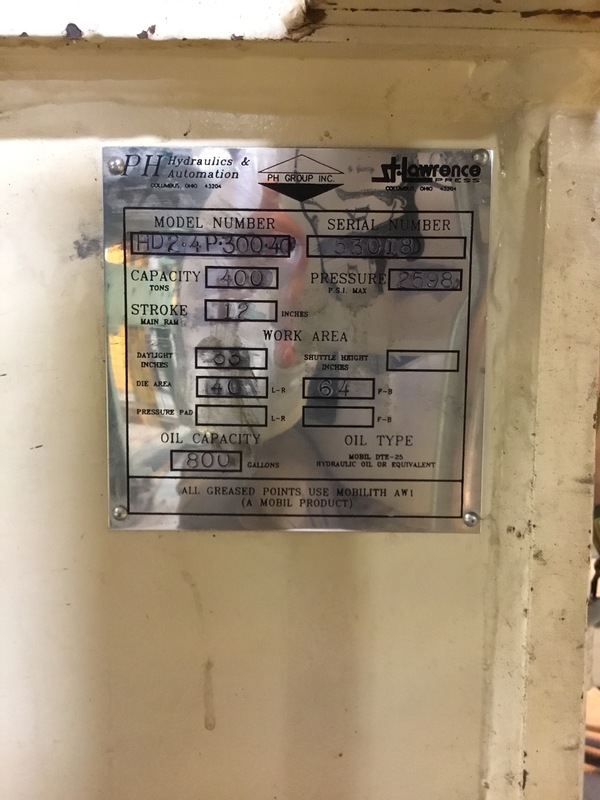

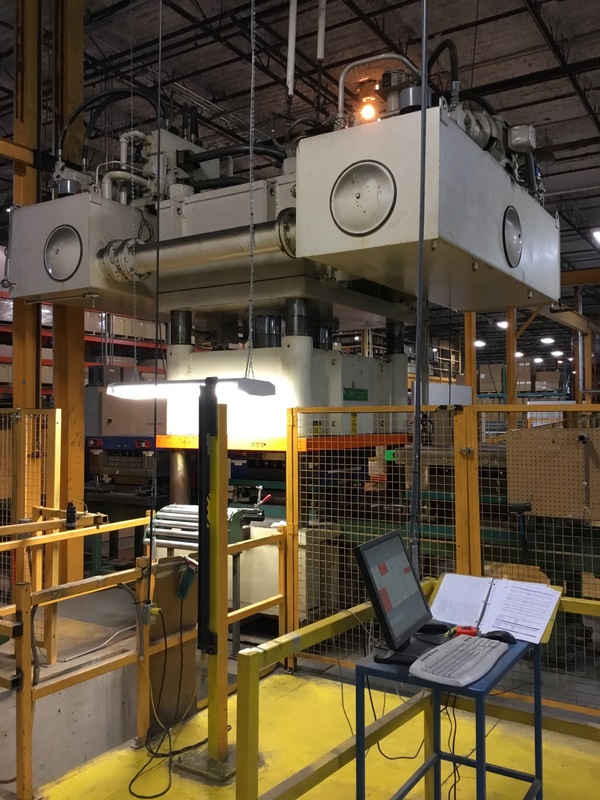

Explore this used 400 Ton PH Model HD2-4P Four Post Hydraulic Press, featuring a spacious 81x60 in bed and 12 in stroke. Enjoy convenient hydraulic controls with a 125 HP motor and efficient platen latches, all compactly floor-standing. Serial Number: 53018 Capacity: 400 Ton Stroke: 12 Daylight Open: 33 Shut Height: 21 Bed Area: 81LR x 60FB Distance Between Posts: 64LR x 40FB Operating Speeds: Rapid Advance: 340 IPM Intermediate: 180 IPM Pressing: 48 IPM Rapid Return: 352 IPM 2-Point Suspension, Self Contained Single Action Down Acting St. Lawrence Hydraulics & Electrical Control System Platen Latches - Upper Platen equipped with automatically operated Spring engaged, Hydraulic Disengaged latches to Mechanically Hold Platen at any position of the work stroke Latches are interlocked Electrically Self Contained Press Mounted Hydraulics (Top Mounted) 800 Gallon Capacity / 2- 400 Gallon 125 HP O.D.P. / 1200 RPM / 230-460 Volt Vickers Fixed Vane Pumps #4525V38A5 / 38 GPM O.A. Dimensions: 70LR x 89FB x 170H Approximate Weight: 63,000 Lbs Floor Standing (no pit required) Serial Number: 53018 Capacity: 400 Ton Stroke: 12 Daylight Open: 33 Shut Height: 21 Bed Area: 81LR x 60FB Distance Between Posts: 64LR x 40FB Operating Speeds: Rapid Advance: 340 IPM Intermediate: 180 IPM Pressing: 48 IPM Rapid Return: 352 IPM 2-Point Suspension, Self Contained Single Action Down Acting St. Lawrence Hydraulics & Electrical Control System Platen Latches - Upper Platen equipped with automatically operated Spring engaged, Hydraulic Disengaged latches to Mechanically Hold Platen at any position of the work stroke Latches are interlocked Electrically Self Contained Press Mounted Hydraulics (Top Mounted) 800 Gallon Capacity / 2- 400 Gallon 125 HP O.D.P. / 1200 RPM / 230-460 Volt Vickers Fixed Vane Pumps #4525V38A5 / 38 GPM O.A. Dimensions: 70LR x 89FB x 170H Approximate Weight: 63,000 Lbs Floor Standing (no pit required)
Inquire Further with Universal Press & Machinery (UPM)!
