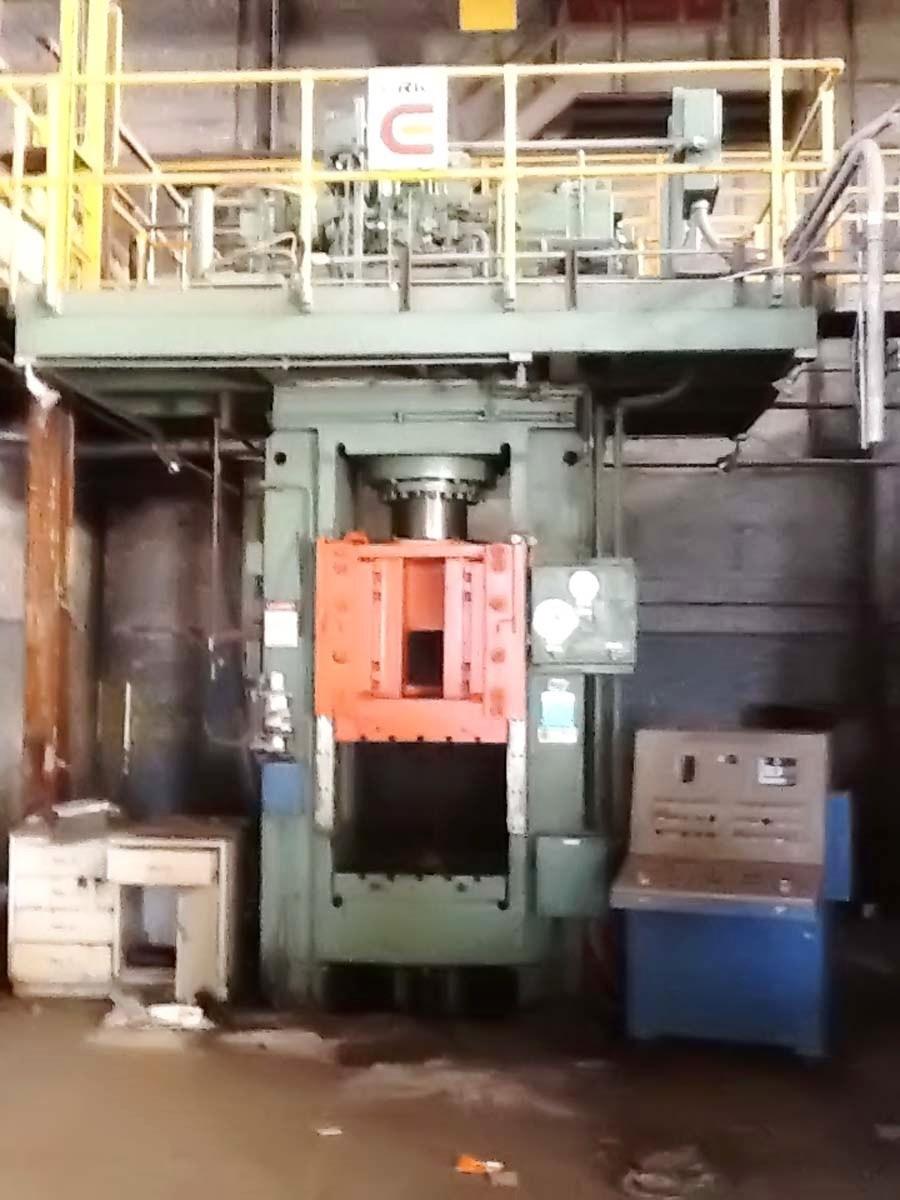

Click to zoom in
For Sale by F P Miller Company
Surplus Record Dealer Since 1955
Location: Jackson, MI
Contact Sales Dept.
Phone Number: 517...> Show Phone Number 517-787-3100
Let the seller know you found their listing on Surplus Record!
Description
Specifications Principal Specifications:
PRESSING FORCE-MAIN SLIDE
500 Ton full tonnage pressing
100 Ton low tonnage pressing
55" Ton return capacity @ 3500 P.S.I.
17" Diameter main ram diameter (single acting)
6-4" Closing & return rams (double acting)**
3537 PSI System pressure
**By selector switch setting closing rams only using low pressing
PRESSING FORCE-TOP & BOTTOM EJECTORS
50 Ton bottom ejector capacity (up acting)
50 Ton top ejector capacity (machining provisions only)
2000 P.S.I. system pressure
8-3-1/2" Diameter top & bottom ejector rams (double acting)
WORKING DIMENSIONS
36" x36" x 5" Bed bolster (R-L x F-B x Thickness)
36" x36" x 5" Slide bolster (R-L x F-B x Thickness)
30" Daylight (between bolsters)
24" Main slide stroke (maximum)
6" Shut height
2" Top ejector stroke
6" Bottom ejector stroke
30" floor to top of bolster
OPERATING SPEEDS
315"/Min. Rapid advance
315"/Min. Low tonnage pressing to 100 ton
63"/Min. Full tonnage pressing to 500 ton
50"/Min. Breakaway stripping
700"/Min. Return after breakaway
100"/Min. Bottom ejector (up acting)
Machine requires complete electrical upgrade and hydraulics repair
Price "As-Is" Open to offers
Reconditioned price available upon request
PRESSING FORCE-MAIN SLIDE
500 Ton full tonnage pressing
100 Ton low tonnage pressing
55" Ton return capacity @ 3500 P.S.I.
17" Diameter main ram diameter (single acting)
6-4" Closing & return rams (double acting)**
3537 PSI System pressure
**By selector switch setting closing rams only using low pressing
PRESSING FORCE-TOP & BOTTOM EJECTORS
50 Ton bottom ejector capacity (up acting)
50 Ton top ejector capacity (machining provisions only)
2000 P.S.I. system pressure
8-3-1/2" Diameter top & bottom ejector rams (double acting)
WORKING DIMENSIONS
36" x36" x 5" Bed bolster (R-L x F-B x Thickness)
36" x36" x 5" Slide bolster (R-L x F-B x Thickness)
30" Daylight (between bolsters)
24" Main slide stroke (maximum)
6" Shut height
2" Top ejector stroke
6" Bottom ejector stroke
30" floor to top of bolster
OPERATING SPEEDS
315"/Min. Rapid advance
315"/Min. Low tonnage pressing to 100 ton
63"/Min. Full tonnage pressing to 500 ton
50"/Min. Breakaway stripping
700"/Min. Return after breakaway
100"/Min. Bottom ejector (up acting)
Machine requires complete electrical upgrade and hydraulics repair
Price "As-Is" Open to offers
Reconditioned price available upon request
