For Sale by Alma Machinery Co-Ann Arbor MI
Surplus Record Dealer Since 1960
Location: Ann Arbor, MI
Contact Jim Walters
Phone Number: 734...> Show Phone Number 734-971-8860
Let the seller know you found their listing on Surplus Record!
Description

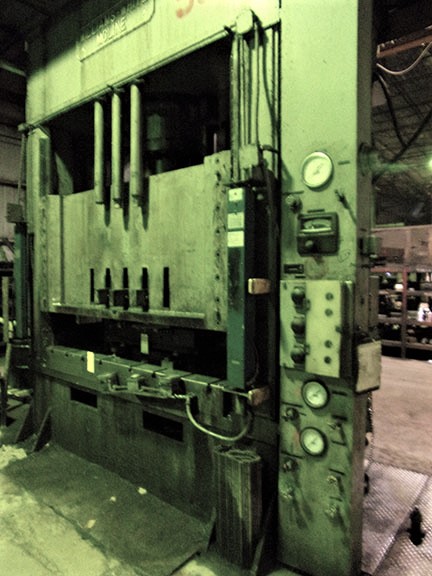

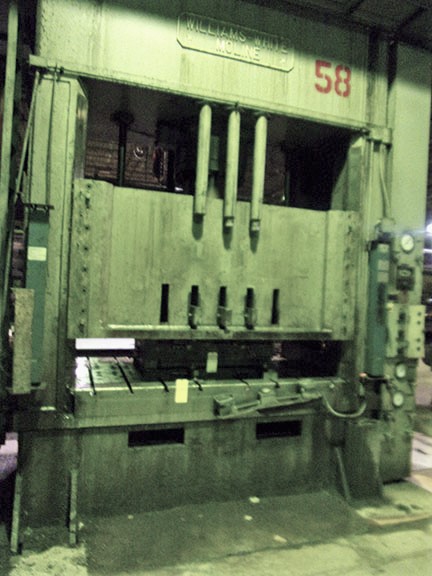

capacity 400 Ton @ 2322 psi
max. stroke 30"
max. daylight to bed 43.5" (35.75" to Bolster)
BED & RAM AREA (OVERALL) 84" x 48" (RL X FB)
BOLSTER PLATE 7.75" THICK T-SLOTTED BOLSTER PLATE
RAM SPEEDS 1250/90/1140 ipm
SIZE OF SIDE WINDOWS 20.5" WIDE X 25" HIGH
CYLINDER SIZE 19" DIA. BORE
FLOOR TO BED 54"

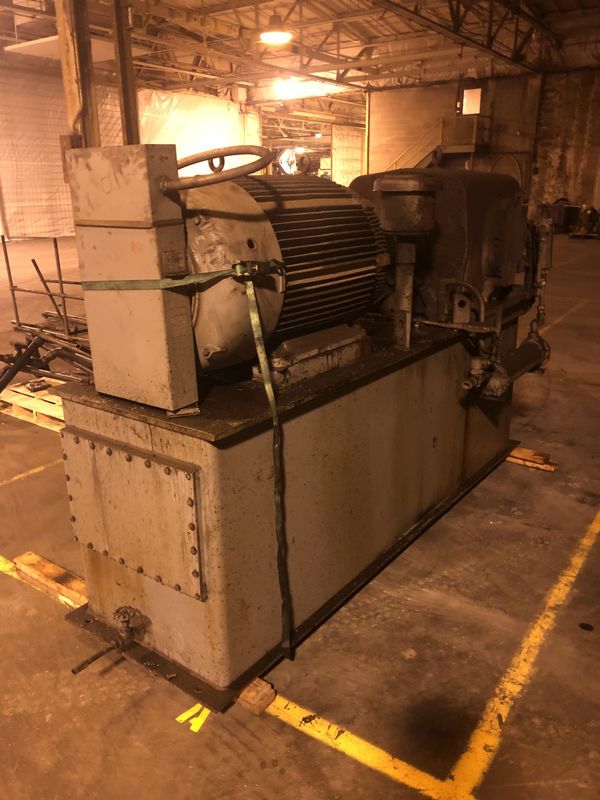

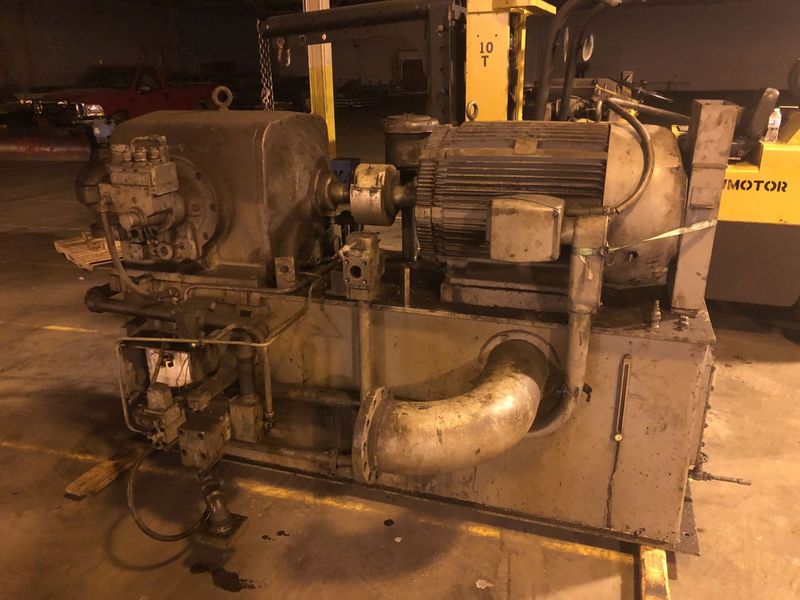

HYDRAULICS OILGEAR HYDRAULIC PUMP MODEL DM-15025 - 860 RPM - RATED PRESS. 2500
crown mounted hydraulics

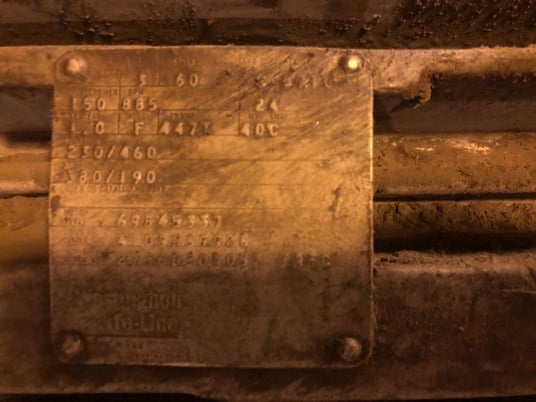

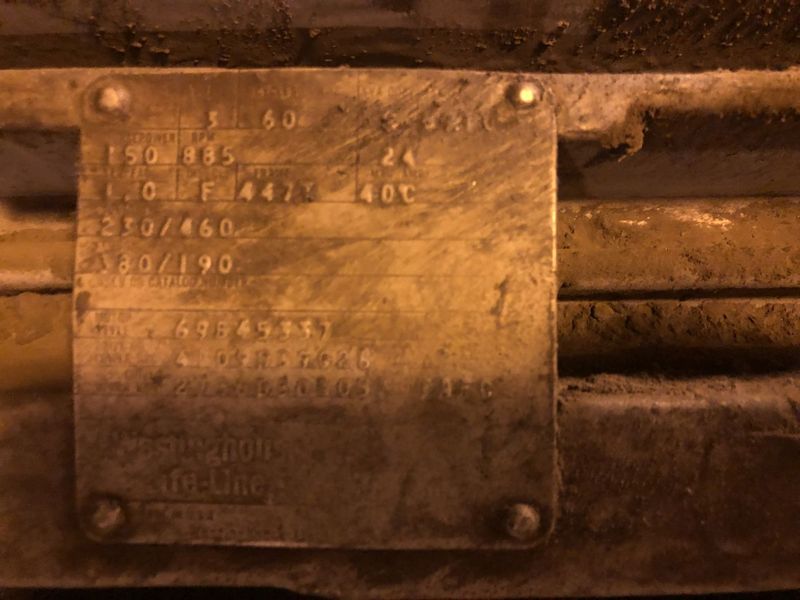

MOTOR 150 HP 230/460V-3-60 WESTINGHOUSE MOTOR
380/190 AMPS | 885 RPM

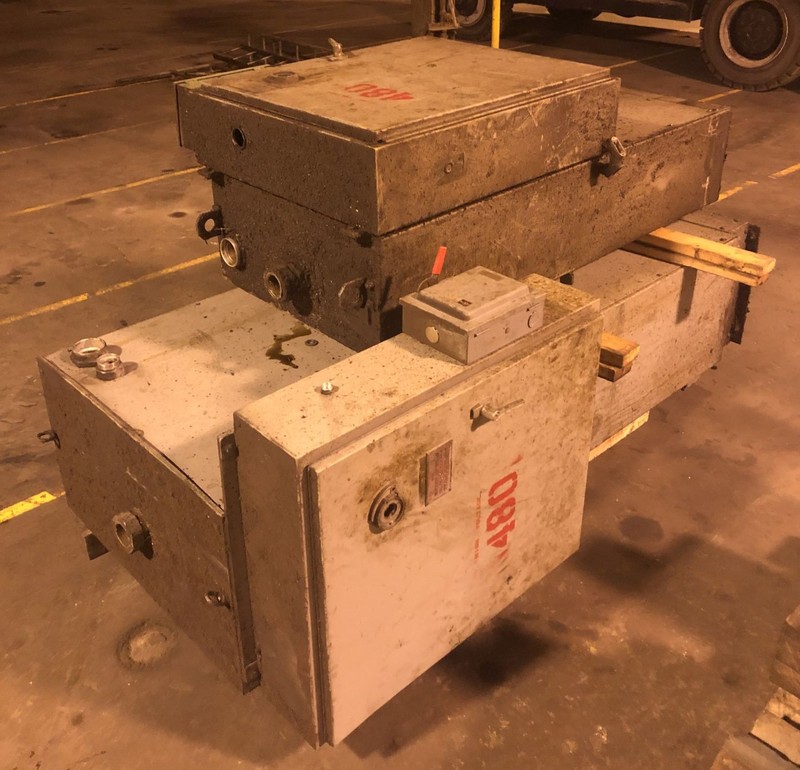

CONTROLS RELAY LOGIC CONTROLS
OVERALL DIMENSIONS 135" X 90" (RL X FB) X 234" HIGH (19'6")
APPROX. WEIGHT --

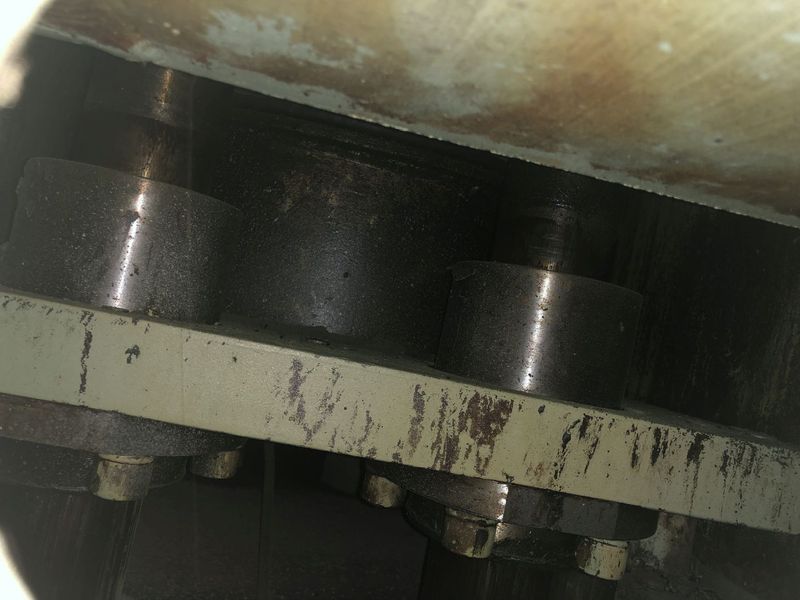

**2 cushions in the bed - 130 ton total capacity
2 - 34" x 30" pressure pads (65 ton each)
10" stroke, 10 ton lifting capacity
-
gib guided ram, tie rod cast iron frame
__
max. stroke 30"
max. daylight to bed 43.5" (35.75" to Bolster)
BED & RAM AREA (OVERALL) 84" x 48" (RL X FB)
BOLSTER PLATE 7.75" THICK T-SLOTTED BOLSTER PLATE
RAM SPEEDS 1250/90/1140 ipm
SIZE OF SIDE WINDOWS 20.5" WIDE X 25" HIGH
CYLINDER SIZE 19" DIA. BORE
FLOOR TO BED 54"
HYDRAULICS OILGEAR HYDRAULIC PUMP MODEL DM-15025 - 860 RPM - RATED PRESS. 2500
crown mounted hydraulics
MOTOR 150 HP 230/460V-3-60 WESTINGHOUSE MOTOR
380/190 AMPS | 885 RPM
CONTROLS RELAY LOGIC CONTROLS
OVERALL DIMENSIONS 135" X 90" (RL X FB) X 234" HIGH (19'6")
APPROX. WEIGHT --
**2 cushions in the bed - 130 ton total capacity
2 - 34" x 30" pressure pads (65 ton each)
10" stroke, 10 ton lifting capacity
-
gib guided ram, tie rod cast iron frame
__
