For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Swing Over Bed | 26 inches |
| Swing Over Cross Slide | 17.5 inches |
| Swing In Gap | 35.1 inches |
| Gap Width in Front of the Face Plate | 10.625 inches |
| Distance Between Centers | 160 inches |
| Width of Bed | 15.75 inches |
| Height of Center from Leg Bottom | 44.3 inches |
| Spindle Bore | 4.0625 inches |
| Taper of spindle bore and center | MT#7 x #5 |
| Type of Spindle Nose | D1-11 |
| Number of Spindle Speeds | 12 |
| Spindle Speed | 13-1,200 RPM |
| Number of Feed Changes | 16 |
| Feeds per revolution Longitudinal | 0.0012-0.039 |
| Feeds per revolution Cross | 0.0007 0.0188 |
| Leadscrew Diameter & Threads Per Inch | 1.77 , 2 TPI |
| Range of Inch Threads | 1-42 TPI (48) |
| Range of Metric Pitches | 0.2 14 (39) |
| Maximum Travel of Compound | 9.5 inches |
| Maximum Travel of Cross Slide | 15.8 inches |
| Tailstock Quill Travel | 9.8 inches |
| Tailstock Quill Diameter | 2.9 inches |
| Taper in Tailstock Quill | M.T. #5 |
| Main Drive Motor | 15 HP |
| Coolant Pump Motor | 1/8 HP |
| Floor Space | W: 47 L: 217 |
| Machine Weight | 8000 pounds |
Equipped With
Equipped With
EQUIPPED WITH:
SPECIFICATIONS SUBJECT TO VERIFICATION.
OPTIONAL FEATURES:
SUBJECT TO PRIOR SALE

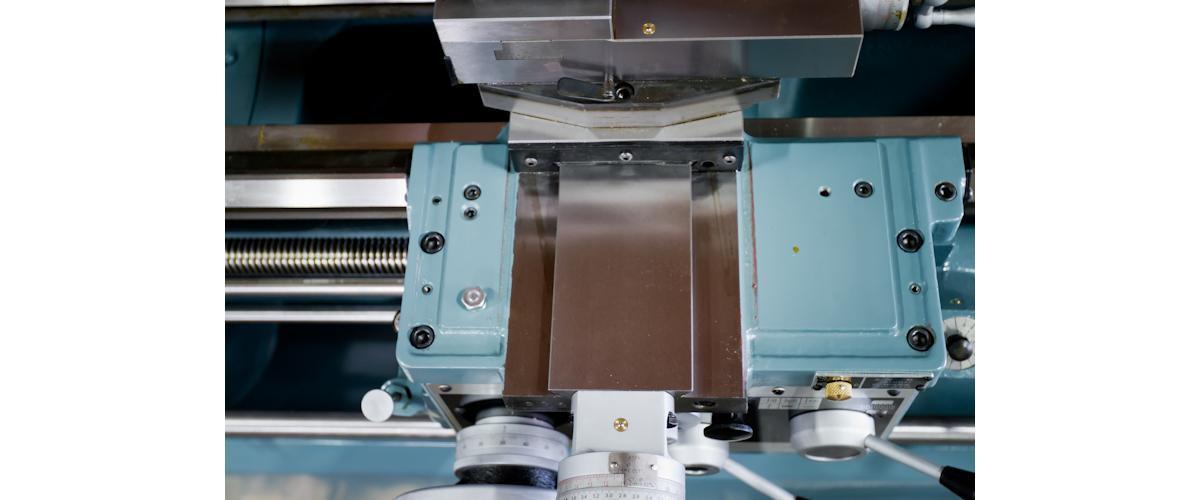

• Hardened & Ground Bed & Cross Slide Ways
• Thread Chasing Dial
• Automatic Longitudinal Feed Stop Bar
• 4-Way Tool Post Fitted To T-Slotted Compound
• LED Work Light
• 10” Steady Rest with Roller Jaws
• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)
• Chuck Guard
• Headstock Spindle Center Adaptor: MT#7 to #5
• Ground Steel Center MT#5 For Headstock
• 12" Back Plate

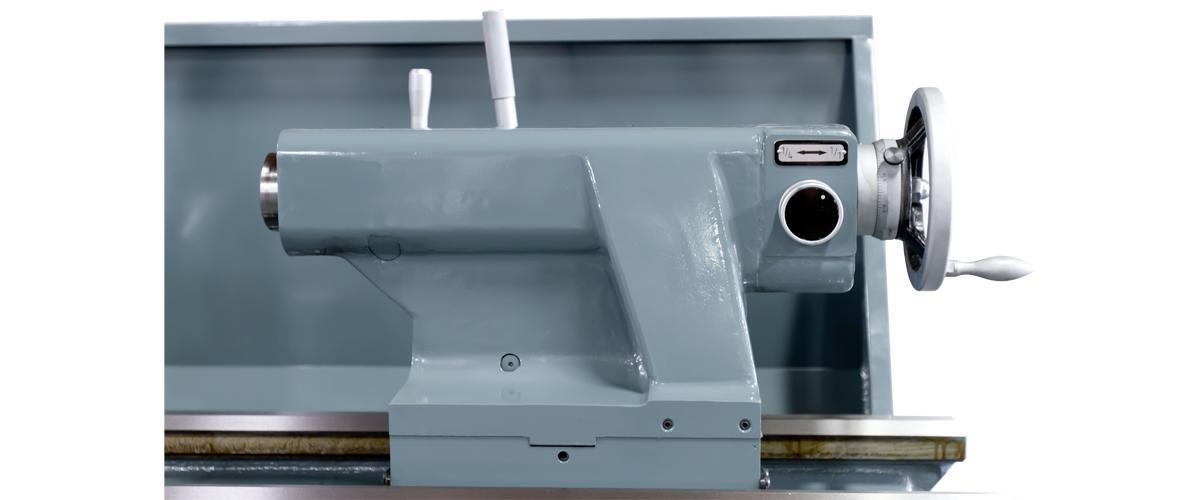

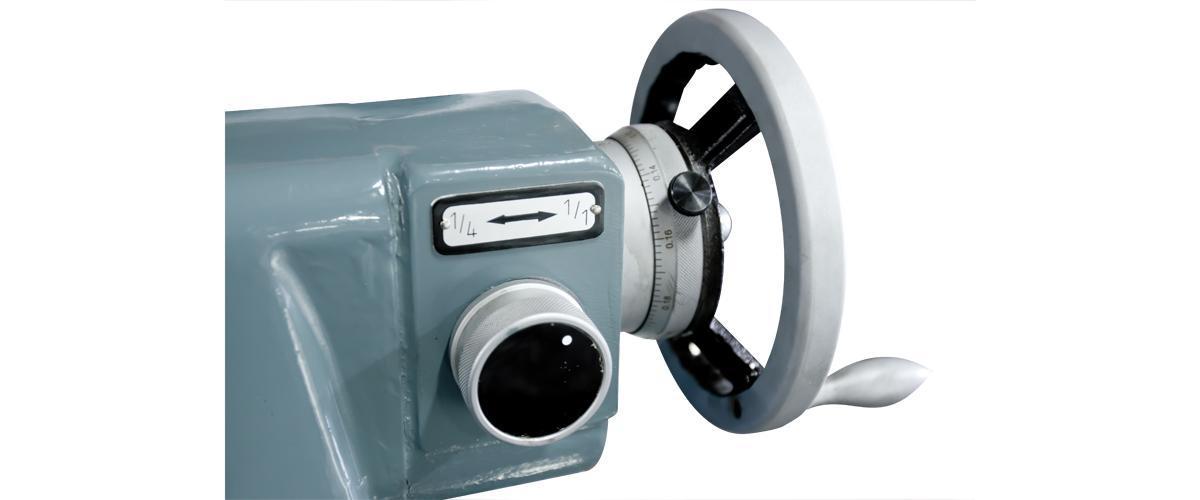

• Two-Speed Drive Tailstock Spindle (MT#5)
• Coolant System with Pump and Piping
• Full Length Splash Guard
• Pull Drawer Chip (Oil) Pan
• Tool Box w/ Necessary Wrenches & Spanners
• Instruction Manual & Parts List
• Emergency Stop Button
NOTES:SPECIFICATIONS SUBJECT TO VERIFICATION.
OPTIONAL FEATURES:
• Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500
• 15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
• 7" Follow Rest $1,500
• Telescopic Taper Turning Attachment $5,900
• Z-axis Rapid Traverse on 35” or 60” Bed $3,500
• Micro Carriage Stop $ 450
• Turret Carriage Stop $ 450
• Tailstock Complete Crank Assembly $ 400
• Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
• Aloris CA Tool Post Only $ 975
• Aloris CA Tool Post plus 6 Tool Holders (set #4) $1,950
• Aloris DA Tool Post Only $1,350
• Aloris DA Tool Post plus 6 Tool Holders (set #5) $2,595
• Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $5,800 + $650
120” C.C. $6,000 + $750
160” C.C. $7,200 + $850
• Chucks Upon Request
SAFETY ACCESSORIES:
• Add Limit Switch to Chuck Guard $ 150
• Clear Lexan Chuck Guard [Installed] $ 495
• Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
• Travelguard Tool Post Guard [Kingston Installation] $ 540
• Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
• NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
• NRTL / UL Certification Upon Request
DELIVERY:SUBJECT TO PRIOR SALE
Get Your Price from Smith Machinery Co!
