Description

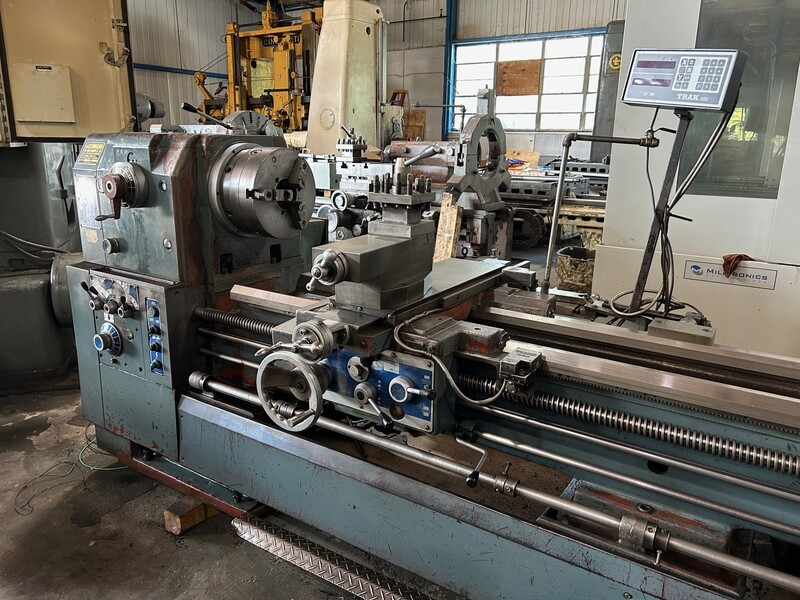

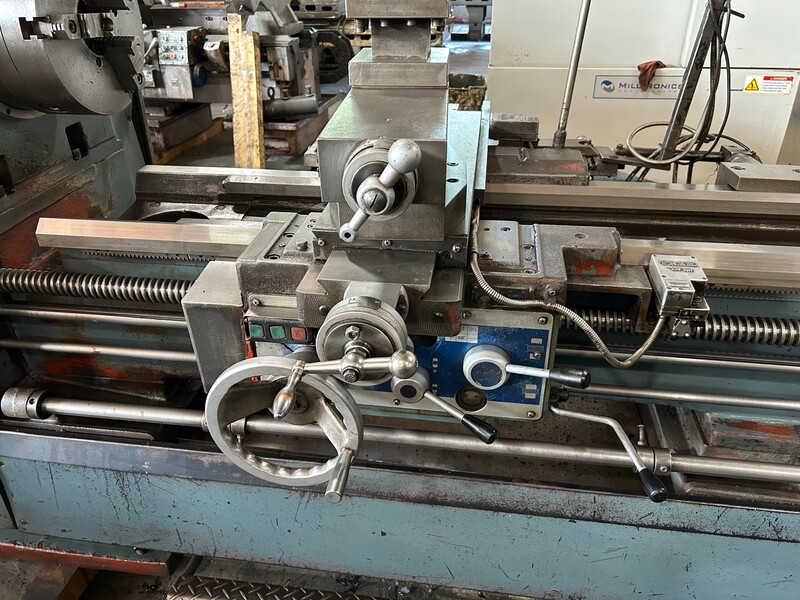

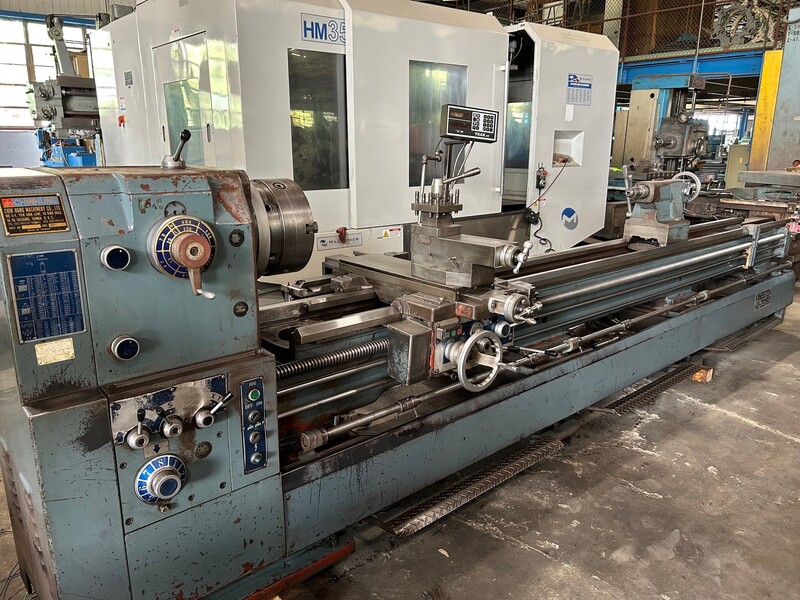

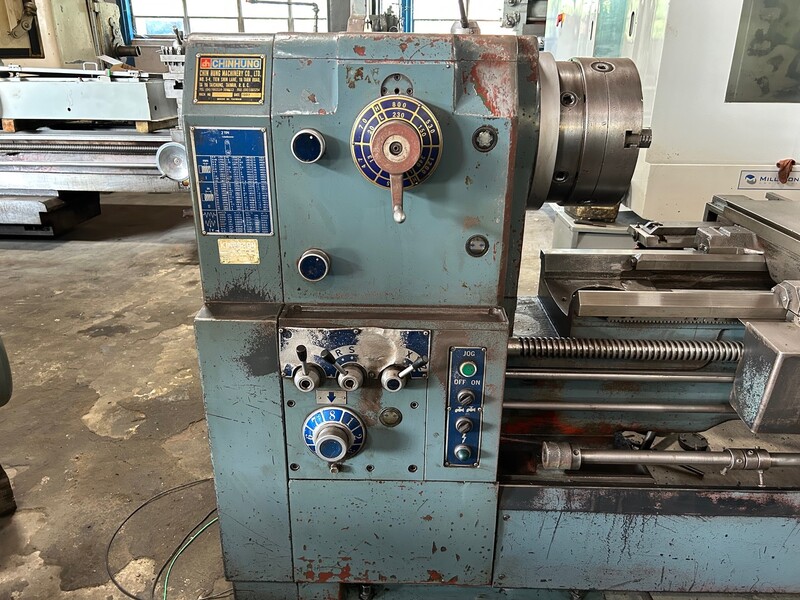

26"/35" X 160" KINGSTON GAP BED ENGINE LATHE
MODEL: HD26160,… S/N: CH97626,… YEAR: 1997
SPECIFICATIONS:
SWING OVER BED........................ 26"
SWING OVER CROSS SLIDE................ 17-1/2"
SWING IN REMOVABLE GAP................″5-1/8"
SPINDLE NOSE CAMLOCK.................. D1-11"
HOLE THROUGH SPINDLE.................. 4-1/16"
DISTANCE BETWEEN CENTERS.............. 160"
SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR
CROSS FEEDS HALF OF LONGITUDINAL SETTING
ENGLISH THREADING RANGE .............. 1 - 42 TPI
METRIC THREADING RANGE ............... .2 - 14 M

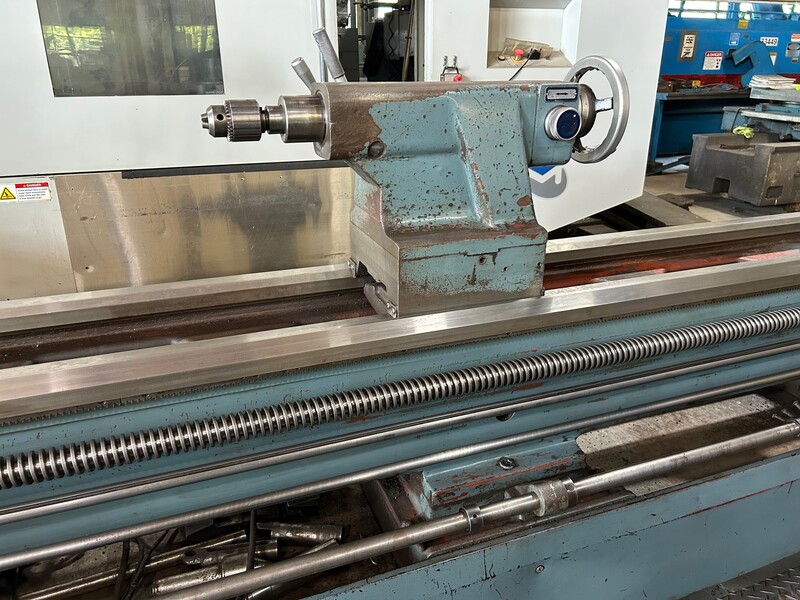

TAILSTOCK SPINDLE DIAMETER............ 2-15/16"
TAILSTOCK SPINDLE TRAVEL.............. 7"
TAILSTOCK SPINDLE TAPER............... #5MT
APPROXIMATE FLOOR SPACE............... 55"W x 217"L
APPROXIMATE WEIGHT.................... 8,500 LBS.
EQUIPPED WITH:
- TRAK TWO AXIS DIGITAL READOUT
- TAPER TURNING ATTACHMENT
- 4-JAW CHUCK
-″-JAW CHUCK
- 16" CAPACITY ROLLER TYPE STEADY REST
- 10" CAPACITY ROLLER TYPE STEADY REST
- FOURWAY TOOLPOST
-″/4" CAPACITY DRILL CHUCK
- THREAD DIAL INDICATOR
- TWO SPEED TAILSTOCK
- COOLANT SYSTEM WITH REMOVEABLE CHIP PANS
- FOOT BRAKE
- RAPID TRAVERSE

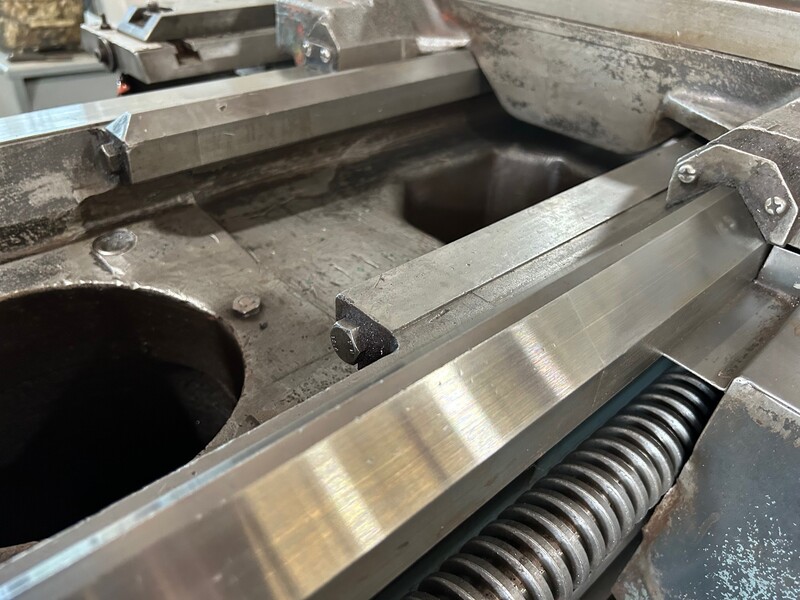

- HARDENED… GROUND BEDWAYS
- 10 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
