Description

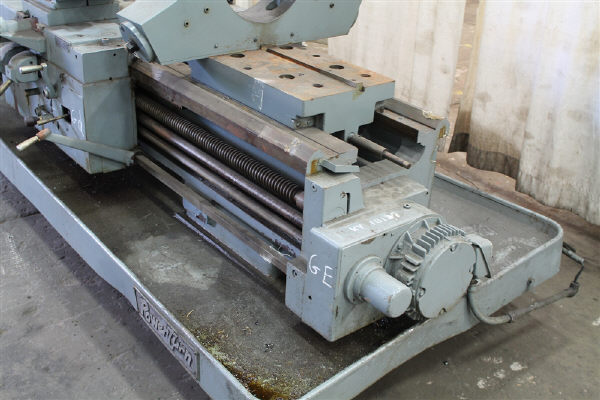

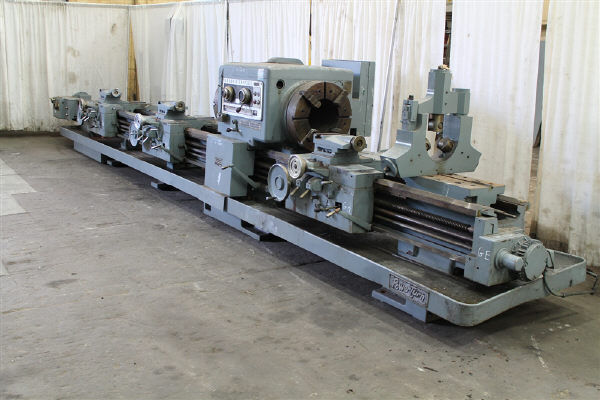

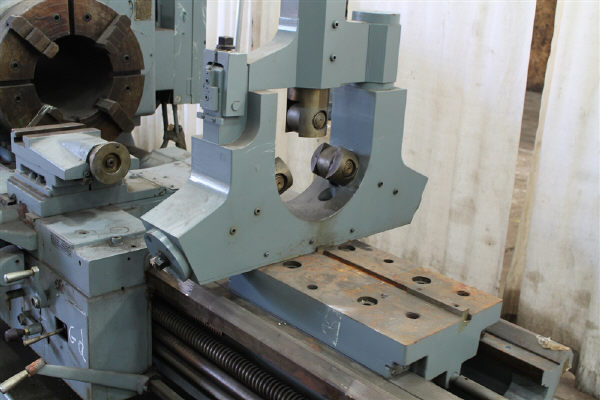

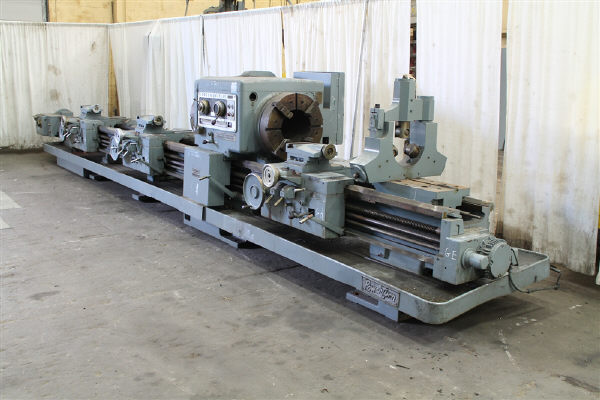

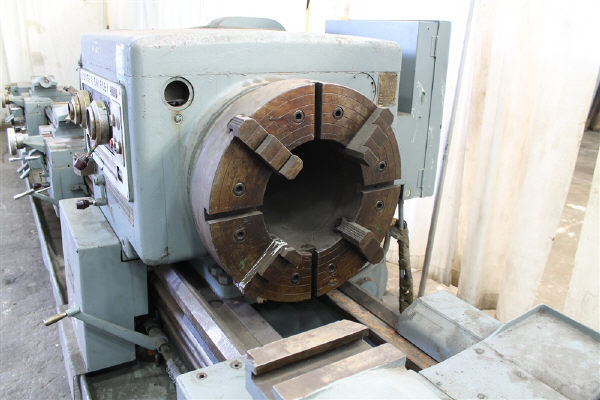

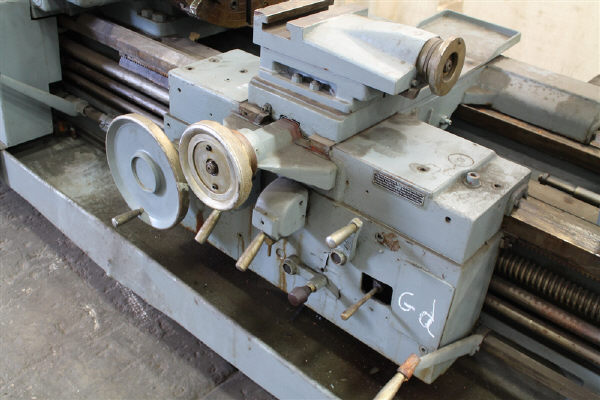

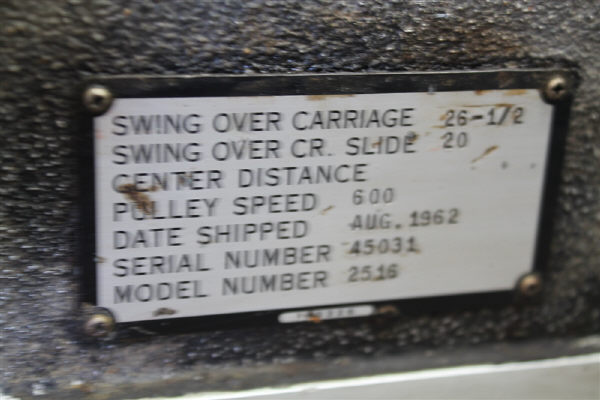

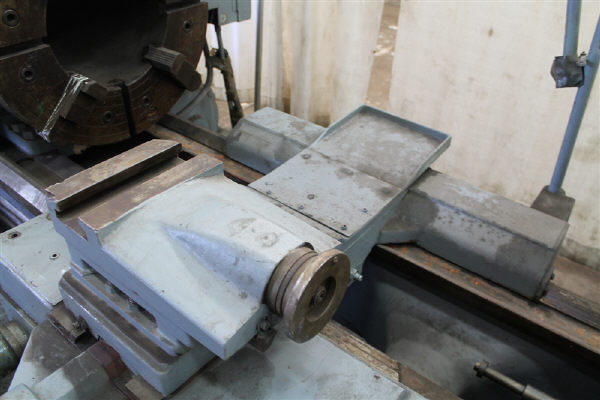

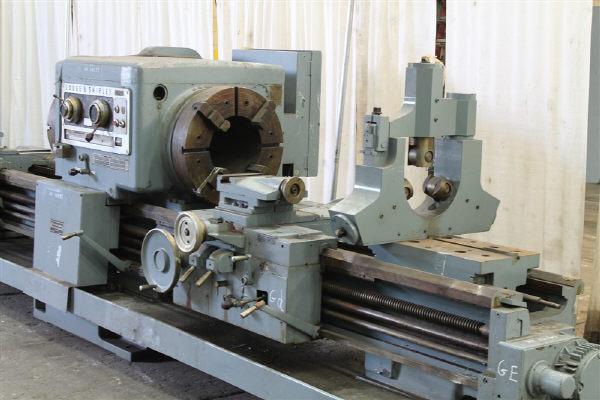

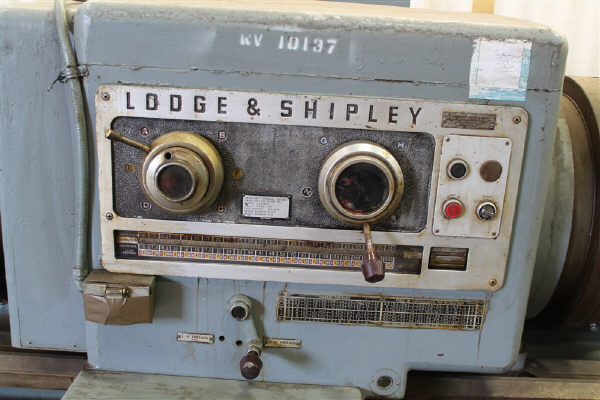

25" X 240/96" (20'/8') LODGE & SHIPLEY "RXE2516" DUAL-SIDE HOLLOW-SPINDLE ENGINE/BORING LATHE NEW 1962, SERIAL NO 45031, MODEL RXE2516, 25" X 240/96" (20'/8') LODGE & SHIPLEY "RXE2516" DUAL-SIDE HOLLOW-SPINDLE ENGINE/BORING LATHE NEW 1962, SERIAL NO 45031, MODEL RXE2516, EQUIPPED WITH: LEFT HAND SIDE LATHE BED WITH 20' CENTER DISTANCE RIGHT HAND SIDE LATHE BED WITH 8' CENTER DISTANCE (2) 24" 4-JAW CHUCKS W/12-5/8" BORE (2) CARRIAGES ON LEFT HAND SIDE OF BED (1) REGULAR LATHE CARRIAGE ON RIGHT HAND SIDE OF BED 13-1/4" 3-POINT ROLLER STEADY REST POWER RAPID TRAVERSE - 20" A1 SPINDLE NOSE CATALOGUE SPECIFICATIONS: Hole Thru Spindle 12-5/8" Swing Over Bed Ways, Rated 25" Swing Over Bed Ways, Actual 25.5" Swing Over Cross-Slide 18" Distance Between Centers 240" Distance Between Centers 96" (24) Spindle Speeds, Range 6 to 338 RPM (55) Carriage Longitudinal Feeds .0025 to .160 IPR (55) Thread Changes, Range 1 to 64 TPI Main Motor, Horsepower 25 HP NOTE: THIS MACHINE APPEARS TO BE IN VERY GOOD CONDITION AS TAKEN FROM GOVERNMENT STAND-BY STORAGE. PRICE: F.O.B. OHIO (TOLEDO Hole thru spindle: 12-5/8" Swing over bed ways, rated: 25" Swing over bed ways, actual: 25.5" Swing over cross-slide: 18" Distance between centers: 96" (24) spindle speeds, range: 6 TO 338 RPM (55) carriage longitudinal feeds: .0025 TO .160 IPR (55) thread changes, range: 1 TO 64 TPI Main motor, horsepower: 25 HP
THE LODGE & SHIPLEY "POWERTURN" GAP-TYPE ENGINE LATHE, MODEL RXE 2516, IS POWERED BY A 30 HP MAIN MOTOR AND S A 2.5-INCH HOLE THROUGH THE SPINDLE. THE LATHE HAS AN ACTUAL SWING OVER THE BED WAYS AND CARRIAGE WINGS OF 26.5 INCHES, A RATED SWING OF 25 INCHES, AND A SWING OVER THE CROSS-SLIDE OF 20 INCHES. ...more
Lodge & Shipley Rxe2516 used lathe. s include a 26.5" swing, 96" centers, 2.5" spindle bore, and 30 hp. a 20" 4-jaw chuck, steady rest, and full coolant system., Hole Thru Spindle 2.5", Swing Over Bed Ways, Rated 25", Swing Over Bed Ways, Actual 26.5", Swing Over Carriage Wings 26.5", Swing Thru Gap 40", Length Of ...more
, Explore precision with this used 26" x 96" Lodge & Shipley RXE 2516 Poweturn Gap-Type Engine Lathe. Featuring a 20" 4-jaw chuck, taper attachment, and coolant system. Perfect for demanding machining tasks. Located at our Cincinnati warehouse., Spec Sheet:, 25"/26.5" x 96" LODGE & SHIPLEY "POWERTURN" GAP-TYPE ...more
