5 Results

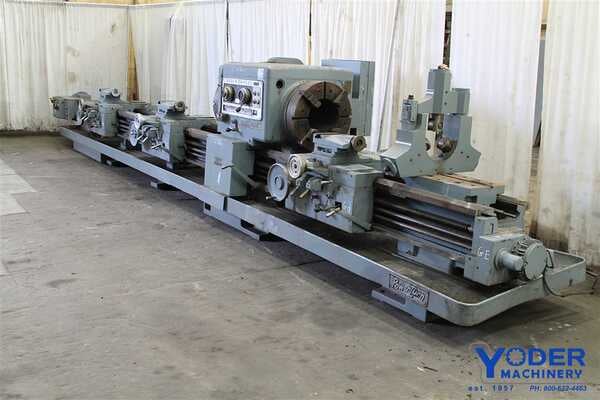

28" x 96"/240" Lodge & Shipley #2516, hollow spindle engine lathe, dual 4-jaw 24" chucks, #61474
Yoder Machinery Sales | Holland, OH
Category: Oil Field and Hollow Spindle Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lodge & Shipley
Model: 2516
Year: 1971
SERIAL. 45031, MODEL. 2516 HOLLOW SPINDLE, SPINDLE HOLE. 12-5/8", DUAL CHUCKS. 24" 4 JAW, RIGHT SIDE BED. 96", LEFT SIDE BED. 240", RIGHT SIDE CARRIAGE. 1, LEFT SIDE CARRIAGES. 2, SPINDLE SPEEDS. (60) 6 TO 338 RPM, THREADING. (60) 1 TO 64 TPI, LEFT SIDE THREADING BOX. YES, FEEDS. (60) 2.5 TO 160 THOU PER REV, STEADY ...more
28" x 120" Lodge & Shipley #2516, hollow spindle oil country engine lathe, 21" chuck, 4-jaw, 8-7/8" hole, 14" 3-pt. Steady Rest, 20 HP, #15564
Yoder Brothers Machinery | Holland, OH
Category: Oil Field and Hollow Spindle Lathes
Seller: Yoder Brothers Machinery
Location: Holland, OH
Mfr: Lodge & Shipley
Model: 2516
SERIAL. 49817 MODEL. 2516 SWING OVER THE BED. 27-7/8" SWING OVER THE CROSS SLIDE. 20" DISTANCE BETWEEN CENTERS. 120" SPINDLE SPEEDS. 8 - 451 RPM HOLLOW SPINDLE HOLE. *** 8-7/8" *** NUMBER OF ENGLISH THREADS. (55) 1 TO 64 TPI RANGE OF FEEDS. 2.5 TO.160 IPR TAPER ATTACHMENT. YES THREAD DIAL. YES CHUCKS FRONT & REAR. ...more
32.5" x 264"/10' Lodge & Shipley #3220 Superturn width, hollow spindle dual bed lathe, #61320
Yoder Machinery Sales | Holland, OH
Category: Oil Field and Hollow Spindle Lathes
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lodge & Shipley
Model: 32 X 120/288 HOLLOW MDL 3220 SUPERTURN W
SERIAL. 48128, MODEL. 3220 SUPERTURN W, YEAR. 1970, HOLE THRU SPINDLE. 12.5", SWING OVER BED WAYS, RATED. 32", SWING OVER BED WAYS, ACTUAL. 32.5", SWING OVER CROSS SLIDE. 23", DISTANCE BETWEEN CENTERS. 252" RIGHT SIDE / 120" LEFT SIDE, CARRIAGES, RIGHT SIDE. 2 - STANDARD CARRIAGE & BORING CARRIAGE, CARRIAGE, LEFT ...more
36" x 144" Lodge & Shipley #ST3220X144, hollow spindle engine lathe, 23" swing over cross slide, 1983
Timco Inc | Columbia, TN
Category: Oil Field and Hollow Spindle Lathes
Seller: Timco Inc
Location: Columbia, TN
Mfr: Lodge & Shipley
Model: ST3220X144
Year: 1983
LODGE & SHIPLEY 36" X 144" CC HOLLOW SPINDLE ENGINE LATHE, STOCK# 14100T, MODEL ST3220X144, S/N 51095, NEW 1983, 40" SWING OVER BEDWAYS, 23" SWING OVER CROSS SLIDE, SWING OVER CARRIAGE 32 1/2", HARDWAYS, TAPER TURNING ATTACHMENT, 7" SPINDLE THRU HOLE, INCH THREADING, POWER RAPID TRAVERSE, 24" DIS 4 JAW CHUCK, 24" ...more
37" x 240" Lodge & Shipley, hollow spindle lathe, 12.5" spindle bore, 25" swing over cross slide, 1943
Harris Machine Tools, Inc. | Houston, TX
Category: Oil Field and Hollow Spindle Lathes
Seller: Harris Machine Tools, Inc.
Location: Houston, TX
Mfr: Lodge & Shipley
Year: 1943
Swing Over Bed: 37", Swing Over Cross Slide: 25", Distance Between Centers: 240", Bed Width: 25.25", Spindle Speeds: 4 - 154 RPM, Spindle Motor: 20 HP, Spindle Bore: 12.5", Spindle Mount: Cylindrical, Inch Threads: 2 - 128 TPI, Tailstock Taper: MT #6, Electrics: 460V/3Ph, Taper Attachment, NOTE: ALL SUBJECT TO ...more
