Manufacturer: Lodge & Shipley
Model: 2XE3220WHD
Swing: 32.50
Centers: 120
Stock # 30828
Price: $74,500 USD
1 / 9
Click to zoom in
1 / 9
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$74,500 USD
Finance for as low as $1,511/mth
Description

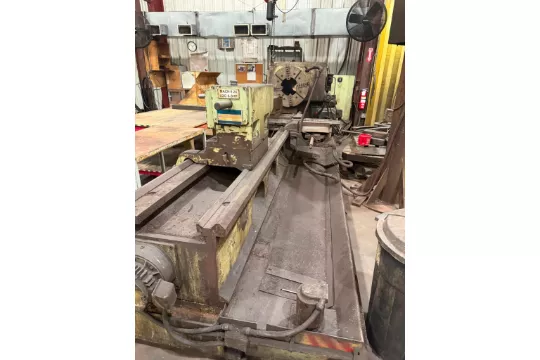

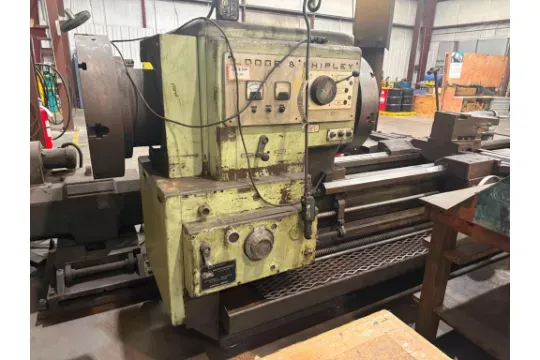

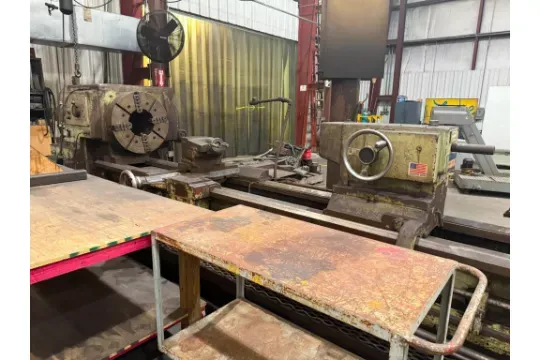

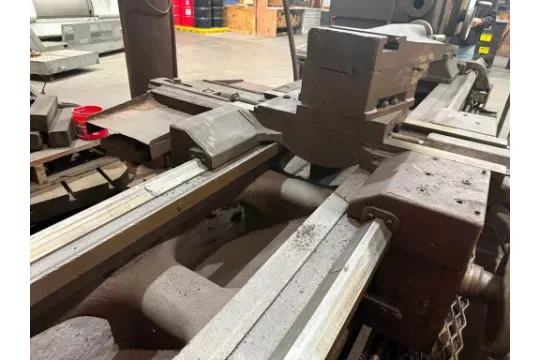

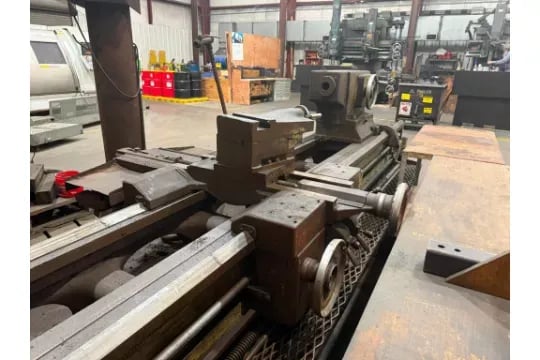

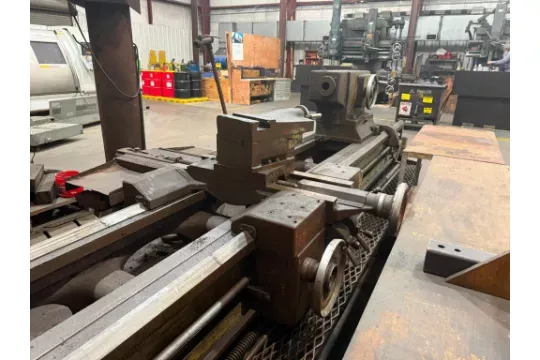

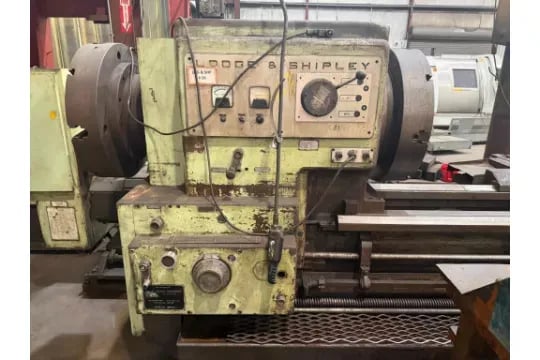

32.5" X 120" LODGE & SHIPLEY 2XE3220WHD SUPERTURN HOLLOW-SPINDLE EXTRA HEAVY-DUTY OIL-COUNTRY ENGINE LATHE - 12-1/2 Hole, Taper Attachment, Dual Front & Rear 4-Jaw Chucks, Heavy-Duty Tailstock
32"/32.5" x 120' LODGE & SHIPLEY "SUPERTURN 3220" HOLLOW-SPINDLE
EXTRA HEAVY OIL-OUNTRY ENGINE LATHE w/DUAL-CHUCKS & TAPER ATTACHMENT

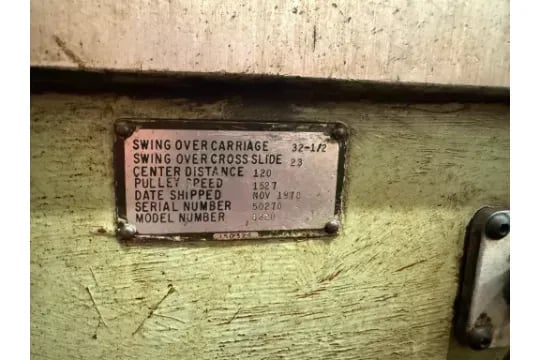

Serial No 50270, Model 2XE3220WHD,
Series "SUPERTURN"
EQUIPPED WITH:
12-1/2" Hole Thru Spindle - Taper Attachment

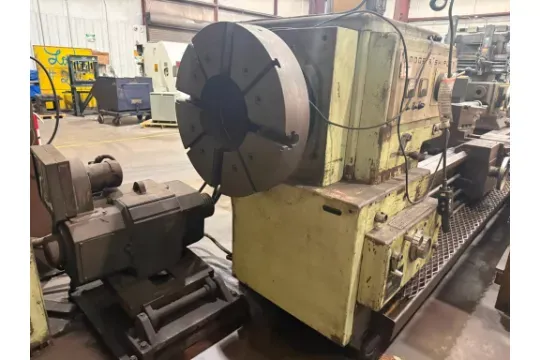

28" Cushman Dual Front & Rear 4-Jaw Chucks
Two-Speed Dead Center Tailstock w/Drilling Attachment
50 HP Reeves Vari-Speed Drive
4-Way Power Rapid Traverse
Chip Pan With Built-In Coolant Pump
CATALOG SPECIFICATIONS:
Hole Thru Spindle 7"
Swing Over Bed Ways, Rated 32"
Swing Over Bed Ways, Actual 32.5"
Swing Over Cross-Slide 23"
Distance Between Centers 120"
Cross-Slide Cross-Feed Travel 20.625"
Top-Slide Cross-Feed Travel 7.25"
Tailstock, Spindle Diameter 6"
Tailstock, Spindle Travel 11"
Tailstock, Spindle Taper 6 MT
Spindle Speeds, Range 6 to 650 RPM

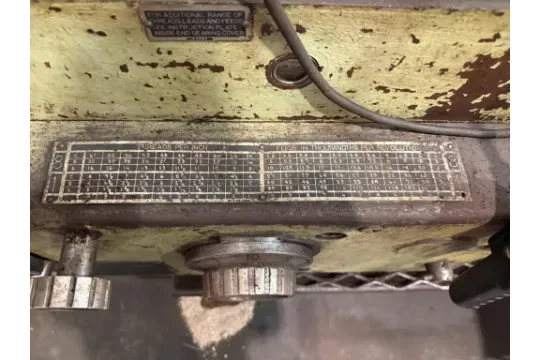

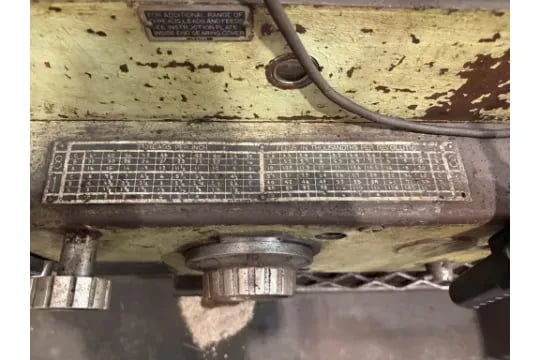

(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower 50 HP
Overall Dimensions, L x D 252" x 135"
Overall Height 67"
Weight, Approximately 24,500 LBS
F.O.B. OUR WAREHOUSE
32"/32.5" x 120' LODGE & SHIPLEY "SUPERTURN 3220" HOLLOW-SPINDLE
EXTRA HEAVY OIL-OUNTRY ENGINE LATHE w/DUAL-CHUCKS & TAPER ATTACHMENT
Serial No 50270, Model 2XE3220WHD,
Series "SUPERTURN"
EQUIPPED WITH:
12-1/2" Hole Thru Spindle - Taper Attachment
28" Cushman Dual Front & Rear 4-Jaw Chucks
Two-Speed Dead Center Tailstock w/Drilling Attachment
50 HP Reeves Vari-Speed Drive
4-Way Power Rapid Traverse
Chip Pan With Built-In Coolant Pump
CATALOG SPECIFICATIONS:
Hole Thru Spindle 7"
Swing Over Bed Ways, Rated 32"
Swing Over Bed Ways, Actual 32.5"
Swing Over Cross-Slide 23"
Distance Between Centers 120"
Cross-Slide Cross-Feed Travel 20.625"
Top-Slide Cross-Feed Travel 7.25"
Tailstock, Spindle Diameter 6"
Tailstock, Spindle Travel 11"
Tailstock, Spindle Taper 6 MT
Spindle Speeds, Range 6 to 650 RPM
(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower 50 HP
Overall Dimensions, L x D 252" x 135"
Overall Height 67"
Weight, Approximately 24,500 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
