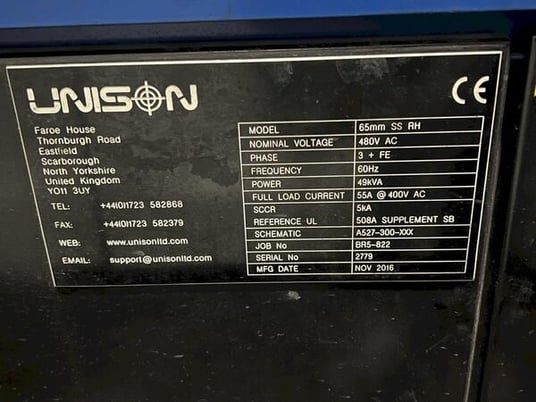

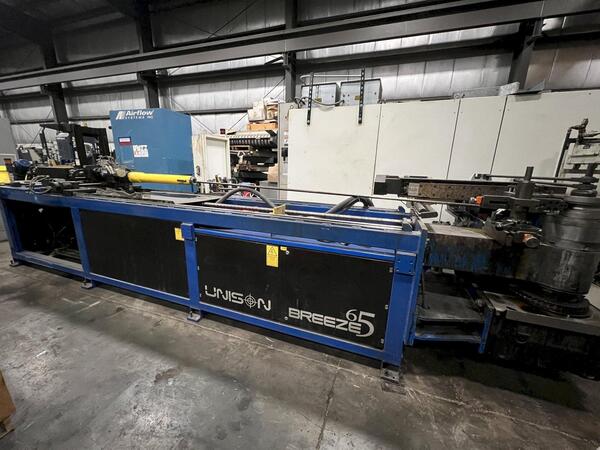

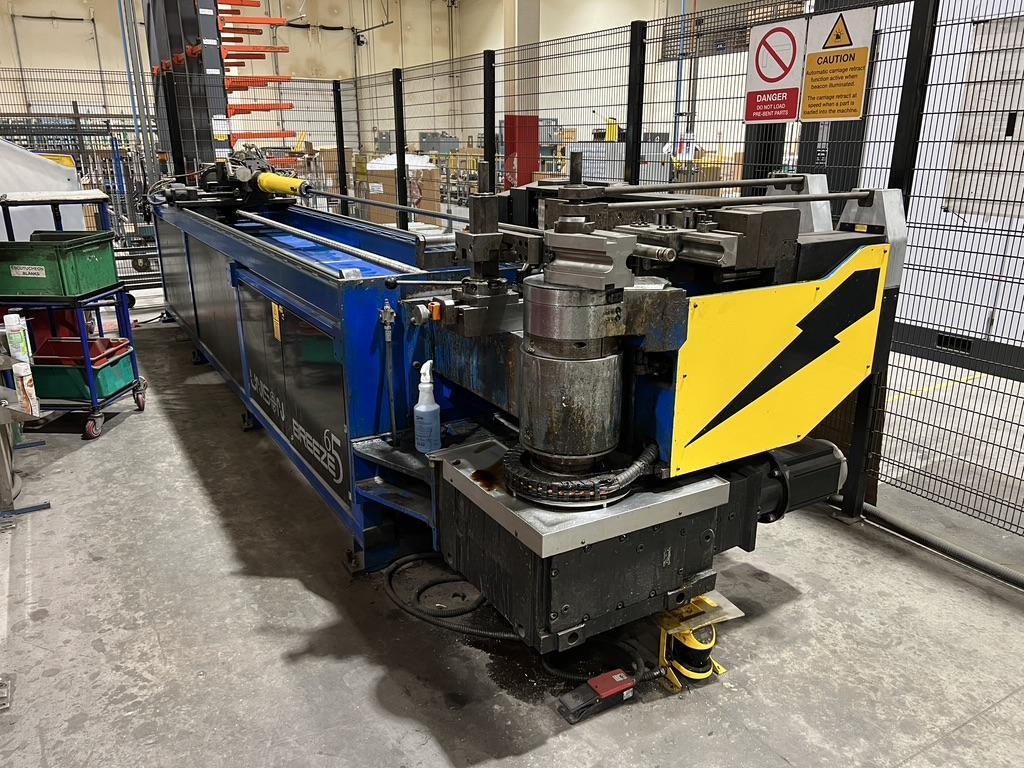

2.5" Unison Breeze #65SS-RH, all-electric tube bender, 2016

GENERAL SPECIFICATIONS:
MANUFACTURER................... UNISON
MODEL.......................... BREEZE 65 ALL ELECTRIC
AGE............................ 2016
CAPACITY....................... 2.5" (65mm) X 1.5 mm
BEND DIRECTION................. RIGHT OR LEFT
BEND TORQUE.................... 8000 Nm
SERVO CONTROLLED FOLLOWER...... 180 DEG. AT 3D CLR
COLLET CAPACITY................ 2.5" (65mm)
AXIS SPEED (MAX) FEED.......... 1,200 mm/sec
BEND........................... 180 DEG/SEC
MAX STACKS AT MAX OD........... 4
MAX BEND ANGLE................. 190 DEGREES
LOAD HEIGHT.................... 45.6"
MAX. TUBE LENGTH............... 126" (3200mm)
MULTI RADIUS................... STANDARD
REPEATABILITY/ACCURACY
FEED........................ 0.05/0.1mm
BEND........................ 0.05/0.1mm
ROTATION.................... 0.05/0.1 DEGREE
DIMENSIONS..................... 7' X 21'

EQUIPPED WITH:
MISC. MANUALS
LARGE QUANTITY OF MISC. TOOLING AND SPARE PARTS
VERY LITTLE USE
FEATURES:
AUTOMATIC TOOLING SETUP:ALL MOVING PARTS ON THE MACHINE ARE ELECTRICALLY DRIVEN AND SERVO CONTROLLED. ONCE A PART HAS BEEN PRODUCED SUCCESSFULLY ALL PRODUCTION SETUP DATA CAN BE STORED AND RECALLED WITH NO MECHANICAL ADJUSTMENT REQUIRED.
SPEED & ACCURACY:ALL ELECTRIC TECHNOLOGY GIVES FAR BETTER REPEATABILITY THAN A HYDRAULIC MACHINE. SPEED CAN BE ADJUSTED EASILY AND IS AS FAST AS A HYDRAULIC MACHINE.
BLACK BOX TECHNOLOGY:THE MACHINE RECORDS ALL OPERATOR INTERACTION AND MACHINE FUNCTIONALITY WHICH HELPS TO IDENTIFY MACHINE FAULTS, PROGRAMMING AND TRAINING ISSUES.
NO EXPENSIVE CONTROL SYSTEM:PC BASED WITH OFF THE SHELF PARTS ENSURES NO EXPENSIVE CONTROL SYSTEM FAILURES. WINDOWS BASED SOFTWARE MAKES NETWORKING AND CAD INTERFACE RELATIVELY EASY.
