Description
Spec
Specifications & Configurations May Vary Depending on EVO Bend 650 Model & Automation Level
Maximum Mild Steel Tube Capacity: 65 x 4 mm
Maximum Bending Radius: 320 mm
Maximum Push Length: 4,200 mm
Useful Length Over Mandrel: 6,000 mm
Maximum Bar Passage Diameter: 55 mm
Dimension Under Bending Head: 420 mm
Bending Head Overhang: 1,000 mm
Head Clearance Radius: 175 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 25 kW
Approximate Machine Weight: 4,200 kg
Left or Right Bending Capability
21.5″ Multitouch B&R Control Console
i5 Processor With 16 GB RAM
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Hydraulic & Pneumatic Axis Integration
Made in Italy
ISO 9001:2008 Certified System
Description

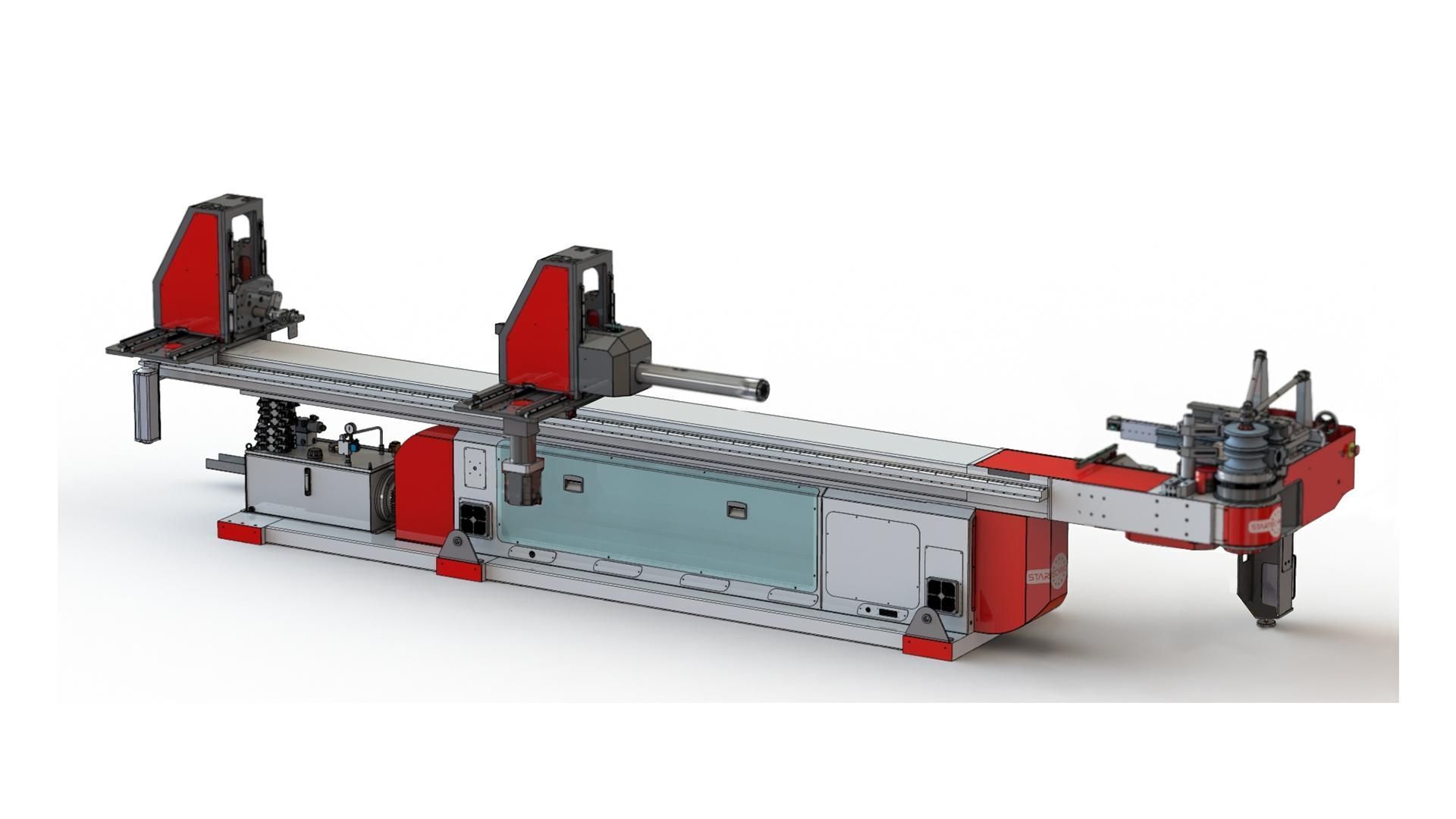

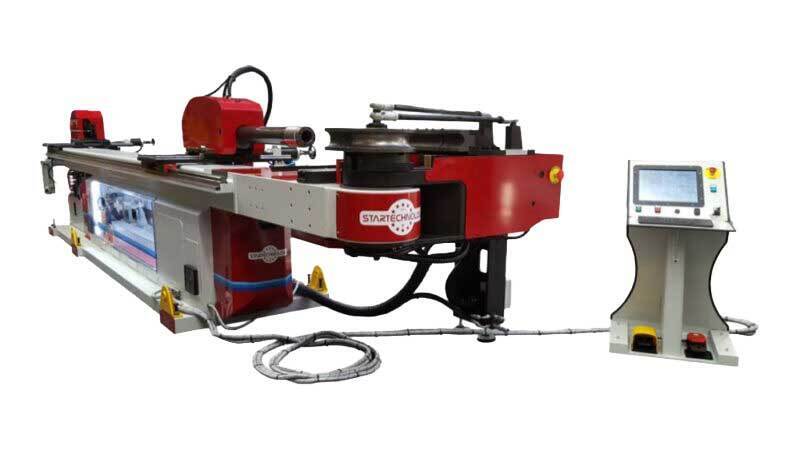

The EVO Bend 650 Series from Star Technology is a high-performance CNC tube and pipe bending solution designed for precision bending, production flexibility, and efficient manufacturing operations. Engineered and manufactured in Italy, the EVO Bend 650 Series offers multiple automation levels and configurable machine layouts to support demanding tube fabrication applications across a wide range of industries.
