For Sale by Smith Machinery Co

Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Pipe (Max.) | 2 Sch. 40 |
| Angle (Max.) | 2 x 2 x |
| Tube (Max.) | 3 .095 wall |
| Roll Shaft Diameter | 50 millimeters |
| Center Roll Positioning | Hydraulic 10 Tons |
| Shaft Speed | 9 RPM |
| Universal Tooling (Included) (O.D.) | 7 inches |
| Programming | NC - Touchpad |
| Number of Programs | 8 |
| Distance between Shafts | 11.875 inches |
| Operating Voltage | 220V or 480V 3ph |
| Dimensions (L x W x H) | 45 x 29 x 52 |
Equipped With
Equipped With
FEATURES:

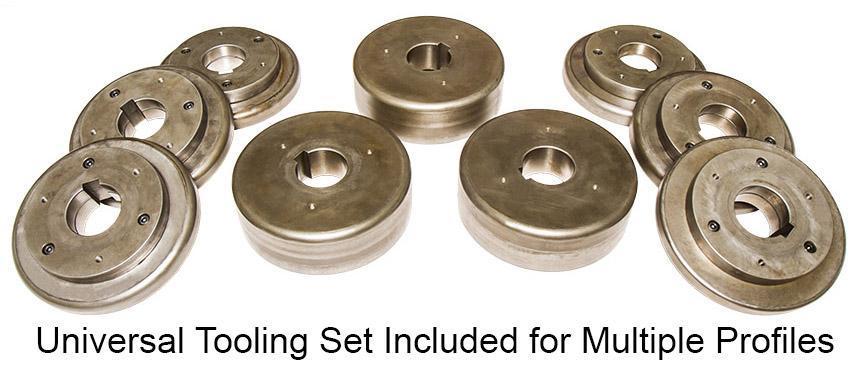

Universal tooling set included with each machine
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Roll shafts supported with conical steel bearings on each side of A Frame
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models

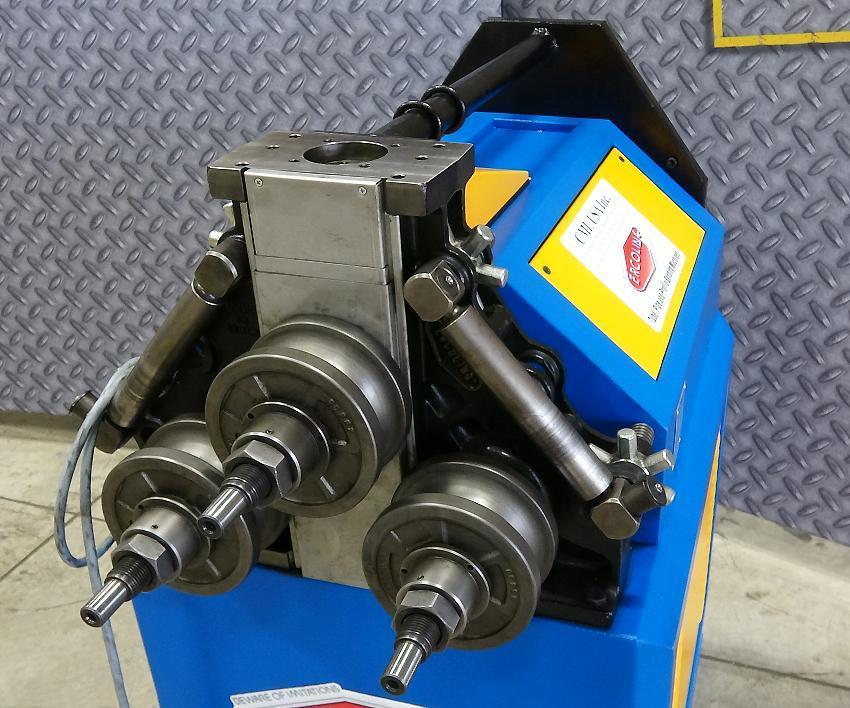

In-line direct drive roll shaft system 3-roll driven
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Touchpad controls with digital center roll positioning

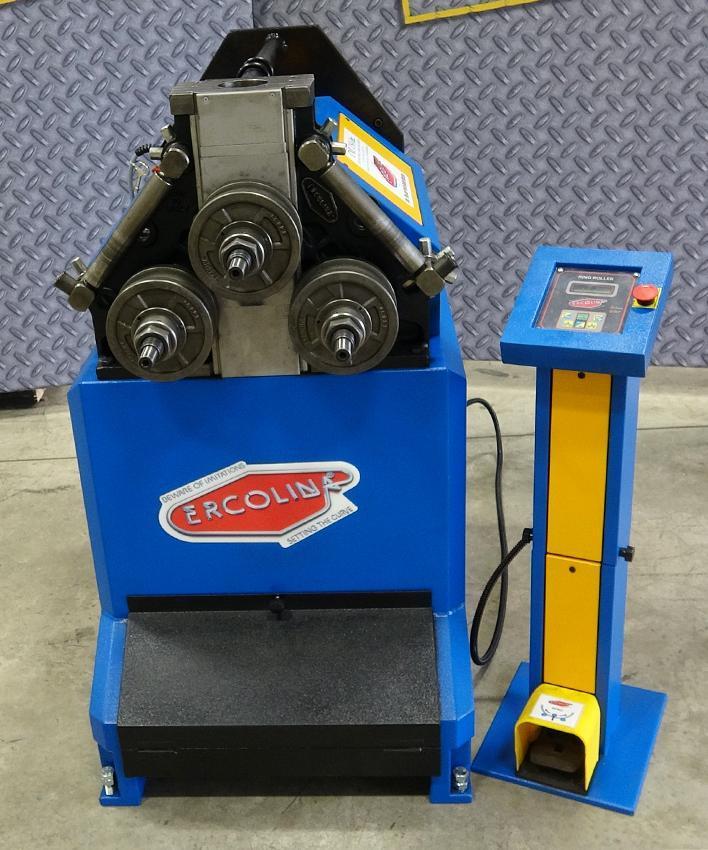

Control tower with low voltage controls and foot pedal
Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
Optional anti-twist correction system required for angle iron “Leg In” applications
EQUIPPED WITH:
50mm roll shaft diameter
Maximum pipe capacity 2-1/2″ Sch. 40
Maximum angle capacity 2-1/2″ x 2-1/2″ x 1/4″
Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine – 7″ OD
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
Programmable touchpad controls with digital center roll positioning display
Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal switch
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
OPTIONAL FEATURES:
Ercolina Grease - 1 Can: $38.00
DELIVERY:
SUBJECT TO STOCK
Universal tooling set included with each machine
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Roll shafts supported with conical steel bearings on each side of A Frame
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
In-line direct drive roll shaft system 3-roll driven
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Touchpad controls with digital center roll positioning
Control tower with low voltage controls and foot pedal
Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
Optional anti-twist correction system required for angle iron “Leg In” applications
EQUIPPED WITH:
50mm roll shaft diameter
Maximum pipe capacity 2-1/2″ Sch. 40
Maximum angle capacity 2-1/2″ x 2-1/2″ x 1/4″
Bending speeds 20% faster than competitive machines
Universal tooling set included with each machine – 7″ OD
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
Programmable touchpad controls with digital center roll positioning display
Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal switch
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
OPTIONAL FEATURES:
Ercolina Grease - 1 Can: $38.00
DELIVERY:
SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
