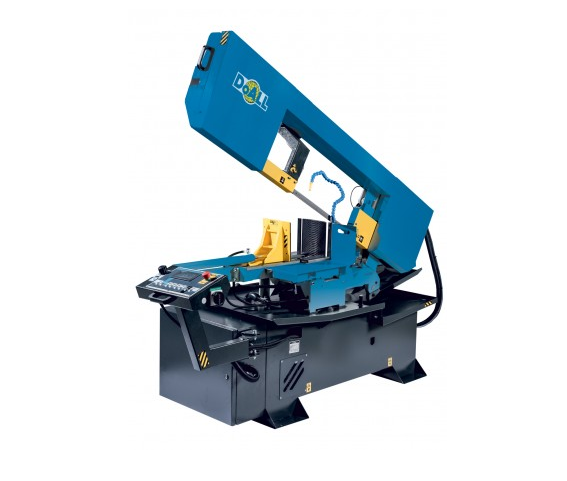

14" x 20" Doall #DS-500SA, dual miter semi automatic bandsaw, digital read out, 188" L x1-1/4" x.042" blade

14” x 20" Band Saw with Mitsubishi Saw Control Variable Frequency Drive Pulley-Driven Band Brush Overfeed Protection Digital Read Out of Cutting Angle Hydraulic Band Tension Work Light Mist-Style Band Lubrication Variable Vise Pressure Control Flood Coolant Tool Kit Complimentary DoALL Cutting Fluids Package One (1) Complimentary DoALL Bi-Metal Saw Blade Operations and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity Round Tube: 14"
• Cutting Capacity Rectangle: 14.17x19.69"
• Cutting Capacity Round Solid: 9-7/8"
• Nesting Capacity Min and Max: 0.20" to 19.7" x 8.7"
• Miter Cutting: 60° Left and 60° Right
• Capacity Round at 45°: 14.2"
• Capacity Rectangle at 45°: 15.75" x 7.5"
• Capacity Round at 60°: 12.2"
• Capacity Rectangle at 60°: 10.6" x 12.6"
• Band Saw Blade Width: 1-1/4" x 0.042"
• Maximum Blade Length: 188"
• Band Speed: 65-328 fpm
• Band Drive Motor: 4 hp
• Hydraulic Pump: 0.07 hp
• Coolant Pump: 0.6 hp
• Coolant Pump Capacity: 5-1/4 gal
• Material Pass Line Height: 32”
• Machine Weight: 1576 lbs
• Dimensions W x L x H: 114” x 43” x 56"

INCLUDES: Variable Frequency Drive, Pulley-Driven Band Brush, Overfeed Protection, Digital Read Out of Cutting Angle, Hydraulic Band Tension, Work Light, Mist-Style Band Lubrication, Variable Vise Pressure Control, Flood Coolant, Tool Kit, Complimentary DoALL Cutting Fluids Package, One (1) Complimentary DoALL Bi-Metal Saw Blade, Operations and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
