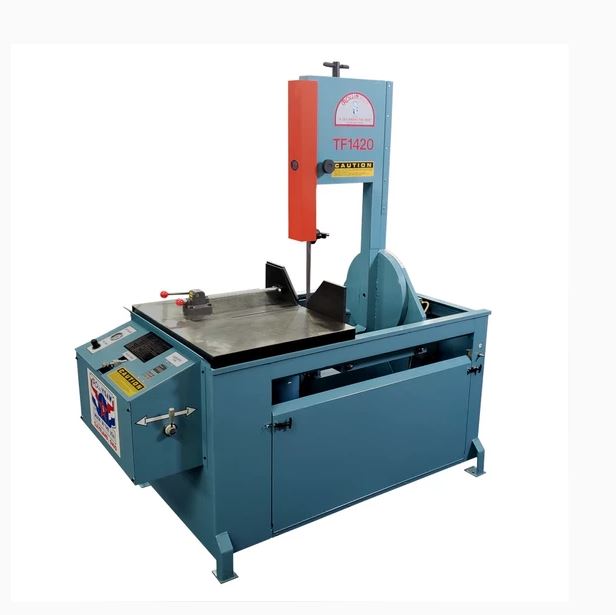

Roll-in Saw 14″ x 20″ Vertical Tilting Band Saw, TF1420
Inventory # 8874
Model: TF1420
Description:
The TF1420 is actually a horizontal band saw on a vertical frame. This all-purpose saw handles all metals, plastics, and woods in a wide variety of cuts. Quickly tilt the frame to make 45° miter or beveled cuts; use control panel to quickly adjust feed rate, pressure, and blade speed; then pull the lever to start the air over hydraulic feed and allow your saw to cut your material for you
The TF1420 will provide decades of efficiency, durability, and automation at a price that is less expensive than comparable saws in its class
Specifications:
Feed System: Adjustable Air Over Hydraulic Cylinder for Feed Control from 0 to 175 lbs.
Blade Travel: 14″ into work
Cutting Capacity @ 90°:
Round: 14″
Rectangle: 14″ x 20″
Cutting Capacity @ 45°:
Round: 13″
Rectangle: 13″ x 15″
Miter Cut Angle Range: 0° – 45°
Bevel Cut Angle Range: 0° – 45°
Capacity Under Guides: 20″ Under Guides @ 90°
Throat: Square Blade, 14″ – 45° Blade, 13″
Blade Size: 12′ 11″ x 1″ x .035″
Blade Size: (Accepted Widths) 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, and 1″
Blade Speeds: 70 – 400 SFPM (Digital Speed Control)
Table: Precision Ground Cast Iron Table: 32 1/4″ x 26 1/4″
Table Height: 37″ from Floor (No Casters)
Motor: 2 HP / 220v, 440v / 3ph
Standard Features:
Combining large capacity and versatility, the TF1420 makes quick work of large and small jobs

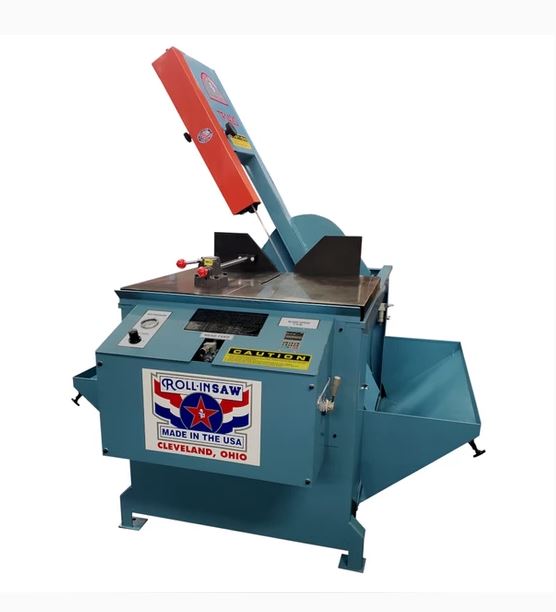

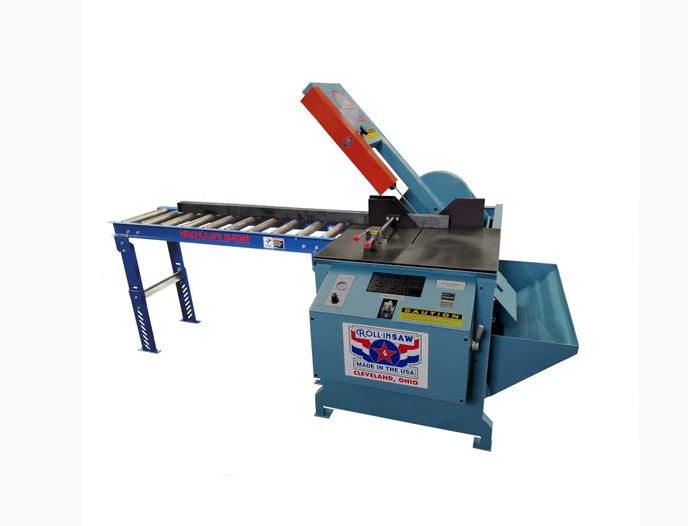

Quickly makes miter or bevel cuts by easily adjusting the frame up to 45°
Offers power, speed control, and feed pressure required to ensure maximum accuracy and efficiency
Extends the life of blades via the blade cleaning brush and blade misting coolant system
Fast and accurate all-purpose saw, with the benefits of both a vertical and horizontal saw
Mechanical Specifications:
Shipping Dimensions: 66″ x 38″ x 86″ H
Shipping Weight: approx. 1,400 lbs.
Contact us for pricing and availability
FOB Factory
