10 Results
Fellows #8M, gear tester, recorder, extra chart paper, pen, (2) bottles ink, adaptors, 1965
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Fellows
Model: -8M
Year: 1965
MODEL 8M FELLOWS REDLINER, Maximum Pitch Diameter: 13-5/8", Diametral Pitch: 120 and Coarser, Maximum Vertical Adjustment of Stylus: 7", Number of Indexes: 6 and Up, Dimensions: 30"W x 60"H, Net Weight: 1,725 lbs, F.O.B. TRUCK, WARREN, MICHIGAN.
Fellows #20M, gear tester, 18" pitch diameter, 28" centers
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Fellows
Model: 20M
MODEL 20M FELLOWS GEAR TESTER, Max. Pitch Diameter: 18", Max. Centers: 28", Net Weight, Approximate: 1,600#, Dimensions (LxWxH): 48" x 18" x 68", Weight: 1675lbs.
Fellows #20M Redliner, recorder, pen, chart paper, 18" pitch diameter, 28" centers, #20135
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Fellows
Model: 20M
, Recorder, Pen, Chart Paper, Head and Tailstock Center, Max. Pitch Diameter: 18", Max. Centers: 28", Net Weight, Approximate: 1,600#, Dimensions (LxWxH): 48" x 18" x 68", Weight: 1675lbs.

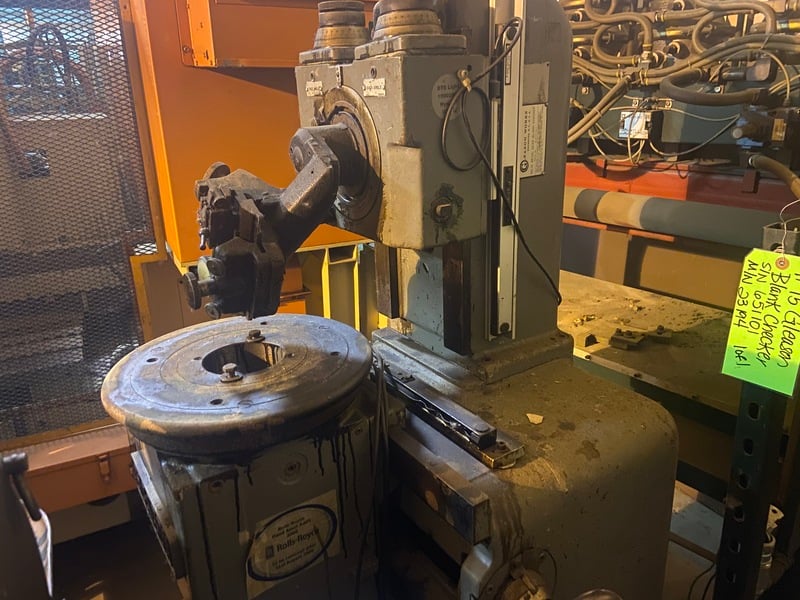

Gleason #15, gear blank checker, 2"-20" workpiece diameter
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Gleason
Model: -15
Used Gleason 15 Gear Blank Checker, ideal for precision work with max diameter of 20". s include adjustable reading accuracy and resolution. Compact 22"x32-11/16" footprint, 68-1/2" height, and weighing 1,900 lbs., Max. Diameter:20", Min. Diameter: 2", Max. Spindle Nose to Crown: 10", Min. Spindle Nose to Crown: 2" ...more

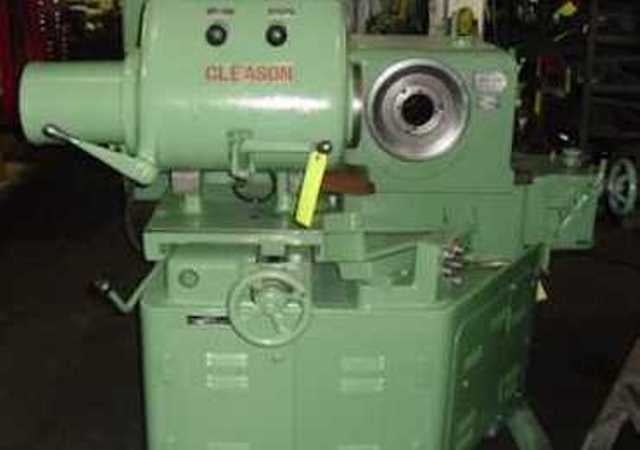

Gleason #17A, gear tester, manual/auto cycle, rapid pinion advance, hydraulic chucking, 1955
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Gleason
Model: -17A
Year: 1955
MODEL 17A GLEASON HYPOID GEAR TESTER, Diameter Of Gear: 20" Max., Speed Of Drive Spdl: 1200 RPM, Motor Required: 5 HP, Offset Of Gear Spdl. Above Or Below Center Of Pinion Spdl.: 3-1/2" Max., Dis. From Center Of Gear Spdl. To Nose Of Pinion Spdl.: 12" Max, 6" min., Dis. From Center Of Pinion Spdl. To Nose Of Gear ...more
Get email updates for newly added Gear Testers
Gear Testers (also known as gear inspection machines) are precision instruments used to evaluate the accuracy, quality, and performance of gears. Commonly used in industries like automotive, aerospace, and machinery manufacturing, these machines measure parameters such as tooth alignment, pitch, and surface finish. Gear testers ensure gears meet strict specifications, enhance reliability, and support high-performance applications by identifying and correcting defects.

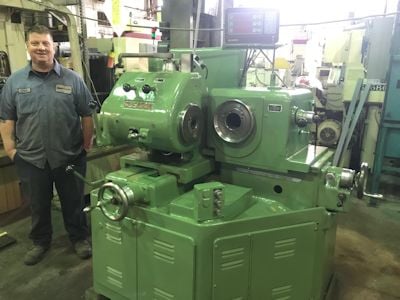

Gleason #17M, gear tester, automatic lube, draw bars, full controls, #24437
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Gleason
Model: -17M
, Max. Diameter of Gear: 20", Speed of Drive Spindle: 1200 rpm, Max. Offset of Gear Spindle Above or Below Center of Pinion Spindle: 3 1/2", Max. Distance from Center of Gear Spindle to Nose of Pinion Spindle: 12", Min. Distance from Center of Gear Spindle to Nose of Pinion Spindle: 4 3/4", Max. Distance from Center ...more
Gleason #61, angular hypoid gear tester, universal type, Conventional Control, 90" workpiece diameter
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Gleason
Model: -61
The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated.The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is ...more
Gleason #GRSL gear rolling system w/laser, gear tester, 10" x 10" workpiece, 2019
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Gleason
Model: GRSL
Year: 2019
2019 GLEASON (GRSL) GEAR ROLLING SYSTEM W/LASER, For the first time combines composite testing with advanced non-contact laser, technology in a single system. Cycle time for non-contact index and profile, inspection are more than 10 times faster than conventional systems for the, analysis of cylidrical gears from.4 to ...more
Gleason #Sigma-3, CNC gear tester, 10.6" X, 18.9" Y, 18.9" Z, API probes, 2006, (2 available)
Lee Stevens Machinery Inc. | Whitmore Lake, MI
Category: Gear Testers
Seller: Lee Stevens Machinery Inc.
Location: Whitmore Lake, MI
Mfr: Gleason
Model: SIGMA-3
Year: 2006
, Gleason M&M precision systems CNC Gear Tester, Model Sigma 3 New 2006 (2 machines now available), W/API Probes, Machine are as follows:, • Machine construction using a granite base designed for production use, • Probe Resolution 0.03 m, • 3 Linear motor driven axes and Rotary drive rotary C-axis ...more
Klingelnberg #PFS-600, .59"/23.62" gear, 1" workpiece diameter, 6.3" gear width, 6.5" stroke
Gibbs Machinery Co | Warren, MI
Category: Gear Testers
Seller: Gibbs Machinery Co
Location: Warren, MI
Mfr: Klingelnberg
Model: PFS-600
PFS-600 KLINGELNBERG 23.6\" LEAD & INVOLUTE TESTER, Min./Max. Gear: 0.59"/23.62", Max. Gear Width: 6.30", Stroke of Feeler: 6.50", Helix Angle: 0-90 deg., Max. Length of Workpiece: 26.18", Distance Between Counter Bracket & Tailstock: 7.87"/8.86", Max. Weight of Workpiece: 660 lbs.
