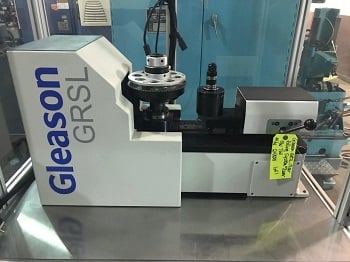

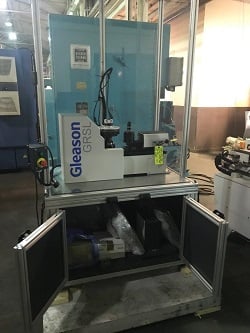

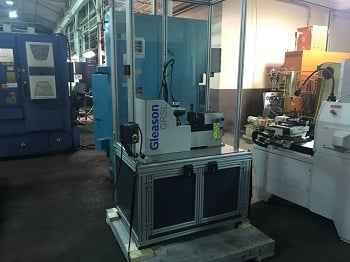

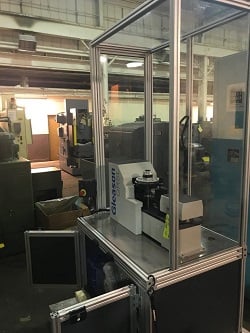

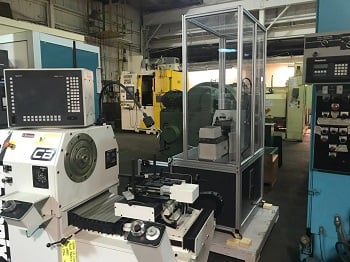

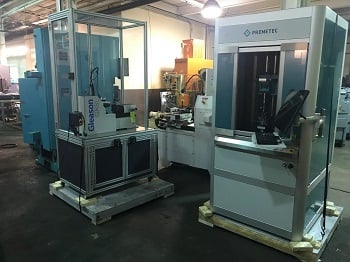

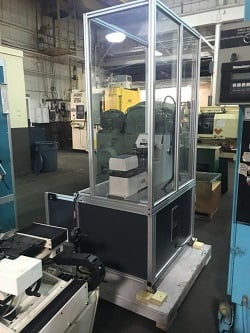

Gleason #GRSL gear rolling system w/laser, gear tester, 10" x 10" workpiece, 2019

2019 GLEASON (GRSL) GEAR ROLLING SYSTEM W/LASER
For the first time combines composite testing with advanced non-contact laser
technology in a single system. Cycle time for non-contact index and profile
inspection are more than 10 times faster than conventional systems for the
analysis of cylidrical gears from .4 to 7.2 module, up to 250mm (10") in
diameter.
Inspection Speed
Inspection of all 31 teeth on a typical helical gear in under 10 seconds, as
compared to the 160 seconds needed for index and 4-teeth profile on a
conventional analytical machine.
Performs composite testing and index and profile inspection in the same test
cycle.
Overall cycle time savings are even higher since both types of testing are
done in same test cycle.
Inspection Flexibility
View profile characteristics for every tooth for spur and helical gears: fko,
fHa, Fa, ffa, faHm, Vaf, others.
View index: Fp, fp, Fr, Fu.
View composite: Nick, TCV, T2T, average DOP, average circular tooth thickness,
Fi.
Uses familiar Gleason GAMA / WIN-ROLL software interfaces.
ISO, DIN and AGMA analysis charting.
EQUIPPED WITH:
Work Station Bench W/Single 22" Monitor As Standard - Dual Monitor and Touch
Screen Available
Workholding Arbor
QDAS Output Support Available
SPECIFICATIONS:
Spur and Helical Gears: From .4 - 7.2 Module
Spur and Helical Gears: Up To 250 mm (10") In Diameter
I5 Quad Core 2.8 Ghz processor W/8GB Ram, Dual 500GB SS Drives Full 64 Bit
Application and System
