23 Results
3' -9" American Tool Works #HOLEWIZARD, Radial Arm Drill, 1940
Smith Machinery Co | Ames, IA
Category: Radial Drills
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: American
Model: HOLEWIZARD
Year: 1940
COLUMN DIAMETER ------------------- 9 in, ARM ------------------------------- 3 ft, SPINDLE TO COLUMN (MAX) ----------- 38 in, SPINDLE TO COLUMN (MIN) ----------- 16 in, SPINDLE TRAVEL ALONG ARM ---------- 22 in, BASE DIMENSIONS ------------------- 74 in x 31-1/2 in x 7-1/2 in, SPINDLE TAPER --------------------- MT ...more
JUST ADDED!
3' -9" American, Radial Arm Drill, 5 HP, 50-1500 RPM, 2.5" spindle diameter
Wheeler Machinery Sales | Pomona, CA
Category: Radial Drills
Seller: Wheeler Machinery Sales
Location: Pomona, CA
Mfr: American
American Hole Wizard 3' x 9" Radial Arm Drill #7530 #1, Machine has been rebuilt and works perfect., Arm length: 3', Column diameter: 9", Area of base: 53" X 30", Auxilary L base: yes, Spindle speeds: (12) 50-1500 rpm, Spindle feeds: (6).004.025 IPR, Spindle stroke: 9", Spindle diameter: 2.5", Taper in ...more

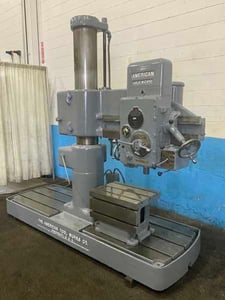

3' -11" American, radial drill, 36" x46" base, power elevation & clamping, 5 HP, #73614
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. 55965-43, MODEL. 3' X 11", AREA OF BASE FRONT BASE. 46" X 36", AREA OF REAR BASE. 46" X 36", SPINDLE SPEEDS. (9) 100 TO 3000 RPM, SPINDLE FEEDS. (4).004 TO.018 IPR, SPINDLE STROKE. 9", DIAMETER OF SPINDLE. 2-1/2", TAPER IN SPINDLE. #4 MT, DISTANCE SPINDLE TO COLUMN. 11" MIN 36" MAX, DISTANCE SPINDLE TO ...more
4' -9" American #Hole-Wizard, radial arm drill, power elevation, 30" x53" base, 5 HP, #62917
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
Model: HOLE-WIZARD
SERIAL. 69224, MODEL. HOLE WIZARD, ARM LENGTH. 4', COLUMN DIAMETER. 9", AREA OF BASE. 53" X 30", AXILLARY L BASE. YES, SPINDLE SPEEDS. (12) 50 TO 1500 RPM, SPINDLE FEEDS. (6).004 TO.025 IPR, SPINDLE STROKE. 9", DIAMETER OF SPINDLE. 2-1/2", TAPER IN SPINDLE. MORSE, DISTANCE SPINDLE TO COLUMN. 11" MIN 48" MAX ...more
4' -9" American, radial drill, 30" x53" base, power elevation, 9" spindle stroke, 5 HP, #58900
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. 75341-57, MODEL. 4' X 9", AREA OF BASE. 53" X 30", AREA OF AUXILIARY TABLE. 24" X 20" TILTING, SPINDLE SPEEDS. (12) 50 TO 1500 RPM, SPINDLE FEEDS. (6).004 TO.025 IPR, SPINDLE STROKE. 9", DIAMETER OF SPINDLE. 2-1/2", TAPER IN SPINDLE. MORSE, DISTANCE SPINDLE TO COLUMN. 11" MIN 48" MAX, DISTANCE SPINDLE TO ...more
Get email updates for newly added Radial Drills
Radial Drills (also known as radial arm drill presses) are powerful machines with a movable arm that allows the drill head to cover a wide area without repositioning the workpiece. Commonly used in metalworking and fabrication, these drills are ideal for drilling large, heavy materials with precision. Radial drills offer flexibility and accuracy, making them suitable for tasks requiring multiple drilling points on large surfaces.
4' -10" American, Radial Arm Drill Press, 116" L x 36" width x 109" T
Smith Machinery Co | Ames, IA
Category: Radial Drills
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: American
Dimensions 116" L X 36" W X 109" T Weight 6000 pounds.

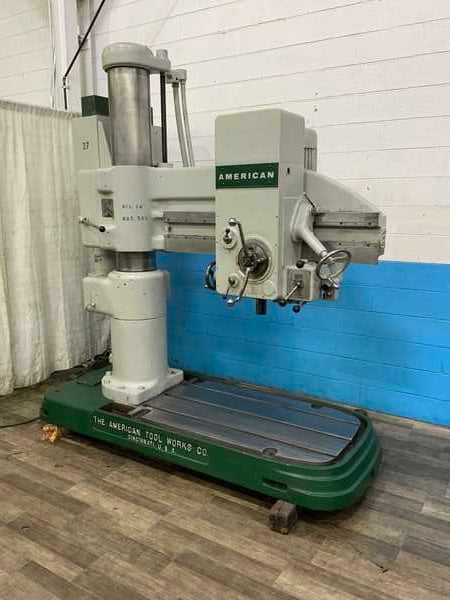

4' -11" American, radial arm drill, 35" x57" base, power elevation & clamping, 5 HP, #71937
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. 62863-41, AREA OF BASE. 57" X 35", SPINDLE SPEEDS. (12) 50 TO 1500 RPM, FEEDS. (6).004 TO.025 IPR, SPINDLE TRAVEL. 12", TAPER IN SPINDLE. #4 MT, DIAMETER OF SPINDLE. 2-1/2", DISTANCE SPINDLE TO COLUMN. 10-3/4" TO 48" MAXIMUM, DISTANCE SPINDLE TO BASE. 29" TO 55" MAXIMUM, TRAVEL OF HEAD ARM. 37-1/4", TRAVEL OF ...more
4' -13" American #Hole-Wizard, power elevation, 25-2000 RPM, #5MT, 10 HP, #29959
C.W. Wood Machinery Inc | Cincinnati, OH
Category: Radial Drills
Seller: C.W. Wood Machinery Inc
Location: Cincinnati, OH
Mfr: American
Model: HOLE-WIZARD
AMERICAN RADIAL DRILL, MODEL: Hole Wizard, SERIAL NUMBER: 73335-52, Diameter of Column: 13", Drills To Center of Circle On Base: 96", Maximum Distance, Spindle To Base: 60", Minimum Distance, Spindle To Base: 6", Travel of Spindle: 18", Spindle Taper: No. 5 Morse, Traverse of Drill Head on Arm: 34-3/4", Traverse of ...more
JUST ADDED!
4' -13" American #Hole-Wizard, Radial Drill Press
TNT Industrial | Orange, CA
Category: Radial Drills
Seller: TNT Industrial
Location: Orange, CA
Mfr: American
Model: HOLE-WIZARD
#: 00061/TNT/..

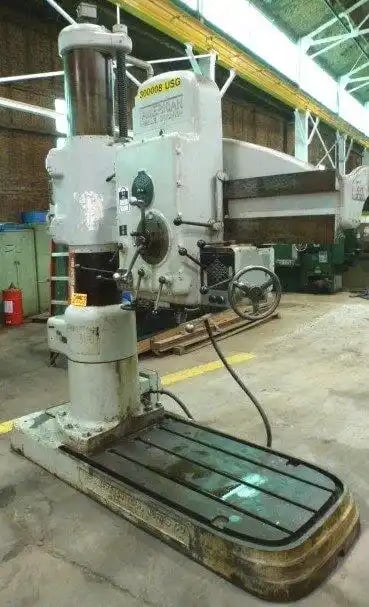

4' -13" American #Hole-Wizard, 25-2000 RPM, #5MT, 10 HP, power elevation & clamping
Perfection Global | Elk Grove Village, IL
Category: Radial Drills
Seller: Perfection Global
Location: Elk Grove Village, IL
Mfr: American
Model: HOLE-WIZARD
Diameter of Column: 13"Drills to Center of Circle on Base: 96"Spindle to Base: 6" - 60"Spindle Speeds: 25 - 2000 RPMSpindle Travel: 18"Spindle Taper: #5MTTraverse of Drill Head on Arm: 34-3/4"Traverse of Arm on Column: 36"Number of Spindle Feeds: 16Tap Leads, Threads Per Inch: 8, 11-1/2, 14, 18Range of Feeds:.003" ...more
4' -13" American Radial Drill, 18" travel, 1500 RPM, .125 IPR, 2-1/2" spindle, 36" x 60" base, coolant, clamp, elevation
National Machinery Exchange | Newark, NJ
Category: Radial Drills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: American
4' -15" American #Hole-Wizard, 18" Z, 20-1600 RPM (32 Steps), 20 HP, 5MT, 30" x24" x20" tbl
Perfection Global | Elk Grove Village, IL
Category: Radial Drills
Seller: Perfection Global
Location: Elk Grove Village, IL
Mfr: American
Model: HOLE-WIZARD
Arm Length: 4'Column Diameter: 15"Drills to Center of Circle on Base: 96"Maximum Distance, Spindle to Base: 66"Minimum Distance, Spindle to Base: 8.5"Traverse of Drill Head on Arm: 34"Traverse of Arm on Column: 39.5"Table Size: 30" L x 24" W x 20" HHeight of Base: 9"Spindle Travel: 18"Spindle Taper: No. 5 ...more
4' -15" American #Hole-Wizard, 1600 RPM, #5MT, 20 HP, power elevation /head traverse /clamp, 1952, #29910
C.W. Wood Machinery Inc | Cincinnati, OH
Category: Radial Drills
Seller: C.W. Wood Machinery Inc
Location: Cincinnati, OH
Mfr: American
Model: HOLE-WIZARD
Year: 1952
AMERICAN RADIAL DRILL, MODEL: Hole Wizard, SERIAL NUMBER: 73033-52, Diameter of Column: 15", Drills To Center of Circle On Base: 96", Maximum Distance, Spindle To Base: 66", Minimum Distance, Spindle To Base: 8-1/2", Travel of Spindle: 18", Spindle Taper: No. 5 Morse, Traverse of Drill Head on Arm: 34", Traverse of ...more
4' -15" American, radial drill, 42" x60" base, power elevation & clamping, 20 HP, #10763
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. #71909-50, WORKING SURFACE OF BASE. 60" X 42", SPINDLE SPEEDS. (32) 20 TO 1600 RPM, FEEDS. (16).003 TO.125 IPR, THREADS. 8 / 11-1/2 / 14 / 18 TPI, DISTANCE SPINDLE TO BASE. 26" MIN. / 68" MAX., DISTANCE SPINDLE TO COLUMN. 18" MIN. / 52" MAX., SPINDLE TRAVEL. 18", TAPER IN SPINDLE. #5 MT, DIAMETER OF SPINDLE. ...more
4' -11" American Tool #Hole-Wizard, Radial Drill, 51" max Spindle to Column, 103" overall Height, 18" deep Box Table, #5 MT, 3 Ph.
MachineCo | Montreal, QC
Category: Radial Drills
Seller: MachineCo
Location: Montreal, QC
Mfr: American
Model: HOLE-WIZARD
“Normal wear from use.”, Radial Drill 4′ x11″ col. American “Hole Wizard” w/ Box Table, 18″ deep, Mfr. ………………………. “American Tool” (made in USA), Model ……………………. ...more

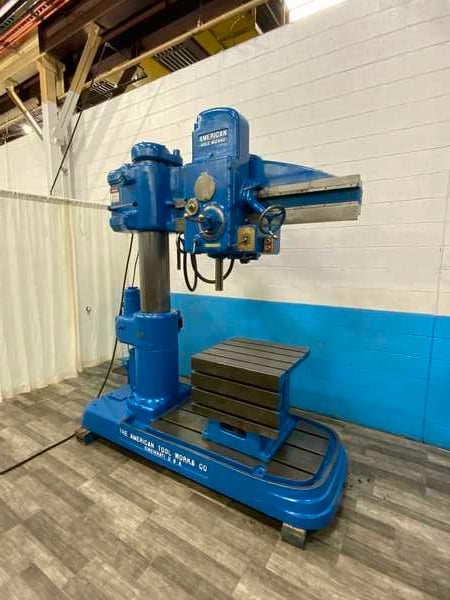

4' x 11" American Radial Drill, 57" x 35" Base, 5 HP
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. 72191, LENGTH OF ARM. 4', COLUMN DIAMETER. 11", AREA OF BASE. 57" X 35", SPINDLE SPEEDS. (12) 50 TO 1500 RPM, FEEDS. (6).004 TO.025 IPR, SPINDLE TRAVEL. 12", TAPER IN SPINDLE. #4 MT, DIAMETER OF SPINDLE. 2-1/2", DISTANCE SPINDLE TO COLUMN. 10-3/4" TO 48" MAXIMUM, DISTANCE SPINDLE TO BASE. 29" TO 55" ...more
5' -11" American Tool Works, radial drill, 45-1250 RPM, 12" spindle travel, 2-1/2" dia spindle, box table, #83651
Smith Machinery Co | Ames, IA
Category: Radial Drills
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: American
COLUMN DIAMETER ------------------- 11 in, ARM LENGTH ------------------------ 5 ft, SPINDLE SPEEDS -------------------- (12) 45 - 2250 RPM, SPINDLE TRAVEL -------------------- 12 in, SPINDLE DIAMETER ------------------ 2-1/2 in, MACHINE DIMENSIONS ---------------- 3 ft X 8 ft X 9 ft TALL, ELECTRICS ...more
5' -13" American radial drill, 36" x72" base, 10 HP, power elevation & clamping, #71447
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
SERIAL. 68514, AREA OF BASE. 72" X 36", SPINDLE SPEEDS. 20 TO 1600 RPM, FEEDS.003 TO.125 IPR, SPINDLE TRAVEL. 12", DIAMETER OF SPINDLE. 2.5", TAPER IN SPINDLE. #5 MT, DISTANCE SPINDLE TO COLUMN. 13-1/4" TO 60", DISTANCE SPINDLE TO BASE. 8-1/2" TO 60", TRAVEL OF HEAD ON COLUMN. 46-3/4", TRAVEL OF ARM ON COLUMN. ...more
5' -15" American, radial drill, 20-1600 RPM, 36" diameter work table, tapping capabilities, #5MT
Mohawk Machinery Inc | Cincinnati, OH
Category: Radial Drills
Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: American
5'15" AMERICAN RADIAL DRILL, Manufacturer AMERICAN Condition Used Serial Number 77-570 Stock Number 30180.
5' -17" American Tool Works #Hole-Wizard, radial drills, 1600 RPM, 5MT, 25 HP, 220/440 V.
DiPaolo Machine Tools | Mississauga, ON
Category: Radial Drills
Seller: DiPaolo Machine Tools
Location: Mississauga, ON
Mfr: American
Model: HOLE-WIZARD
6' -15" American #Hole-Wizard, radial arm drill, power elevation/clamping on column, 24" x30" T-slotted tilting box table
Belmont Machinery Co | Aurora, IL
Category: Radial Drills
Seller: Belmont Machinery Co
Location: Aurora, IL
Mfr: American
Model: HOLE-WIZARD
Size 6'x15" Make AMERICAN Year N/A, ONE USED - 6’x 15” AMERICAN Radial Drill, Model: HOLE WIZARD, Serial Number: 70692-47, 64” Maximum Height Under Arm, #5 MT Spindle, Spindle Speeds from 15 to 1200 RPM, Power Elevation, Power Clamping on Column, Rapid Traverse on Head, 24” x 30” T ...more
7' -17" American #07x17, radial drill, #5MT, power elevation/ head traverse, coolant, #15419
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
Model: 07X17
SERIAL. 78081-67, ARM LENGTH X COLUMN DIAMETER. 7' X 17", SPINDLE TO BASE (MAX./MIN.). 72"/10-1/2", SPINDLE TO COLUMN (MAX./MIN.). 84"/14", SPINDLE TRAVEL. 18", SPINDLE SPEEDS. (32) 20 TO 1600 RPM, SPINDLE FEEDS. (16).003 TO.125 IPR, THREAD LEADS. 8 - 11-1/2 - 14 - 18 TPI, SPINDLE TAPER. #5 MT, POWER ELEVATION. ...more
7' -17" American, full universal radial drill, excellent condition
Kevins Equipment Co. KEC | Houston, TX
Category: Radial Drills
Seller: Kevins Equipment Co. KEC
Location: Houston, TX
Mfr: American
Model: FULL UNIVERSAL
EXCELLENT CONDITION RADIAL DRILL REMOVED FROM SERVICE OUT OF THE HOOVER DAM. WE PURCHASED IT FULLY CRATED AND THEN RE-ASSEMBLED IT. THE UNIT CAN BE SEEN UNDER POWER IN OUR WAREHOUSE!.
