For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description
SERIAL ............................ 69224

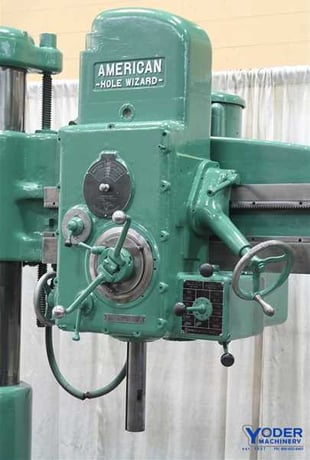

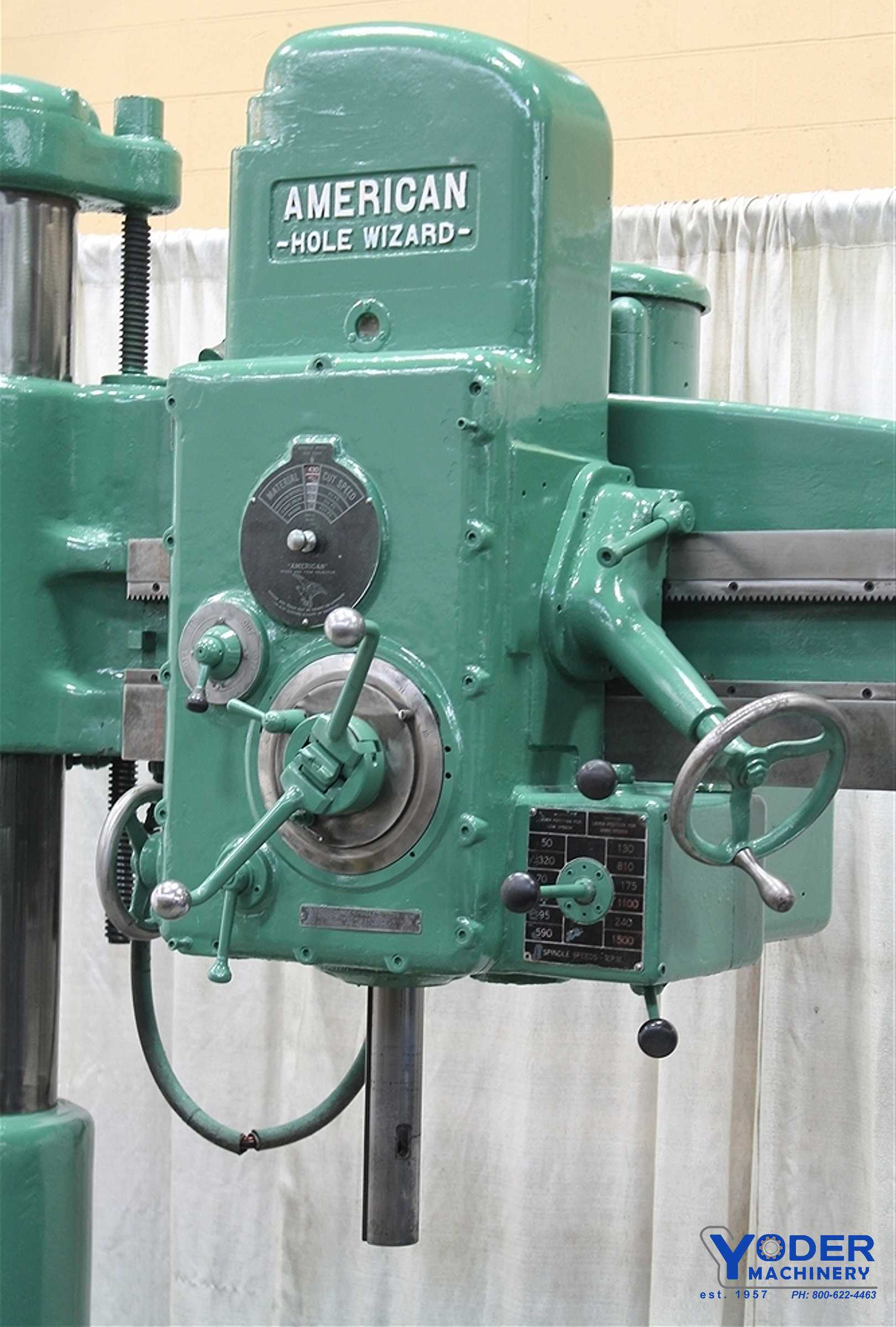

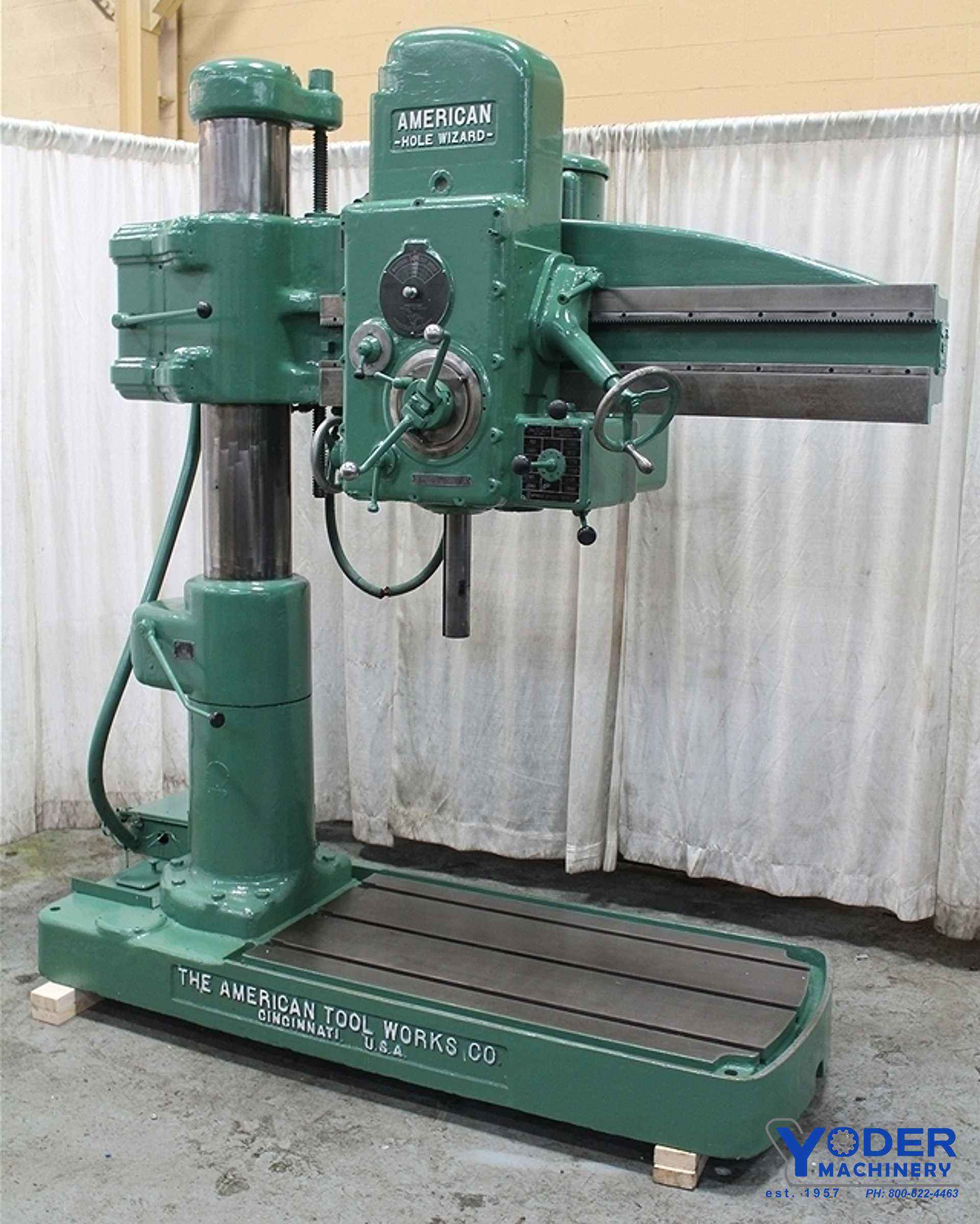

MODEL ............................. HOLE WIZARD
ARM LENGTH ........................ 4'

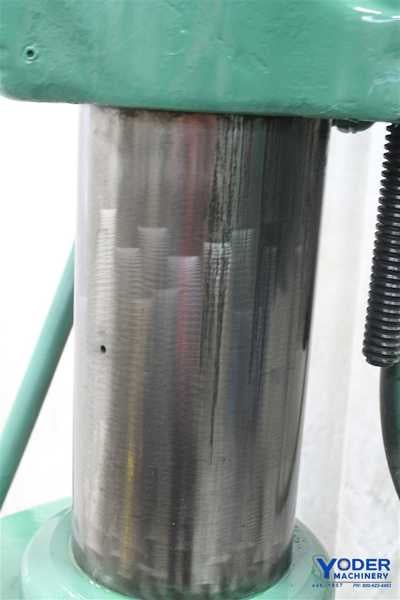

COLUMN DIAMETER ................... 9"

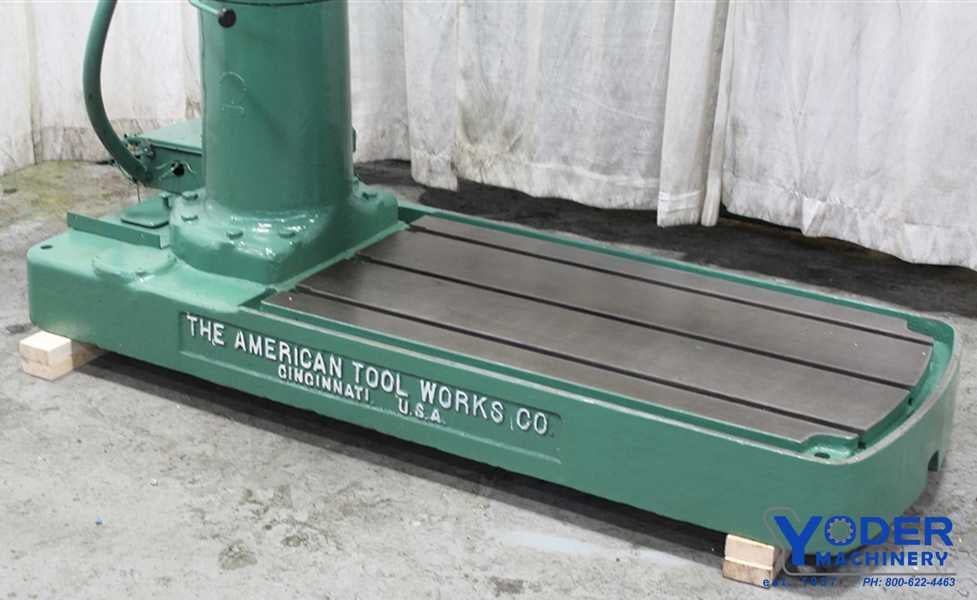

AREA OF BASE ...................... 53" X 30"
AXILLARY L BASE ................... YES

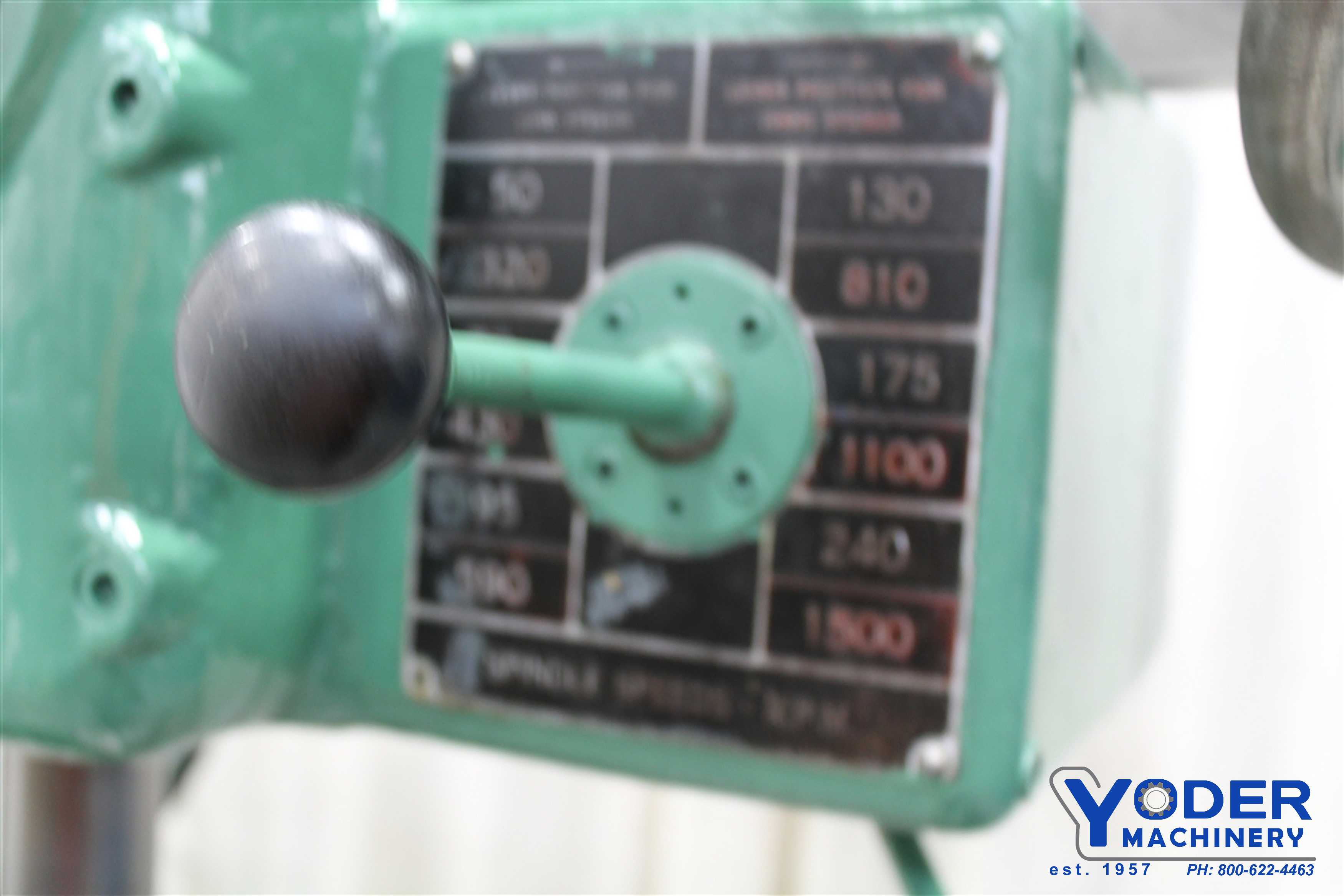

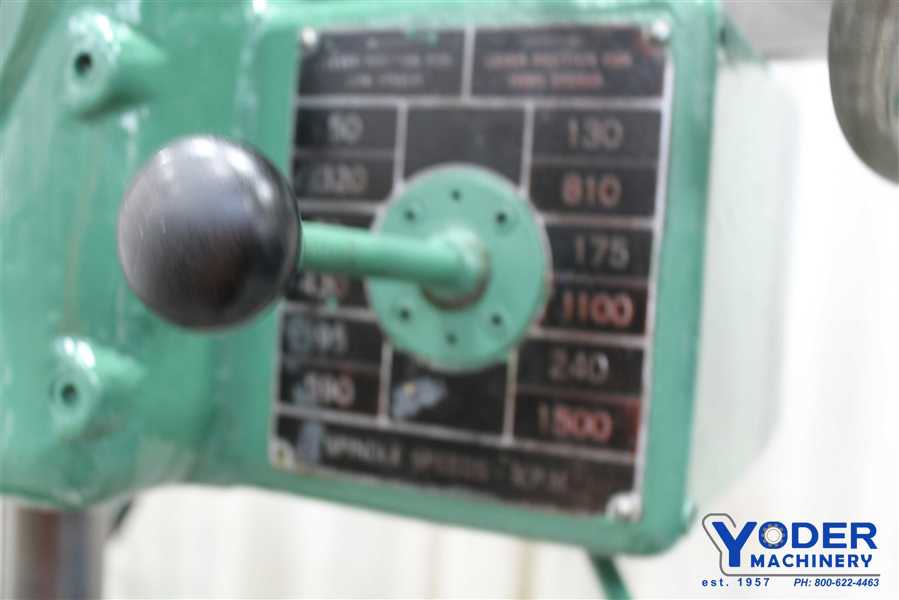

SPINDLE SPEEDS .................... (12) 50 TO 1500 RPM

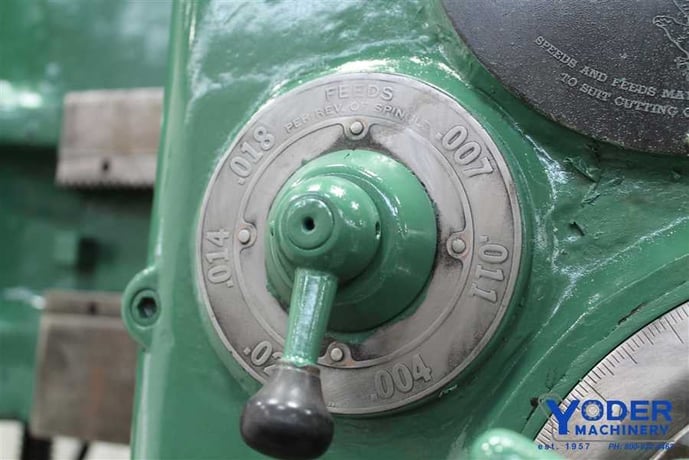

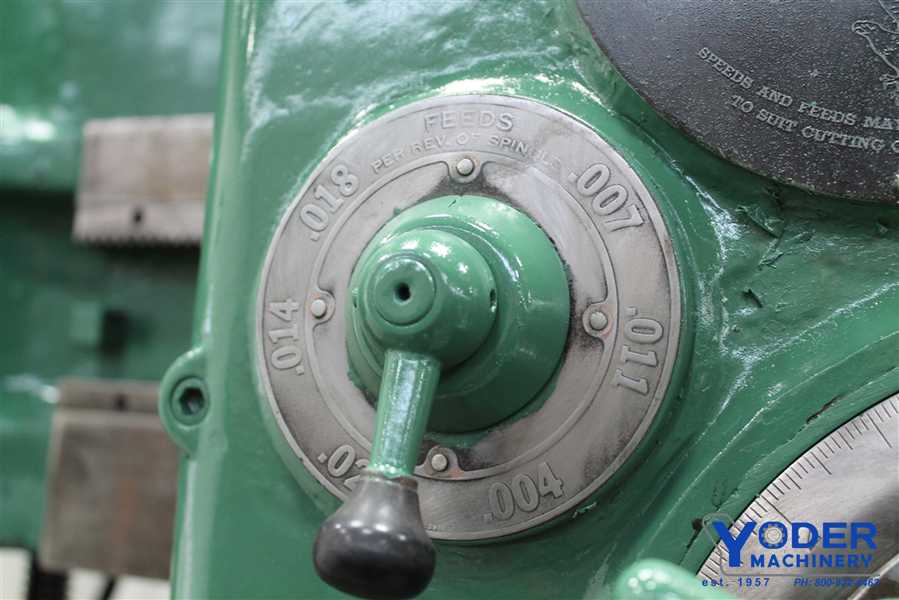

SPINDLE FEEDS ..................... (6) .004 TO .025 IPR
SPINDLE STROKE .................... 9"
DIAMETER OF SPINDLE ............... 2-1/2"
TAPER IN SPINDLE .................. MORSE
DISTANCE SPINDLE TO COLUMN ........ 11" MIN 48" MAX
DISTANCE SPINDLE TO BASE .......... 16" MIN 56" MAX
VERTICAL ARM TRAVEL ............... 24"
POWER ELEVATION ................... YES
MOTOR ............................. 5 HORSEPOWER
MODEL ............................. HOLE WIZARD
ARM LENGTH ........................ 4'
COLUMN DIAMETER ................... 9"
AREA OF BASE ...................... 53" X 30"
AXILLARY L BASE ................... YES
SPINDLE SPEEDS .................... (12) 50 TO 1500 RPM
SPINDLE FEEDS ..................... (6) .004 TO .025 IPR
SPINDLE STROKE .................... 9"
DIAMETER OF SPINDLE ............... 2-1/2"
TAPER IN SPINDLE .................. MORSE
DISTANCE SPINDLE TO COLUMN ........ 11" MIN 48" MAX
DISTANCE SPINDLE TO BASE .......... 16" MIN 56" MAX
VERTICAL ARM TRAVEL ............... 24"
POWER ELEVATION ................... YES
MOTOR ............................. 5 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
