For Sale by Ingalls Process Equipment
Surplus Record Dealer Since 1995
Location: Painesville, OH
Contact Dick Ingalls
Phone Number: 440...> Show Phone Number 440-276-3052
Let the seller know you found their listing on Surplus Record!
Description

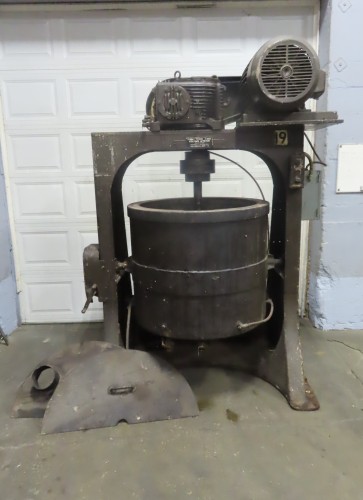

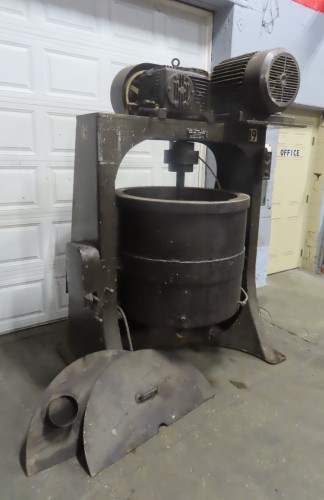

- One (1) used 100 gallon Union Process Attritor
- Type: B
- Size: 100S
- Serial number: 1919
- Stainless steel jacketed tank
- 35" diameter x 31" deep
- 5.5" diameter discharge screen, tapers to a 1.5" discharge
- 15/5 HP 2-speed motor, belt driven to gear reducer
- Final shaft RPM is 75 and 24
- Includes belt guard
- 3 phase, 440 voltage only
- Hand crank with gear box for tilting tank
- Shaft and arms are in good condition
- Removble split top tank cover
- 2.5" shaft diameter, arms are 1.25" diameter
- Tank is clean and ready for mixing
- Includes start/stop buttons and Size 2 single speed motor starter
- Overall Dimensions: 68" L - R, 48" F-B, 93" tall
- Weight: 3,900 lbs.
- Test run video is available or can be seen under power for an in-person inspection
Get Your Price from Ingalls Process Equipment!
Buyers Who Viewed This Listing Also Viewed:

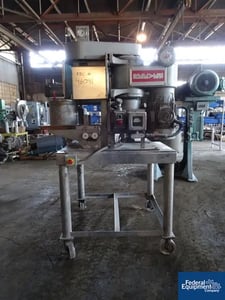

Union Process #1-SDG, Stainless Steel, 1.5 gallon total tank vol, 1.1 gal.slurry & 1.5 gal.media vol, Stainless Steel jacketed bowl, 3 HP, #46041
Category: Attritors
Seller: Federal Equipment Company
Location: Cleveland, OH
Mfr: Union
Model: 1-SDG
Used Union Process attritor, model 1SDG, 1.5 gallon total tank volume, with 1.1 gallon slurry and 1.5 gallon media volumes, stainless steel jacketed bowl with stainless steel shaft with carbon steel arms, 3 hp, 460 volt xp mechanical variable speed motor drive, belt driven on stand, with Accurate volumetric feeder ...more
Union Process #1S, Attritor, Stainless Steel Jacketed Bowl, 2 HP, 230/460 V
Category: Attritors
Seller: HGR24
Location: Euclid, OH
Mfr: Union
Model: 1S
Used Union Process attritor, model 1S, stainless steel jacketed bowl, 2 hp, 230/460 volt variable speed motor drive, serial# 960202.
Union Process #1-S, Laboratory Attritor, 1.5 gallon tank capacity, .8 gallon working capacity, 1 gallon media, 8" diameter x 8-1/4" deep jacketed tank, 3 HP, 1725 RPM
Category: Attritors
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Union
Model: 1-S
used- union process 1-s series, type b laboratory attritor. tank capacity 1.5 gallon, working capacity 0.8 gallons. media volume 1.0 gallons. jacket tank approximate 8" diameter x 8-1/4" deep. missing agitation shaft. driven by a 3hp, 3/208-230/460 volt, 1725 rpm xp motor, thru reeves adjustable speed gearbox. mounted ...more
JUST ADDED!
Union Process #01HD, Szegvari Laboratory Attritor Mill, benchtop, (1) rubberized & (1) stainless jar, 0.25 HP, 345-1728 RPM, 208-230/460 Volts
Category: Attritors
Seller: Savona Equipment
Location: Savona, BC
Mfr: Union Process
Model: 01HD
Szegvari Laboratory Attritor Mill, Make: Union Process "Szegvari"Model: 01HDType: Attritor MillStyle: Benchtop Lab ScaleSize: 01Condition: Used Condition(1) Rubberized Jar and (1) Stainless Jar, Rubberized: 300-400mL (Approx.)Stainless: 600mL (Approx.)Manual Bowl Height Adjustment Tachometer InstalledPedestal and Base ...more

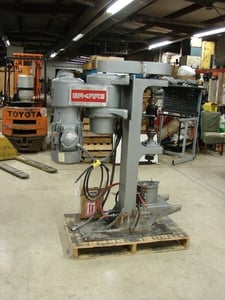

Szegvari / Union Process Attritor #1ST, size 1, 3 HP
Category: Attritors
Seller: Bridges Elk Valley Cabinet Shop
Location: Pioneer, TN
Mfr: Svegvari
Model: 1ST
