17 Results
Union Process #1-S, Laboratory Attritor, 1.5 gallon tank capacity, .8 gallon working capacity, 1 gallon media, 8" diameter x 8-1/4" deep jacketed tank, 3 HP, 1725 RPM
Aaron Equipment Co | Schaumburg, IL
Category: Attritors
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Union
Model: 1-S
used- union process 1-s series, type b laboratory attritor. tank capacity 1.5 gallon, working capacity 0.8 gallons. media volume 1.0 gallons. jacket tank approximate 8" diameter x 8-1/4" deep. missing agitation shaft. driven by a 3hp, 3/208-230/460 volt, 1725 rpm xp motor, thru reeves adjustable speed gearbox. mounted ...more
Union Process #1-S, Laboratory Attritor, 1.5 gallon tank capacity, .8 gallon working capacity, 1 gallon media, 7-1/2" diameter x 9" deep bowl, 1/2 HP, 1800 RPM
Aaron Equipment Co | Schaumburg, IL
Category: Attritors
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Union
Model: 1-S
used- union process szegvari 1-s series laboratory attritor. tank capacity 1.5 gallon, working capacity 0.8 gallons. media volume 1.0 gallons. 7-1/2" diameter x 9" deep bowl, 1" diameter shaft. driven by a 1/2hp, 3/60/208-220/440 volt, 1800 rpm, ratio 14/1, thru varidrive variable speed gearbox. frame mounted.
Union #1-S, Process Attritor, Type B, .5 HP US Varidrive, 3 phase, 220/440 V.
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
Model: 1-S
one(1) used 1S Union Process Attritor, Type B Size 1S Serial number 1334 1/2 hp US Motors Varidrive. 3 phase, 220/440 voltage. Tank - 7 Jacketed tank for cooling. Split aluminum cover Tank tilts and dumps from the top, no bottom drain. Presently wired for 220 with motor starter and push button Mounted on a stand with ...more
Union Process #1-SDG, Stainless Steel, 1.5 gallon total tank vol, 1.1 gal.slurry & 1.5 gal.media vol, Stainless Steel jacketed bowl, 3 HP, #46041
Federal Equipment Company | Cleveland, OH
Category: Attritors
Seller: Federal Equipment Company
Location: Cleveland, OH
Mfr: Union
Model: 1-SDG
Used Union Process attritor, model 1SDG, 1.5 gallon total tank volume, with 1.1 gallon slurry and 1.5 gallon media volumes, stainless steel jacketed bowl with stainless steel shaft with carbon steel arms, 3 hp, 460 volt xp mechanical variable speed motor drive, belt driven on stand, with Accurate volumetric feeder ...more
Union Process type B size #100S, jacketed attritor, Stainless Steel, 100 gallon, 35" dia. x 31" deep
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
Model: 100S
One (1) used 100 gallon Union Process Attritor Type: B Size: 100S Serial number: 1919 Stainless steel jacketed tank 35" diameter x 31" deep 5.5" diameter discharge screen, tapers to a 1.5" discharge 15/5 HP 2-speed motor, belt driven to gear reducer Final shaft RPM is 75 and 24 Includes belt guard ...more
Get email updates for newly added Attritors
Attritors (also known as stirred ball mills or attrition mills) are grinding machines used to finely mill and disperse particles in materials. They work by agitating a media-filled chamber to grind materials through friction and impact, making them ideal for producing fine powders or dispersions in industries like pharmaceuticals, ceramics, and paint manufacturing.
Union Process #100SN, size 100 attritor, 100 gallon, 2 speed motor, Stainless Steel jacketed tank, removable split top cover
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
Model: 100SN
One (1) used 100 gallon Union Process Attritor Type 100SN Size 100 Serial number: 890602 Stainless steel jacketed tank 34" diameter x 39" deep 5.5" diameter discharge screen, tapers to 1" discharge 25 HP/ 8.5 HP 2 speed motor, 460 voltage Belt driven to gear reducer, with belt guard Final shaft RPM ...more

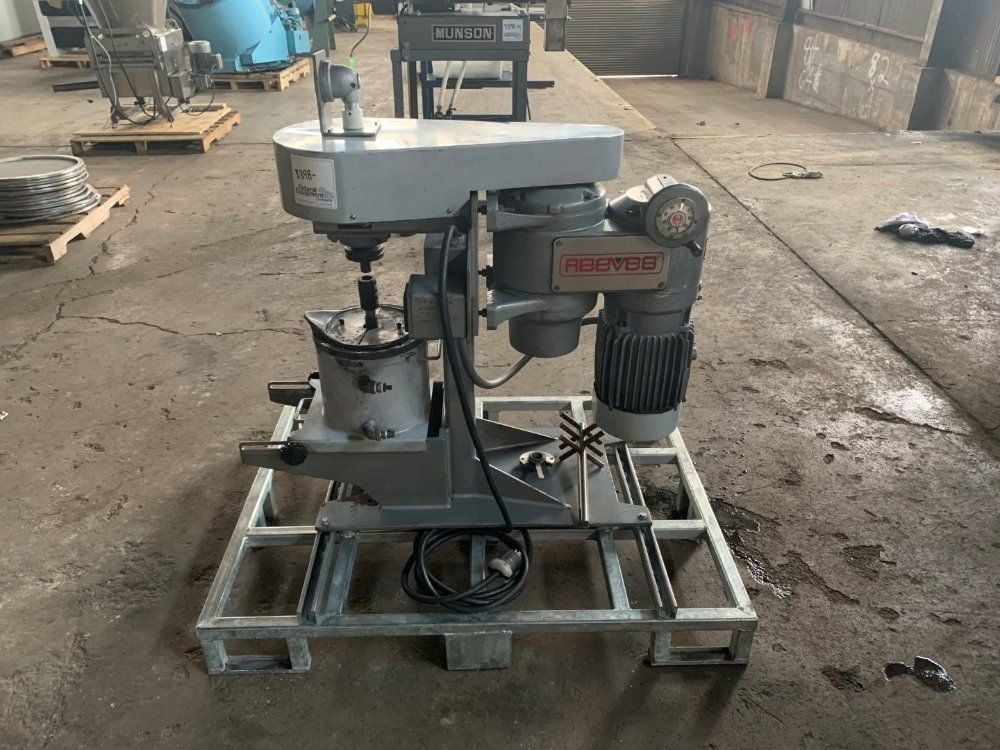

Union Process #1S, Attritor, Stainless Steel Jacketed Bowl, 2 HP, 230/460 V
HGR24 | Euclid, OH
Category: Attritors
Seller: HGR24
Location: Euclid, OH
Mfr: Union
Model: 1S
Used Union Process attritor, model 1S, stainless steel jacketed bowl, 2 hp, 230/460 volt variable speed motor drive, serial# 960202.

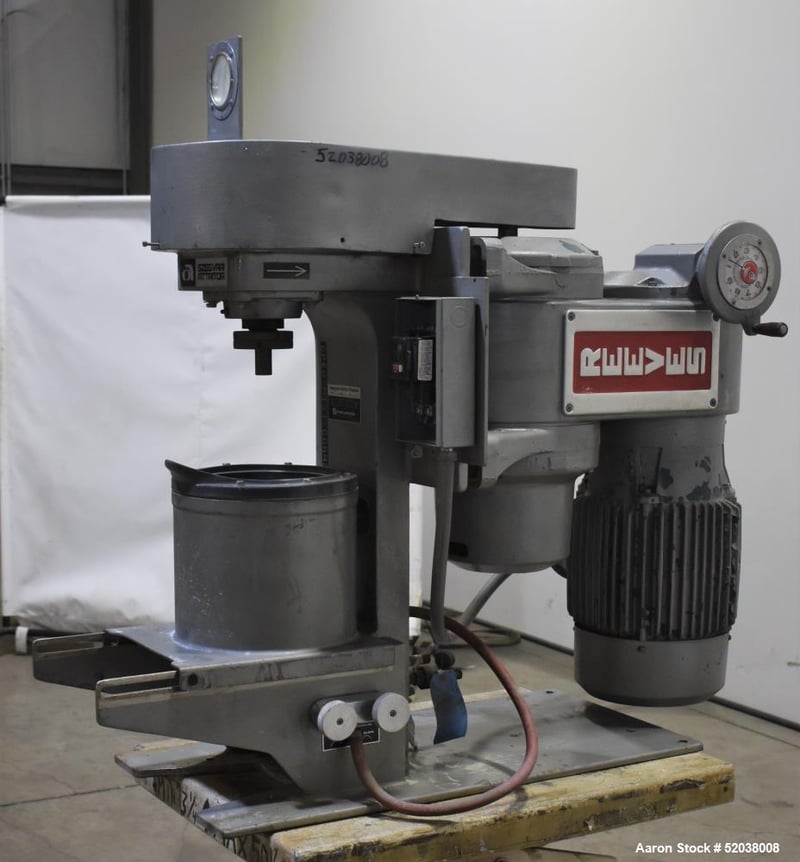

Union Process #1SDG, Laboratory Attritor, 1.5 gallon tank capacity, .8 gallon working capacity, 1 gallon media, 7-1/2" diameter x 7-1/4" deep jacketed tank, 3 HP, 1170 RPM
Aaron Equipment Co | Schaumburg, IL
Category: Attritors
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Union
Model: 1SDG
used- union process szegvari 1-s series laboratory attritor, model 1sdg. tank capacity 1.5 gallon, working capacity 0.8 gallons. media volume 1.0 gallons. jacket tank approximate 7-1/2" diameter x 7-1/4" deep, 1" diamater shaft with 1/2" posts. driven by a 3hp, 3/230/460 volt, 1170 rpm xp motor, thru reeves adjustable ...more

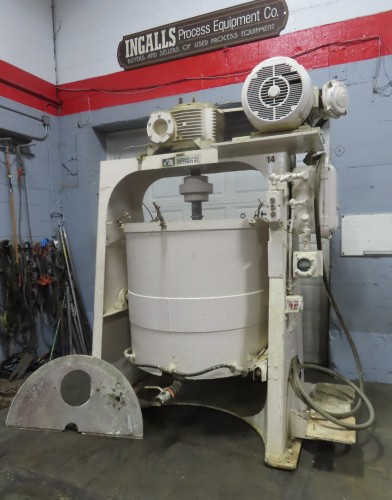

Union Process type B size #200S, attritor, 200 gallon, Stainless Steel jacketed tank, 45" dia x 45" deep
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
Model: 200S
One (1) used 200 gallon Union Process Attritor Type: B Size: 200S Serial number: 3621 Stainless steel jacketed tank 45" diameter x 45" deep 8" diameter discharge screen, tapers to a 2" ball valve 40/10 HP 2-speed motor, belt driven to gear reducer Final shaft RPM is 250 and 60 Includes belt guard 3 ...more

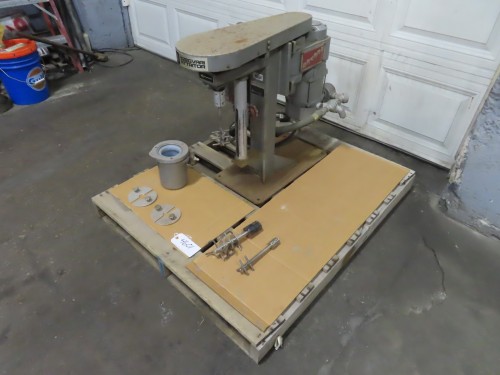

Union #B Process Attritor, 0-1HD, .25 HP, 345-1728 RPM, 3 phase, 220/440 V., 3" ID x 6" deep
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
Model: B
One (1) used Union Process Attritor Type B Size 0-1HD Serial number 3682 1/4 hp Reliance Dutymaster AC Motor variable speed drive; 345-1728 RPM UL tagged for hazardous locations 3 phase, 220/440 voltage Presently wired for 220V Tank - 3" ID x 6" deep Jacketed tank for cooling Teflon lined tank No bottom ...more
Union Process / Szegvari #HSA-1, Batch Type Attritor, 5 HP, 1750 RPM, 380-460 VAC, 3PH
Garland Bros Inc | Suwanee, GA
Category: Attritors
Seller: Garland Bros Inc
Location: Suwanee, GA
Mfr: Union
Model: HSA-1
TERMS, PLEASE REVIEW: We would ask that potential buyers please view the photographs carefully, and understand what you are buying. Please reach out with any questions PRIOR to the close of sale. Your purchase is completely protected by a 30 day warranty, so you can buy with confidence! We cannot negotiate price or ...more
Union Process #Q-6, Attritor, 8.2 gallon Grinding capacity, 7.5 gallon Media capacity, 7.5 HP, 230/460 V, 2008
HGR24 | Euclid, OH
Category: Attritors
Seller: HGR24
Location: Euclid, OH
Mfr: Union
Model: Q6
Year: 2008
Used Union Process attritor, Type Q, Size 6, 8.2 grinding capacity, 7.5 galloon media capacity, jacketed grinding chamber, 7.5 hp, 230/460 volt motor, includes twin motion stainless steel holding tank, Union Process serial# 080708, built 2008.
Union Process, #Q6, Attritor, 7.5 HP, 7.5 gallon, 230/460 V., Stainless Steel, 2008
Federal Equipment Company | Cleveland, OH
Category: Attritors
Seller: Federal Equipment Company
Location: Cleveland, OH
Mfr: Union
Model: Q6
Year: 2008
Used Union Process attritor, Type Q, Size 6, 8.2 grinding capacity, 7.5 galloon media capacity, jacketed grinding chamber, 7.5 hp, 230/460 volt motor, includes twin motion stainless steel holding tank, Union Process serial# 080708, built 2008.

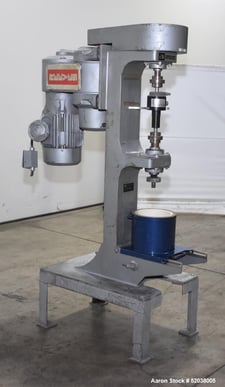

Union Process, Attritor, 8" diameter x 7-1/2" deep ceramic lined jacketed bowl, 1" diameter Shaft w/(4) 1/2" diameter Posts, 3 HP, 1170 RPM
Aaron Equipment Co | Schaumburg, IL
Category: Attritors
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Union
used- union process szegvari attritor. approximate 8" diameter x 7-1/2" deep ceramic lined jacketed bowl. mixing agitator approximate 1" diameter shaft, with (4) 1/2" diameter posts. driven by reeves variable speed motodrive with 3hp, 3/60/230/460 volt, 1170 rpm xp motor. mounted on carbon steel frame. no ...more
Union Process, Attritor Tank, 1S, 8" ID, 10.5" deep, includes front pour spout, Jacketed for cooling, Bottom drain with grate
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
one(1) used 1S Union Process Attritor Tank. 8" inside diameter 10.5" deep includes front pour spout Jacketed for cooling Bottom drain with grate. teflon extended piece factory attached. Split aluminum covers Looks like it is unused.
Union Process, Lab Attritor Bowl and Shaft, Size 1/2, Polyurethane lined bowl, 5" diameter x 5 5/8" deep, Jacketed bowl
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
One (1) used Union Process Lab Attritor Bowl and Shaft Size 1/2 Polyurethane lined bowl 5" diameter x 5 5/8" deep Poly lined stainless steel shaft with polyurethane lined arms Split poly cover Jacketed bowl Stainless steel discharge grid with stainless steel discharge valve.
Union Process, Attritor Replacement Parts, (7) jacketed attritor tanks/bowls, (5) shafts w/ agitator arms, (5) couplings, (3) ball valves, assorted bearings, seals & gaskets
Ingalls Process Equipment | Painesville, OH
Category: Attritors
Seller: Ingalls Process Equipment
Location: Painesville, OH
Mfr: Union
one (1) used lot of Union Process Attritor Parts Seven bowls (tanks) all jacketed for cooling 5 shafts, with arms 5 couplings 3 ball valves Misc. parts and pieces, see photos.
