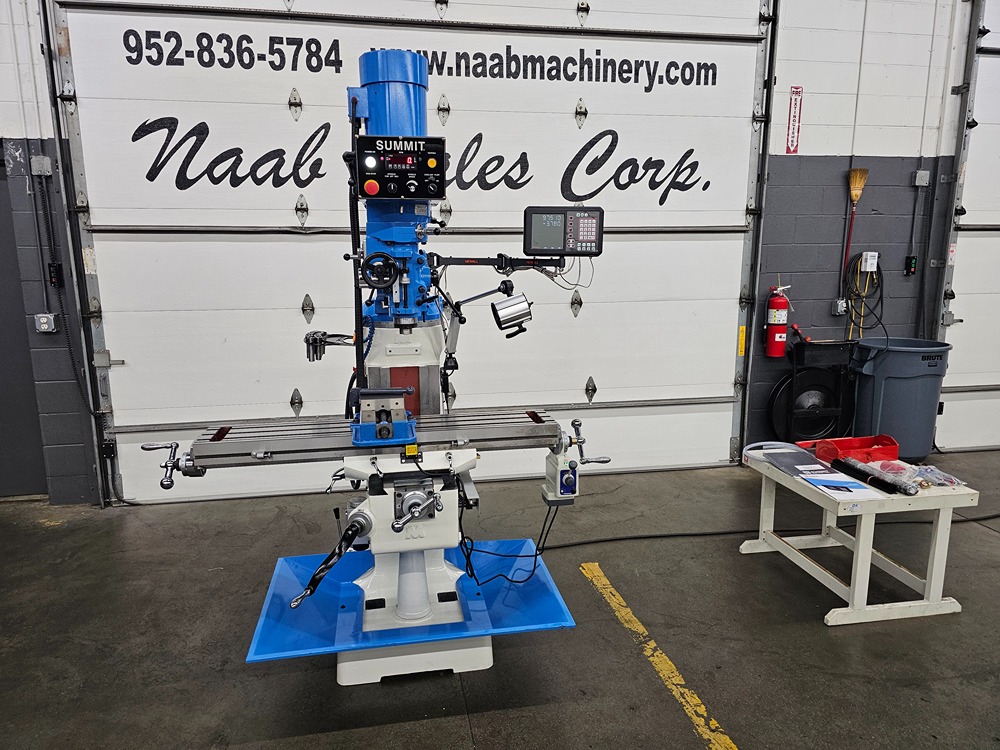

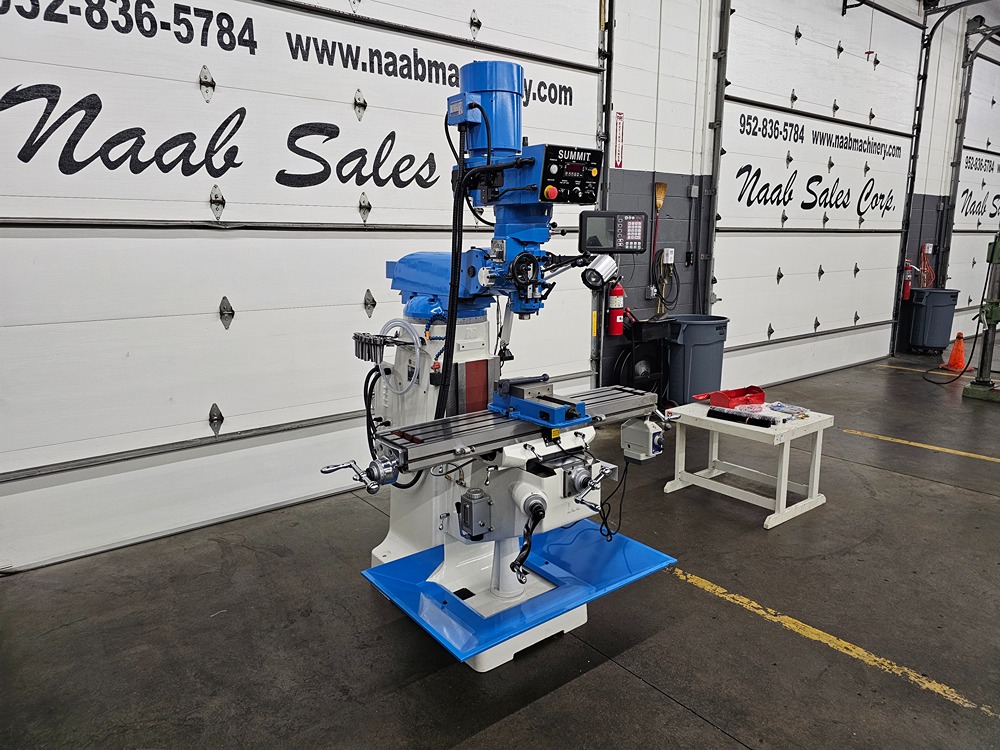

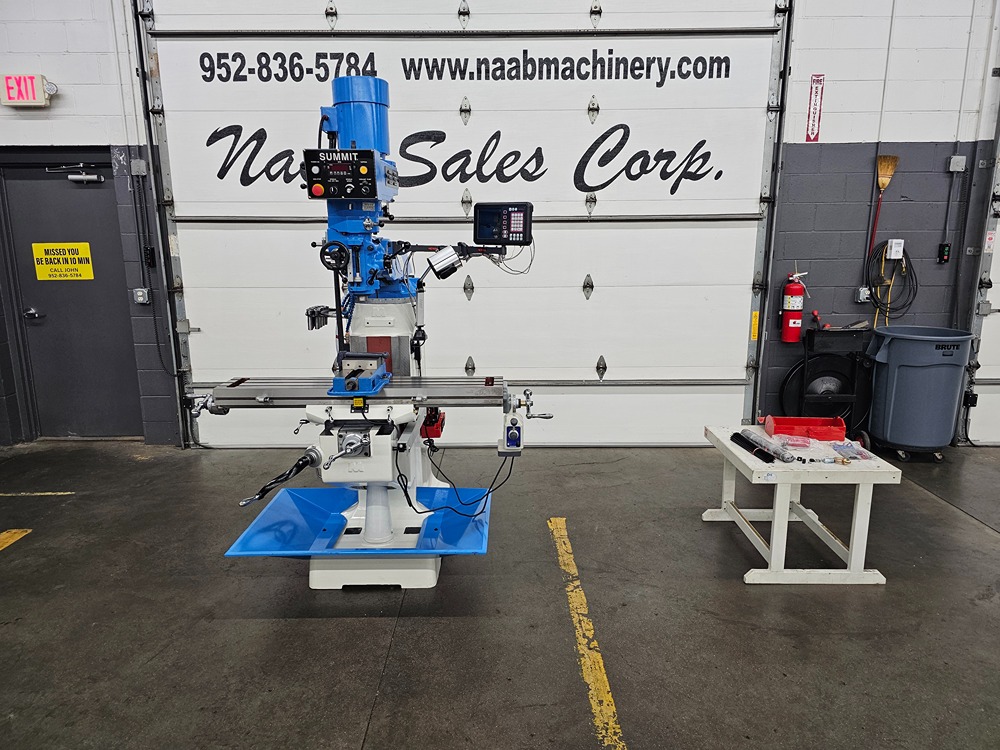

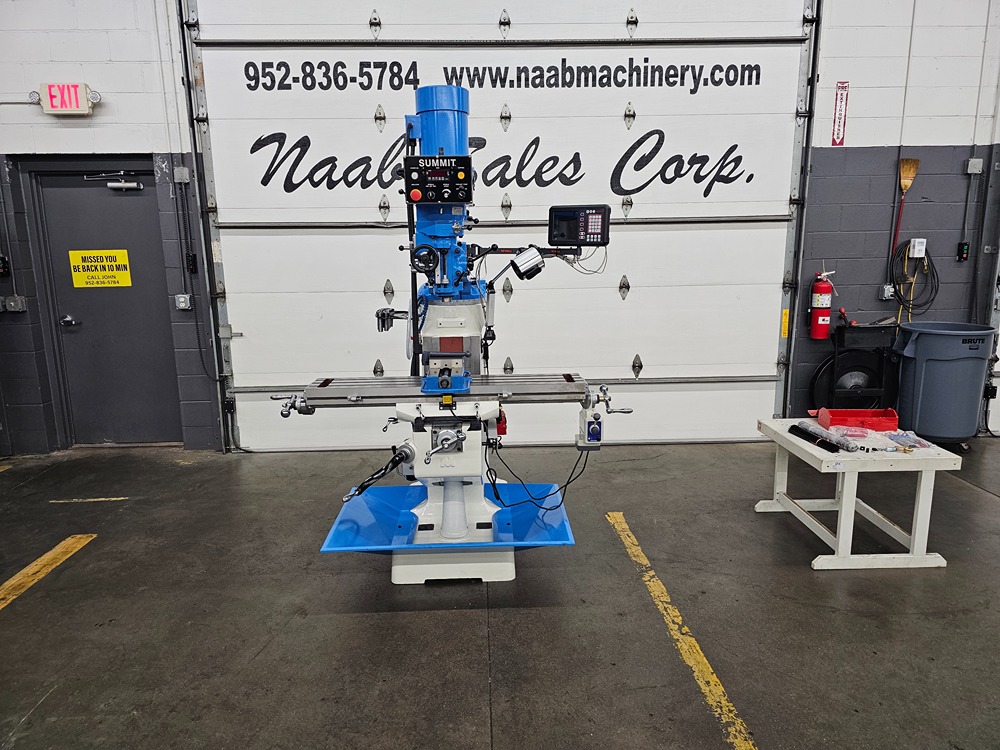

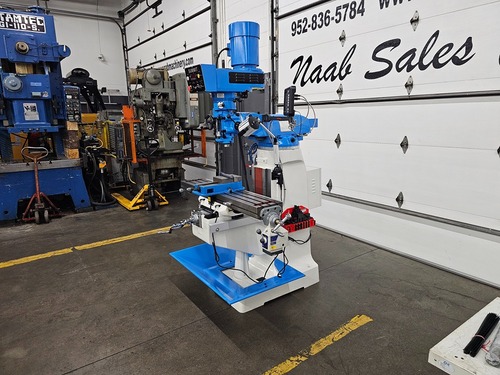

Summit #EVS-349B, milling machine, 9" x49"table, 3 HP, 2-Axis Newall NMS800 digital read out, power feed

Manufacturer: Summit
Model: EVS-349B
Table: 9.00 - 49.00
HP: 3.0
Stock # 15711
Price: $15,950 USD

For Sale by Naab Sales Corporation

Surplus Record Dealer Since 2007
Gold Level Dealer
Location: Blaine, MN
Contact J.Van Heuveln
Let the seller know you found their listing on Surplus Record!
$15,950 USD
Finance for as low as $323/mth financing info

Description

Here We Have:
New Summit EVS 349B Milling Machine With 2 Axis NMS800 Newall DRO, X Axis Pwr. Feed,
6”Vise, Hold Down Kit, Collet Rack and Set of R-8 Collets
Specifications
Motor Size 3 HP
Number of Spindle Speeds Inf. Variable
Speed Range (RPM) 0 – 4300
Spindle Taper R-8
Spindle Traverse 5”
Spindle Feed Range .0015/.003/.006
Head Movement Side to Side +/- 90 Degrees
Head Movement Front to Back +/- 45 Degrees
Table
Table Size 9”x49”x3 1/8”
Table Longitudinal Feed 31”
Table Cross Feed 13”
Maximum Weight of Workpiece 850 lbs.
Overarm
Rotation of Overarm 360 Degrees
Overarm Adjustment 15”
Spindle Nose to Table 0” – 17 ½”
Standard Features
Heavy Cast Iron Construction
Dove Tail Ways on Knee & Column
“Turcite – B” Inserted Guideways
Double Table Locks
Wipers on Saddle and Column
Rack and Pinion Ram Movement
Head Tilts and Swivels
Built in Coolant System
One Shot Lubrication
Adjustable Longitudinal Table Stops

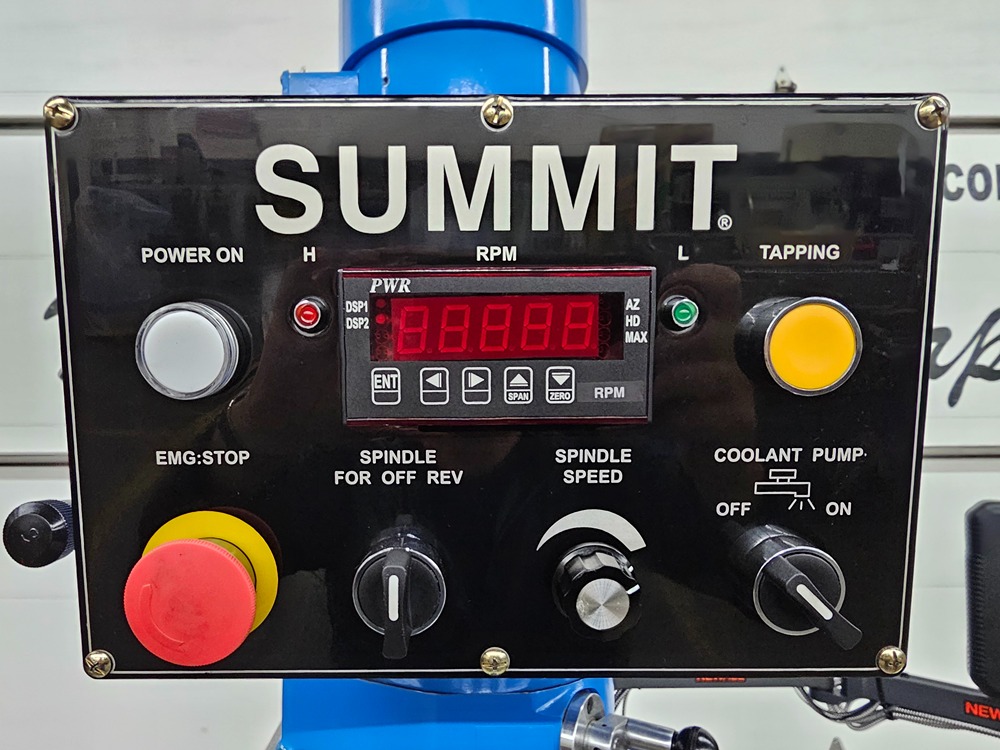

Complete Electrics with Low Voltage Controls
Inverter Duty, High Energy – High Efficiency Motors
Compact AC Inverter Drives
Electronic Inverter Controlled Braking
Included Accessories
Oil Gun
Clamping Kit
Draw Bar
Service Wrenches and Tools
R-8 Collet Set
Way Covers
Halogen Work Light
Chip Pan
Options

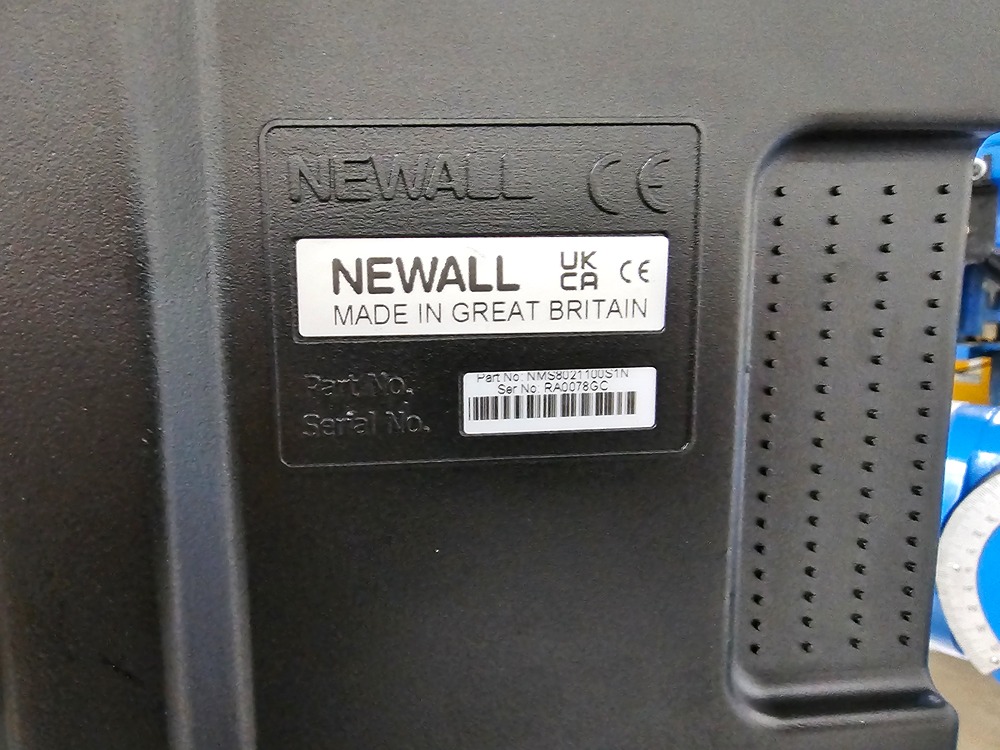

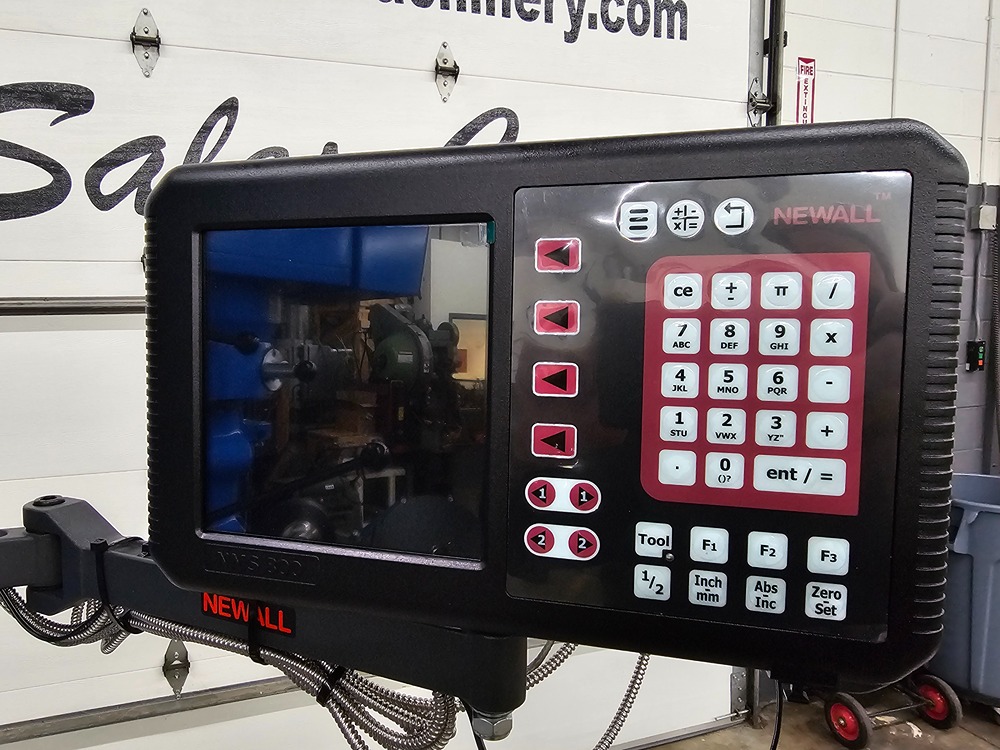

Newall 2 Axis Digital Readout Installed

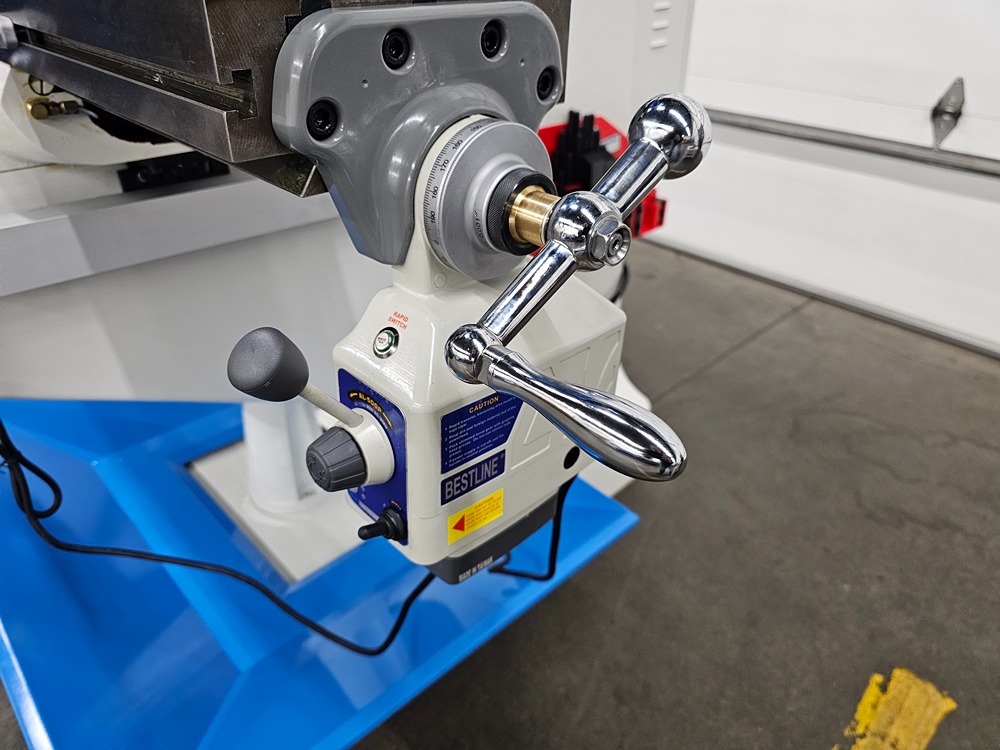

X Axis Power Feed Installed
6” Vise

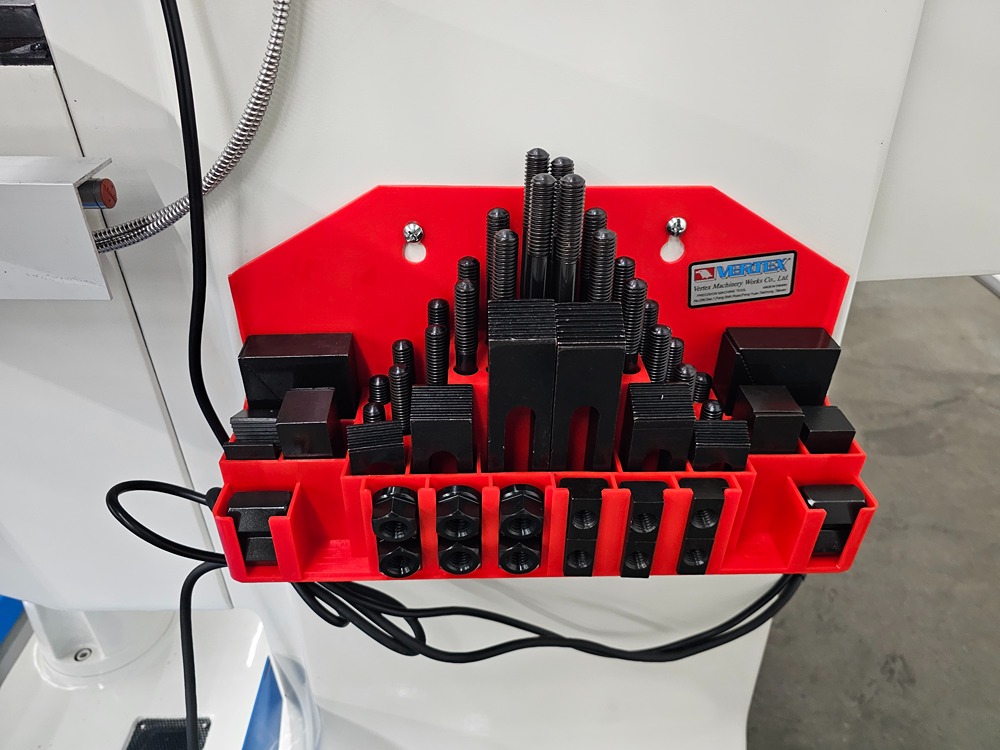

Hold Down Kit
Collet Rack and Set of R-8 Collets

Inquire Further with Naab Sales Corporation!
