For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

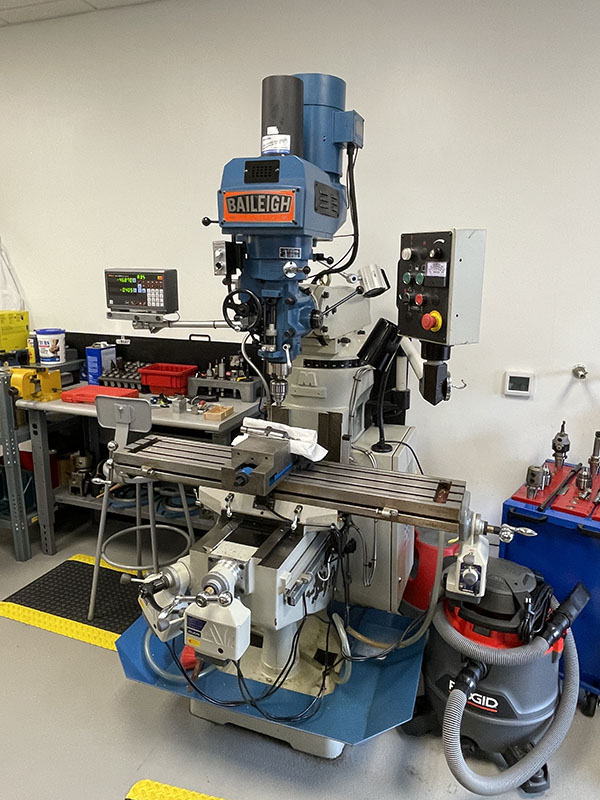

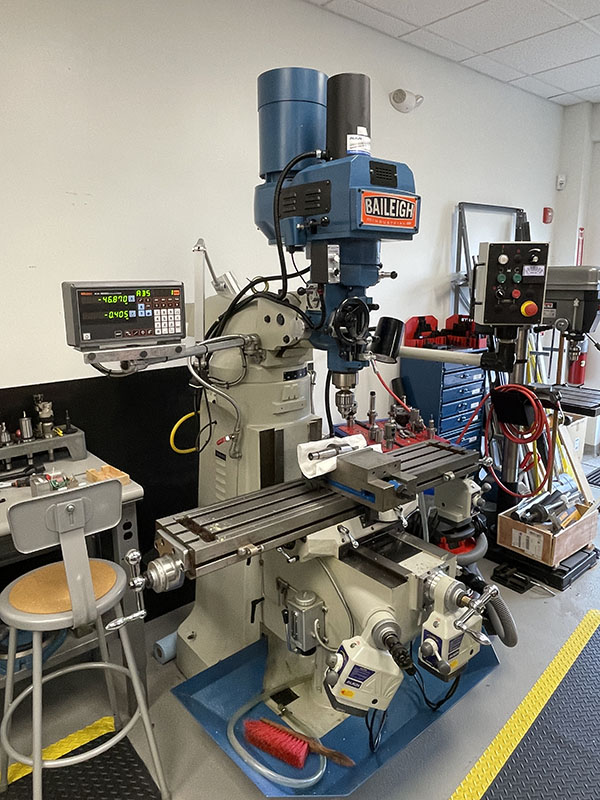

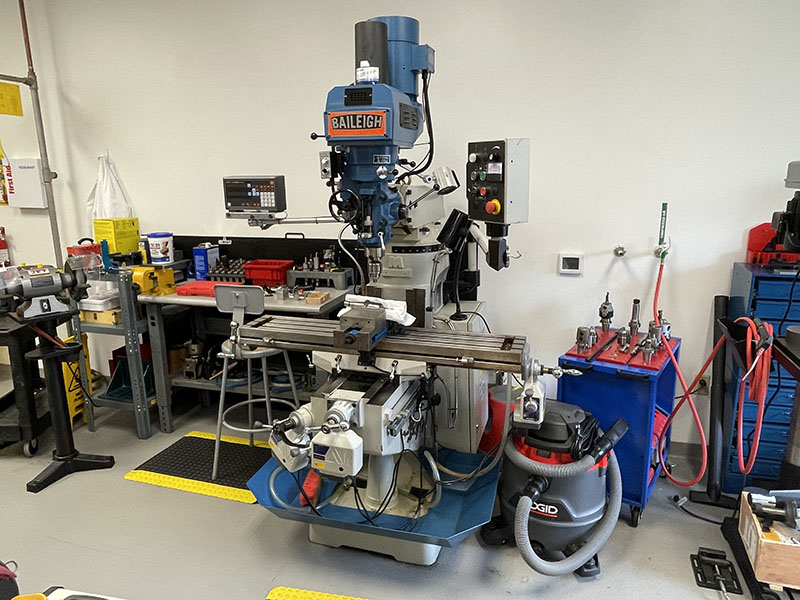

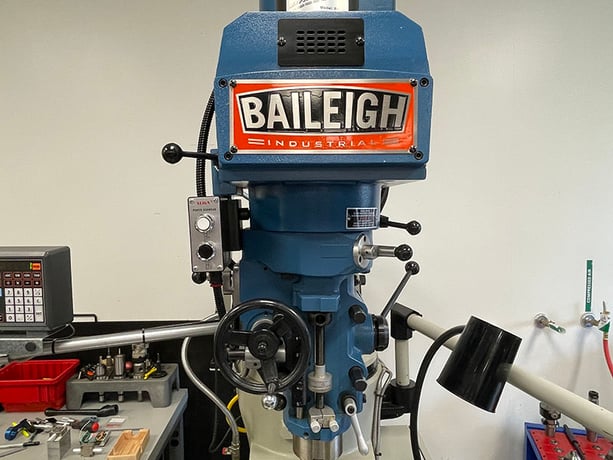

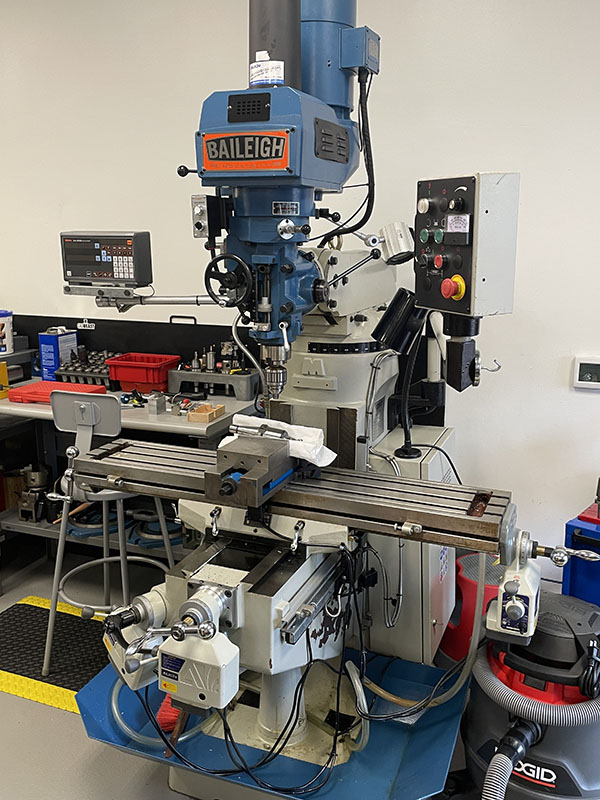

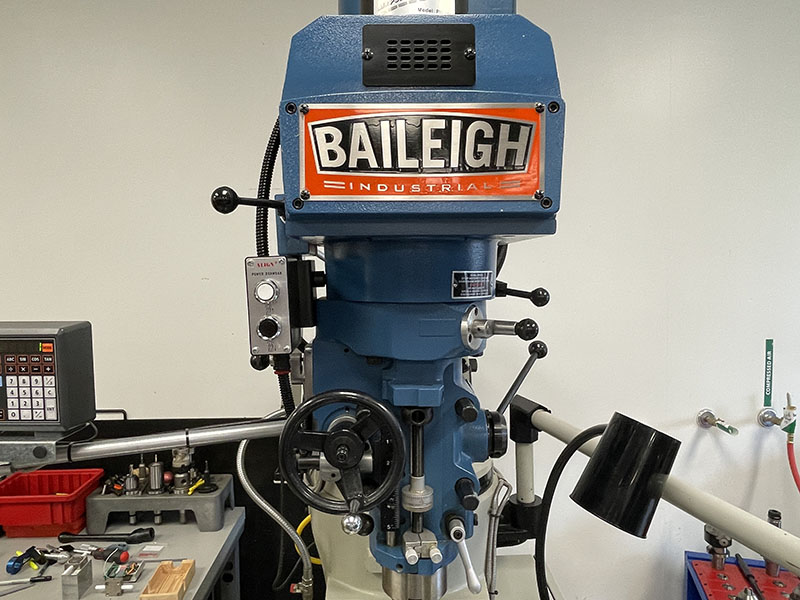

BAILEIGH VERTICAL MILLING MACHINE
MODEL: VM-949-3,… S/N: 18701,… MFG: 2021
SPECIFICATIONS:
TABLE SIZE .............................. 9" X 49"
NUMBER OF T-SLOTS .......................″
LONGITUDINAL TABLE TRAVEL ............... 28.5"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 18"
HEAD TILT, LEFT… RIGHT ................. 90°
HEAD TILT, FRONT… REAR ................. 45°
INFINITELY VARIABLE SPEED RANGE ......... 60 - 4,200 RPM
SPINDLE TAPER ........................... NST40
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,500 LBS
APPROXIMATE DIMENSIONS .................. 60" x 60" x 83"H
EQUIPPED WITH:
MITUTOYO TWO AXIS DIGITAL READOUT

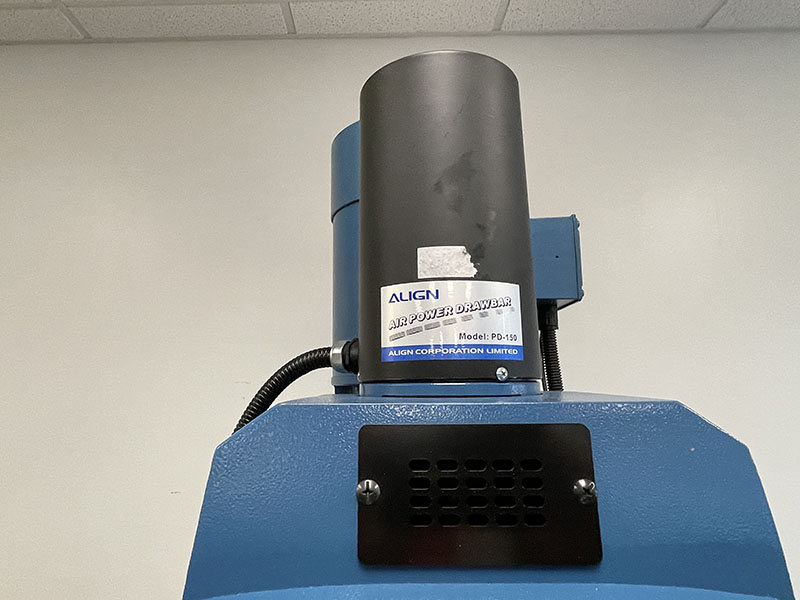

ALIGN AIR ACUATED POWER DRAW BAR
POWER FEED FOR LONGITUDINAL TRAVEL
POWER FEED FOR CROSS TRAVEL
POWER FEED FOR VERTICAL KNEE TRAVEL
ONE SHOT LUBRICATION SYSTEM
COOLANT SYSTEM WITH CHIP TRAY
VARIABLE SPEED THROUGH YASKAWA INVERTER DRIVE
3 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
